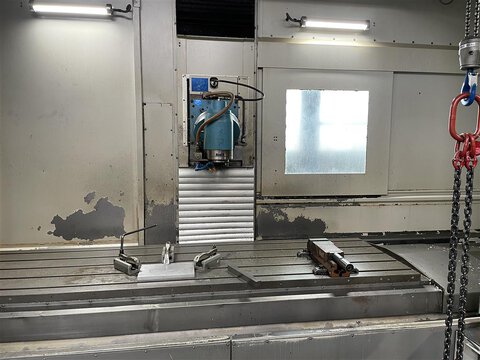

AUERBACH FBE 3000
Bed Type Milling Machine – Universal
Manufacturer: AUERBACH
- Construction year: 2001
- Control Name: Heidenhain TNC 426
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Milling machines > Bed Type Milling Machine – Universal
Product No. 3402-240403
Technical Details
| Total power requirement | 42 | kW |
|---|---|---|
| Weight of the machine ca. | 15 | t |
| Dimensions of the machine ca. | 9.5 × 5.3 × 3.2 | m |
| X-travel | 3000 | mm |
| Y-travel | 1000 | mm |
| Z-travel | 1000 | mm |
| Spindle turning speed range | 30 – 4000 | rpm |
| Feed range | 1 – 6000 | mm/min |
| Rapid feeds x/y/z | 15 | m/min |
| Table load | 10 | t |
| Clamping table | 3100 × 800 | mm |
| Spindle taper: ISO | 50 |
Machine with HEIDENHAIN TNC 426t CNC control
- universal milling head
- complete splash housing
- 3-D probe tester
- chip conveyor
- hand operating panel
