Behringer Rollgang TMS


This machine tool was already sold. Please contact us and we will try to get a similar machine tool for you.

Manufacturer: BEHRINGER

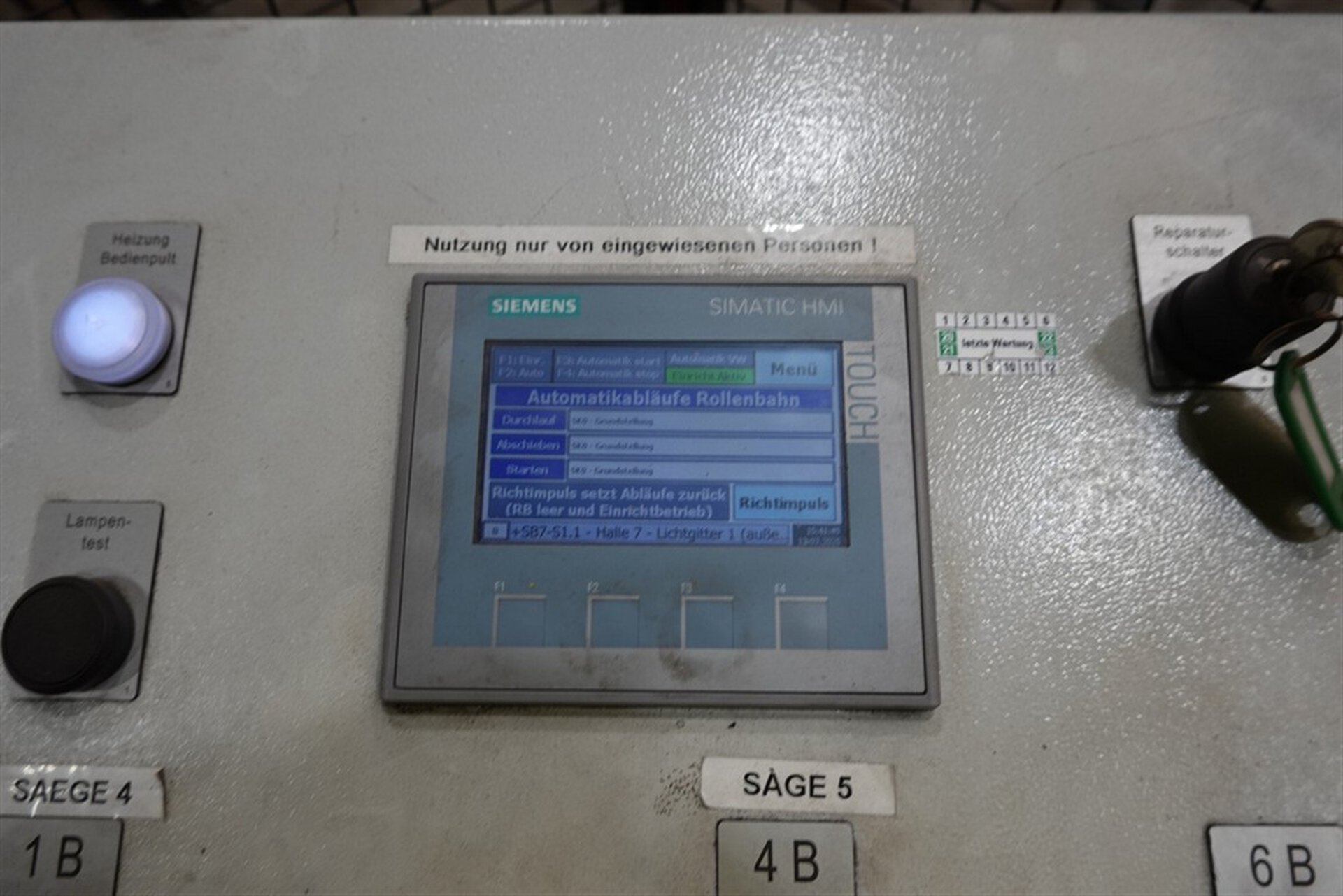

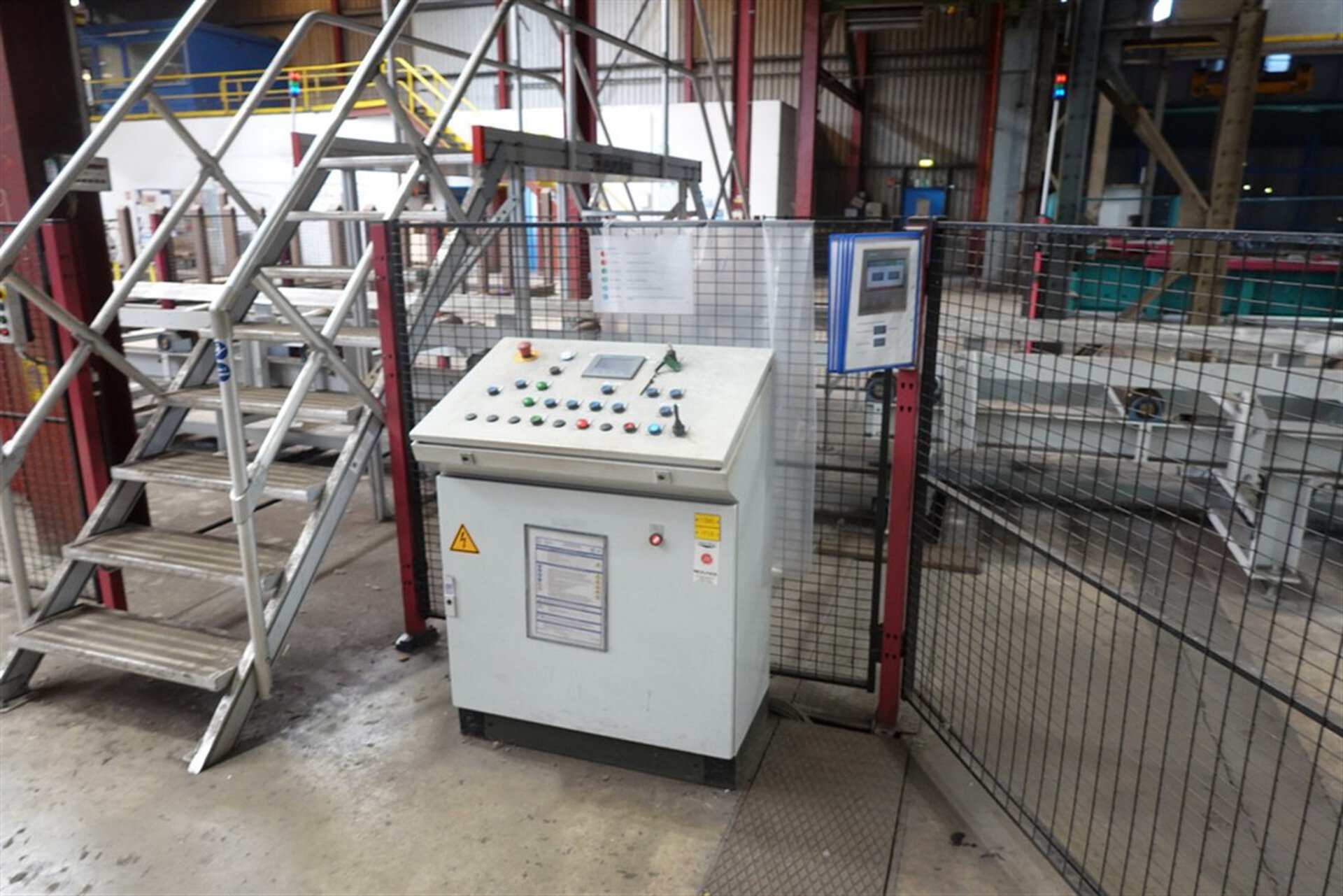

  • Control Name: Siemens Siematic HMI
  • Control Type: PLC

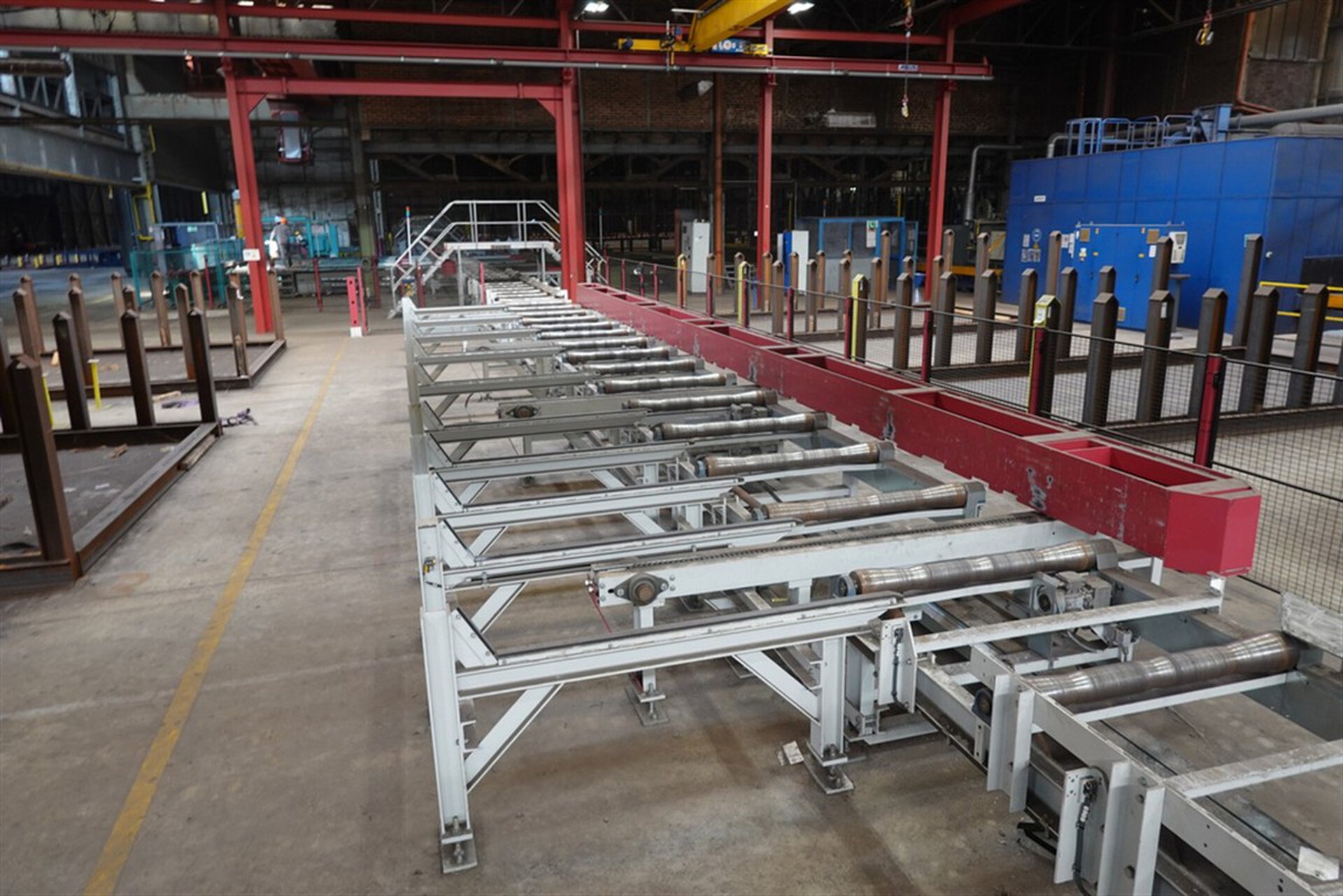

As good as new, stable Behringer transport system

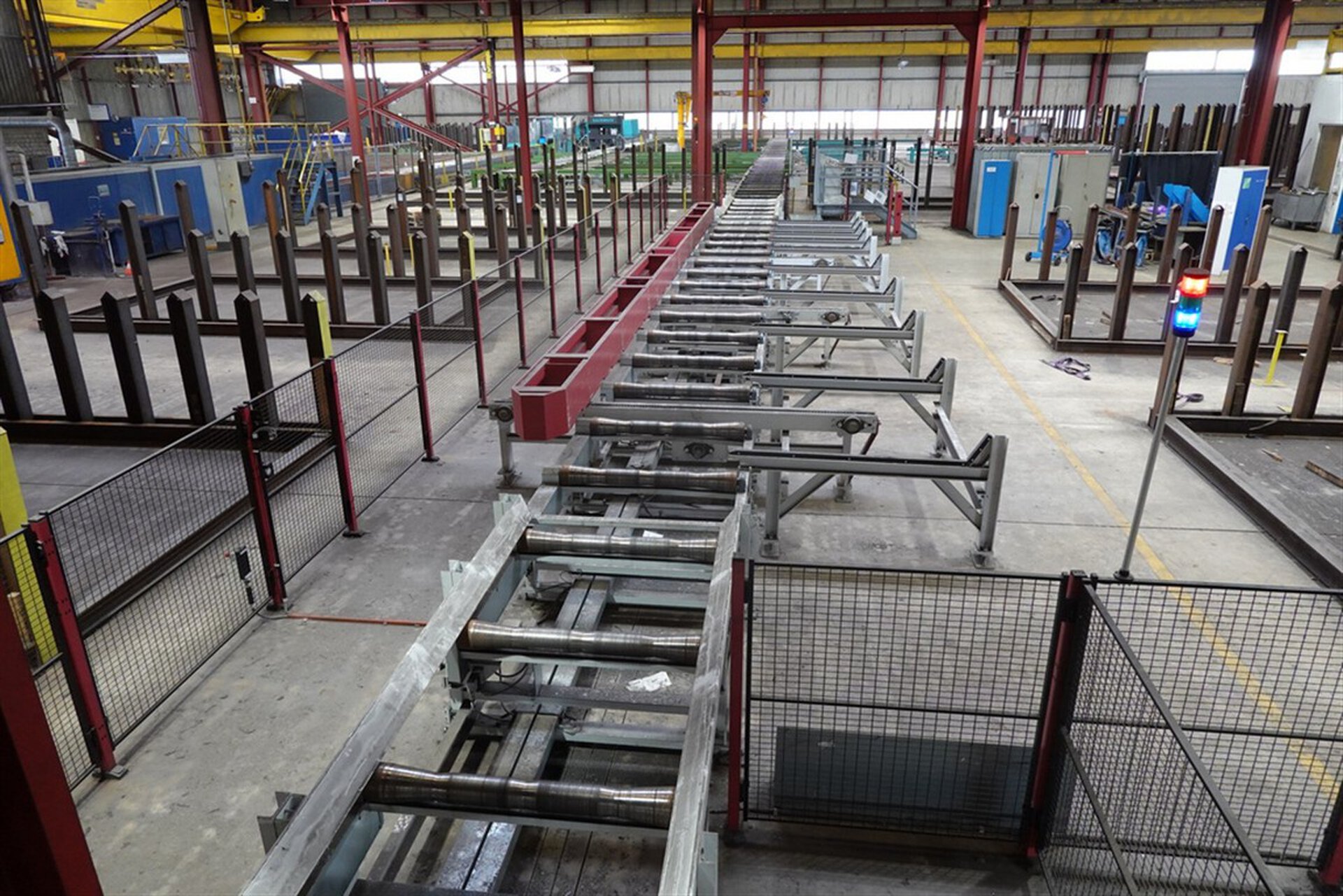

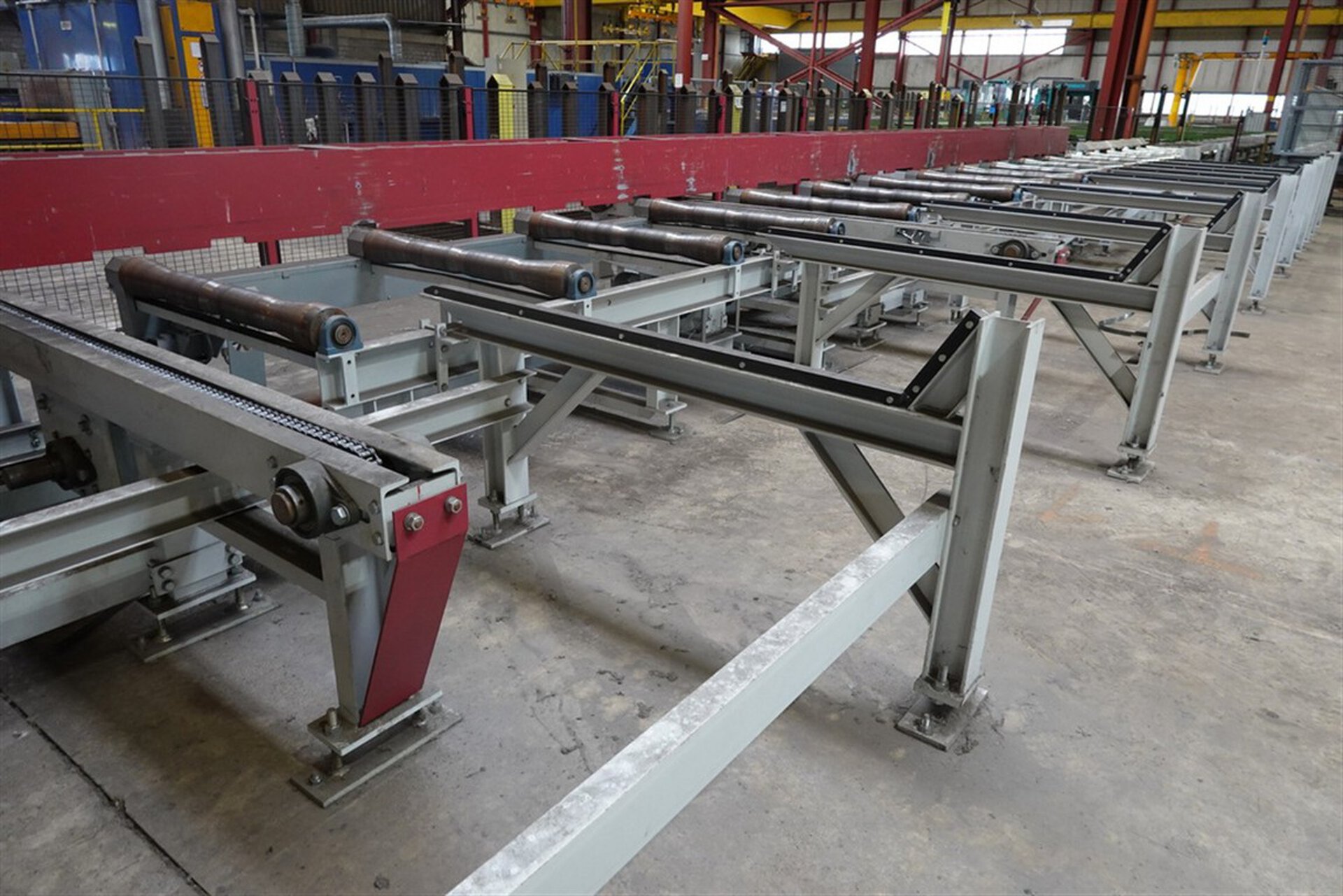

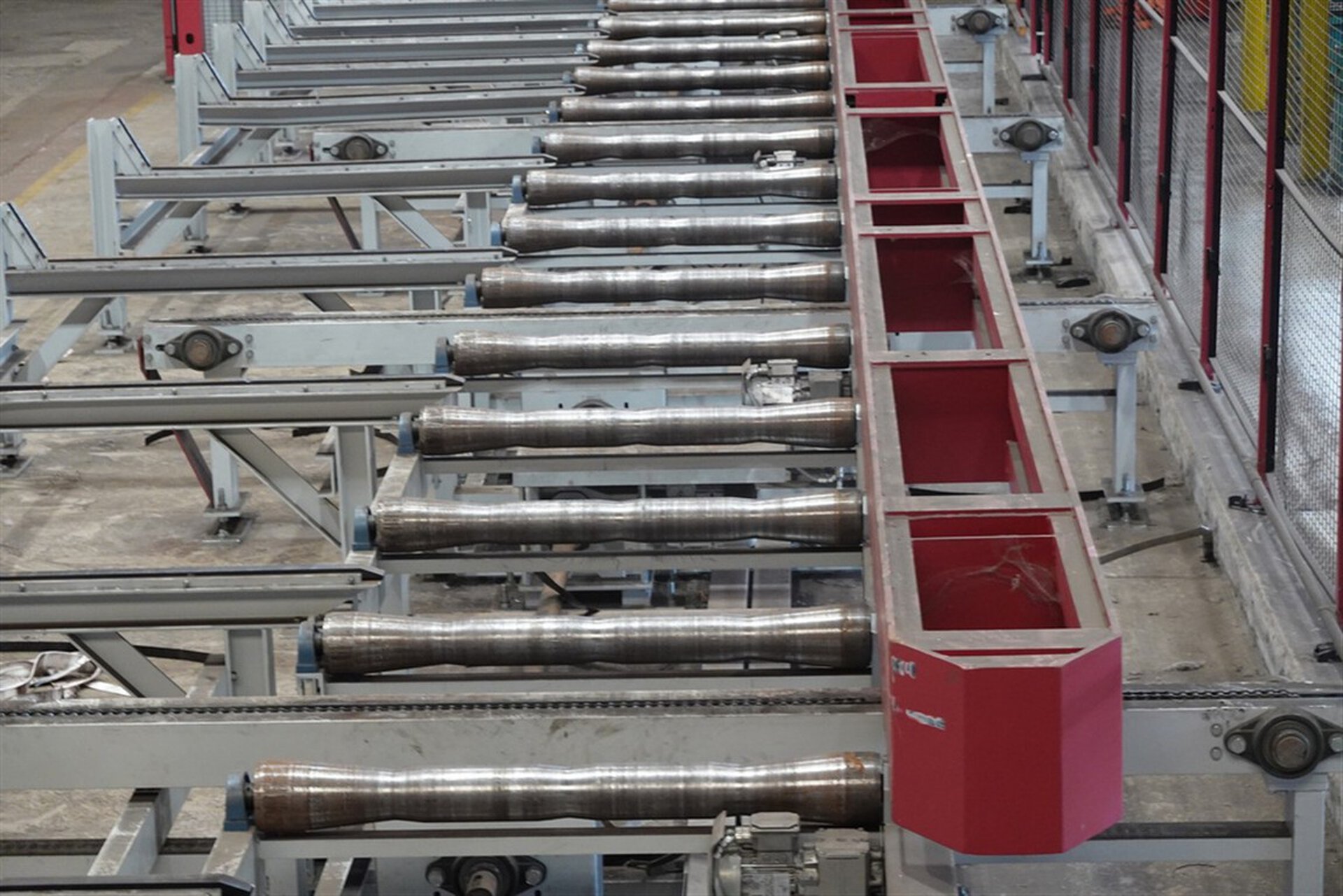

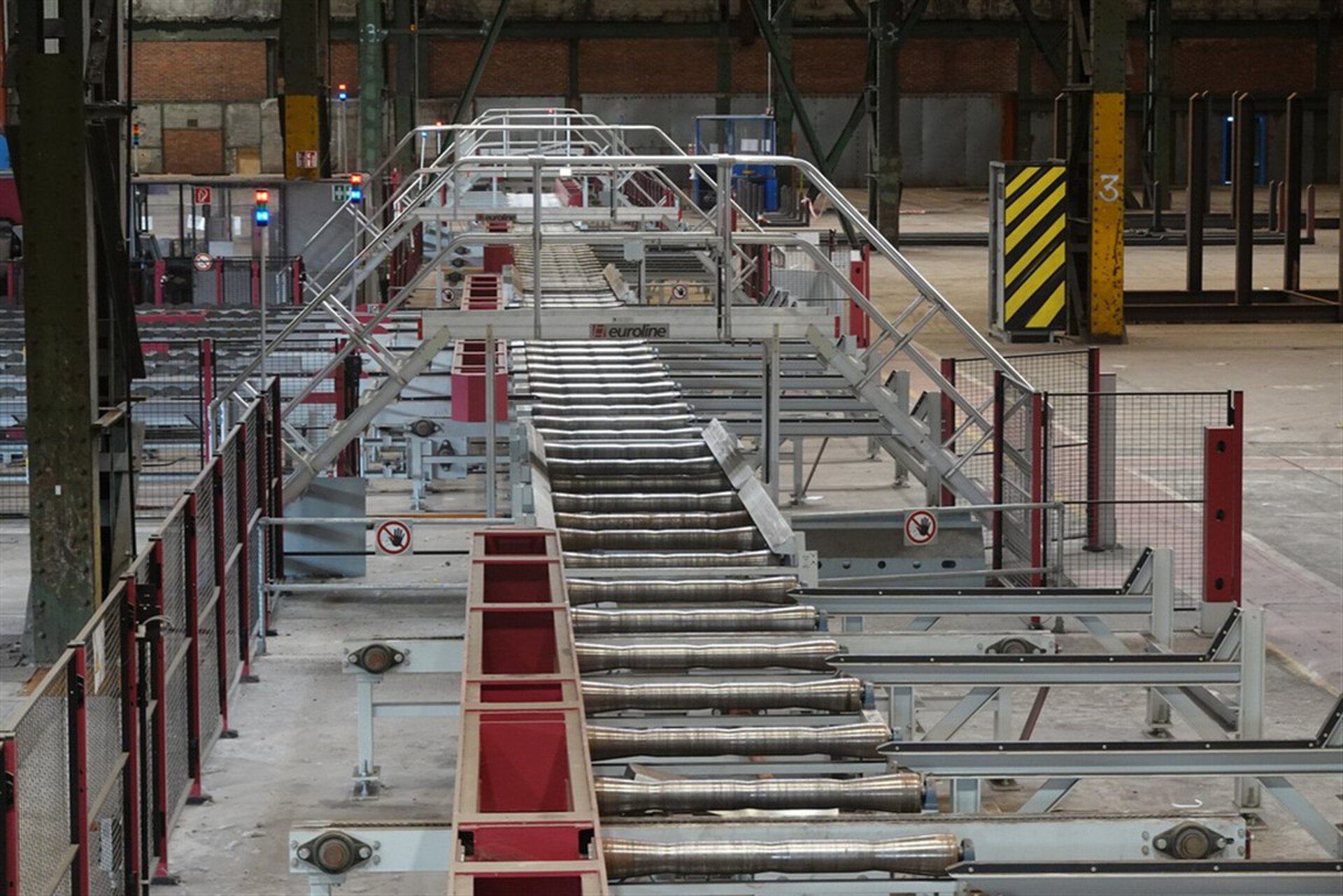

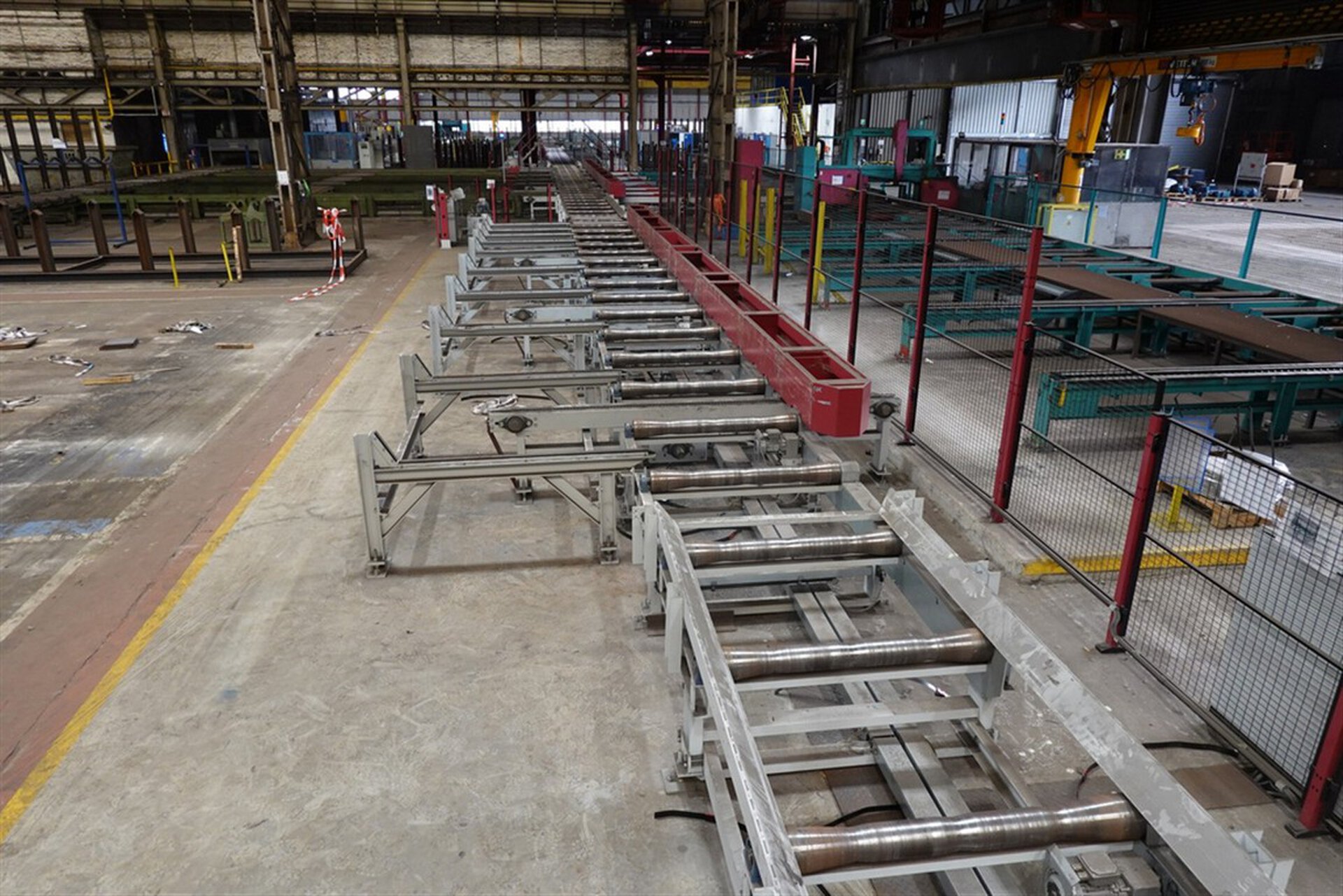

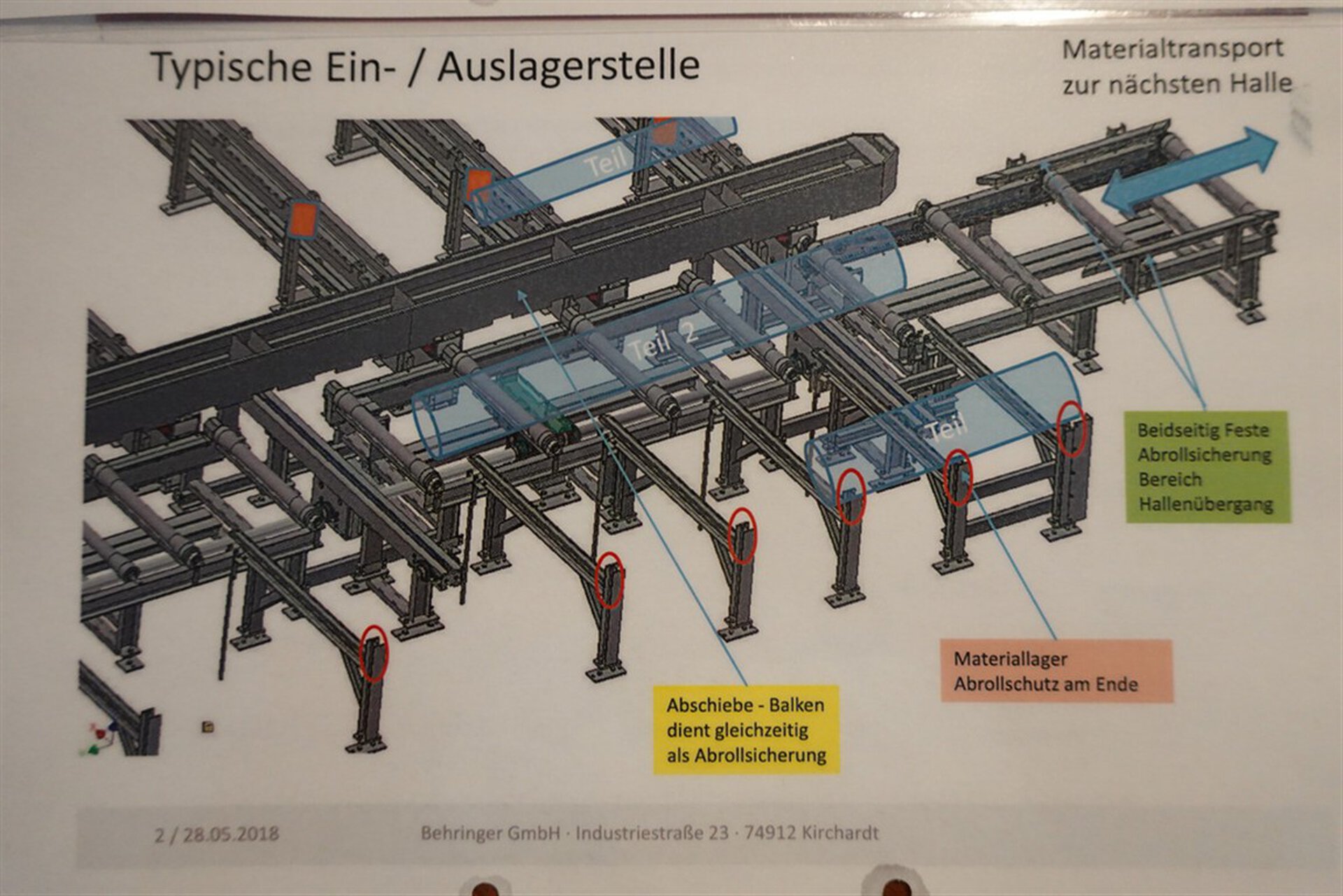

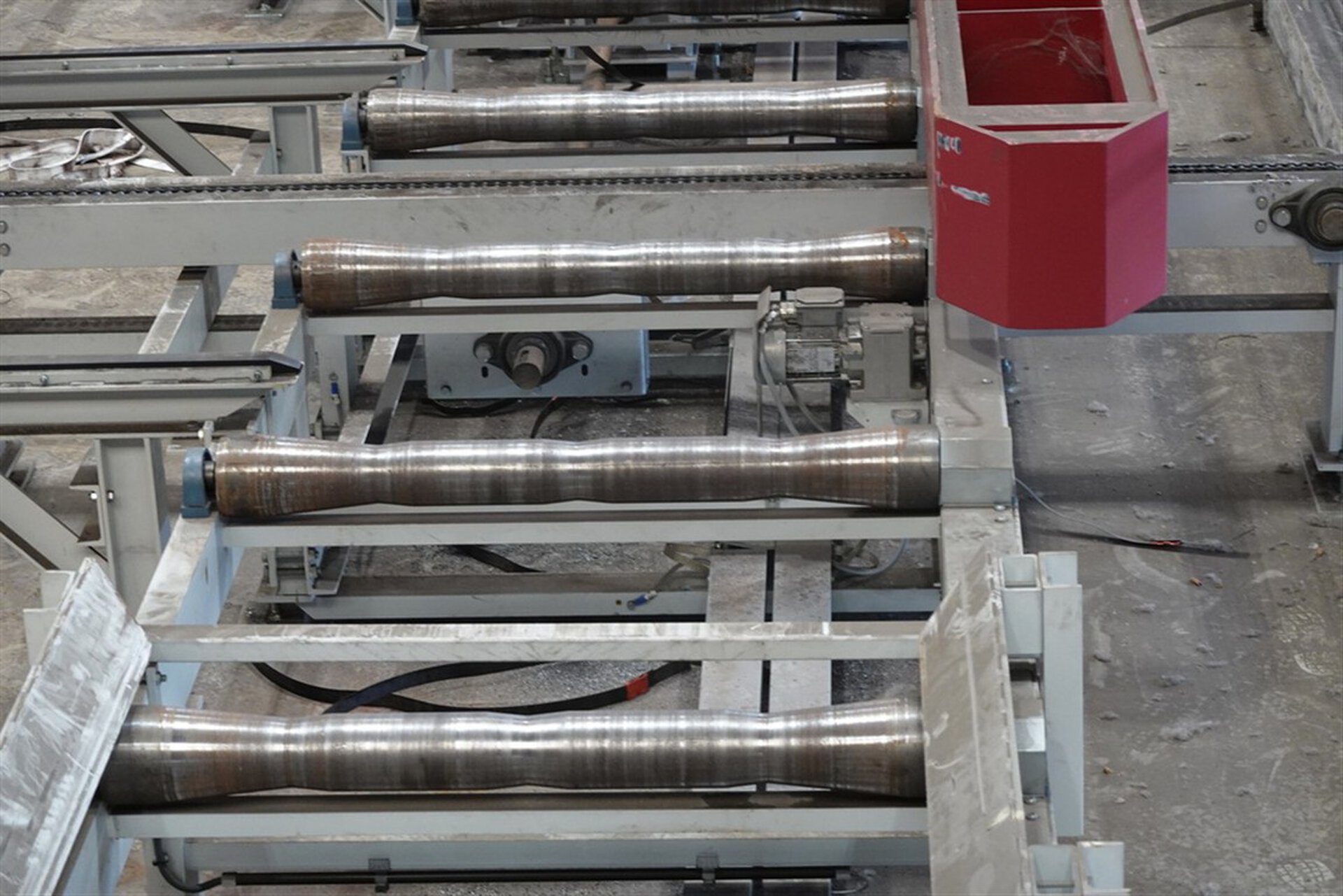

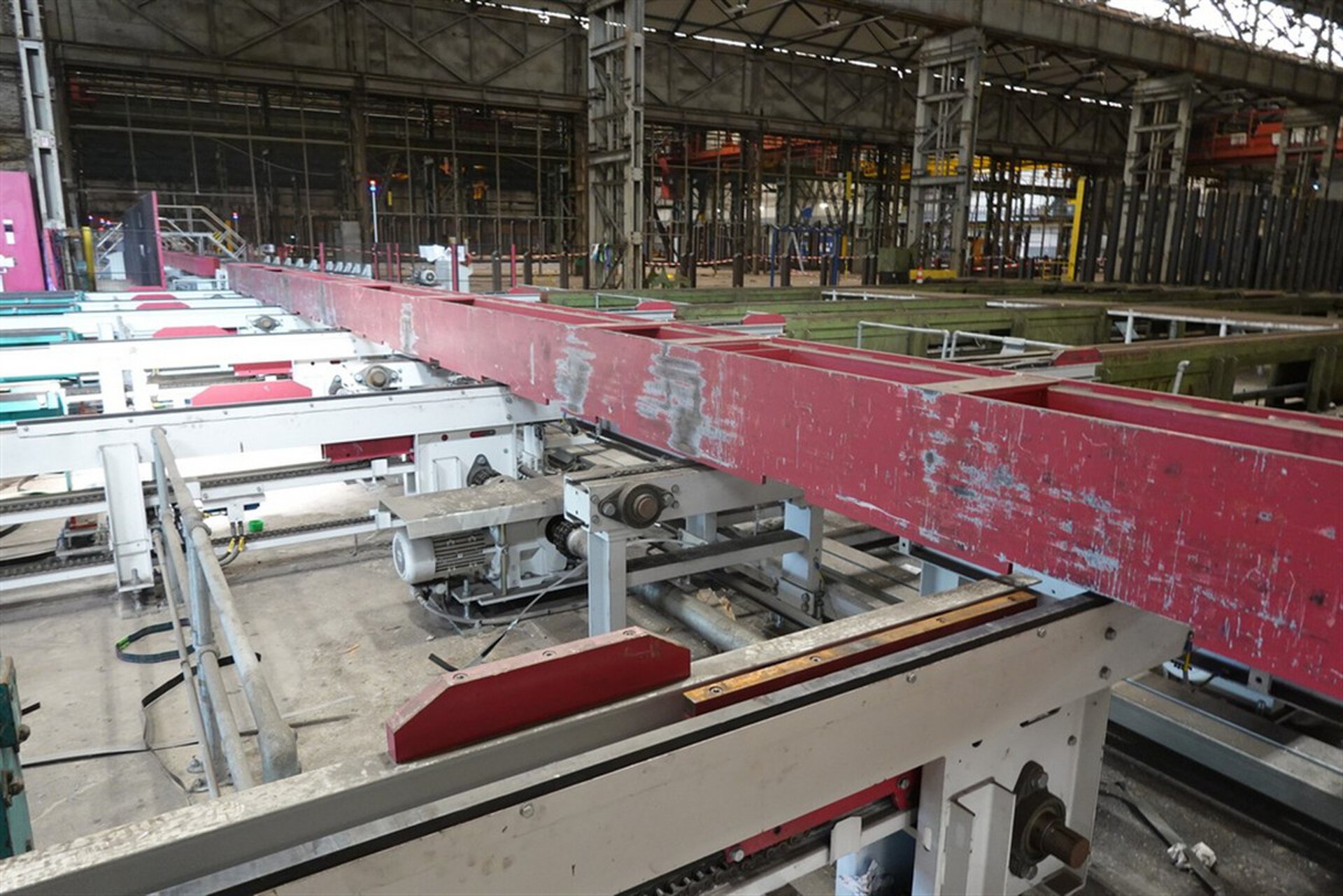

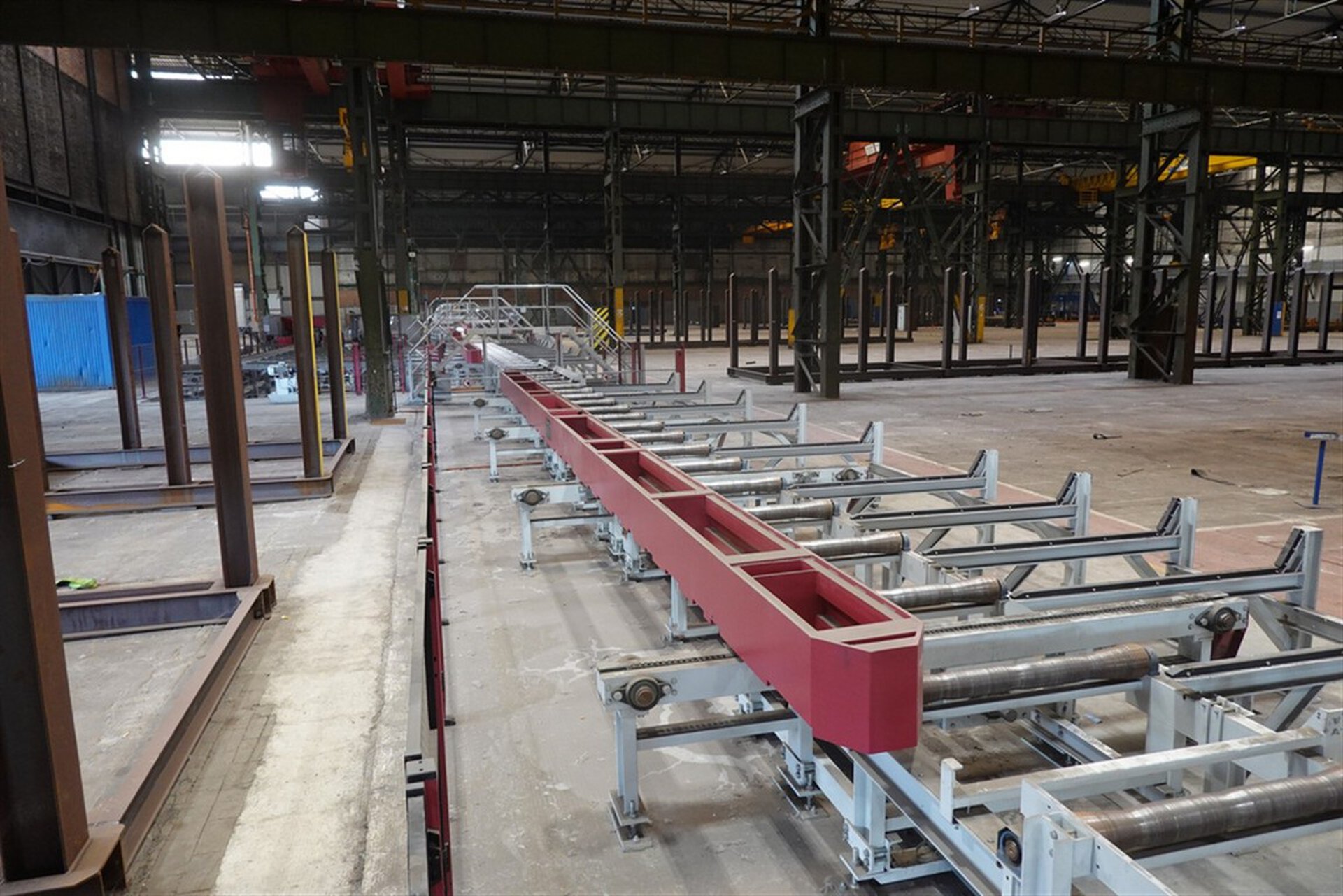

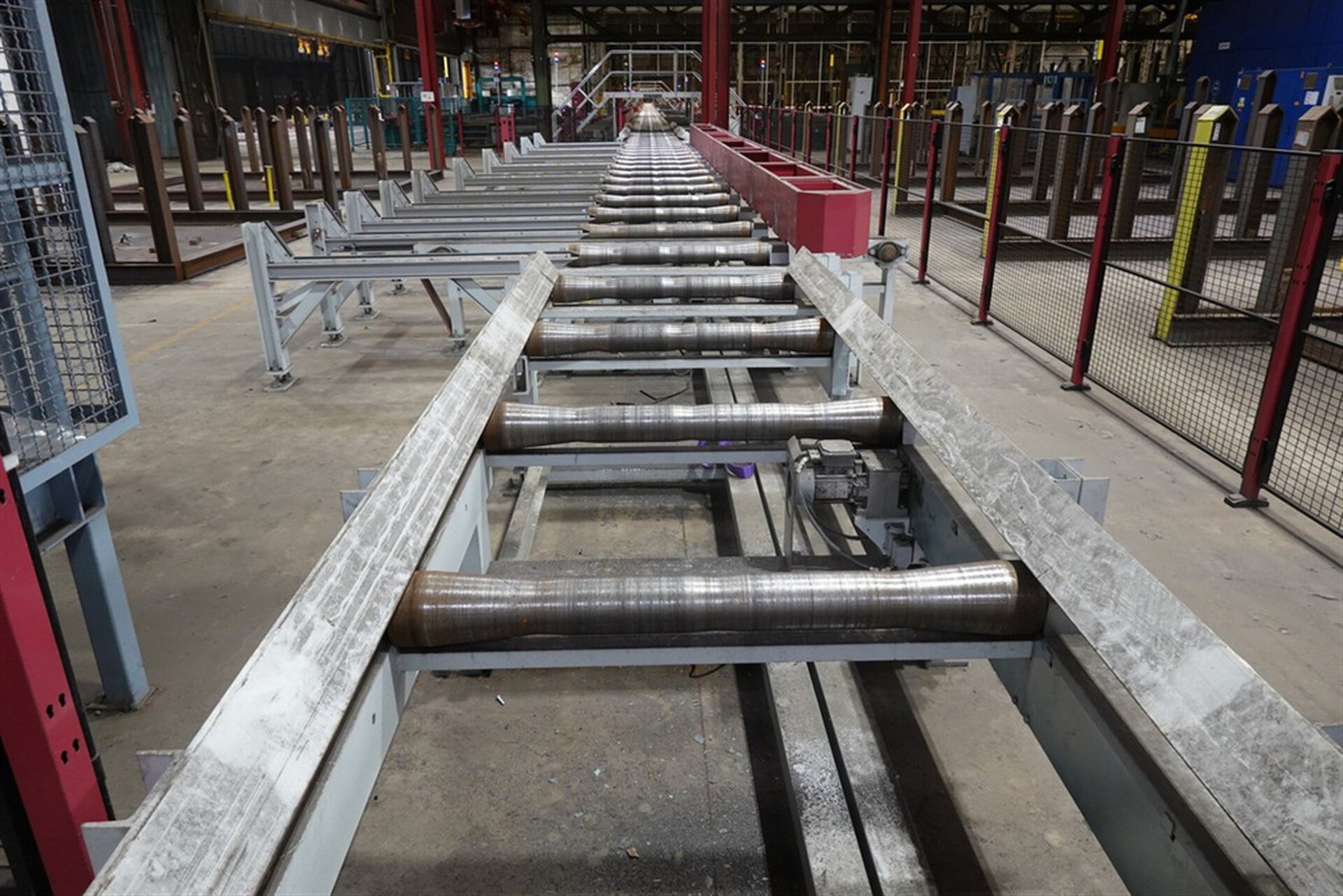

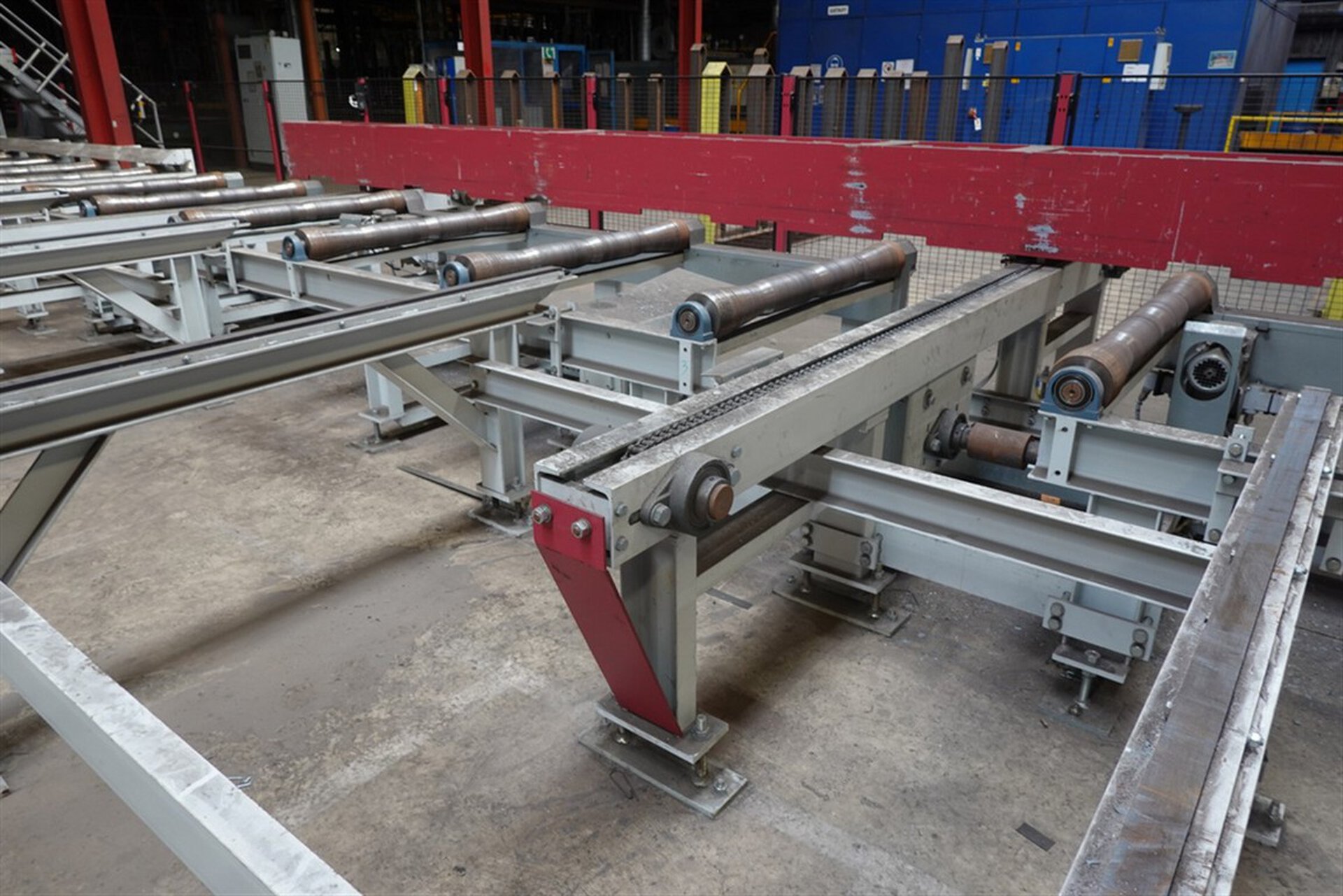

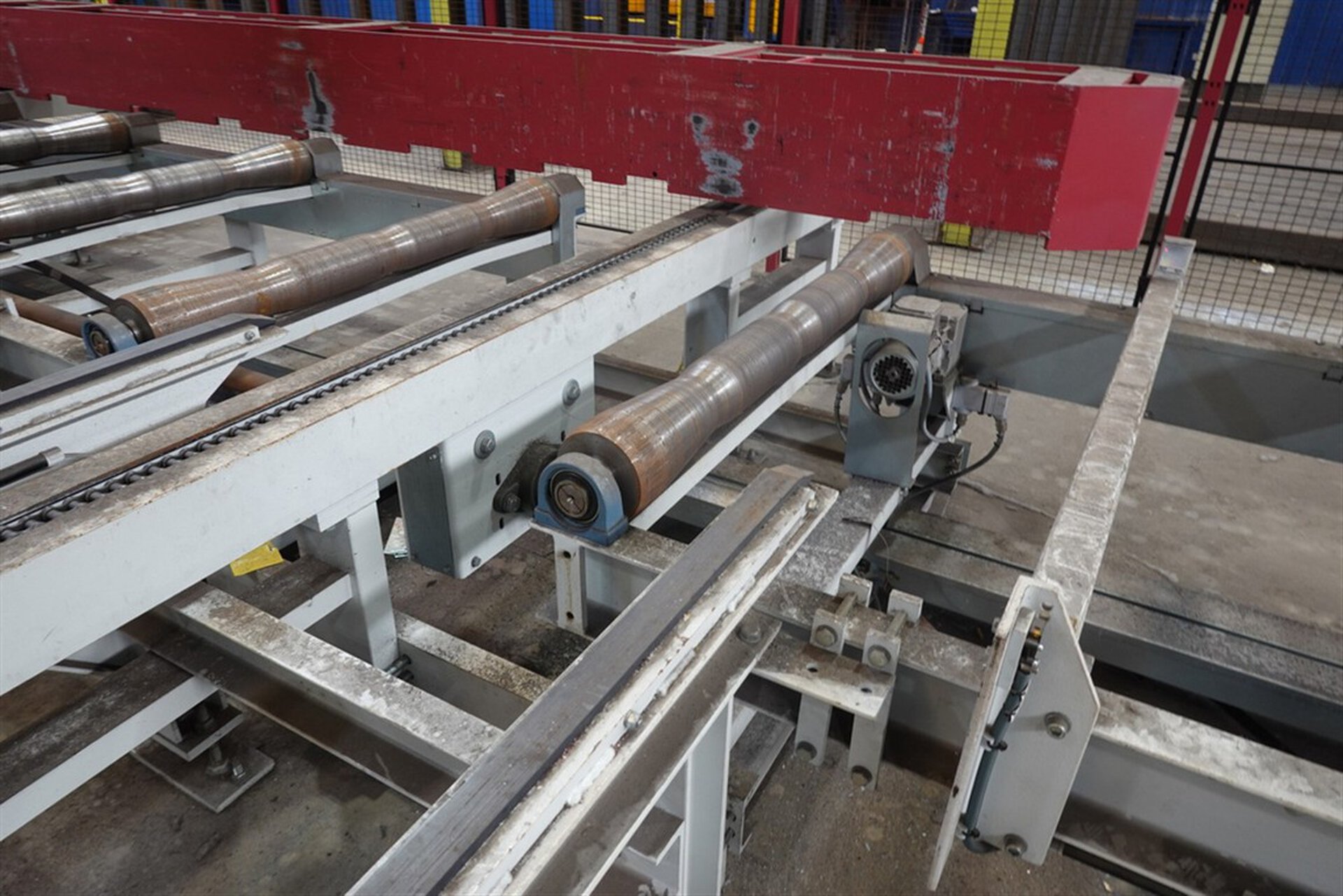

Roller conveyor and cross tractor system for transporting
steel pipes and solid material
incl. light grid and light barriers for
professional use steel processing / steel trade

System components:
Roller conveyor length 150 m
Roller conveyor height 750 mm
Roller conveyor width 1,200 mm
Steel tubes diameter 50–640 mm
Flat material min. 40 × 40 mm, max. 500 mm × 300 mm

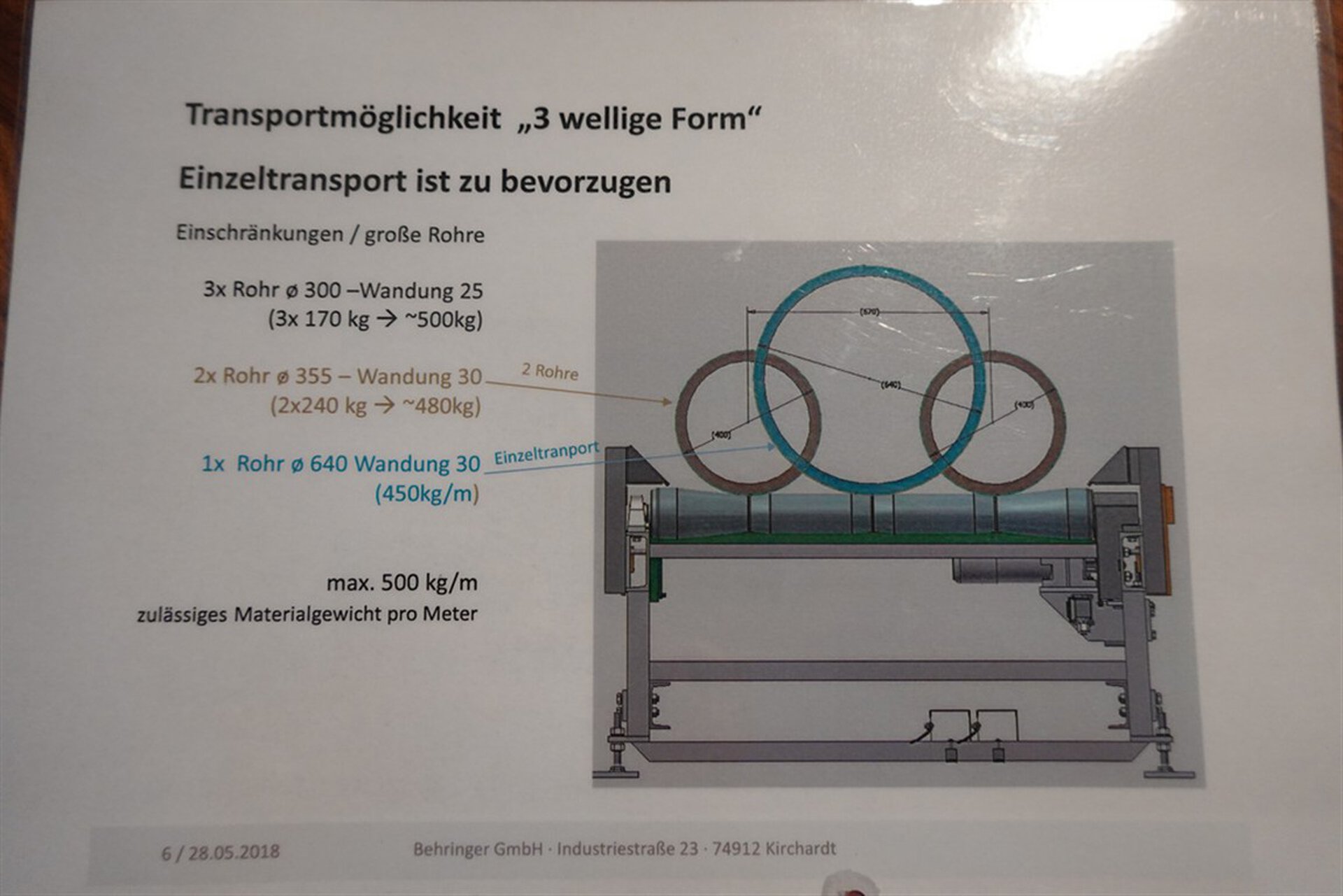

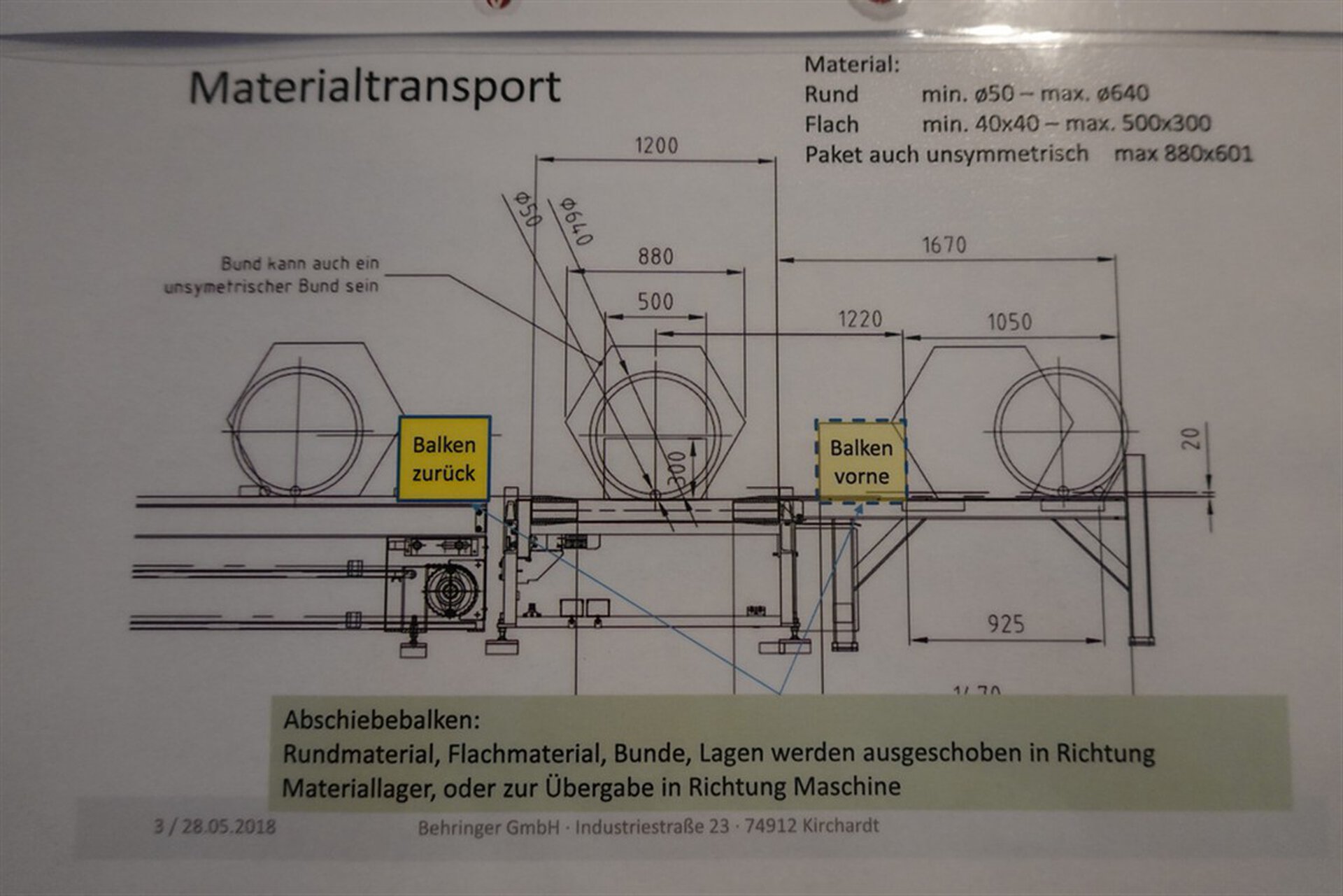

Material dimensions for the transport layout:
Round tubes 50 × 3 mm – 640 × 30 mm
Packages of hexagonally bound round tubes 880 × 601 mm
Rectangular tubes 40 × 40 mm – 500 × 300 mm
Transport lengths 2,200 – 14,500 mm ( 15,000 mm )
Material weights max 500 kg/m
Transport speed 2 – 4 m/min frequency-controlled
Safety protection areas / safety matrix

Further detailed information on request
