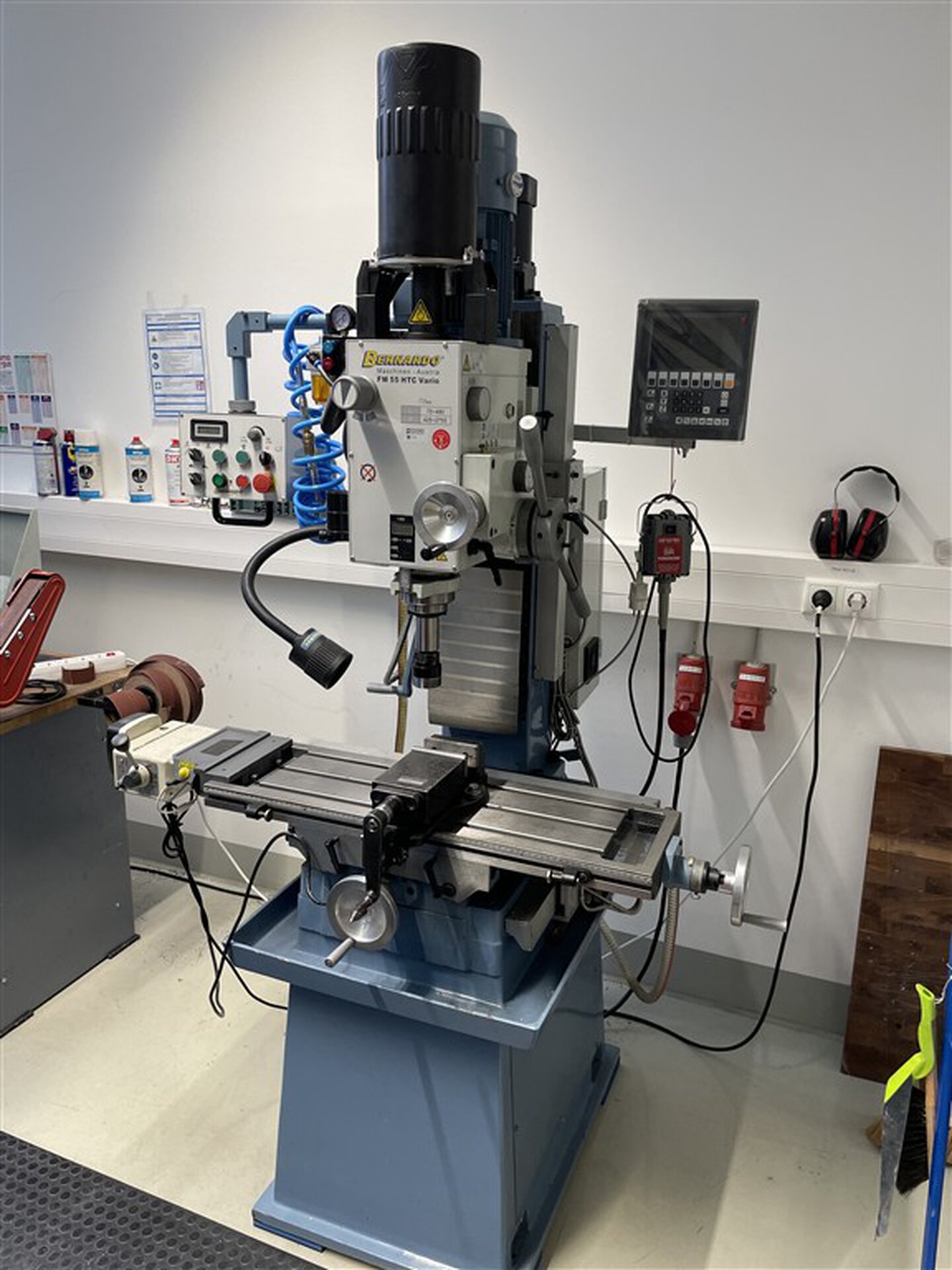

Bernardo FM 55 HTC Vario
Drilling and Milling M/C

Photo:

  • Photo:
  • Photo:
  • Photo:
  • Photo:
  • Photo:
  • Photo:

Price is negotiable

Manufacturer: Bernardo

  • Construction year: 2020
  • Control Type: conventional
  • Metal Processing > Boring mills / Machining Centers / Drilling machines > Drilling and Milling M/C
  • Status: Used

Product No. 3402-251207

Technical Details

Bore capacity in steel (diameter) 32mm
X-travel 420mm
Y-travel 200mm
Bore capacity in cast iron 40mm
Throat 220mm

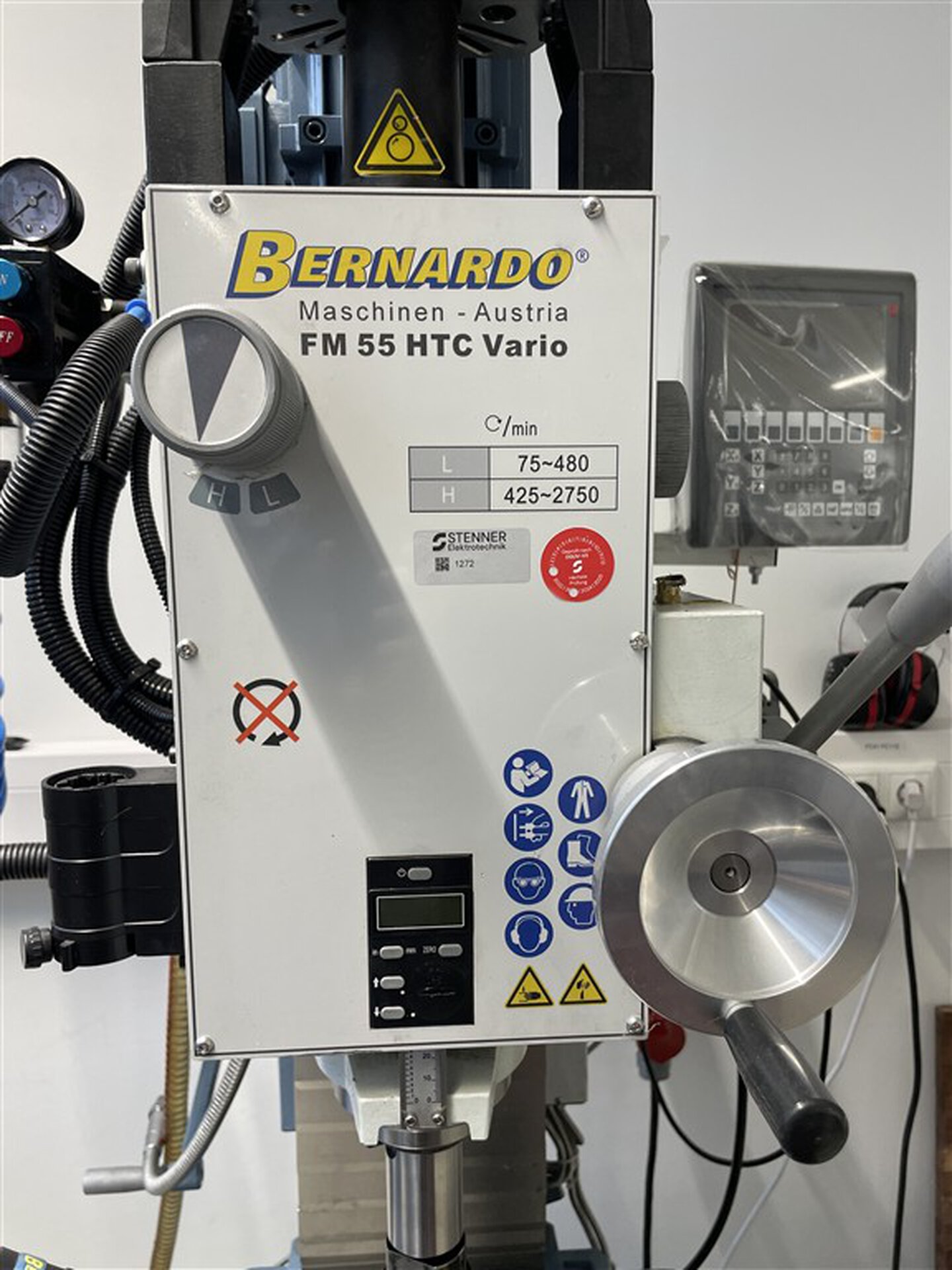

Spindle turning speed – stepless 75 – 480 / 425 – 2.750rpm
Spindle taper ISO 30
Quill stroke 125mm
Quill feed (3) 0,10 / 0,18 / 0,26 mm /U

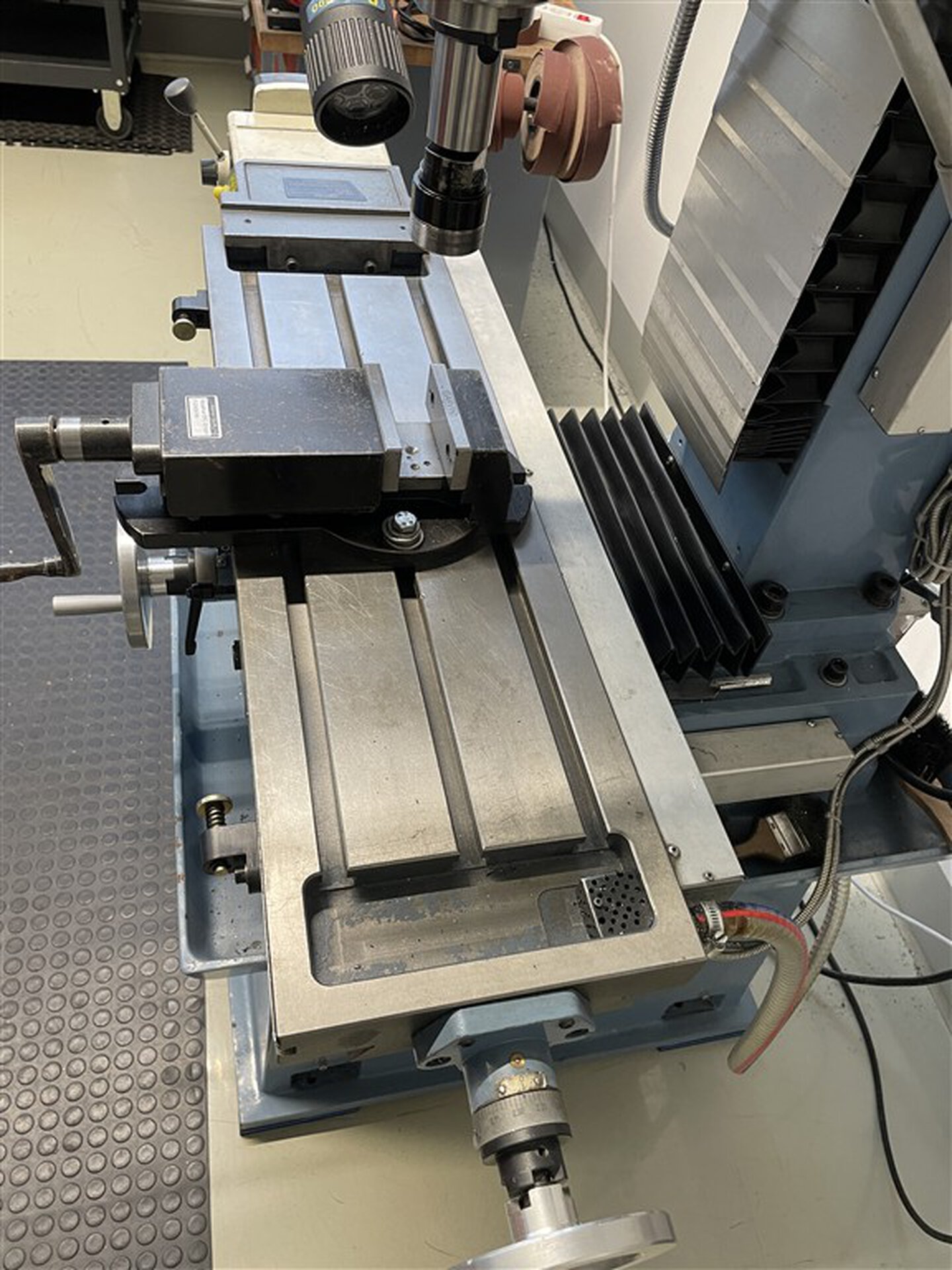

Table-size 800 × 240mm

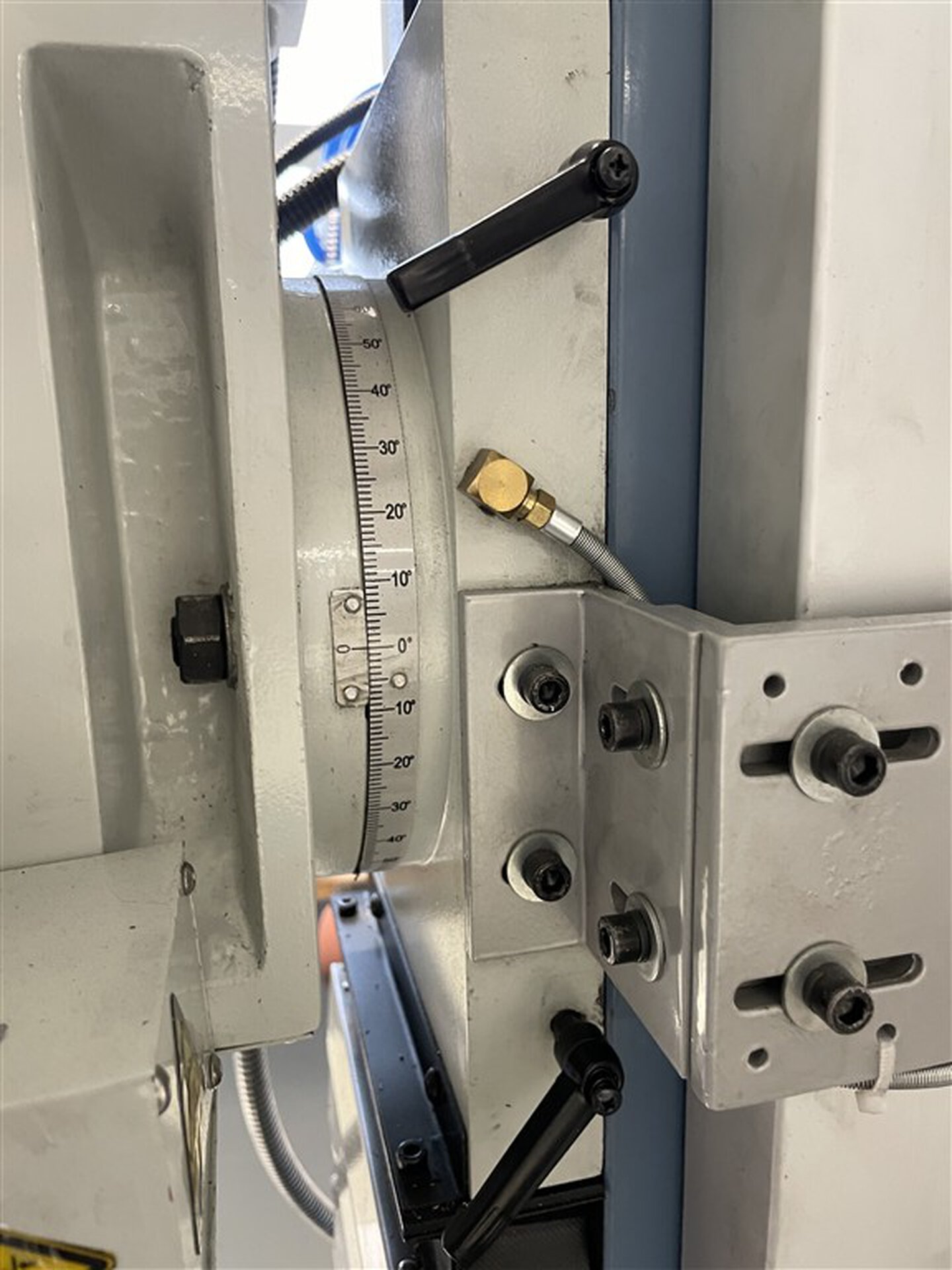

Milling head -swivable -60 bis +60degree
Distance spindle /table 95 – 485mm
Height adjustment 390mm
Stroke drive 90kW
Motorleistung 1.5kW
Weight of the machine ca. 455 t
Dimensions of the machine ca. 1,270 × 960 × 2,120 m
Engine output 1.5kW

Features

*Standard with automatic quill feed and thread-cutting device
*Variable speed control via Delta frequency converter with optimized torque curve
*Versatile applications such as slot milling, face milling, boring, etc.
*Convenient height adjustment of the milling head via lifting motor
*High stability thanks to dovetail guide of the gearbox head
*Standard with digital display for speed and quill feed
*Manual central lubrication for all guideways

Scope of Delivery:

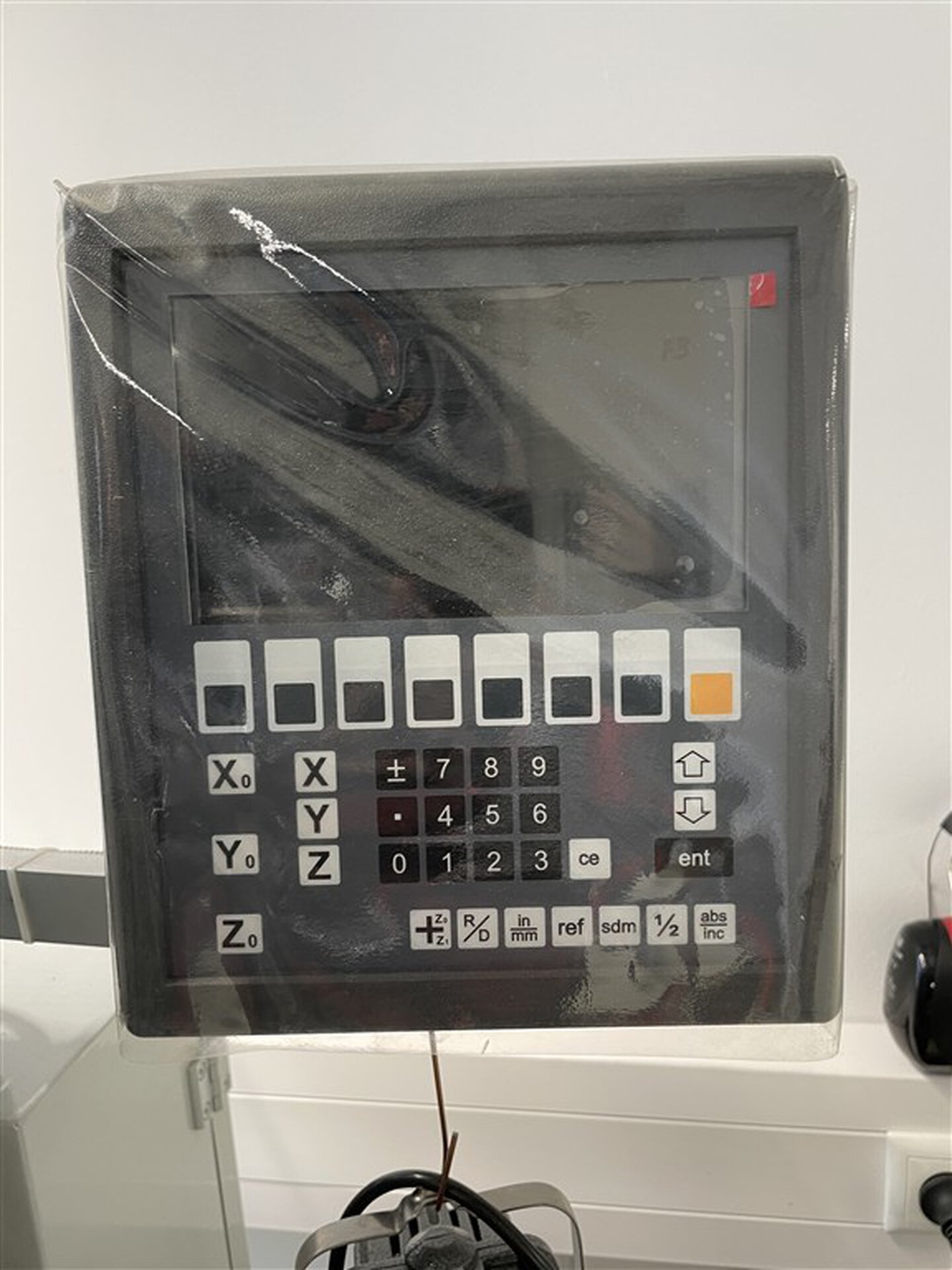

*3-axis digital display i200 with LCD screen
*Quick-change drill chuck 3 – 16 mm / B 16
*Drill chuck arbor MK 4 – B 16
*Draw-in spindle M 16
*Reducer sleeve MK 4 / 3
*Combination milling arbor MK 4 / 27 mm
*Automatic quill feed
*Pneumatic tool clamping
*Height-adjustable protective cover
*Lift motor for milling head
*Central lubrication
*x-axis feed AL 450 D
*Delta VFD-E frequency inverter
*LED machine light
*Digital speed display
*Digital quill travel display
*Thread cutting attachment
*Lamella protective cover
*Coolant system
*Longitudinal measuring scale
*Cast iron base with coolant tray
