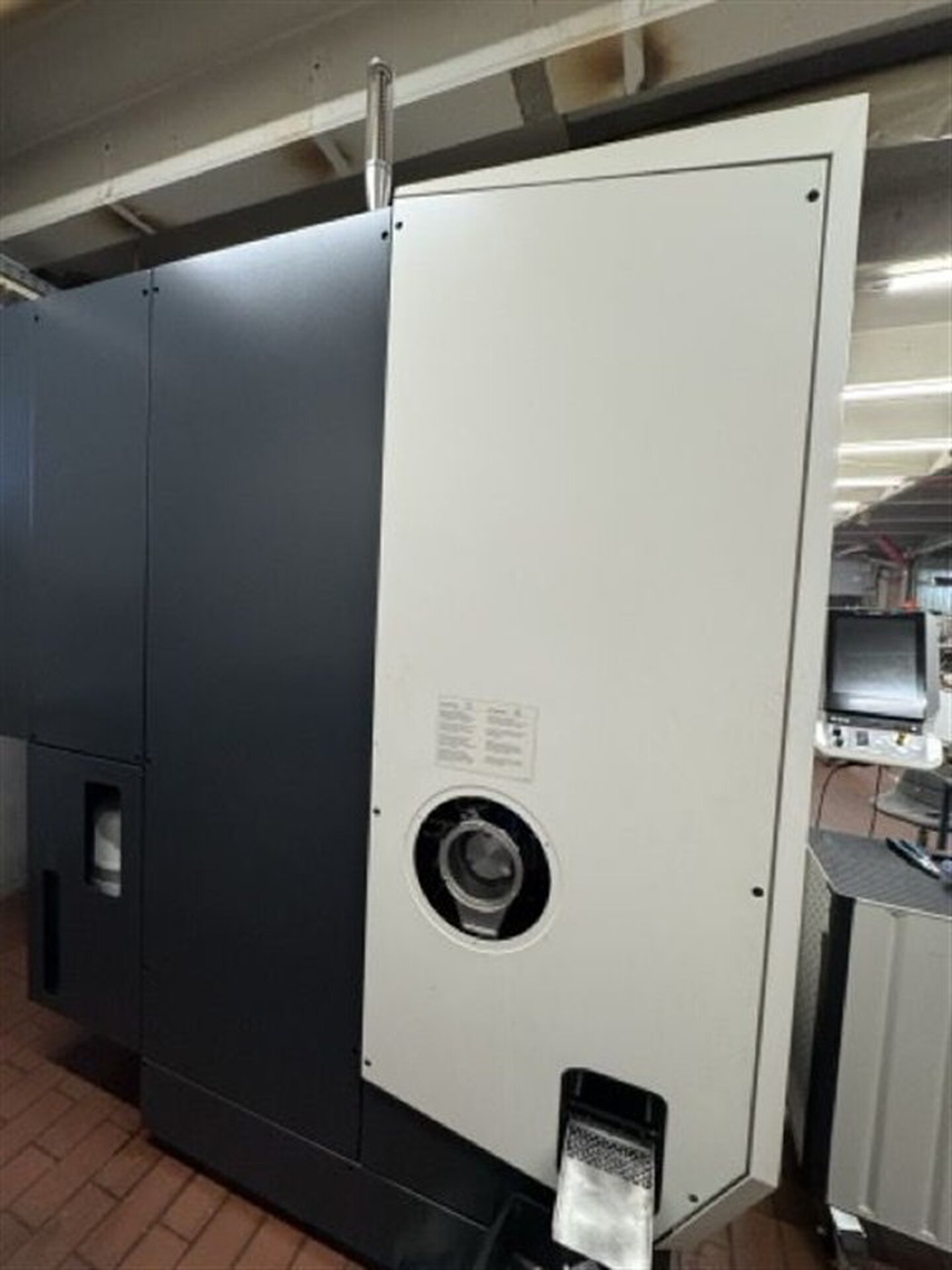

DMG MORI CLX 450 TC
CNC Turning- and Milling Center
Price is negotiable
Manufacturer: DMG MORI
- Construction year: 2022
- Control Name: Siemens 840D
- Control Type: CNC
- Metal Processing > Lathes > CNC Turning- and Milling Center
- Status: Used
Product No. 3402-250917
Technical Details
| Turning diameter | 400 | mm |
|---|---|---|
| Turning length | 1100 | mm |
| RPM Main Spindle | 5,000 | 1/min |
| Power requirement | 14 / 17 | kW |
| Torque | 275 / 345 | |
| Spindle bearing diameter | 120 | mm |
| Bar material dia. | 67 | mm |
| X-axis | 750 | mm |
| Z-axis | 1,100 | mm |
| Y-axis | +/- 100 | mm |
| Rapid power traverse in X-and Z direction | 40 | m/min |
| Rapid motion – y-axis | 40 | mm/min |
| Torque B-axis | 410/325 | Nm |
| Swival range +/- | 120 | ° |
| Spindle turning speed range | 12,000 | rpm |
| Spindle motor | 10.5 | kW |
| Total power requirement | - | kW |
| Weight of the machine ca. | 10 | t |
| Dimensions of the machine ca. | 3.9 × 2.7 × 2.5 | m |

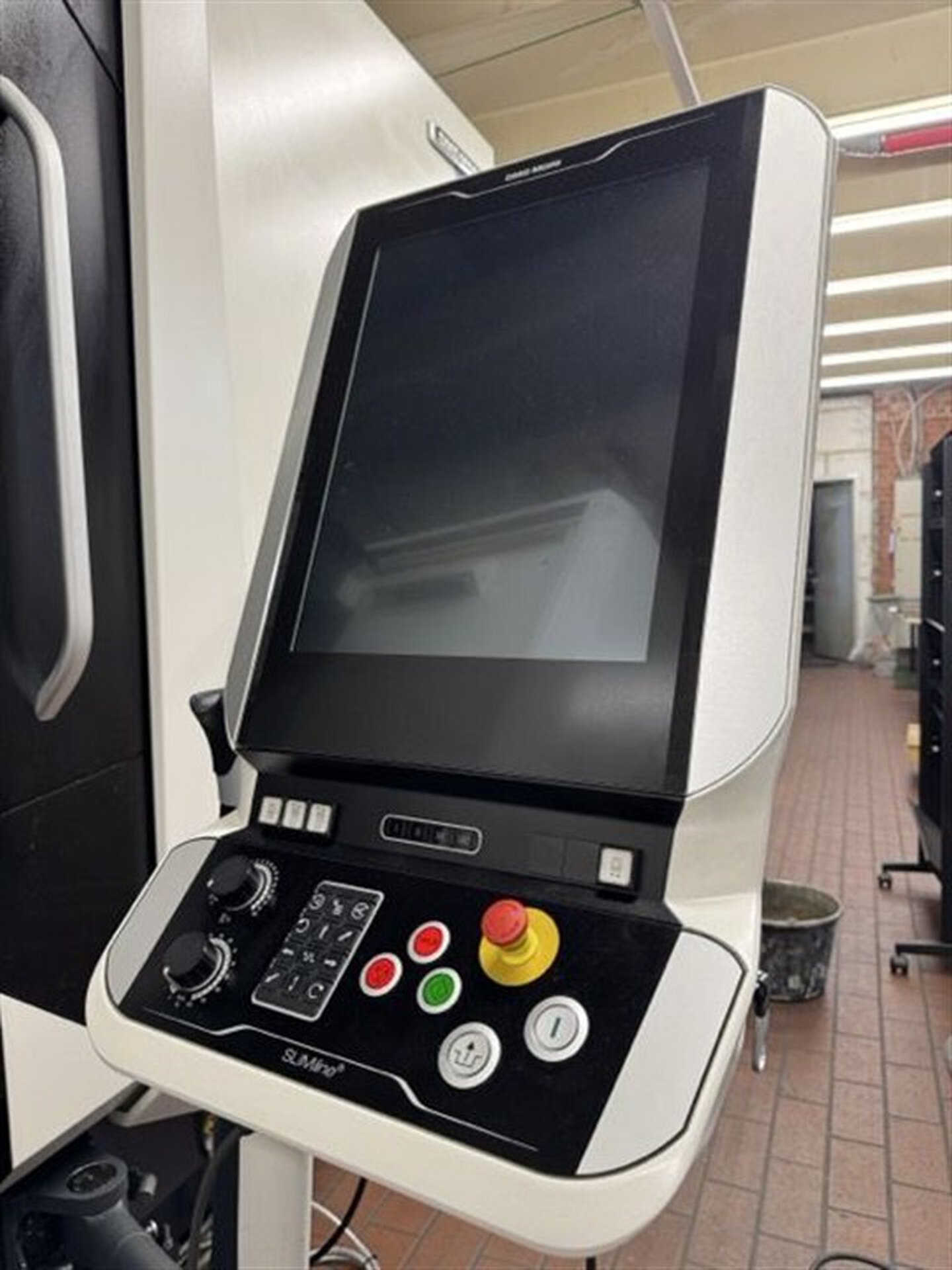

·CNC control Siemens 840D SL

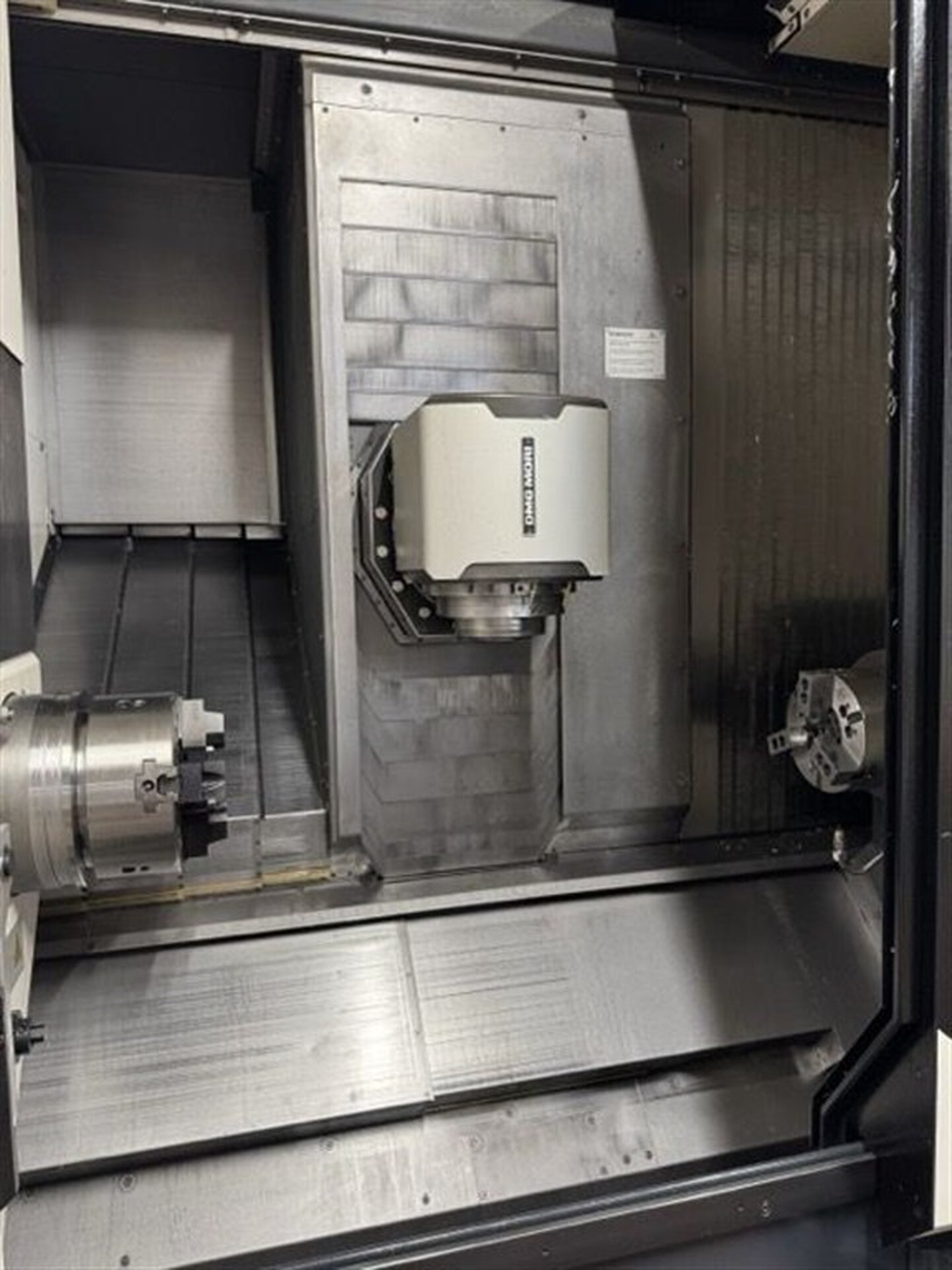

·Main and sub spindle (ISM 65)
oChuck Ø 250 mm
oC-axis
·Milling head
·Y-axis

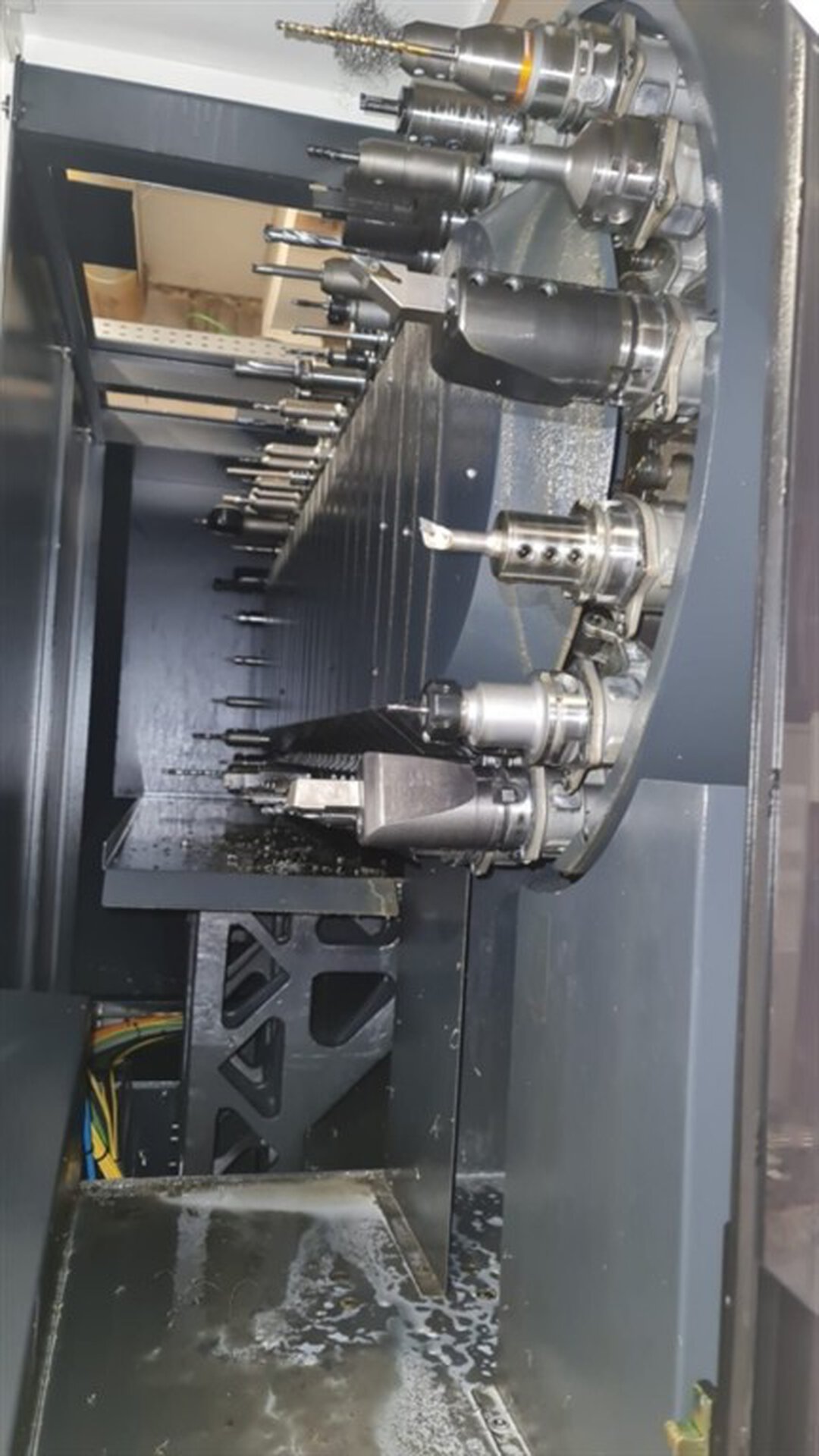

·30-position tool changer
·Chip conveyor

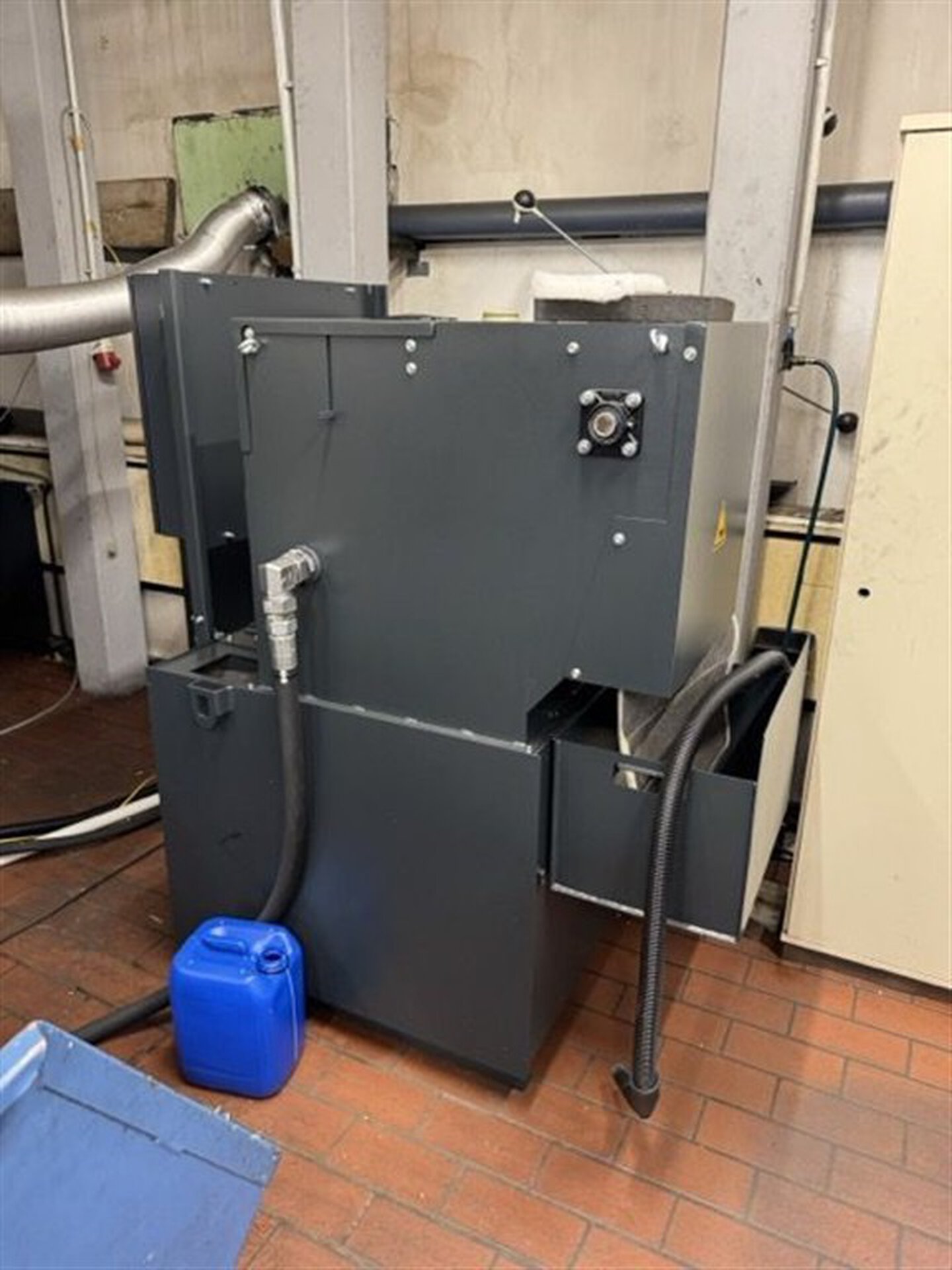

·Coolant system with paper band filter (20 bar)
Distance between centers: 1,420 mm
