FLOTT SB 25

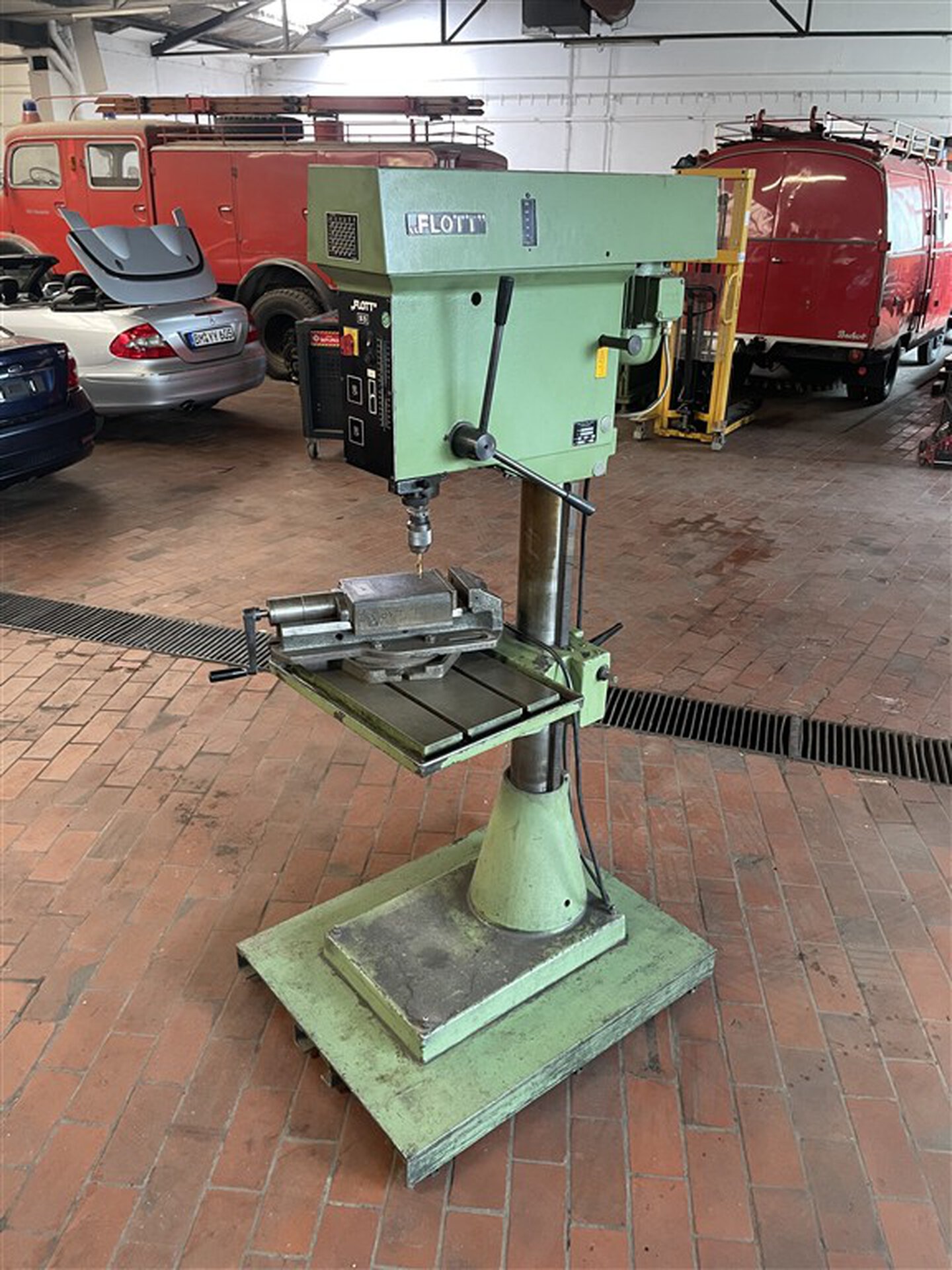

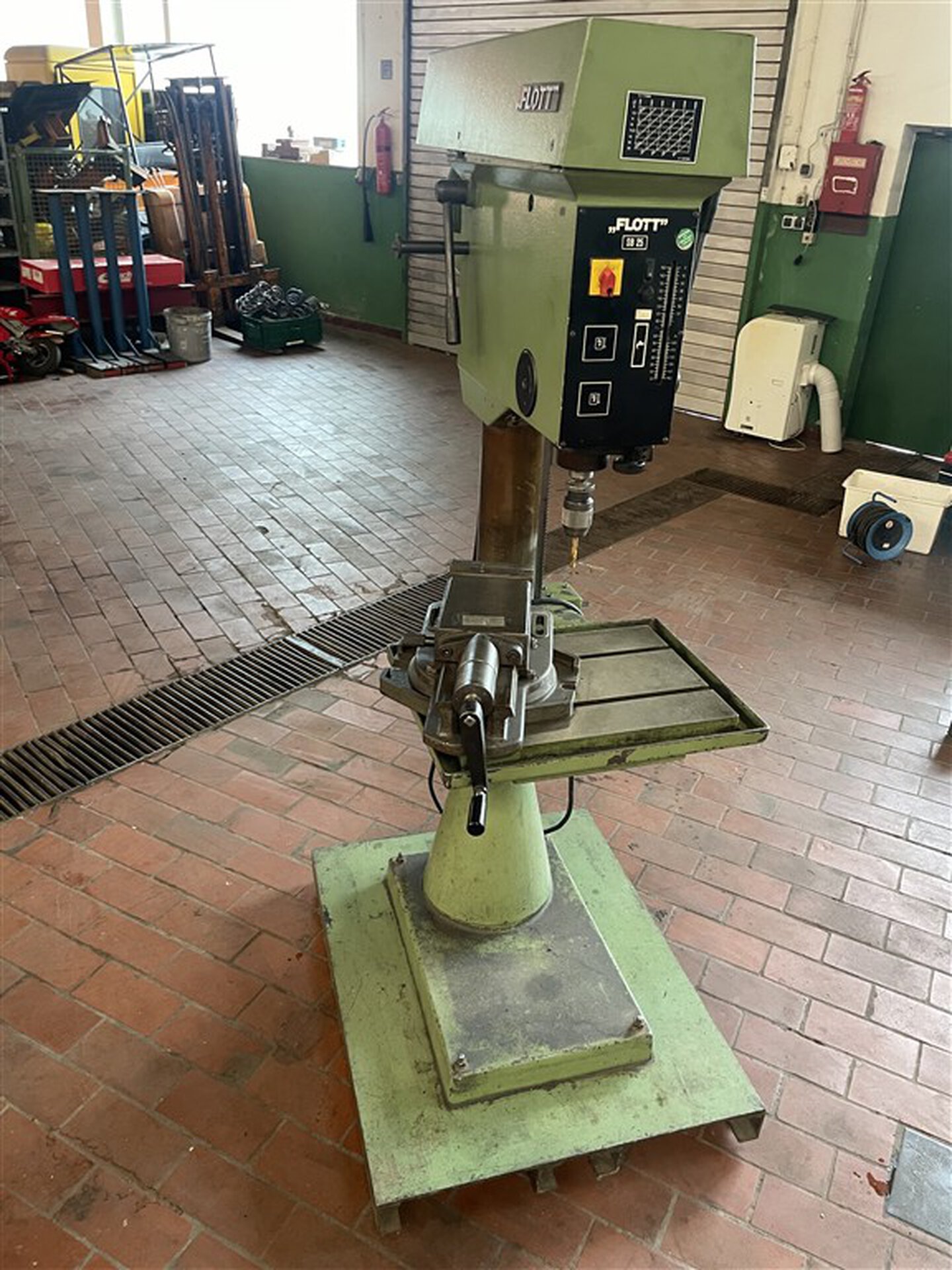

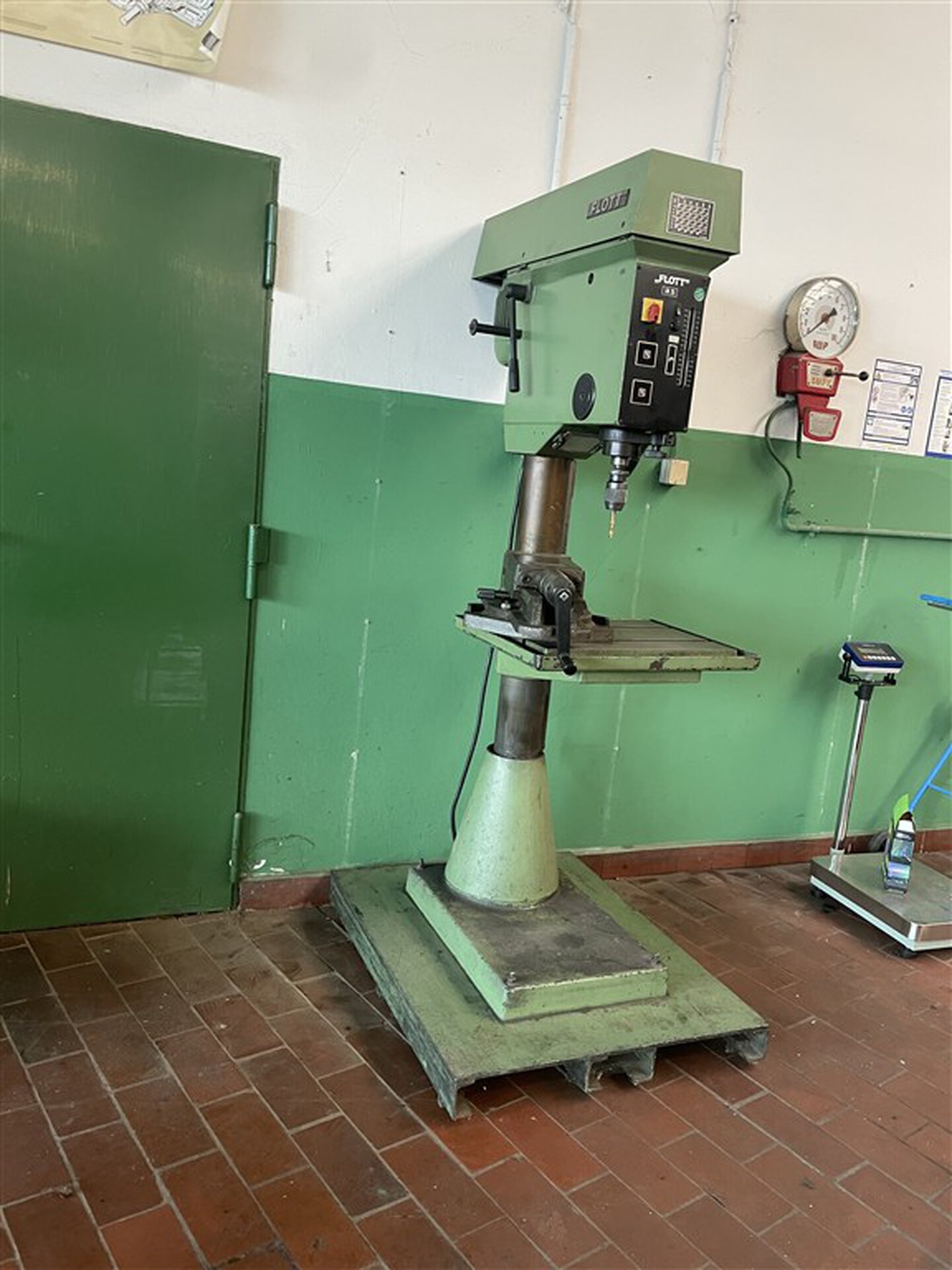

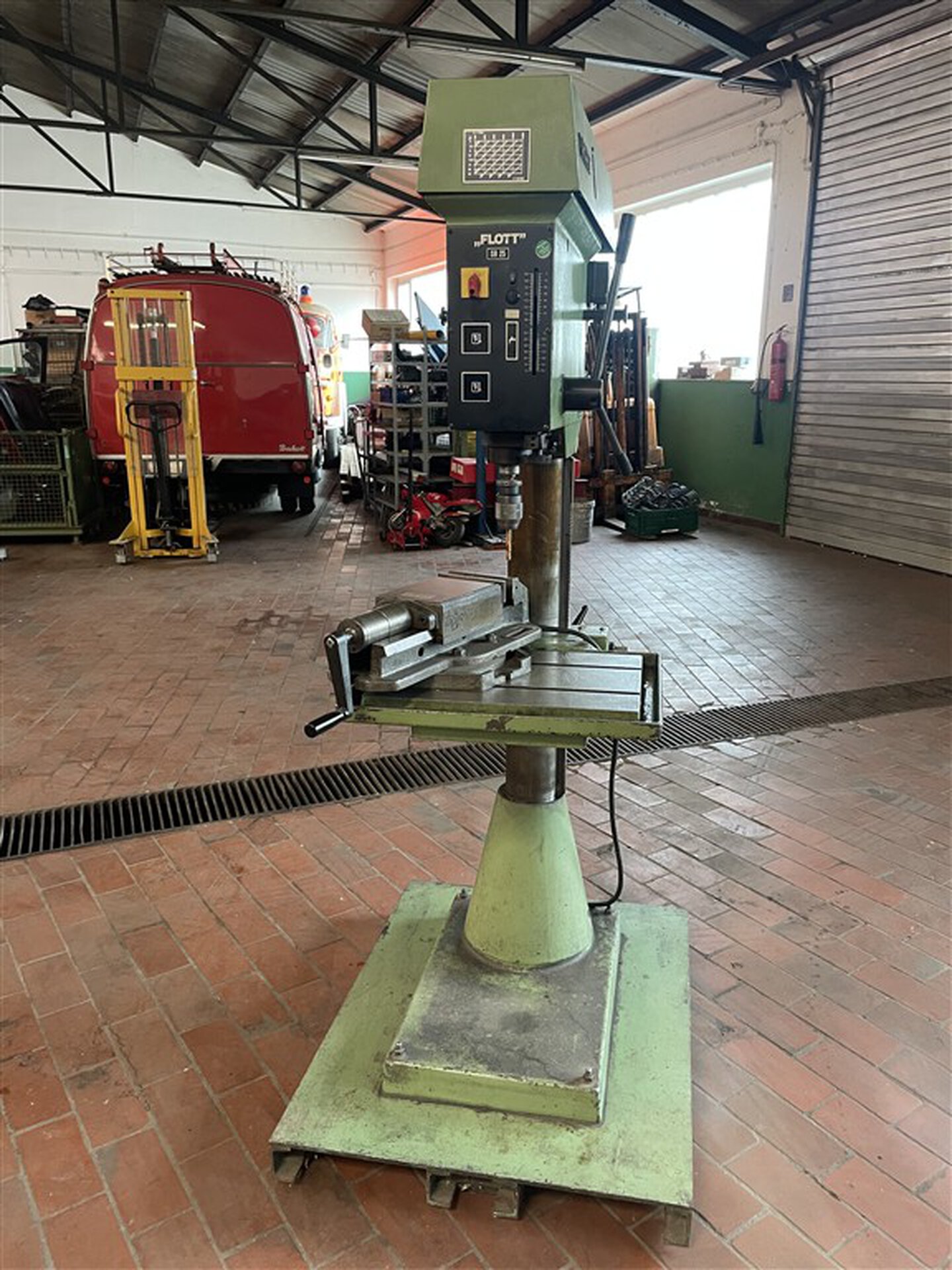

Pillar Drilling Machine
Price is negotiable
Manufacturer: FLOTT
- Construction year: 1990
- Control Type: conventional
- Status: Used
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Pillar Drilling Machine
Product No. 3402-251016
Technical Details
| Total power requirement | 1.5 | kW |
|---|---|---|
| Weight of the machine ca. | 0.3 | t |
| Dimensions of the machine ca. | 0.7 × 0.45 × 1.87 | m |

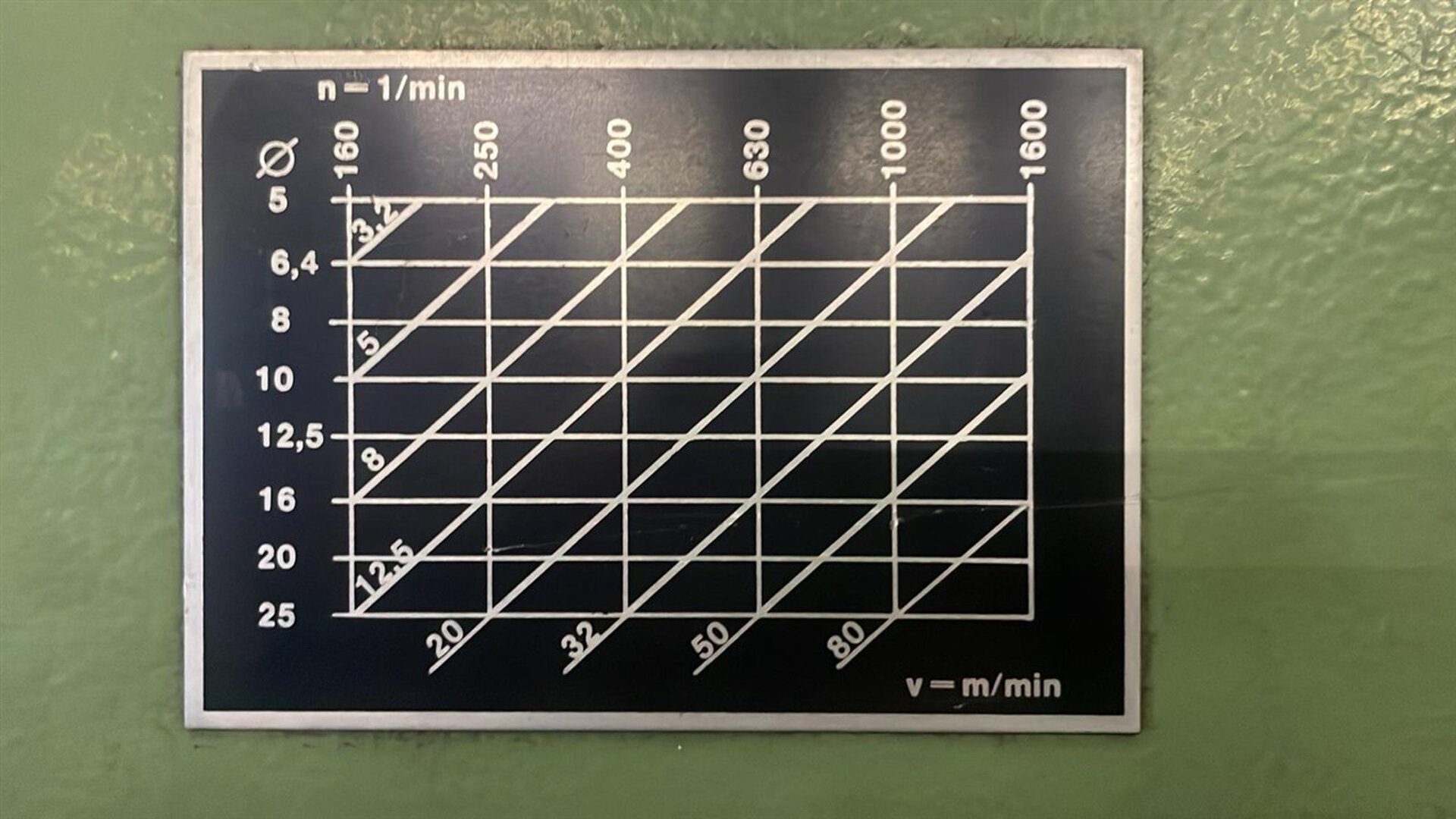

| Spindle speeds: | 200; 300; 500; 800; 1250; 2000 / 6 step | |

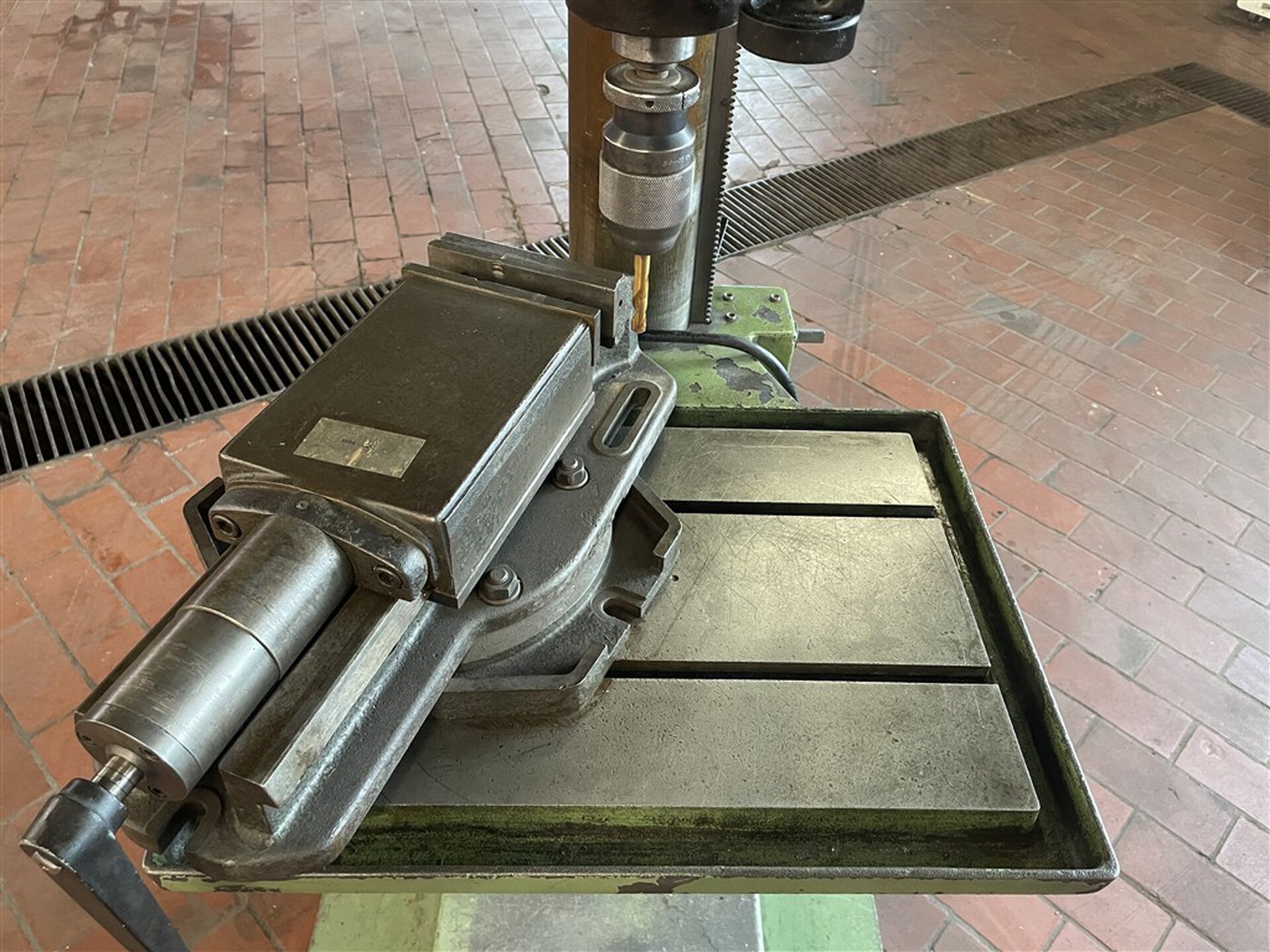

| Table surface area | 330 × 300 | mm |
| Throat | 300 | mm |
| Bore capacity in steel (diameter) | 28 | mm |
| Bore stroke | 150 | mm |
| Spindle taper | MK3 | |
| Bore capacity in cast iron | 30 | mm |
| Distance spindle/table max. | 50 – 600 | mm |
| Table rotating | nein | |
| Boring table adjustment | 550 (Handkurbel) | mm |
| Column diameter | 125 | mm |
