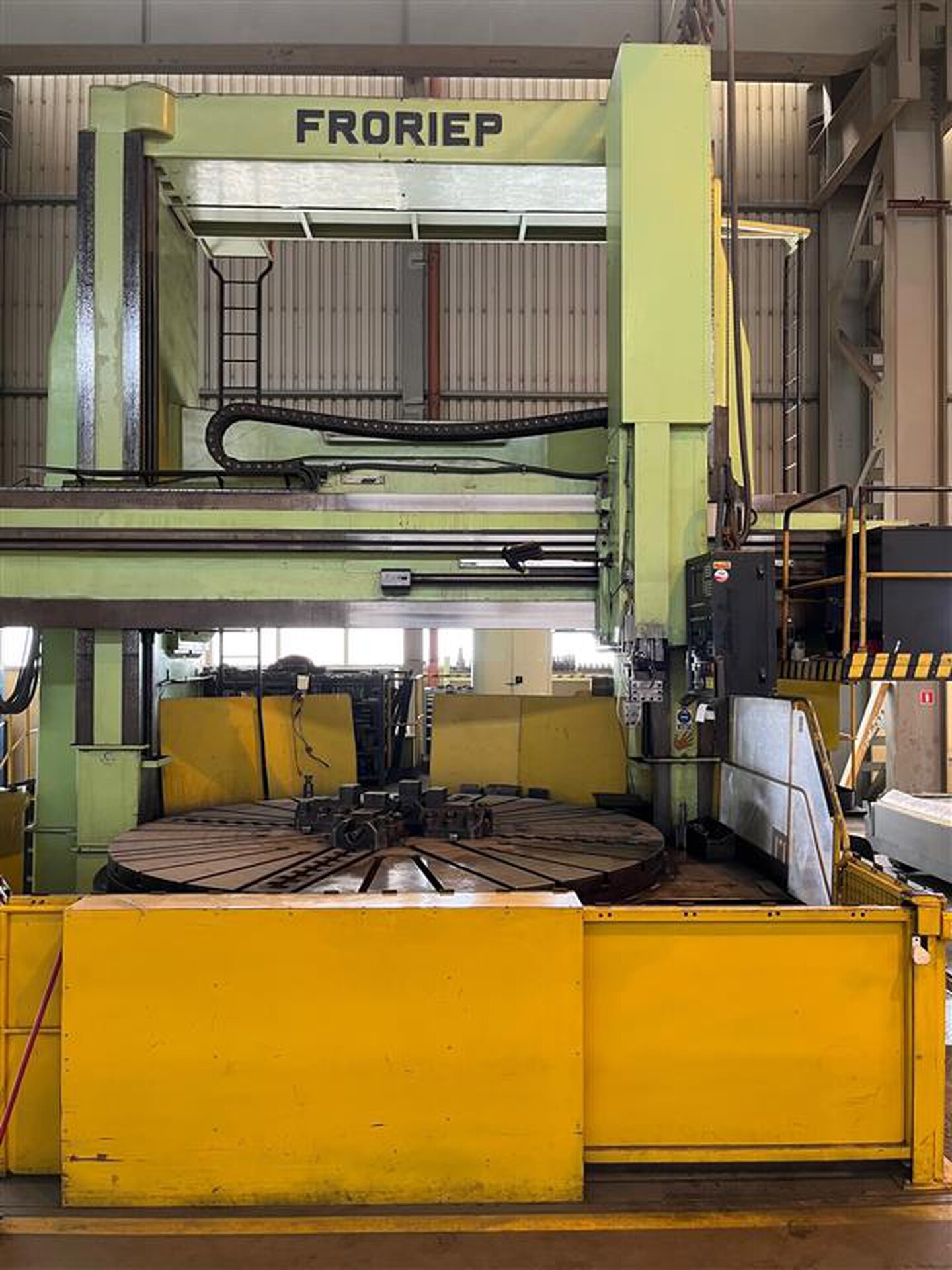

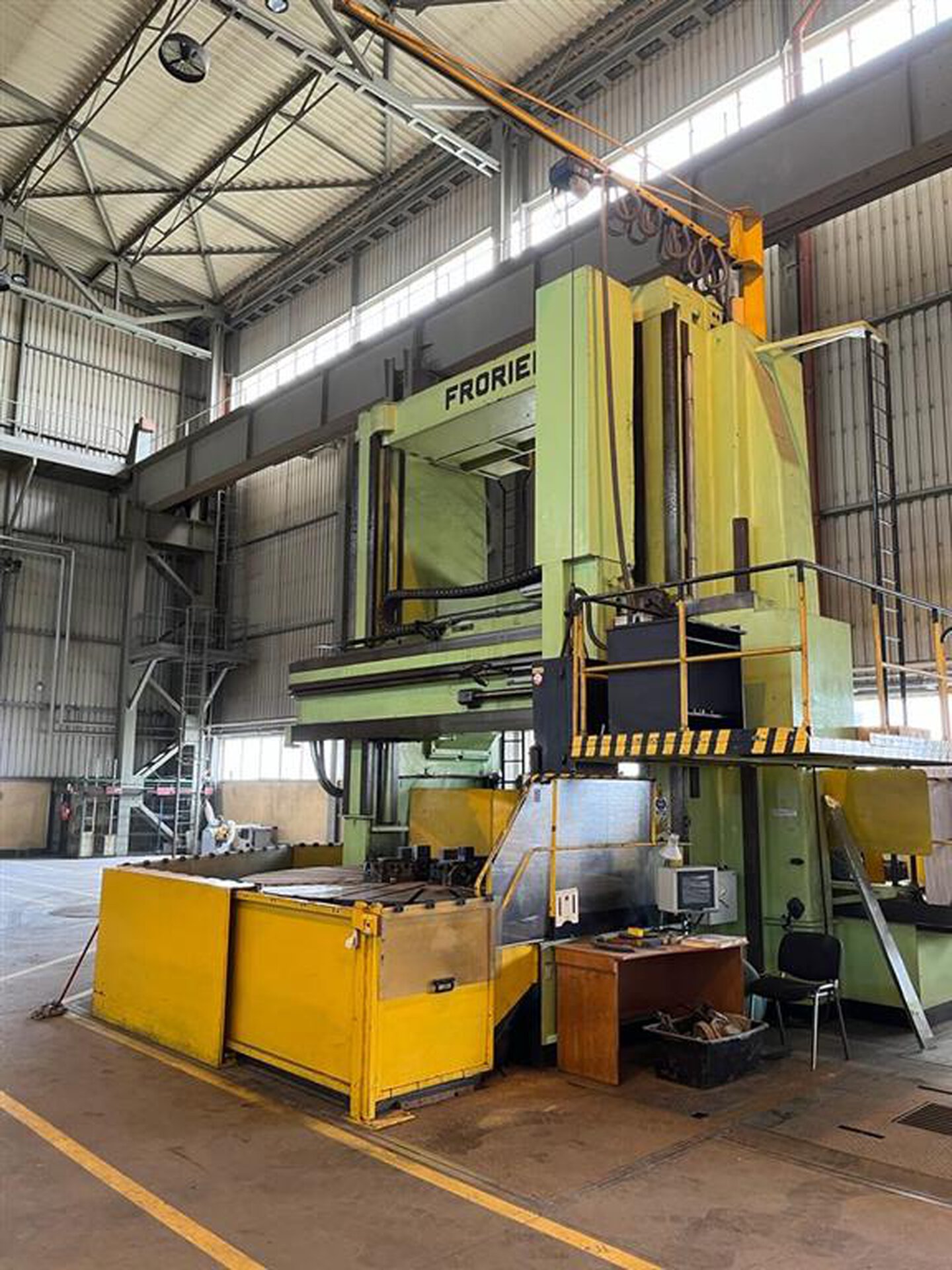

FRORIEP 16 KZ 350
Vertical Turret Lathe – Double Column
Manufacturer: FRORIEP
- Construction year: 1998
- Control Name: SIEMENS 840 C
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Lathes > Vertical Turret Lathe – Double Column
Product No. 3402-230904
Technical Details
| Total power requirement | 85 | kW |
|---|---|---|
| Weight of the machine ca. | 67 | t |
| Dimensions of the machine ca. | 8.3 × 7.8 × 6.4 | m |
| Rapid traverse: | 10 | mm/min |
| Faceplate diameter | 3500 | mm |
| Workpiece weight | 16000 | kg |
| Swing diameter | 3800 | mm |
| Turning height | 3300 | mm |
| Max. ram stroke | 1700 | mm |
| Faceplate speeds: | 0.44 – 48 | |
| Feed speeds | 0.03 – 10000 | mm/min |
| Main drive motor | 63 | kW |
Machine overhould and retrofit with Siermens 840 C in 1998
- 1 ram on crossrail
