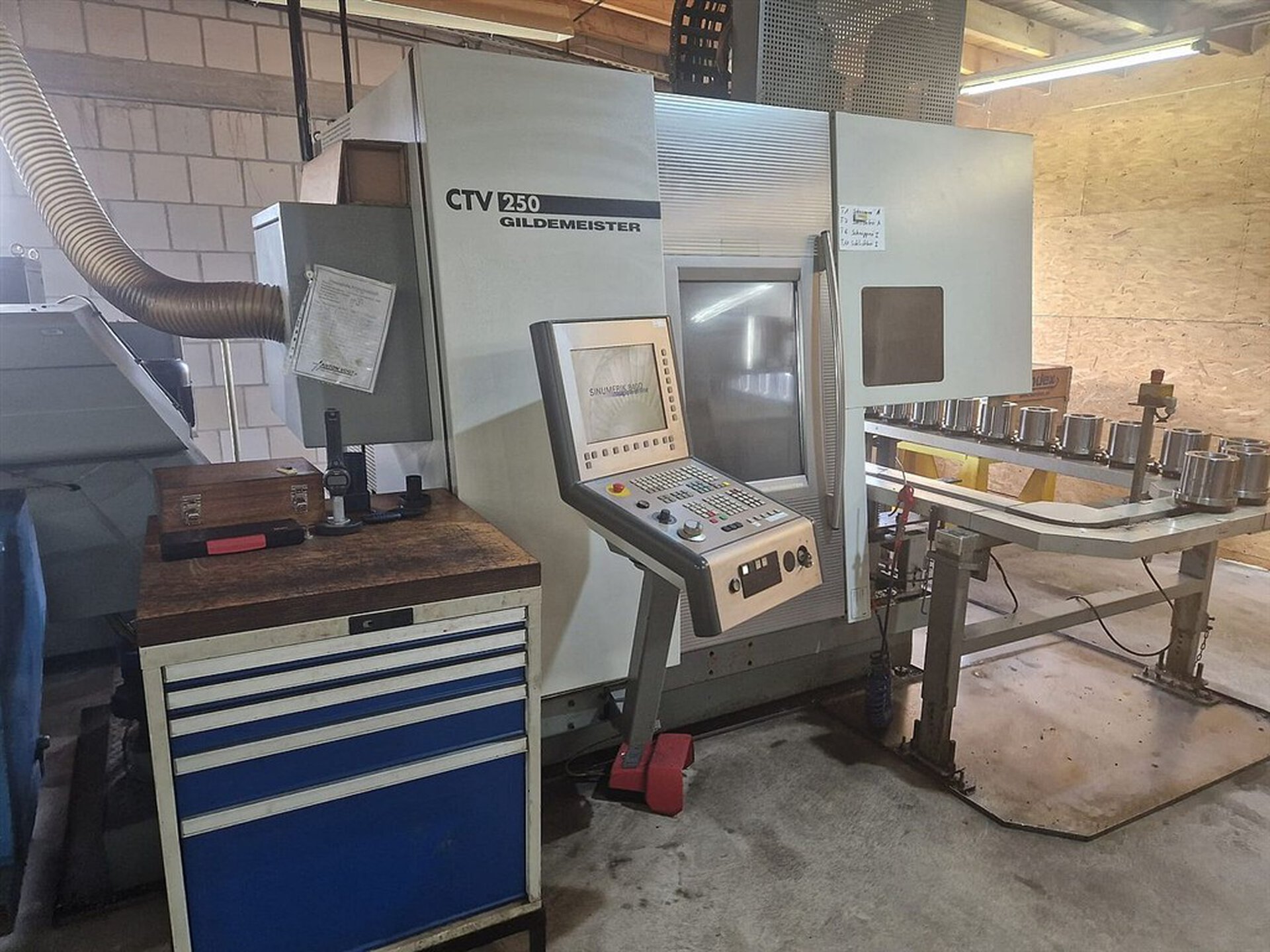

Gildemeister CTV 250
Vertical Turning Machine
Price is negotiable
Manufacturer: GILDEMEISTER
- Construction year: 2004

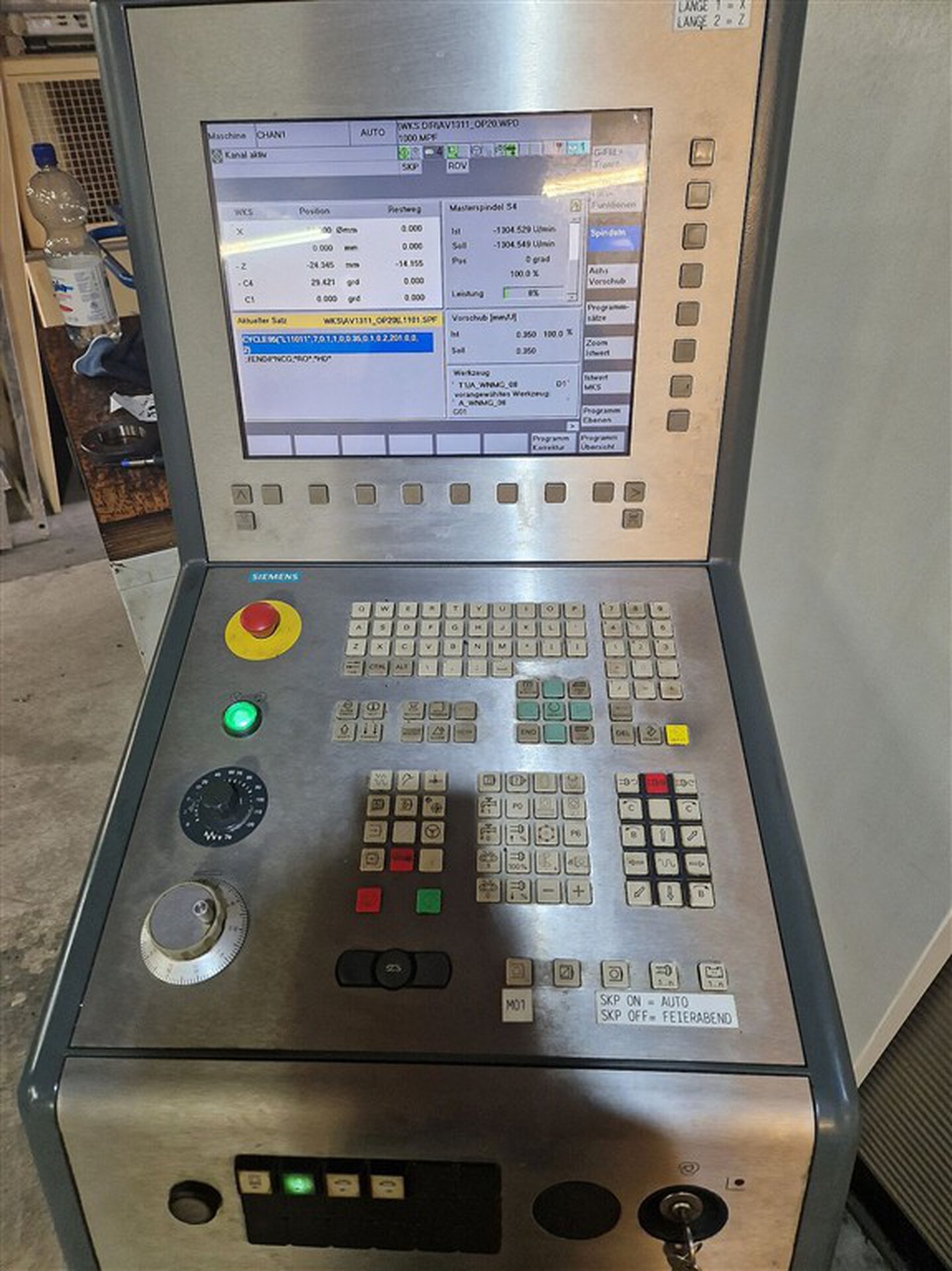

- Control Name: 840 D Siemens Power Line
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Lathes > Vertical Turning Machine
Product No. 3402-250601
Technical Details
| Weight of the machine ca. | 8 | t |
|---|---|---|
| Dimensions of the machine ca. | ca. 6,5 × 4,5 × 3 | m |
| Spindle drive | 20 | kW |
| Turning diameter | 250 | mm |
| Work piece power | ma. 11,7 | kW |
| Toolpiece turning speed range | 4000 | rpm |
| Turning speeds | 5000 | rpm |
| Chucking diameter | 250 | mm |
| Swing diameter | 300 | mm |
| Travel -x axis | 650 | mm |
| Travel -z axis | 300 | mm |
| Tool holder | VDI 40 | |
| Travel -y axis | +/-50 | mm |

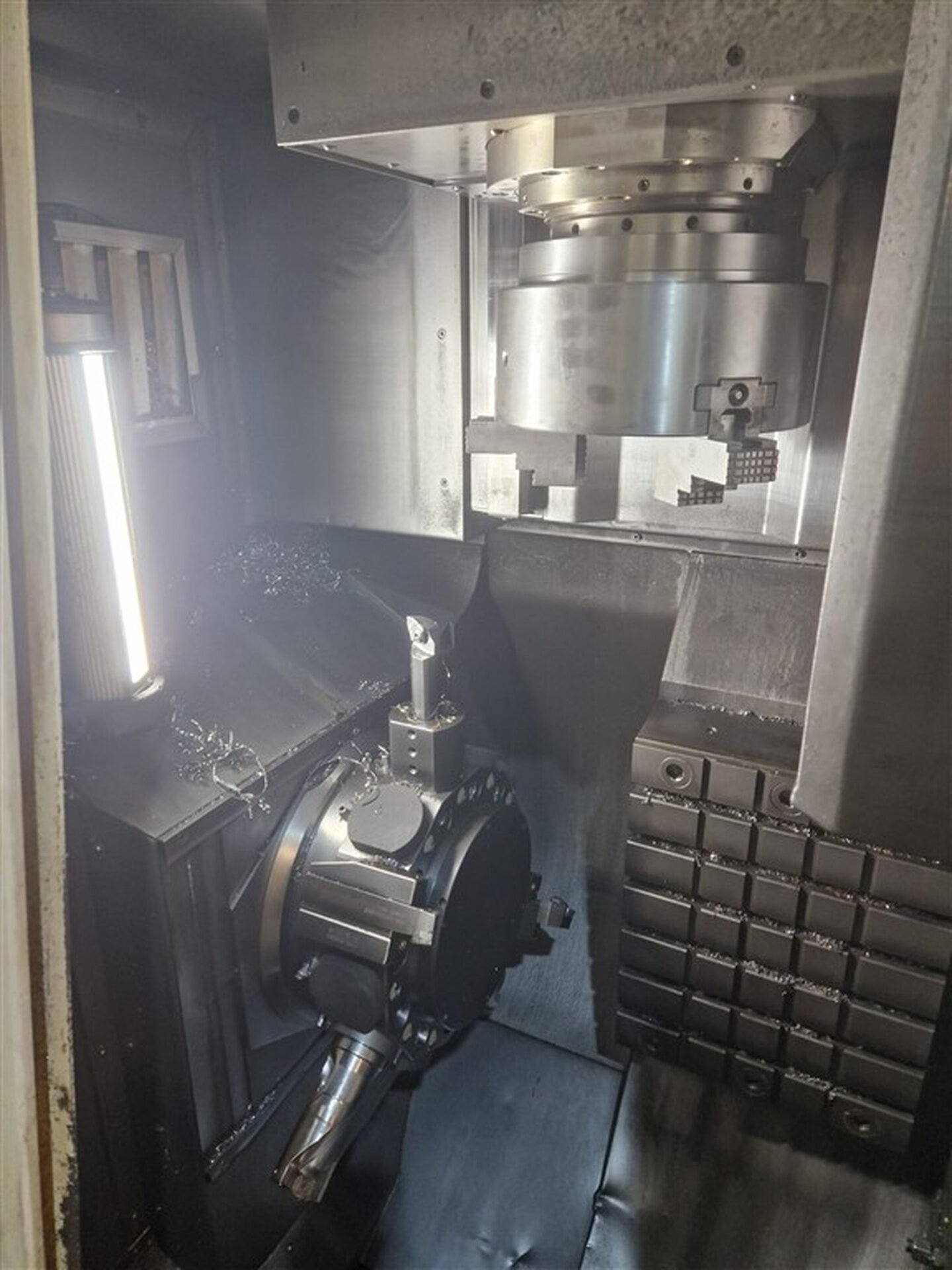

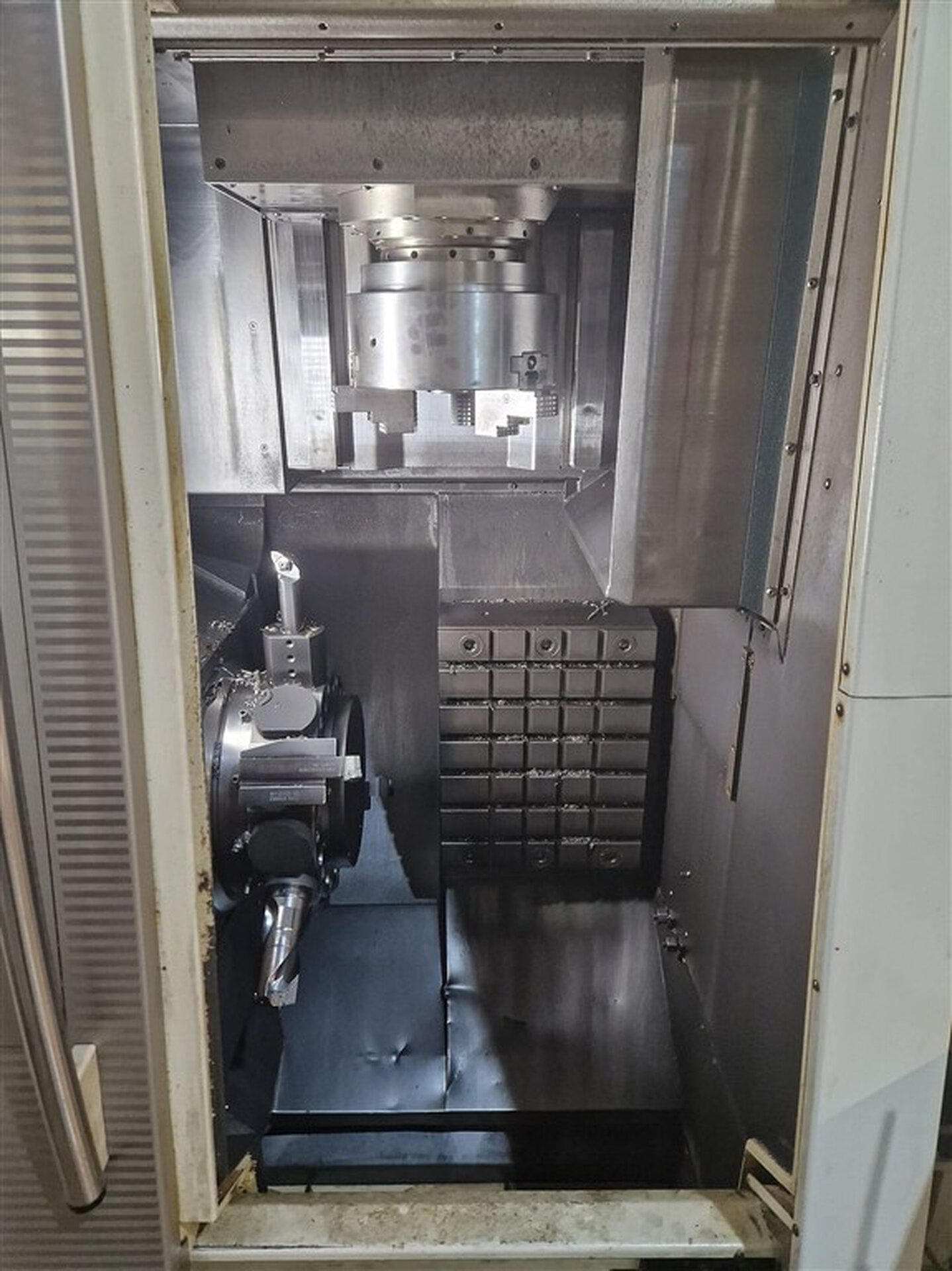

| Turret (x-stations) | 12 |

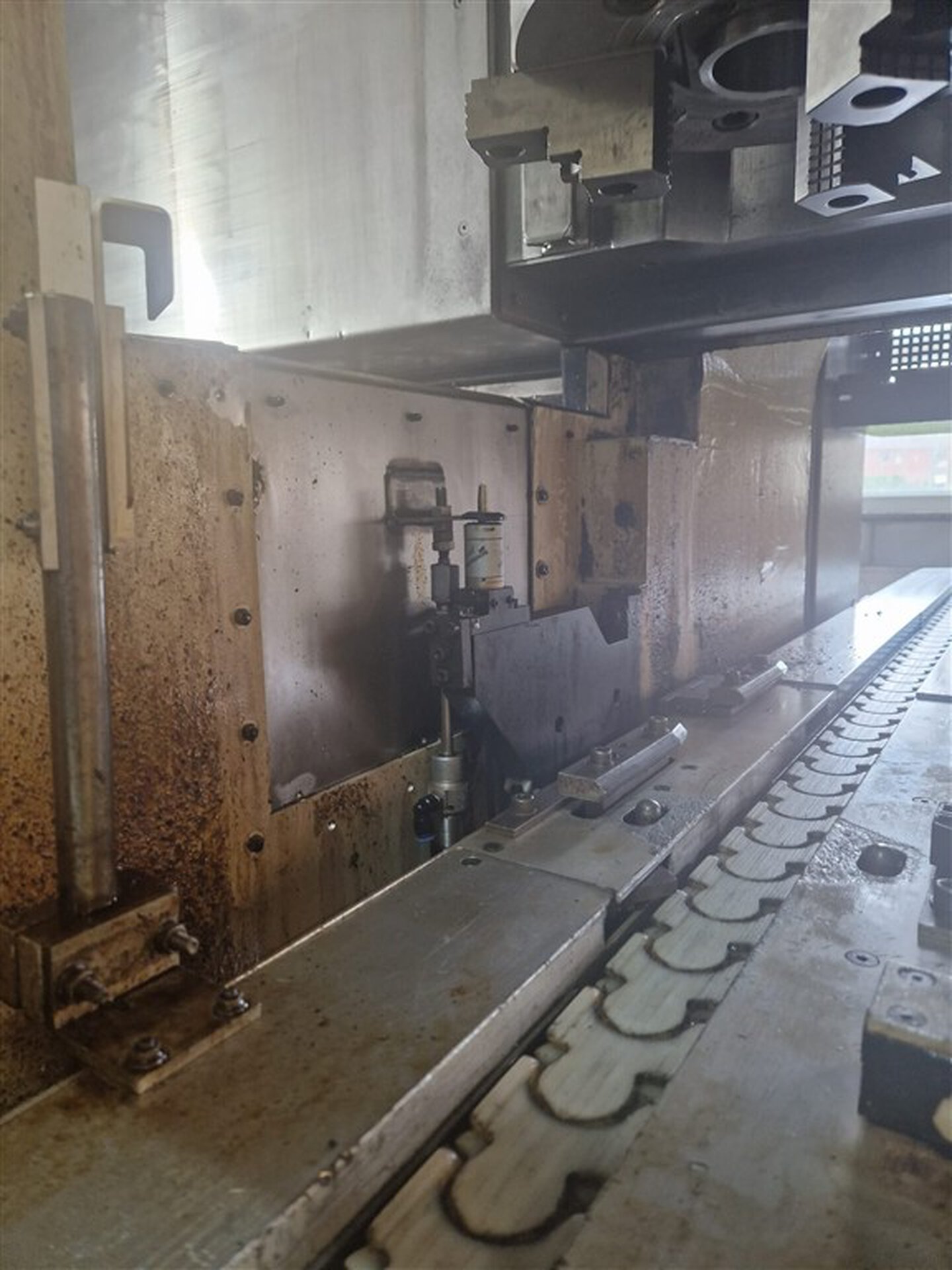

Touch probes
Driven tools,
C-axis

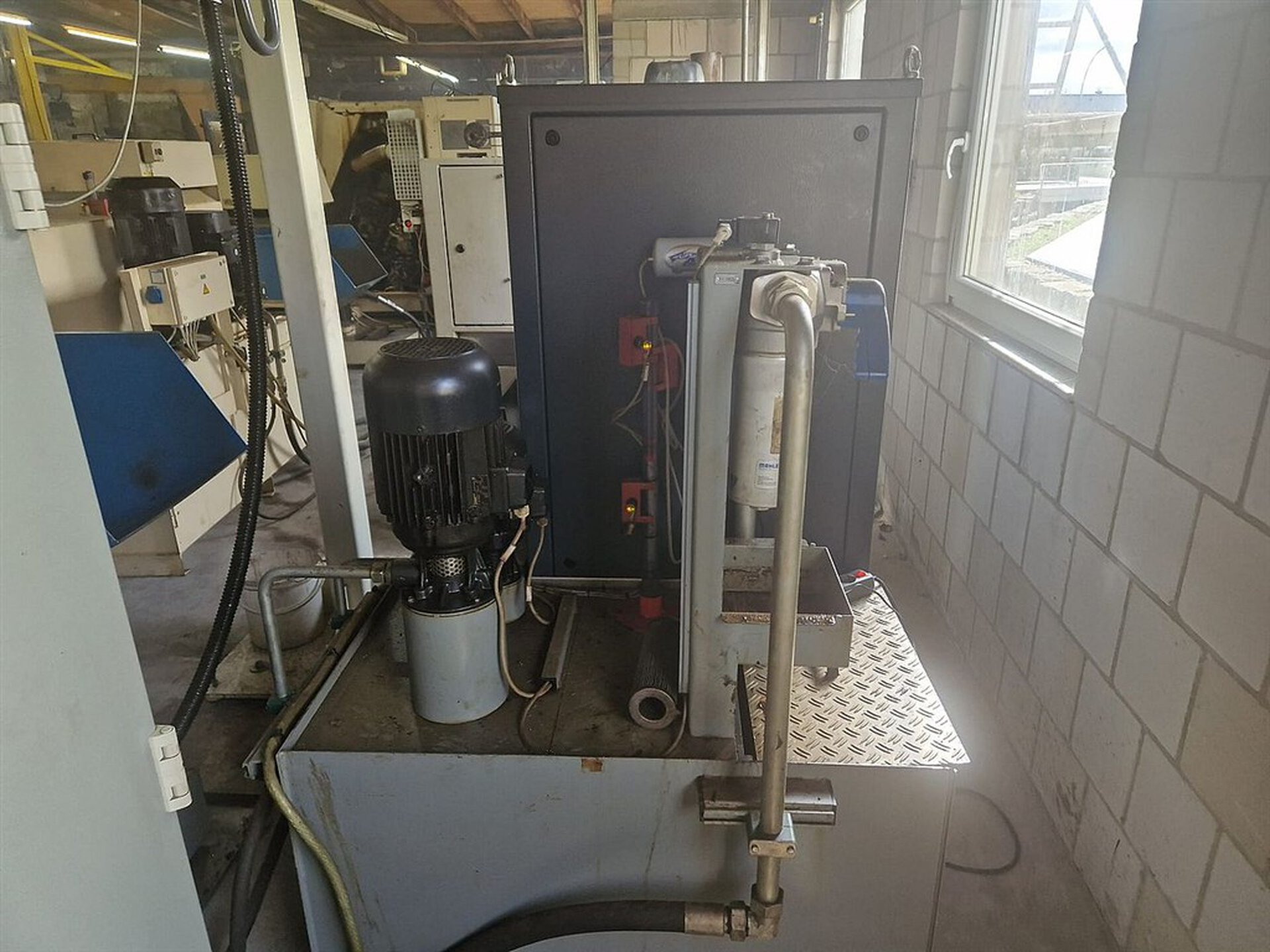

High-pressure pump 20 bar, 500 l double duplex filter
Immersion cooler for cooling lubricant

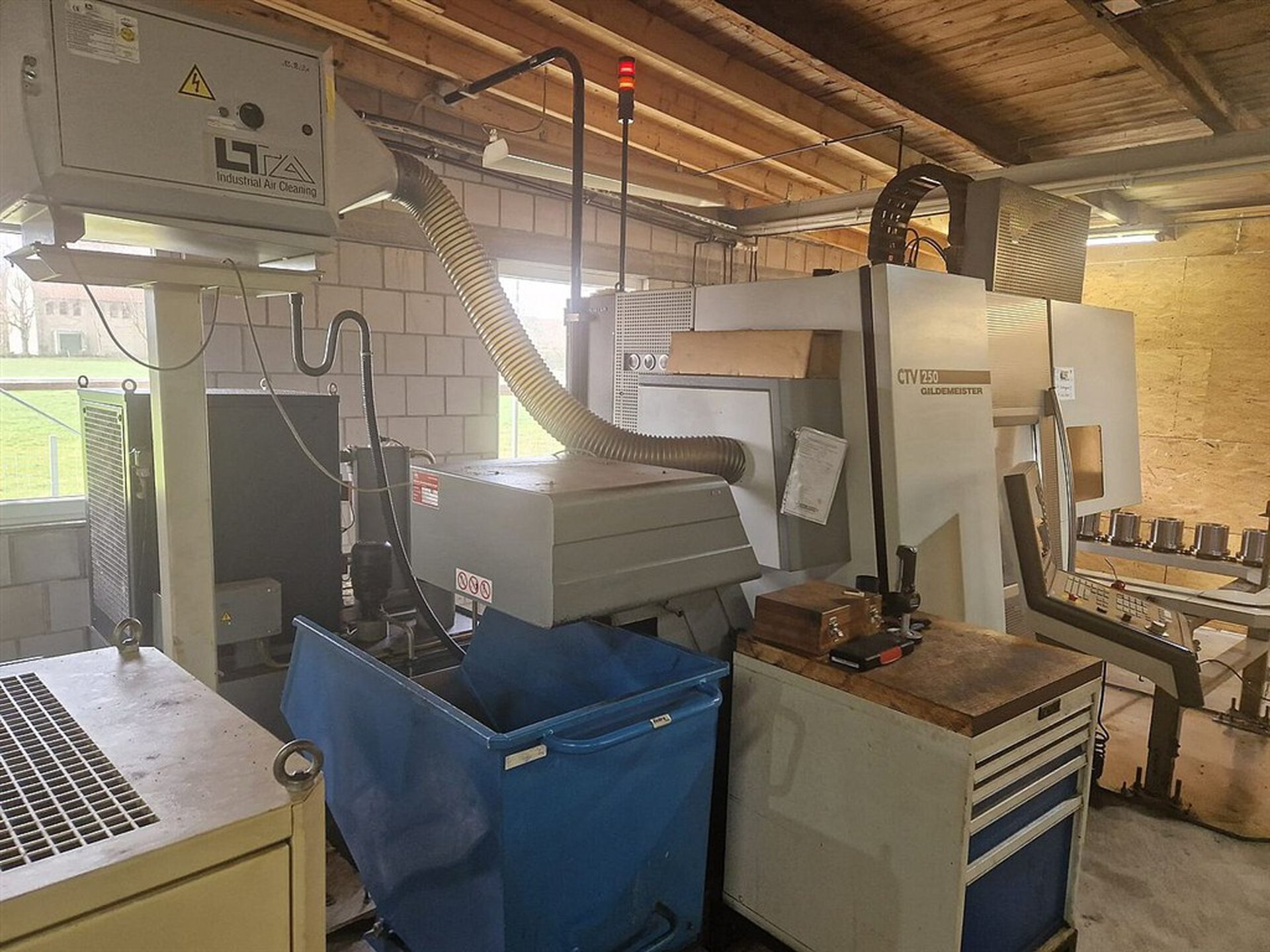

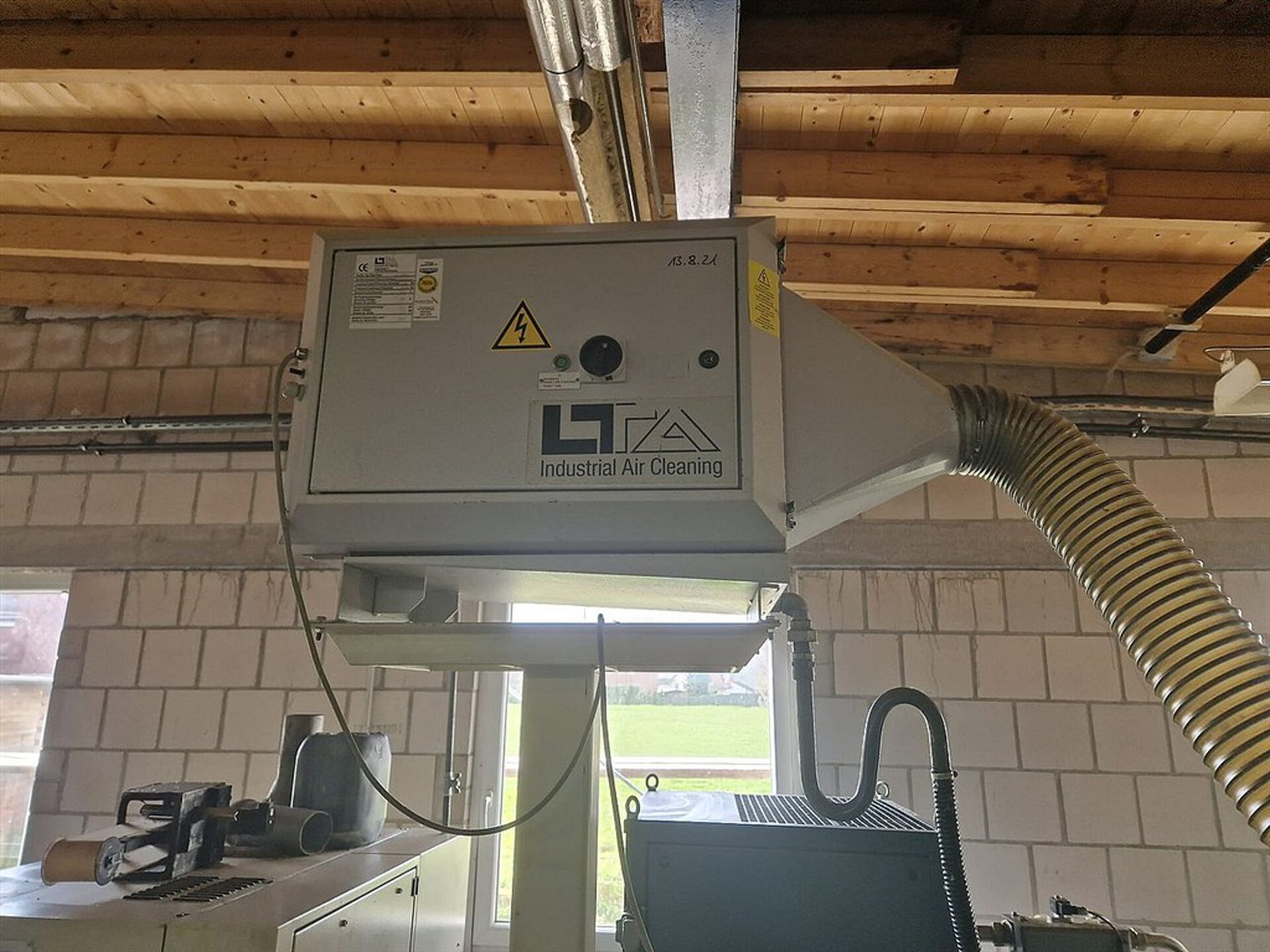

Electronic extraction system from LTA
Drip tray under the complete machine
3 jaw chucks from KITAGAWA B210

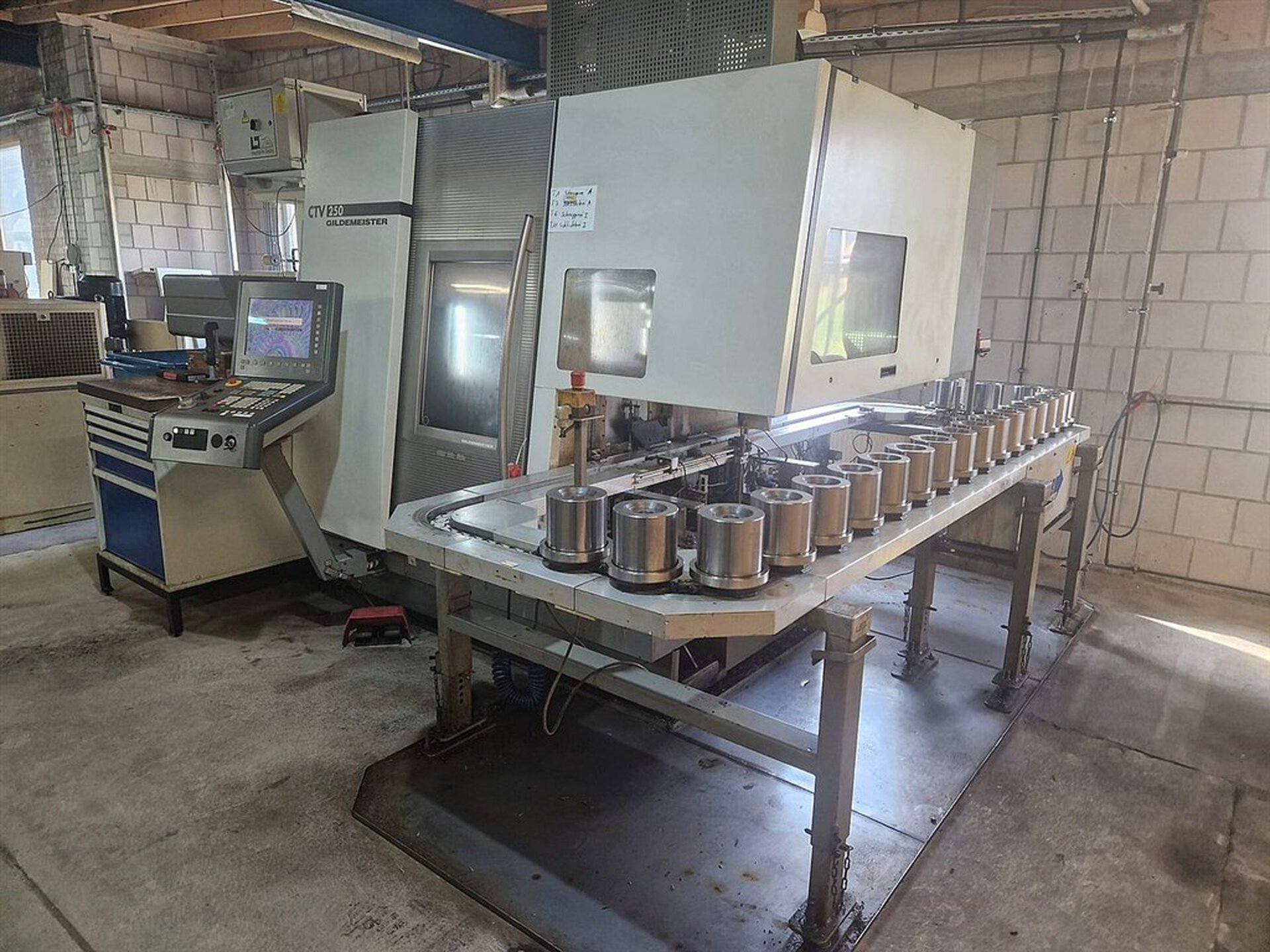

EWAB pallet conveyor loading station on the right
Chip conveyor
