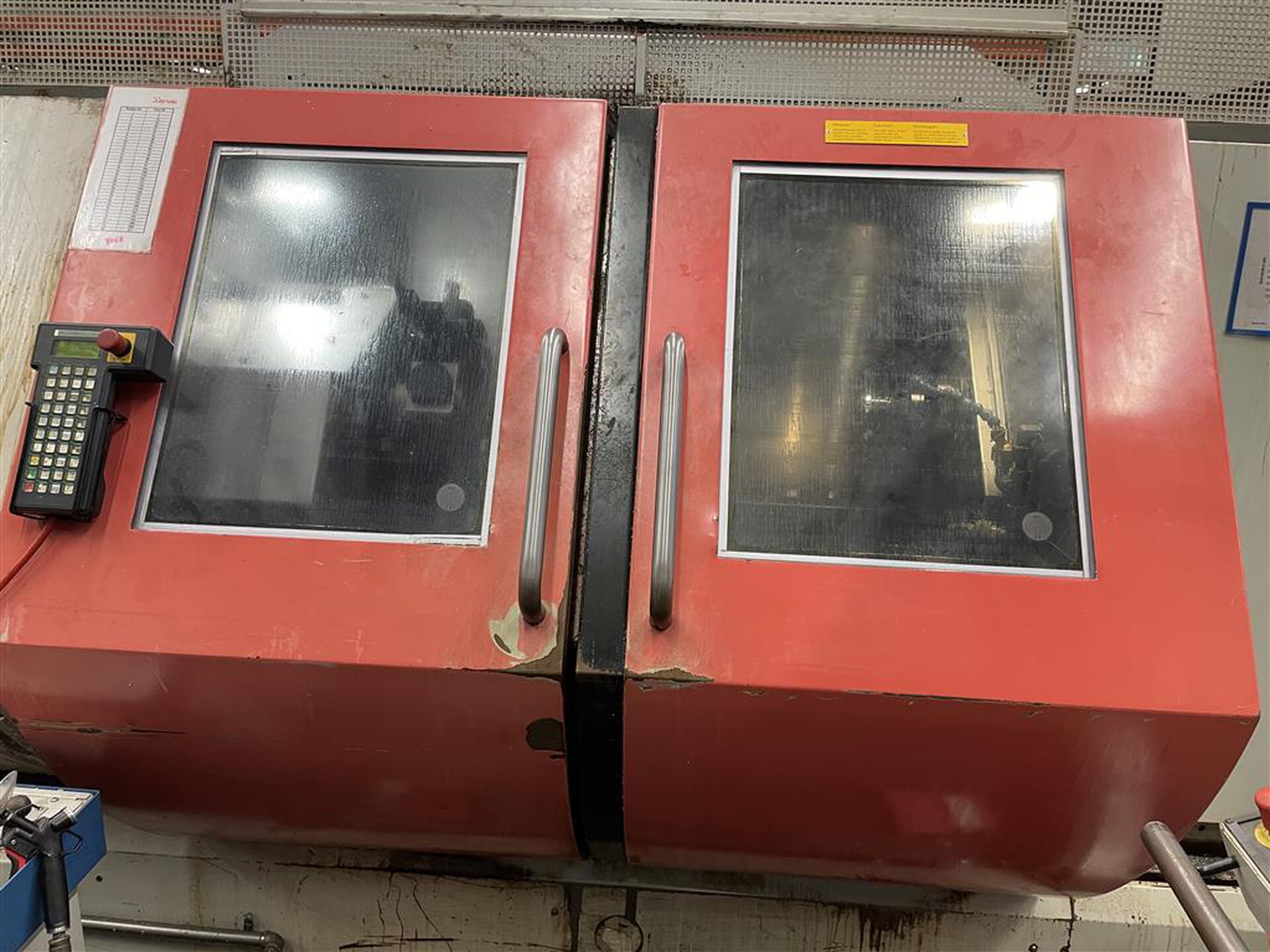

CNC Lathe – Inclined Bed Type

Manufacturer: GILDEMEISTER

  • Construction year: 1996
  • Control Name: FANUC 16 TT
  • Delivery Time: immediately
  • Control Type: CNC
  • Status: Used
  • Metal Processing > Lathes > CNC Lathe – Inclined Bed Type

Product No. 3402-231004

Technical Details

Total power requirement 65kW
Weight of the machine ca. 10 t
Dimensions of the machine ca. 5.9 × 2.6 × 2.9 m

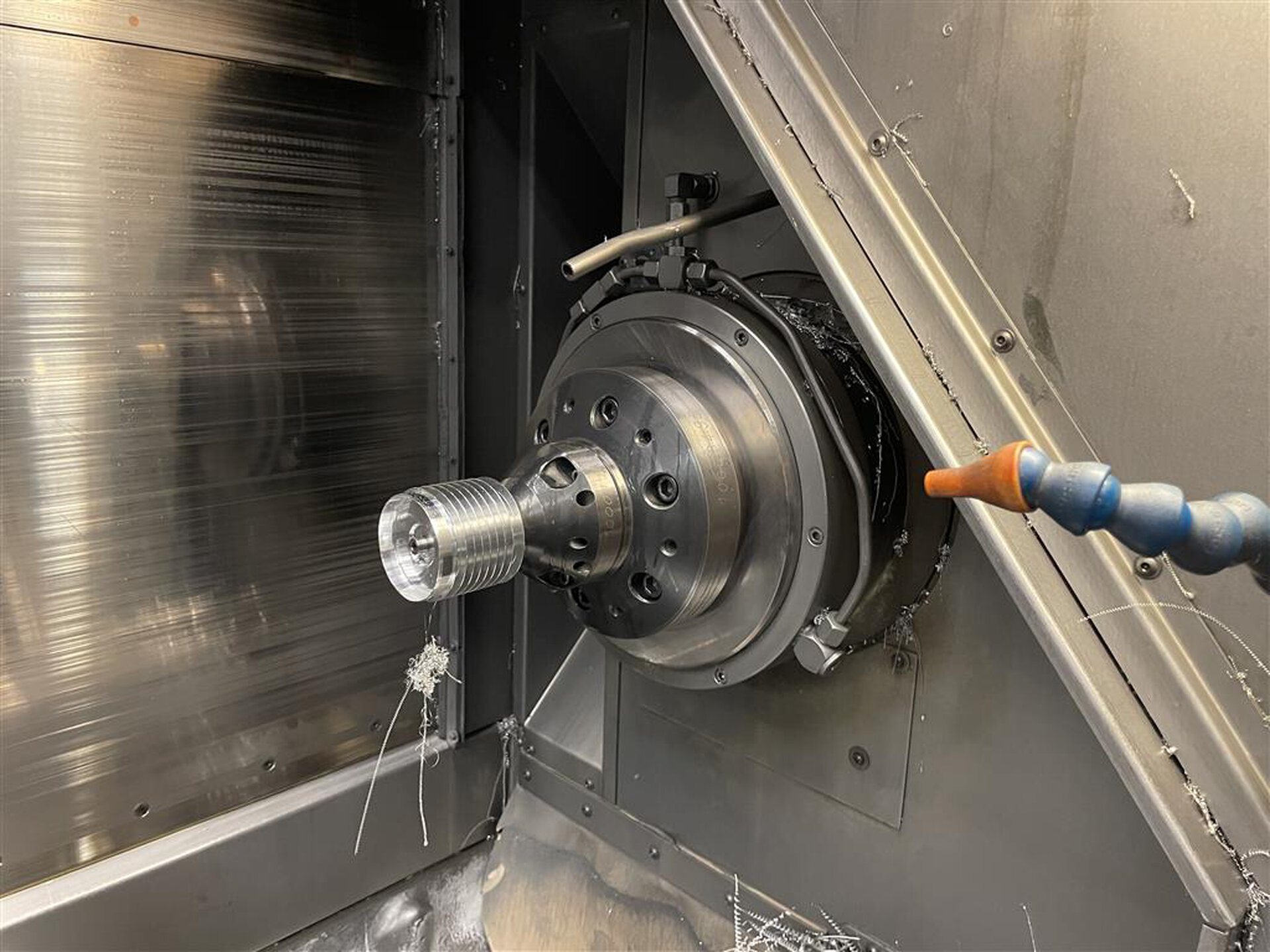

Spindle turning speed range 5 – 4000rpm
Turning diameter 320mm
Turning length 1100mm
Spindle bore 79mm
Spindle diameter in front bearing 140mm
Spindle motor 25kW
Work piece power 7.5kW
Tool taper VDI
Slide I – cross travel 250mm
Slide I – longitudial travel 945mm
Slide II – cross travel 198mm
Slide II – longitudial travel 1080mm

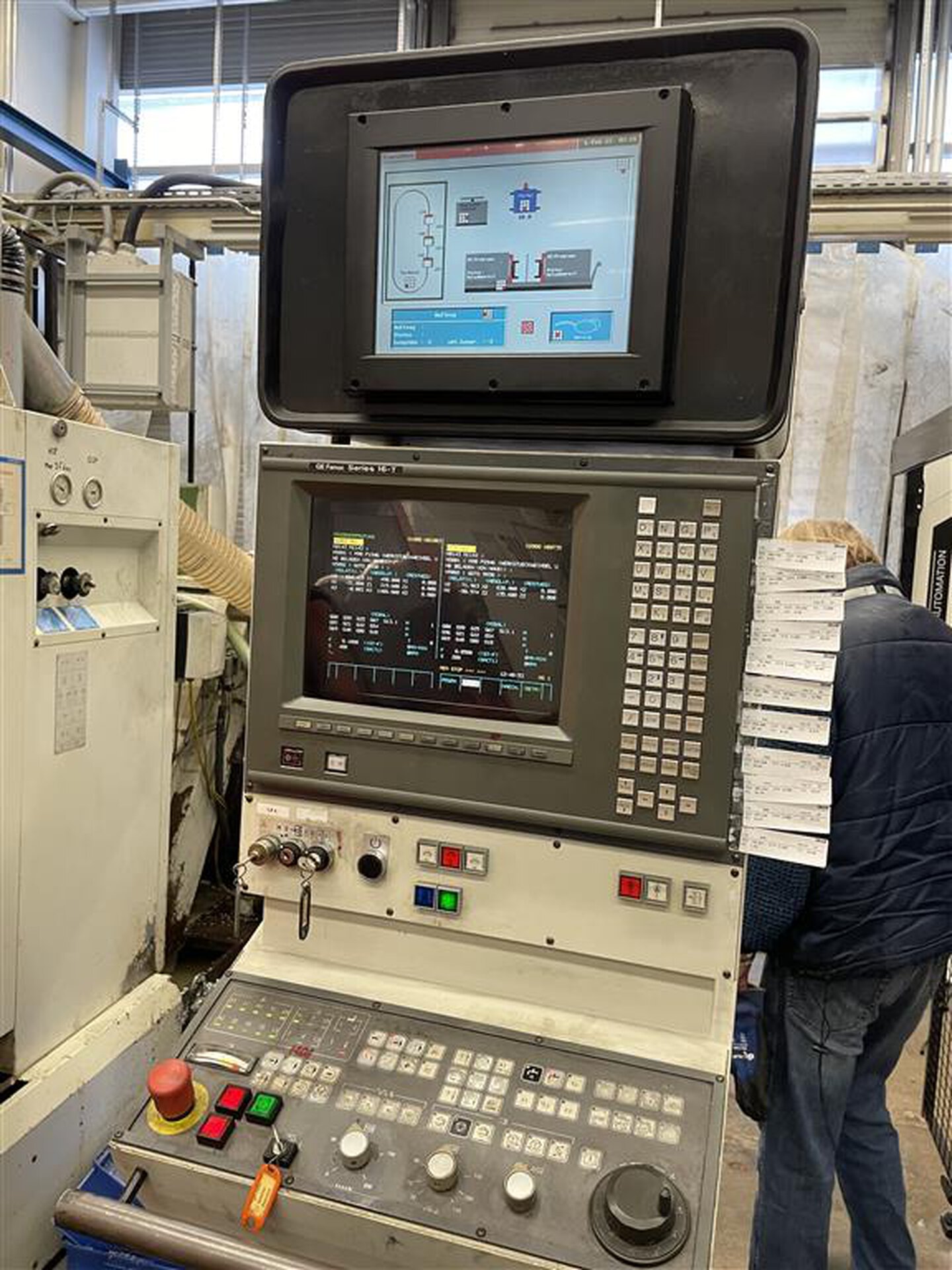

Machine with CNC control FANUC 16 TT

  • C-axis

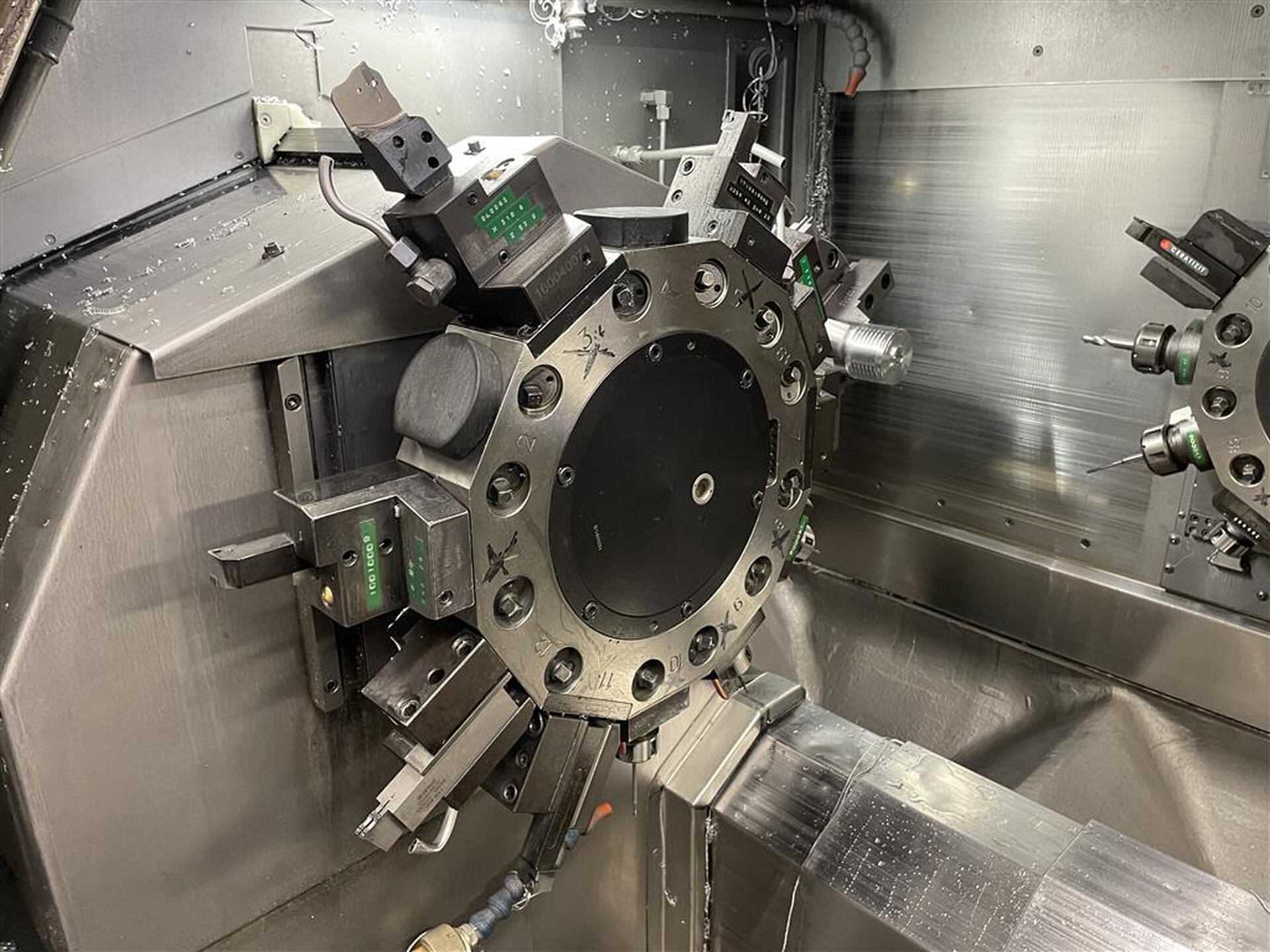

  • 2 revolving heads 12-fold with driven tools
  • portal loading system optional
  • coolant device, chip conveyor
