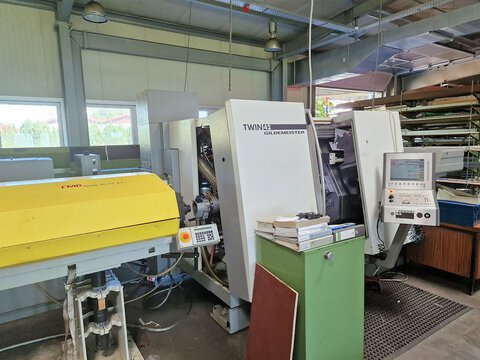

Gildemeister TWIN 42
CNC Lathe
Price is negotiable
Manufacturer: GILDEMEISTER
- Construction year: 2006
- Control Name: Siemens 840 D / Powerline
- Metal Processing > Lathes > CNC Lathe
- Control Type: CNC
- Status: Used
Product No. 3402-250415
Technical Details
| Total power requirement | 40 | kW |
|---|---|---|
| Weight of the machine ca. | 5,300 | t |
| Dimensions of the machine ca. | 5,000 × 4,100 × 2,050 | m |
| Turning diameter | 145 | mm |
| Turning length | 210 | mm |
| Swing diameter | 145 | mm |
| Tool bore | VDI 25 | 100 |
| RPM Main Spindle | 7,000 | 1/min |
| Spindle bore sp. 1 | 56 mm | |
| Spindle bore sp. 2 | 56 mm | |
| Swing diameter over face slide | 145 | mm |
| Greates pass round over bed | 145 | mm |
| Number of workpiece supports | 12 | |
| Shank diameter | 25 | mm |
| C-axis RPM | 2,000 | 1/min |
| Chuck diameter spindle 1 | 140 | mm |
| Chuck diameter Spindle 2 | 140 | mm |
| Number of tools | 12 fach | St. |
Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm )
Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm
Vertical slide travel Y1: +/- 30mm
Longitudinal spindle travel Z3: 380mm
Clamping tube inner draw tube 46mm diameter
Speed range main drive 1+2 up to 7,000 rpm
Speed of driven tools up to 6,000 rpm
Main and counter spindle collet chuck
1 axial driven tool
1 radial tool
Belt filter system
Loading magazine FMB Turbo 10–72 XT
