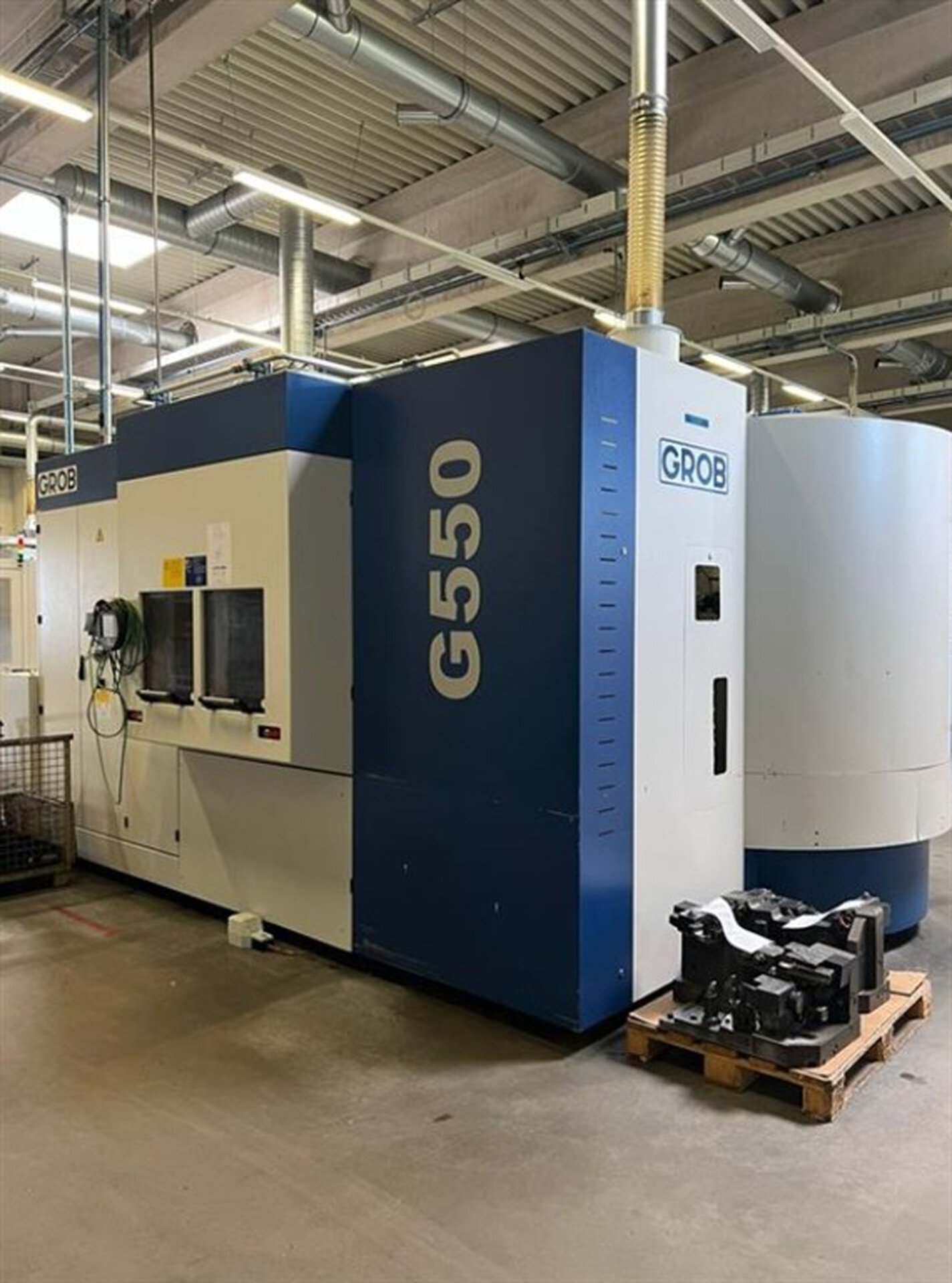

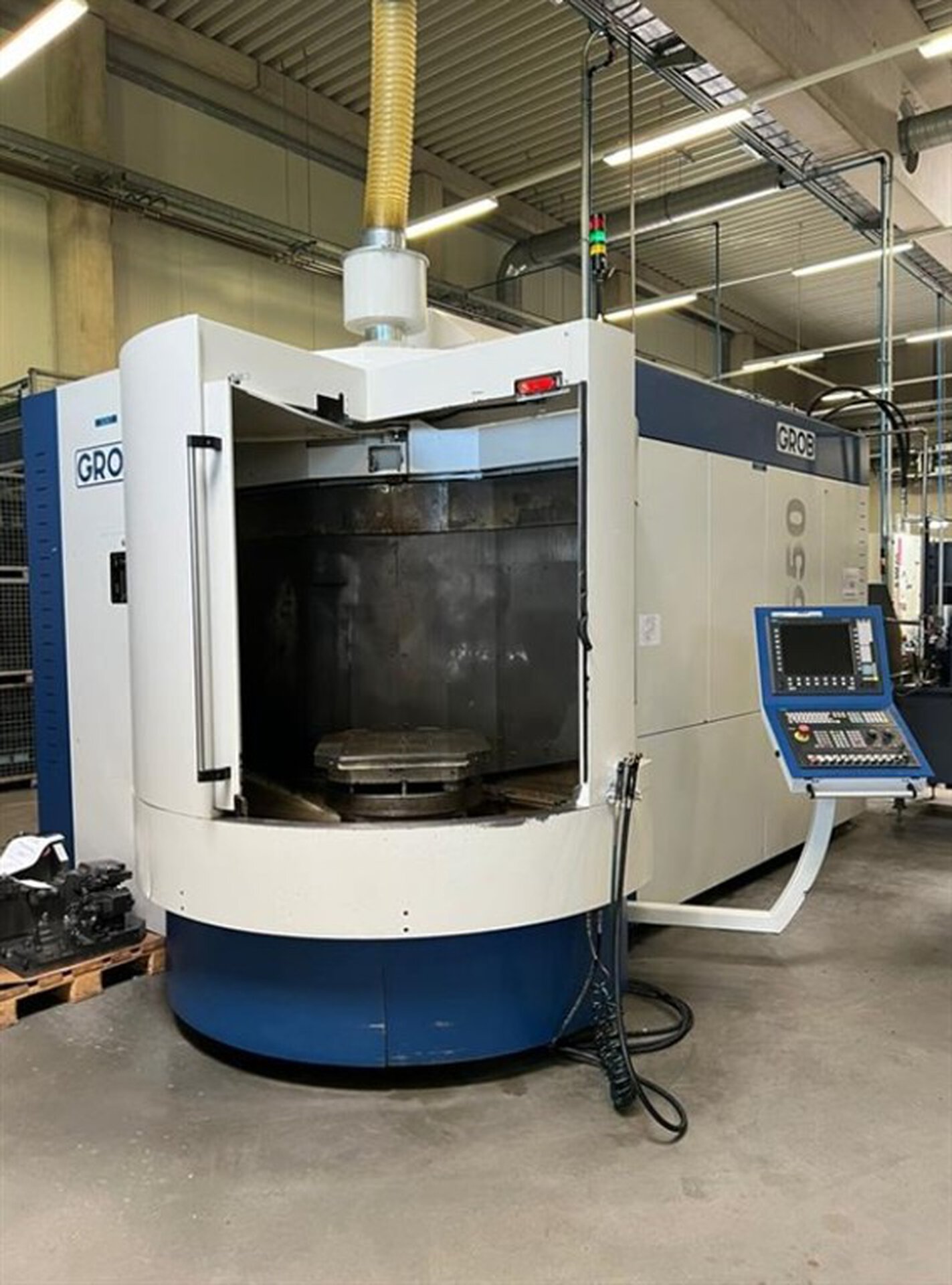

GROB G 550 6-axis
Machining Center – Universal
Price is negotiable
Manufacturer: GROB
- Construction year: 2013
- Control Type: CNC
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Machining Center – Universal
- Status: Used
Product No. 3402-251002
Technical Details
| X-travel | 800 | mm |
|---|---|---|
| Y-travel | 950 | mm |
| Z-travel | 1020 | mm |
| Control | Sinumerik 840D sl MDynamics Operate | |
| Turning speeds | 10,000 | rpm |
| Leistung | 26/20 | kW |
| Max. torque on the spindle | 340/262 | Nm |
| Tool taper | HSK-A 100 | |
| Tool change unit | 120 (2x60) Pos. | |
| Pallet changer 2x | 630 × 630 | mm |
| Table load | 800 | t |
| Total power requirement | kVA | kW |
| Weight of the machine ca. | 20 | t |
| Dimensions of the machine ca. | 3.3 × 6.15 × 3.2 | m |
Mapal Tooltronic U-Axis Control
6-axis simultaneous horizontal machining center with controlled rotary/swivel table (A/B axis). The B-axis has a swiveling range of 180°, which allows overhead machining so that chips can fall freely downwards.
U-axis = CNC-controlled radial movement of the tool, enabling different diameters of a bore to be machined with one tool in a single operation.
Equipment:

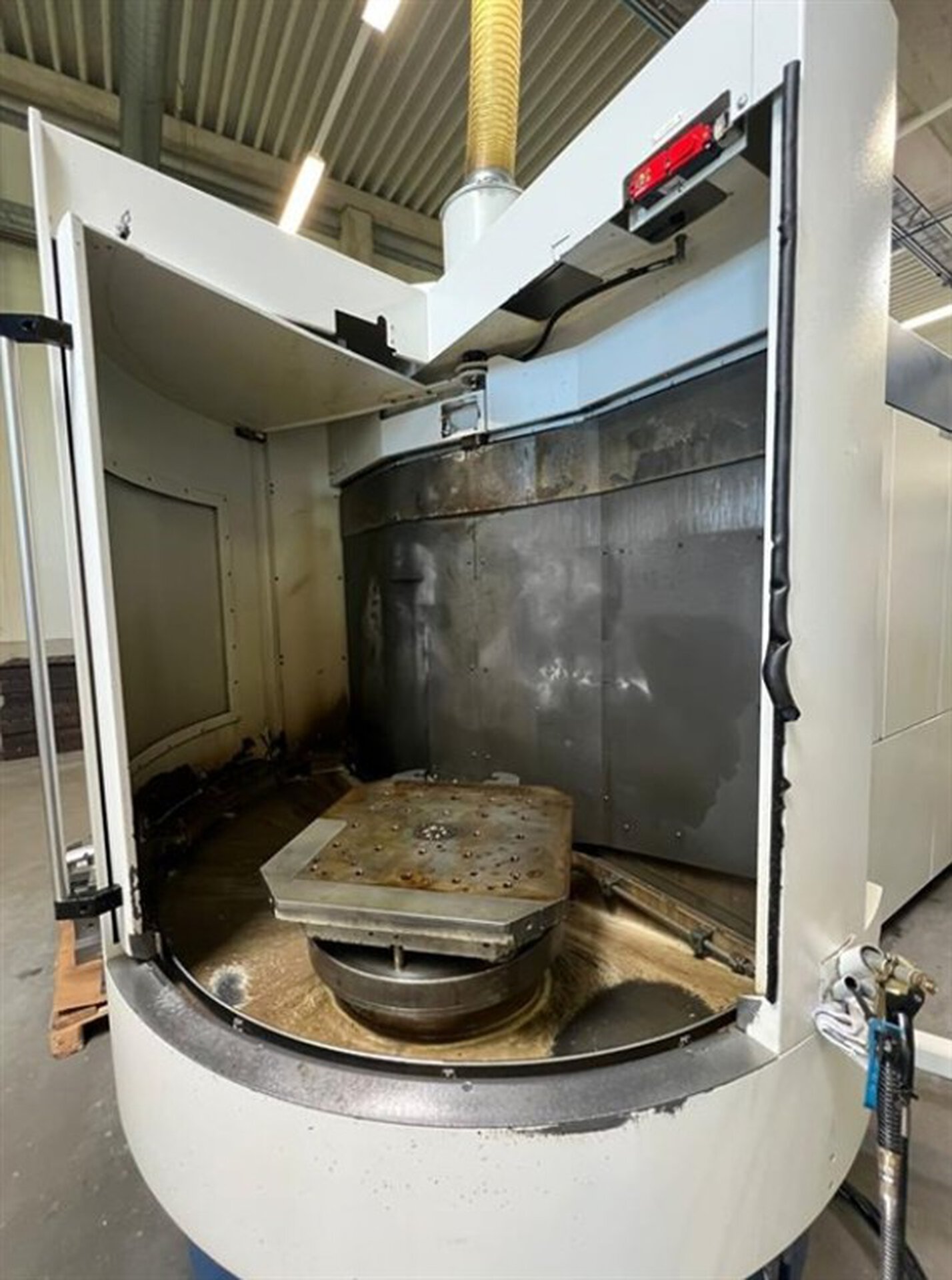

·2-pallet changer, pallets 630 × 630 mm
·6-fold hydraulic supply to pallets with coupling mechanisms
·Rotary unions in A- and B-axis
·Special hydraulic pump system
·Through-spindle coolant (10–80 bar)
·One clamping channel in the working area with proportional valve (10–200 bar)
·Electromechanical tool length measurement system GROB
·BLUM laser for tool monitoring
·Tool coding
·Chip conveyor
·3D probe
·Touch probe M&H
·Oil mist extraction
·Siemens HT8 electronic handwheel
·Rinsing gun, coolant flushing in working area, air gun
·Oil skimmer
·Automatic door
·Remote diagnostics
