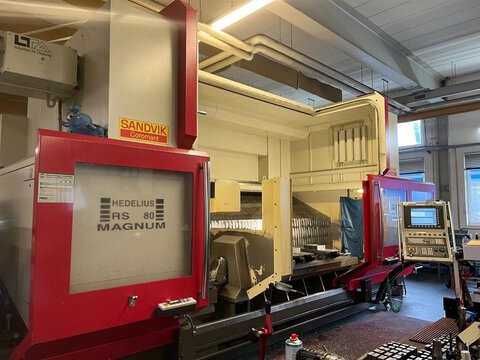

Hedelius RS80KL Magnum
CNC-Machining-Unit
Price is negotiable
Manufacturer: HEDELIUS
- Construction year: 2009
- Control Name: Sinumerik 840D
- Control Type: CNC
- Delivery Time: immediately
- Metal Processing > Boring mills / Machining Centers / Drilling machines > CNC-Machining-Unit
- Status: Used
Product No. 3402-260104
Technical Details
| Travel -x axis | 800/1825 | mm |
|---|---|---|
| Travel -y axis | 800/460 | mm |
| Travel -z axis | 600 | mm |
| Feeding X,Y,Z up to | 0 – 40/40/40 | mm/min. |
| Swival range +/- | +10 bis -90 × 360 | ° |
| Rotary-table | 800 × 630 | mm |
| Number of T-slots | 5 | |
| T-slot – distance | 125 | mm |
| T-Slots | 18 | |
| Center hole | 30H7X15 | mm |
| Turning speed | 20 | m/min. |
| Number of axles | 3–7 | St. |
| Spindle RPM | 12,000 | 1/min |
| Max. tool weight | 10 | kg |
| Max. tool length | 330 | mm |
| Diameter of tools max. | 80 | mm |
| Tool changing time | 4 | sec |
CNC control with
15.1“ color flat-screen
19” machine control panel
PCU 50 with Intel Pentium II
Windows XP
10.0 GB hard drive
