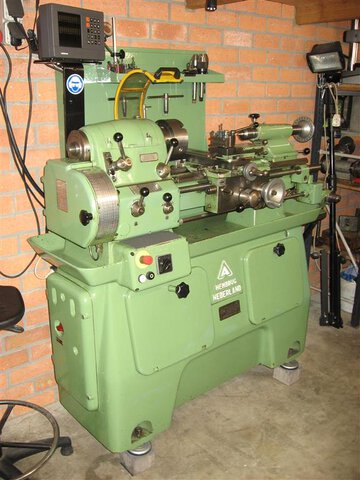

HEMBRUG DR 1
Center Lathe
Manufacturer: HEMBRUG
- Delivery Time: immediately
- Control Type: conventional
- Metal Processing > Lathes > Center Lathe
- Status: Used
Product No. 3402-231001
Technical Details
| Total power requirement | 3 | kW |
|---|---|---|
| Weight of the machine ca. | 1.9 | t |
| Dimensions of the machine ca. | 1.5 × 1.0 × 1.6 | m |
| Turning length | 500 | mm |
| Turning diameter over bed | 350 | mm |
| Turning diameter over slide rest | 240 | mm |
| Spindle bore | 35 | mm |
| Spindle RPM | 45 – 4000 | 1/min |
| Tailstock quill taper MT | MK 3 |
Very well maintened center lathe with accessories
- Rapid tool change system MULTIFIX A with 4 inserts
- 3-jaw chuck 160 mm, 4-jaw chuck RÖHM
- tailstock with center
- 1 boring head, 2 steady rests.
- collet set C5, 1–24 mm
- digital readout HEIDNEHAIN
- quill taper MK 3
- collet pull bar
