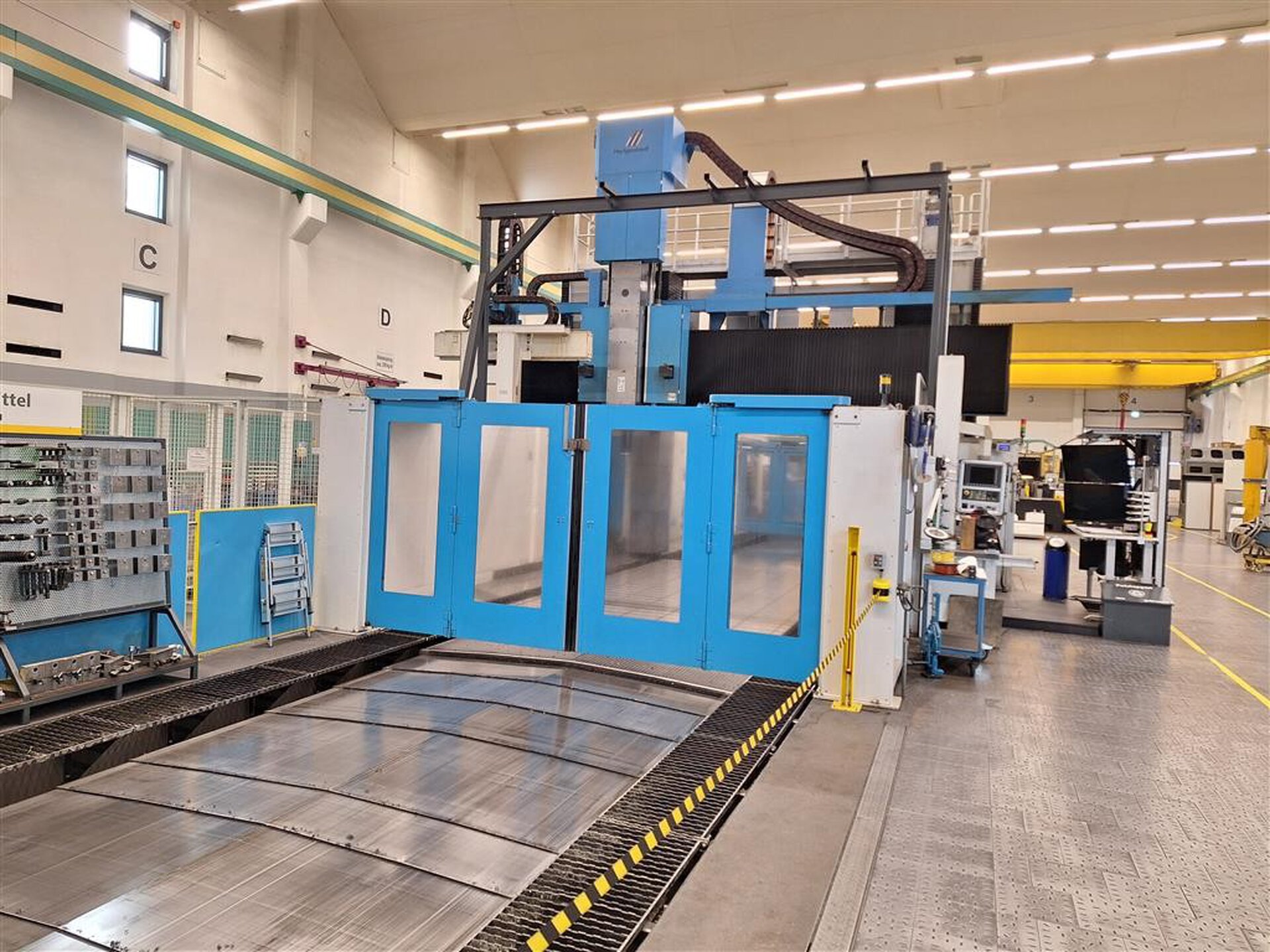

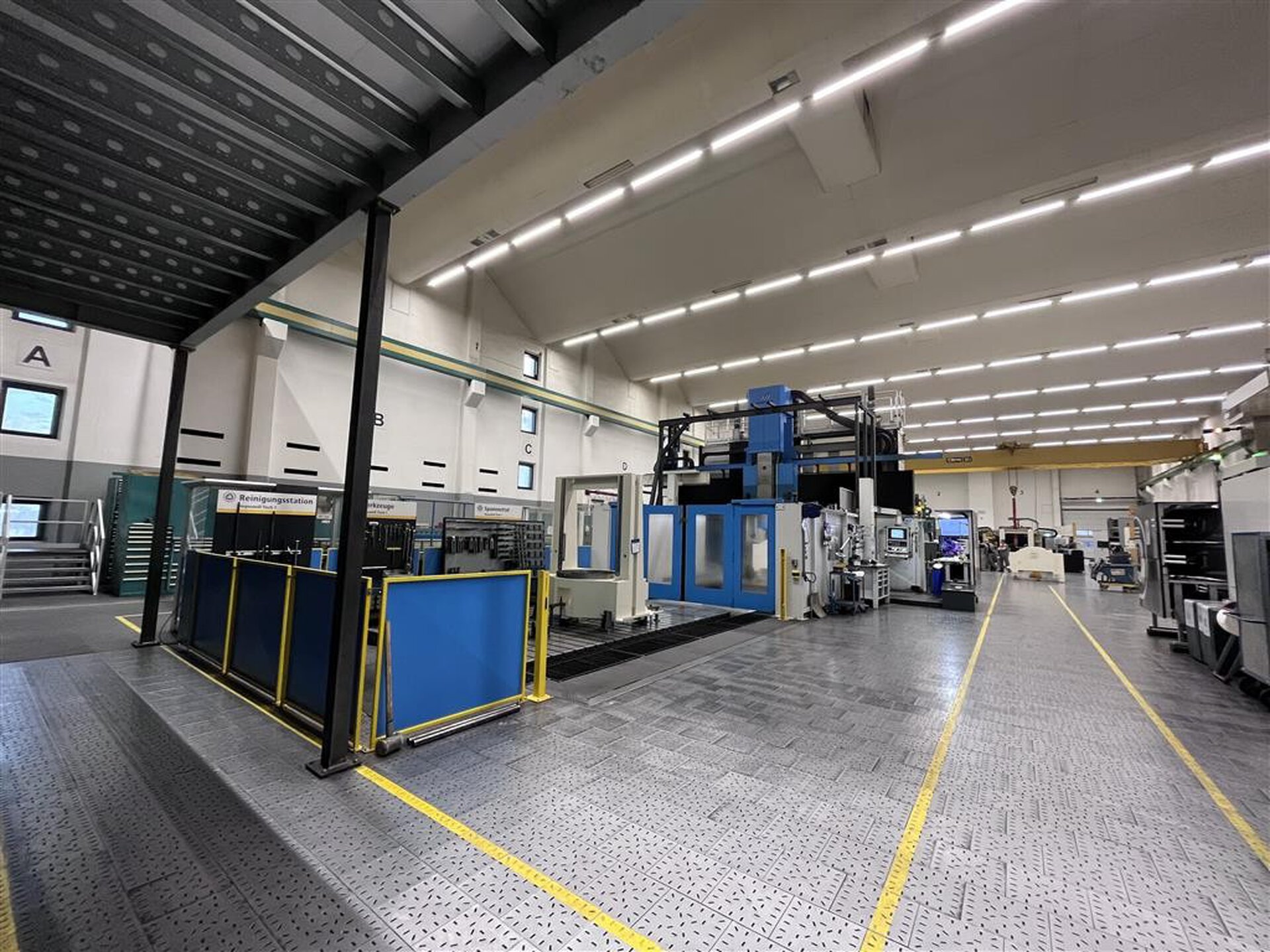

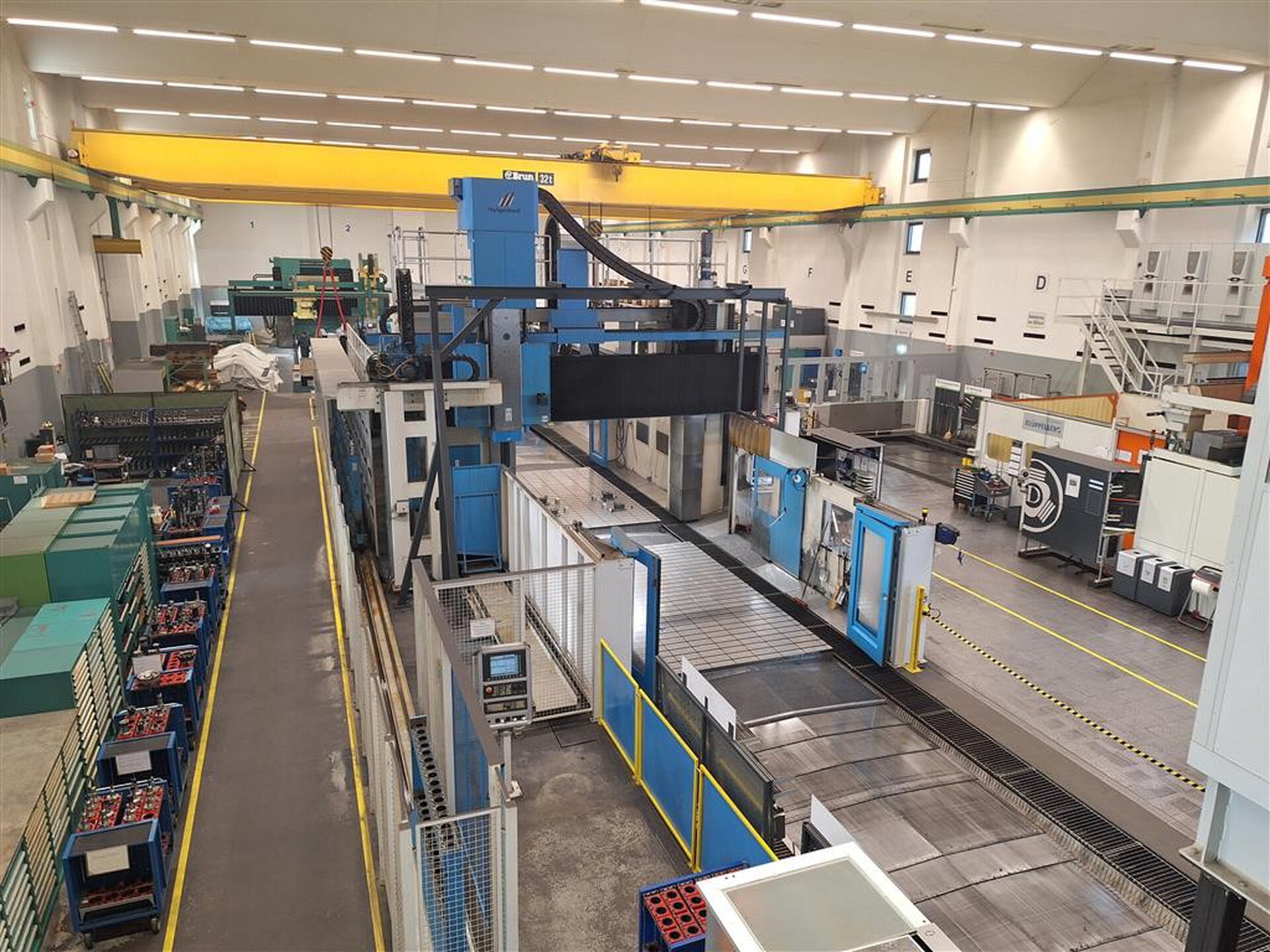

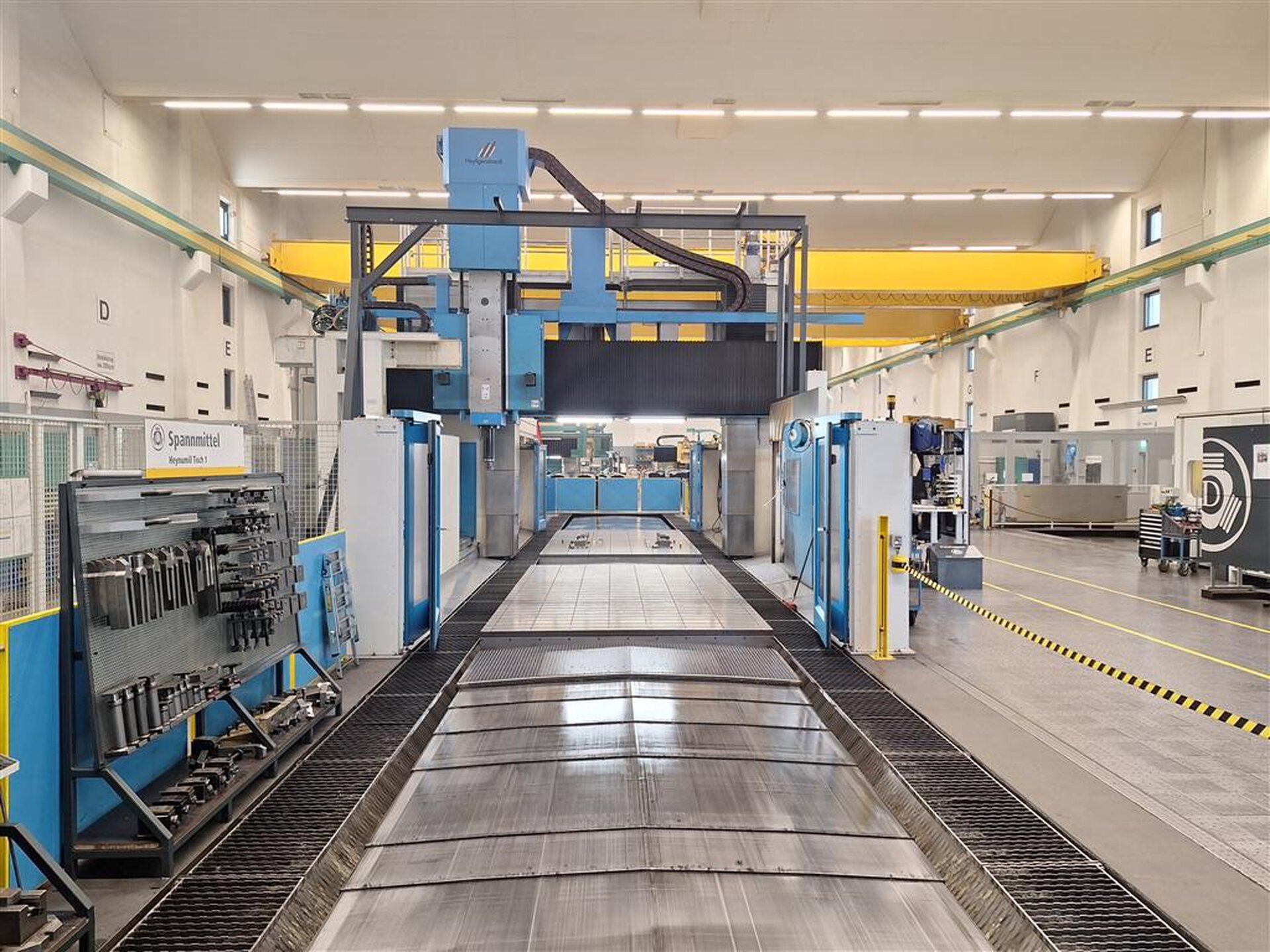

HEYLIGENSTAEDT Heynumill ECOFLEX
Planer-Type Milling M/C – Double Column
Price is negotiable
Manufacturer: HEYLIGENSTAEDT
- Construction year: 2010
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Milling machines > Planer-Type Milling M/C – Double Column
Product No. 3402-250803
Technical Details
| Total power requirement | 120 | kW |
|---|---|---|
| Weight of the machine ca. | 250 | t |
| Dimensions of the machine ca. | 29.5 × 9.5 × 8.2 | m |
| X-travel | 6500/13500 | mm |
| Y-travel | 4000 | mm |
| Z-travel | 1500 | mm |

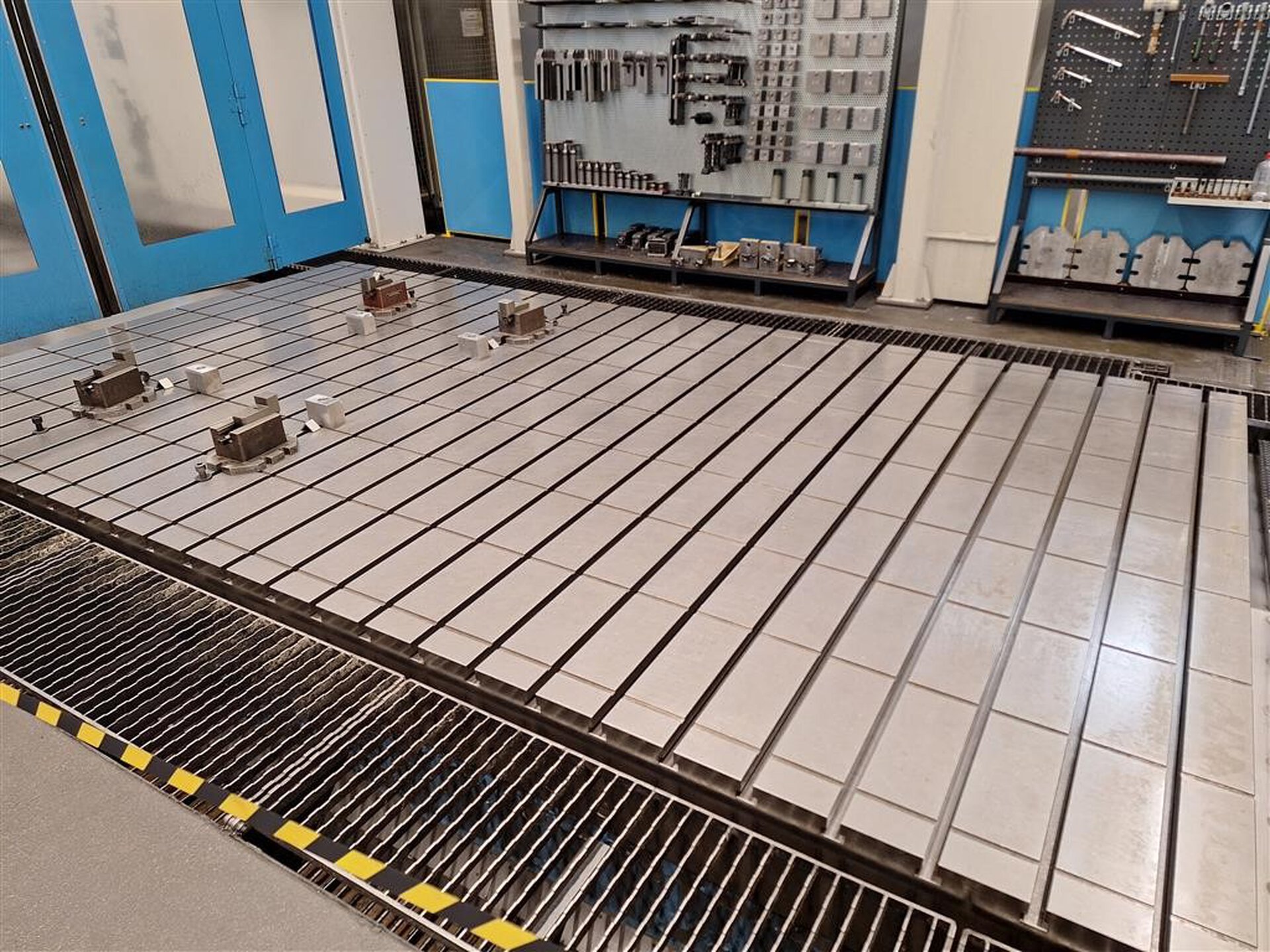

| Table surface area | 5500/12500 × 3000 | mm |
| Distance between columns | 3500 | mm |
| Tool taper | DIN 69893 HSK-A 100 | |
| W-axis | 2250 | mm |
| Feed speeds | 1 – 24000 | mm/min |
| Milling head speed | 1 – 1000 / 5 – 5000 | rpm |
| Ram head dimension | 520 × 625 | mm |
| Max. workpiece weight | 50.000/75.000 | kg |
| Milling spindle motor | 67,4 ( s1/100% ) | kW |
| Max. torque on the spindle | 2900 | Nm |
| Passage | 3000 | mm |

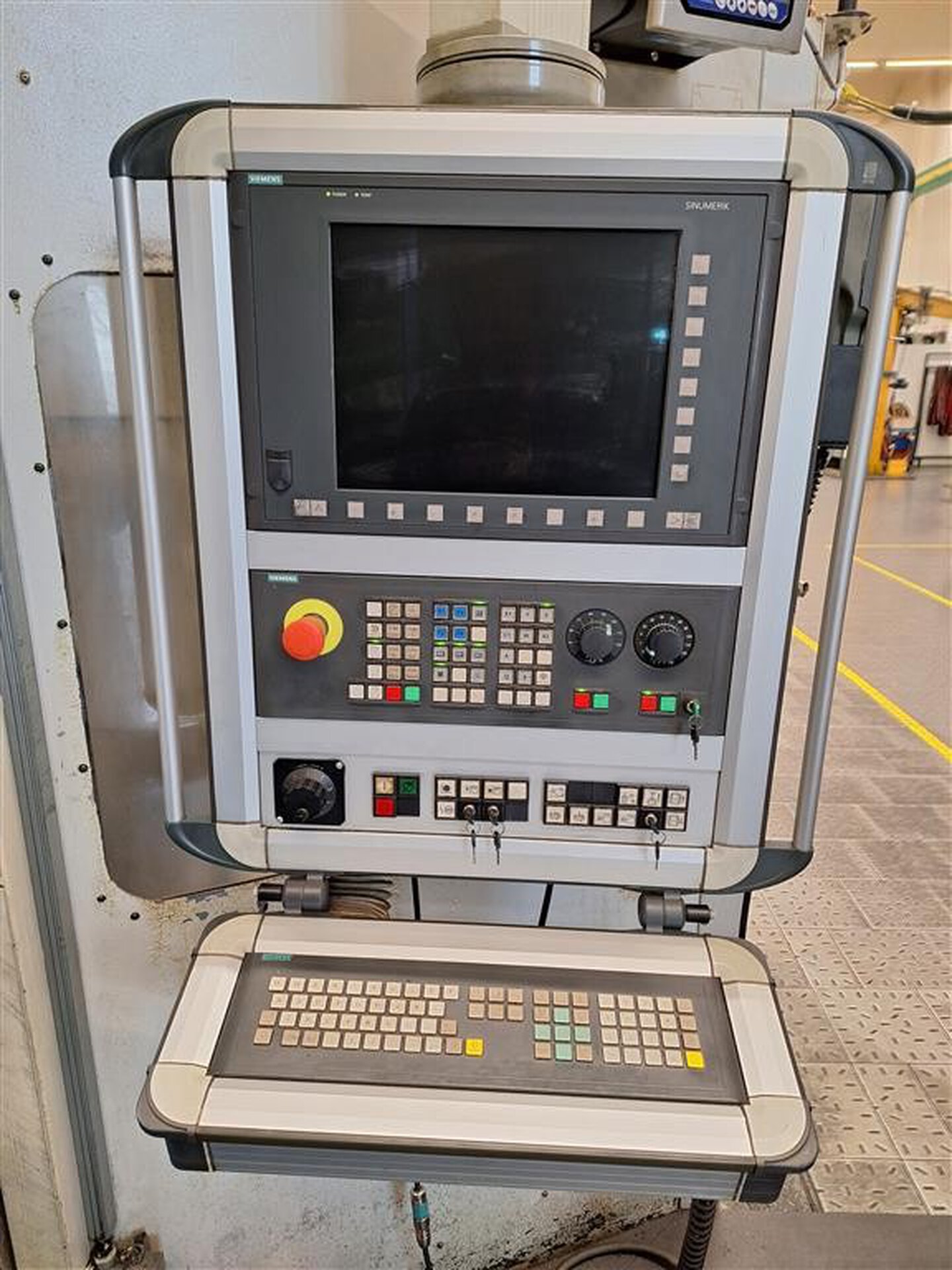

With CNC SIEMENS 840 D
Automatic tool magazine for 212 tool positions

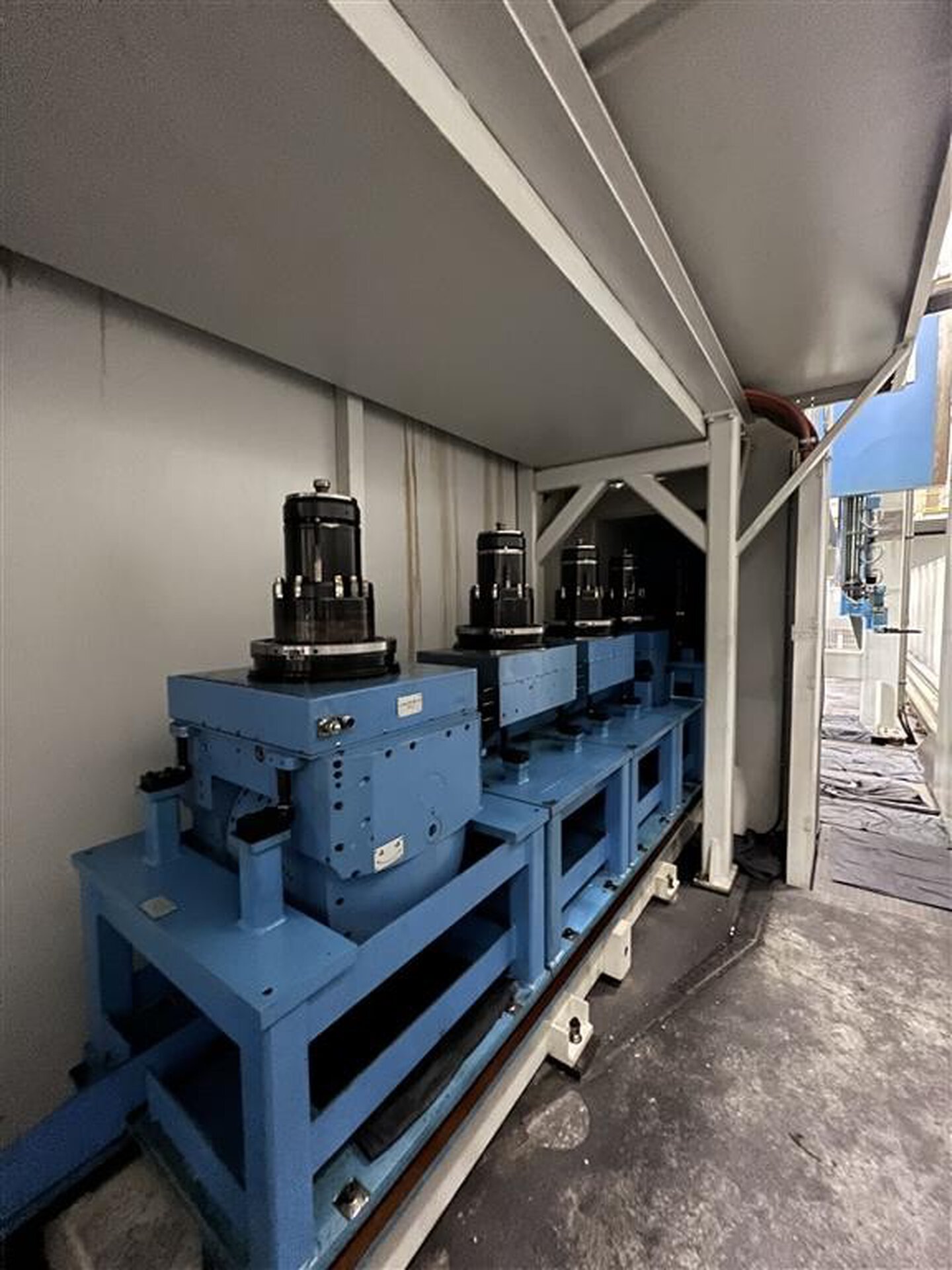

Automatic milling head magazine for 6 milling heads
1st machining module – straight – 67 kW, 2900 Nm, 5000 rpm, HSK-A 100
2nd machining module – straight extended – 40 kW, 1700 Nm, 5000 rpm, HSK-A 100
3rd machining module – angled extended – 40 kW, 1800 Nm, 4000 rpm, HSK-A 100
4th machining module – angled – 67 kW, 2900 Nm, 4000 rpm, 360° × 1°, HSK-A 100
5th machining module – angled – 67 kW, 2900 Nm, 4000 rpm, 360° × 1°, HSK-A 100
6th machining module – universal index angled – 40 kW, 2100 Nm, 4000 rpm,
C-axis 360° × 1°, B-axis ±110° × 1°, HSK-A 100
Cooling system, chip conveyor
