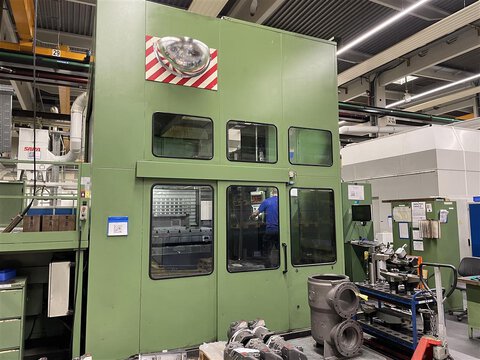

IKEGAI NB 110 T
Table Type Boring and Milling Machine
Manufacturer: IKEGAI
- Construction year: 1996
- Control Name: FANUC 16 M
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Table Type Boring and Milling Machine
Product No. 3402-230502
Technical Details
Total power requirement | 50 | kW |
---|---|---|
Weight of the machine ca. | 30 | t |
Dimensions of the machine ca. | 6.8 × 4.8 × 4.7 | m |
X-travel | 2000 | mm |
Y-travel | 1600 | mm |
Spindle turning speed range | 10 – 3000 | rpm |
Feeds | 1 – 5000 | mm/min |
Spindle motor | 22 | kW |
B-axis | 0.001 | ° |
Spindle diameter | 110 | mm |
Z-axis | 650 | mm |
Workpiece weight | 6500 | kg |
Y-axis | 1600 | mm |
Size of pallet | 1400 × 1600 | mm |
Rapid traverse feeds | 12000 | mm/min |
Machine equiped with FANUC 16 M CNC control for 5 axis
- palette changer
- full B-axis
- tool changer 60-fold
- hand operating panel
- complete splash housing
- spindle support bearing
