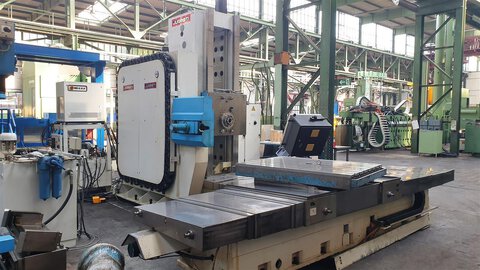

JUARISTI TS 1
Table Type Boring and Milling Machine
Price is negotiable
Manufacturer: JUARISTI
- Construction year: 1999
- Control Name: CNC HEIDENHAIN TNC 430
- Delivery Time: on request
- Control Type: CNC
- Status: Used
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Table Type Boring and Milling Machine
Product No. 3402-250105
Technical Details
| Total power requirement | 60 | kW |
|---|---|---|
| Weight of the machine ca. | 28 | t |
| Dimensions of the machine ca. | 7.0 × 5.4 × 4.4 | m |
| X-travel | 3000 | mm |
| Y-travel | 1600 | mm |
| Spindle turning speed range | 5 – 2500 | rpm |
| Table load | 6 | t |
| Spindle taper ISO | 50 | |
| Spindle drive motor | 22 | kW |
| Spindle diameter | 125 | mm |
| Z-axis | 1500 | mm |
| Table surface area | 1200 × 1500 | mm |
| W-axis | 600 | mm |
CNC HEIDENHAIN TNC 430
Spindelstützlager
Automatischer Werkzeugwechsler 60-fach
Späneförderer
Kühlmitteleinrichtung
Messtaster
