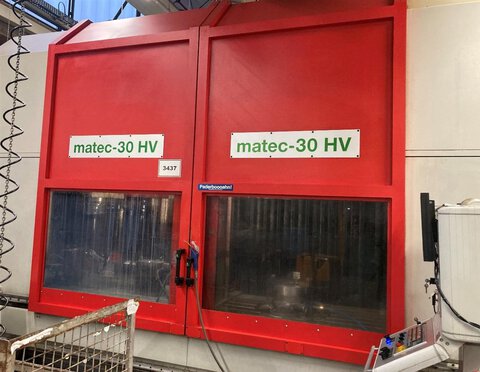

MATEC 30 HV
Travelling column milling machine
Price is negotiable
Manufacturer: MATEC
- Construction year: 11/2003
- Control Name: Bosch Typ 3 Osa
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Milling machines > Travelling column milling machine
Product No. 3402-250302
Technical Details
| Weight of the machine ca. | 15 | t |
|---|---|---|
| X-travel | 3,000 | mm |
| Y-travel | 800 | mm |
| Z-travel | 1100 | mm |
| Faceplate diameter | 630 | mm |
| Table surface area | 3,500 × 835 | mm |
| Tool taper | HSK 63 A | |
| Power capacity | 30 | kW |
| Feed speeds | 30,000 | mm/min |
| Turning speed range – spindle | 12,000 | rpm |
| Spindle Torque | 190 | Nm |
| Bore capacity in steel | 60 | mm |
| Max. Milling-capacity | 500 | cm³/min |
| Threading | M 30 | |
| Rapid traverse in x-y-z axis | 30 | |
| T-slots | 7 × | |
| T-slot – width | 18-H7 | mm |
| With NC rotary table | Sempuco SKH 4/630 | |
| Numbers of positions in the tool changer | 48 |
NC-Swivel-Head:
Sauter
Pivotabel +/- 90 Grad
Division +/- 3 Bogensekunden
Full workspace encapsulation
Loading doors suitable for crane loading
Automatic opening
Movable partition wall
Coolant system:
Internal coolant supply 70 bar
Paper belt filter
Spray gun
Chip vonveyor discharge height 1200mm
Clamping hydraulics
Interface 4 axis
3D wireless probe
Direct measuring systems x-y-z
Cooling aggregate for enclosure
NC-rotary table RW/NC 160/250 Hofmann
Face plate diameter 250mm
Tip height 160mm
Hydraulic taistock with quill MK4
Documentation
Declaration of conformity
Replacement screen installed
