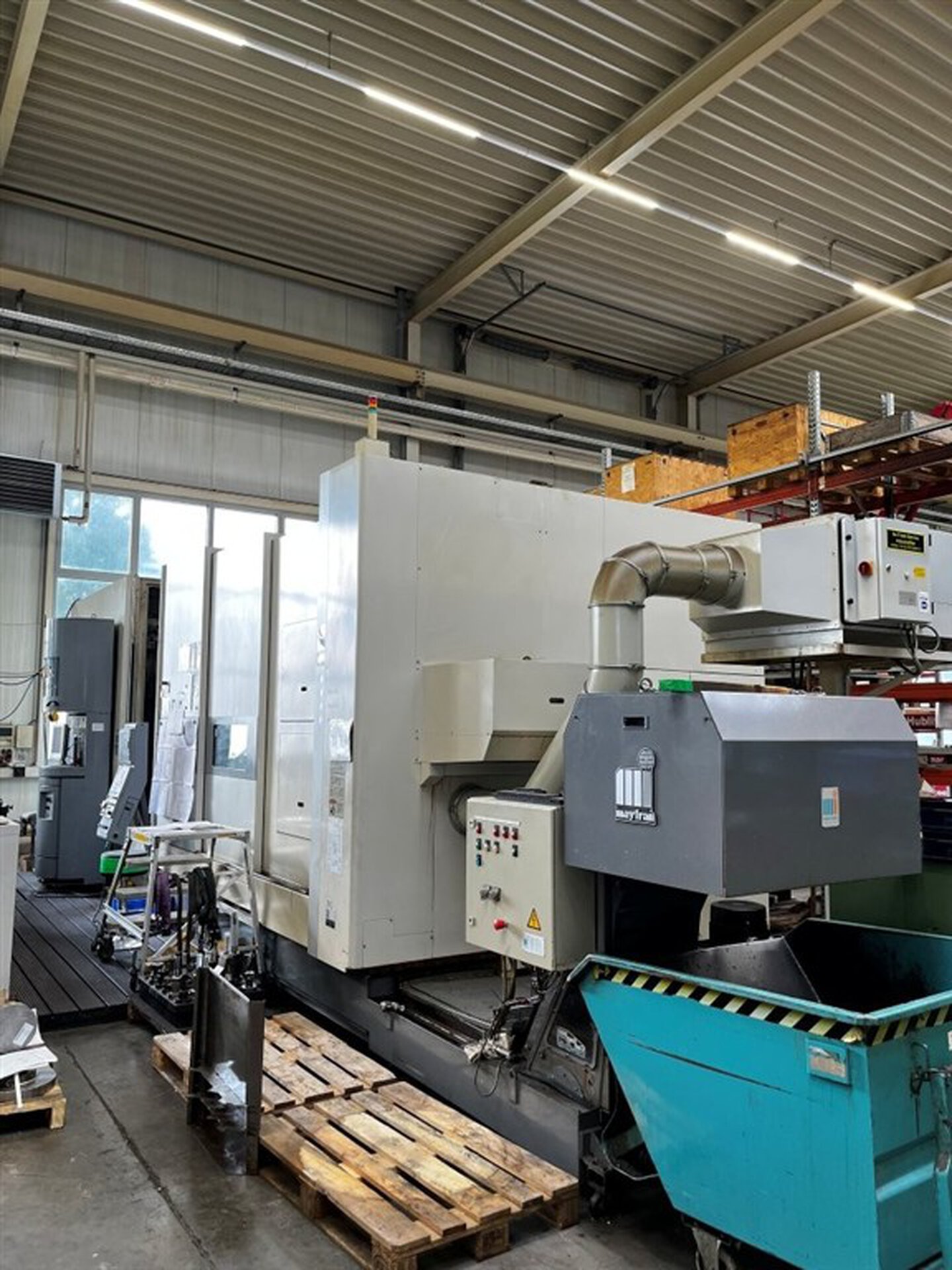

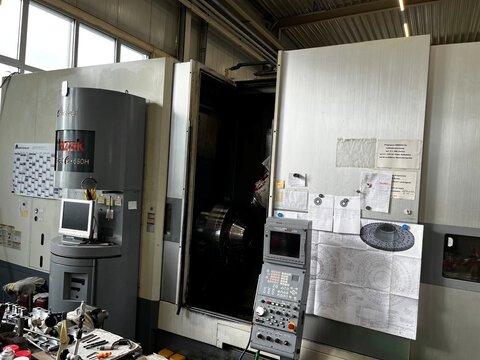

MAZAK MAZAK Integrex e-650H × 3300
CNC Turning- and Milling Center
Price is negotiable
Manufacturer: MAZAK
- Construction year: 2003
- Control Name: CNC MAZATROL
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Lathes > CNC Turning- and Milling Center
Product No. 3402-250602
Technical Details
| Weight of the machine ca. | 30 | t |
|---|---|---|
| Turning diameter | 920 | mm |
| Turning length | 3048 | mm |
| Tool taper | 50/69871 | |
| Power capacity | 45 | kW |
| Numbers of tools | 120 | |
| Travel -x axis | 1025 | mm |
| Travel -z axis | 3375 | mm |
| Spindle nose | A 2–11“ | |
| RPM Main Spindle | 7–1600 | 1/min |
| Torque | 4500 | |
| Travel -y axis | 325 | mm |
| RPM of rotary tools turret 1 | 25–1000 | 1/min |
| Electr. connected load | 106 | kVA |
Accessories
- Automatic machine. Door
- Magazine for 3 long boring bars
- 1 long boring bar, vibration-damped with 3 inserts
- Preparation for high-pressure cooling 70 bar
- Tool presetting “Tool Eye” for chuck 810 mm
- Linear scale system X-axis
- Linear scale system Y-axis
- 3 lamps for machining status
- Portable manual handwheel
- Tailstock quill extension/retraction via foot switch
- Preparation for SMW steady rest SLU4
- Coolant system 50 bar in 3 stages with chip conveyors and separation drum
- Interface set
- Mold making package with Ethernet operation
- Torque-dependent drilling cycle
- Circula drilling cycle
- Synchronous thread cutting for driven tools
- Spindle nose 15“
- 1 set of manuals
