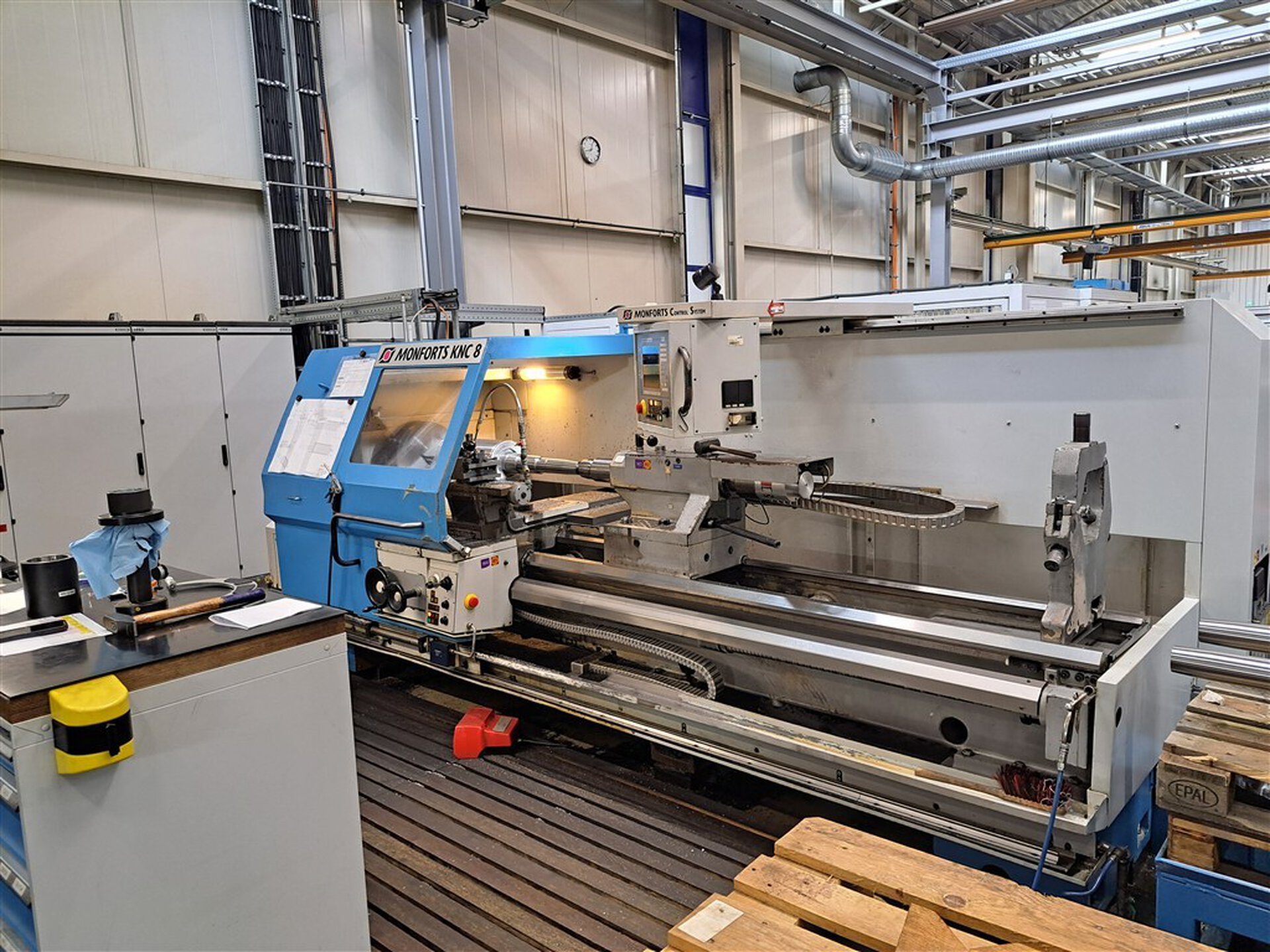

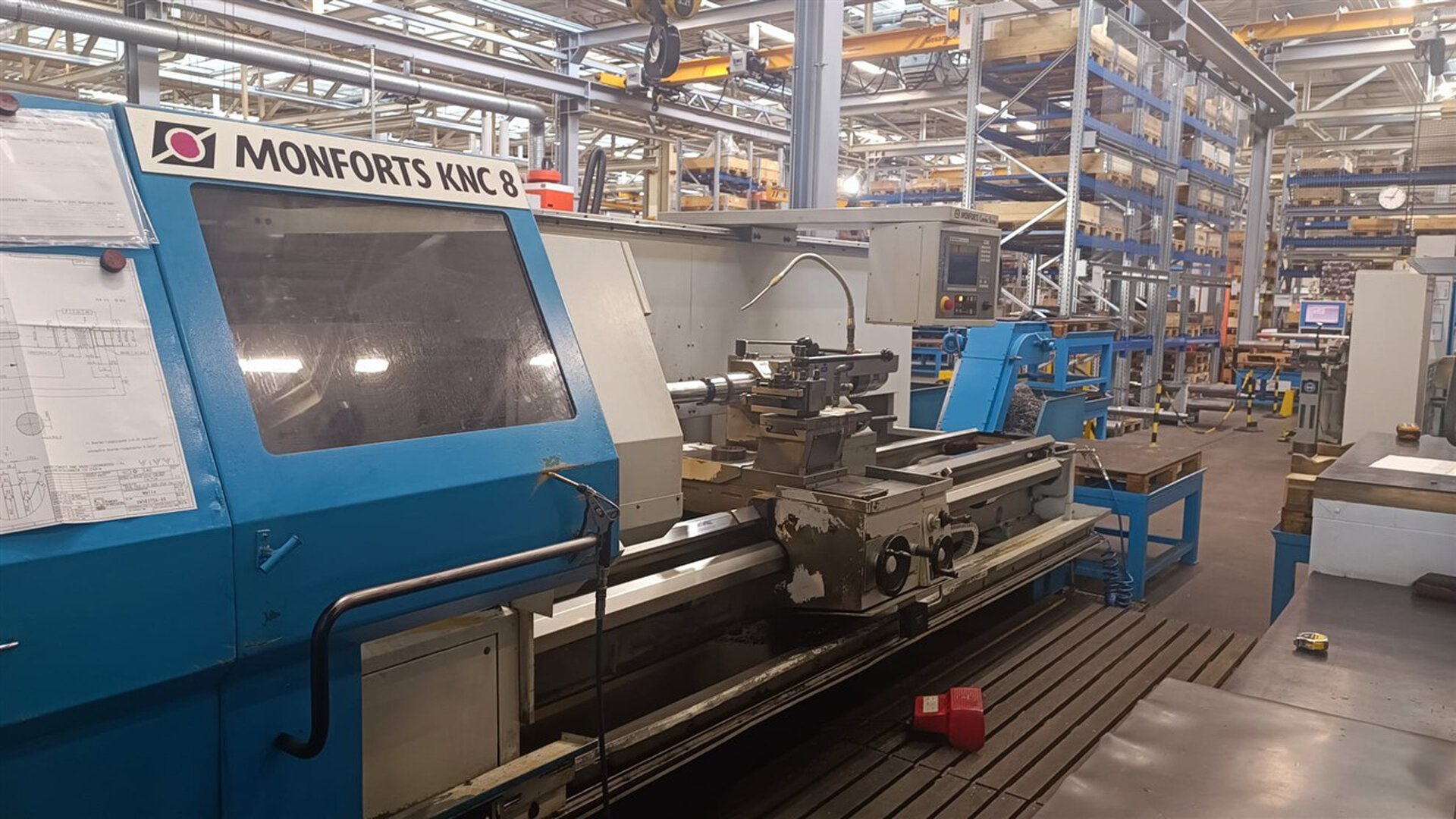

MONFORTS KNC 8 × 3000
Lathe – cycle controled
Price is negotiable
Manufacturer: MONFORTS
- Construction year: 2000
- Control Type: cyclecontrolled
- Delivery Time: immediately
- Metal Processing > Lathes > Lathe – cycle controled
- Status: Used
Product No. 3402-260910
Technical Details
| Turning diameter | 800 | mm |
|---|---|---|
| Turning length | 2965 | mm |
| Total power requirement | 37 | kW |
| Weight of the machine ca. | 6.5 | t |
| Dimensions of the machine ca. | 5.2 × 2.2 × 1.9 | m |
| Max. turning dia. over saddle | 520 | mm |
| Spindle bore | 92 | mm |
| Turning speed range | 3 – 1800 | rpm |
| Spindle head | Größe 11 | |
| 3-jaw-chuck dia. | 400 | mm |
| Faceplate diameter | 630 | mm |

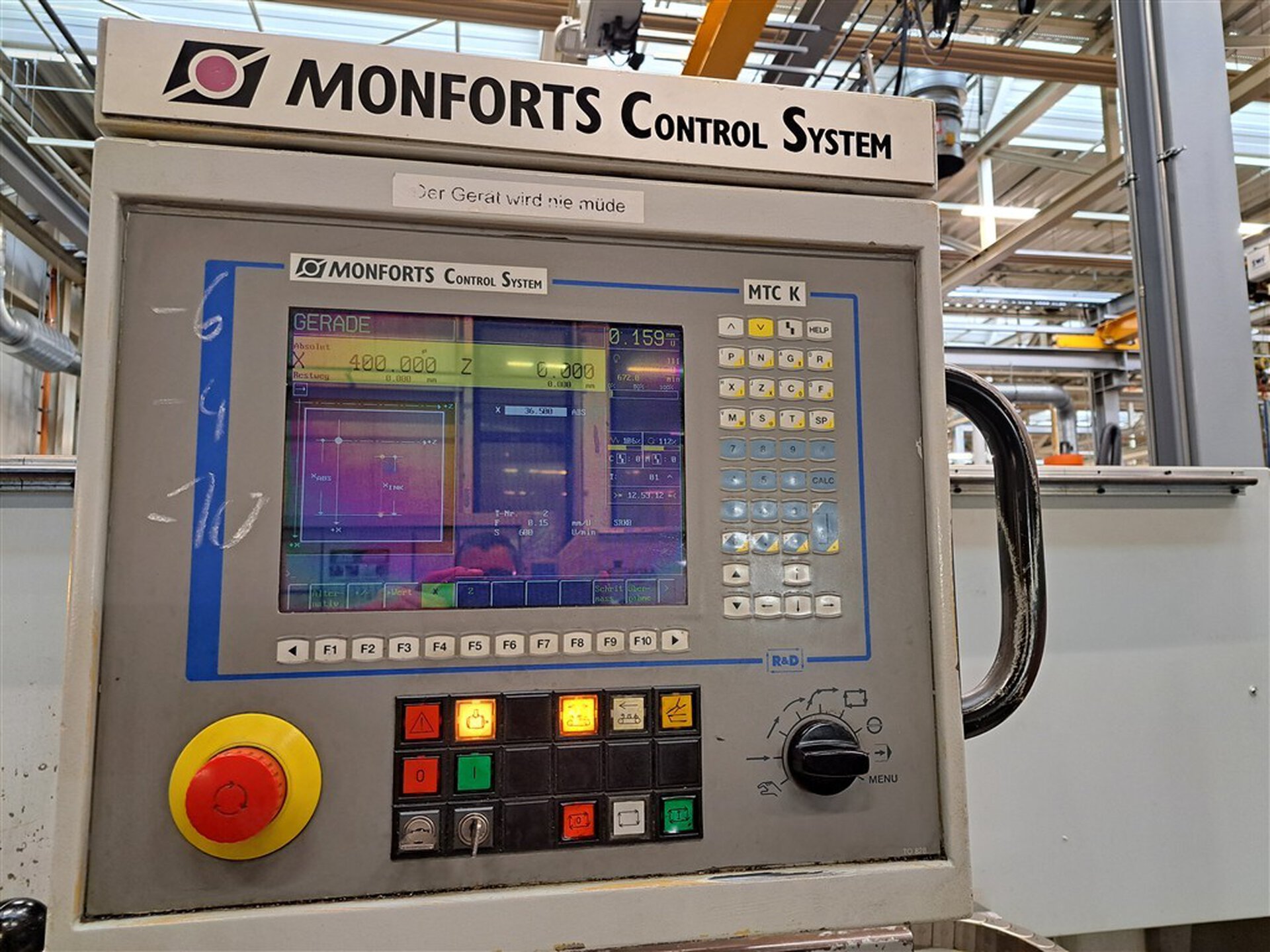

MTC K cycle control unit

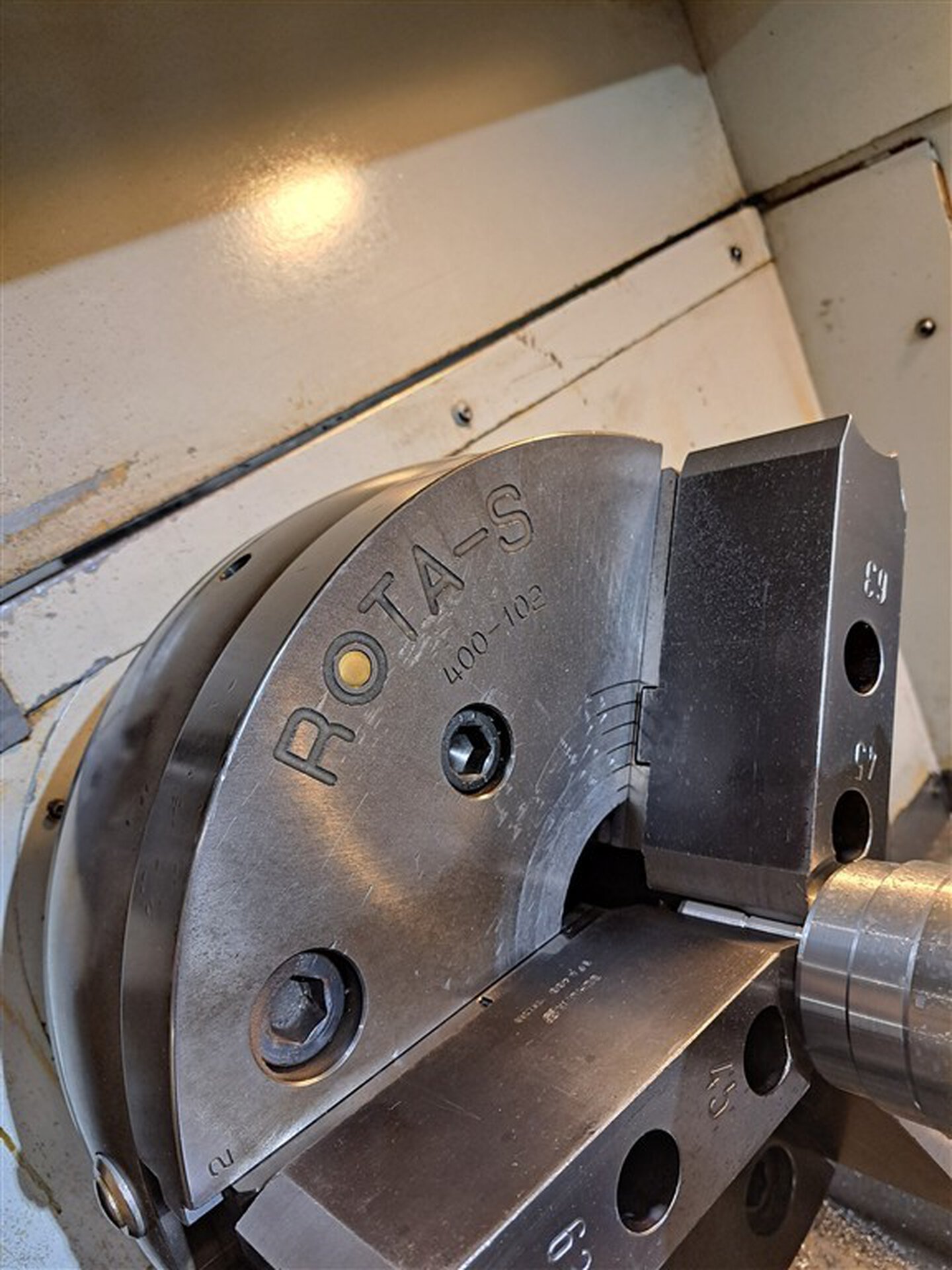

ROTAS 3-jaw chuck, diameter 400 mm

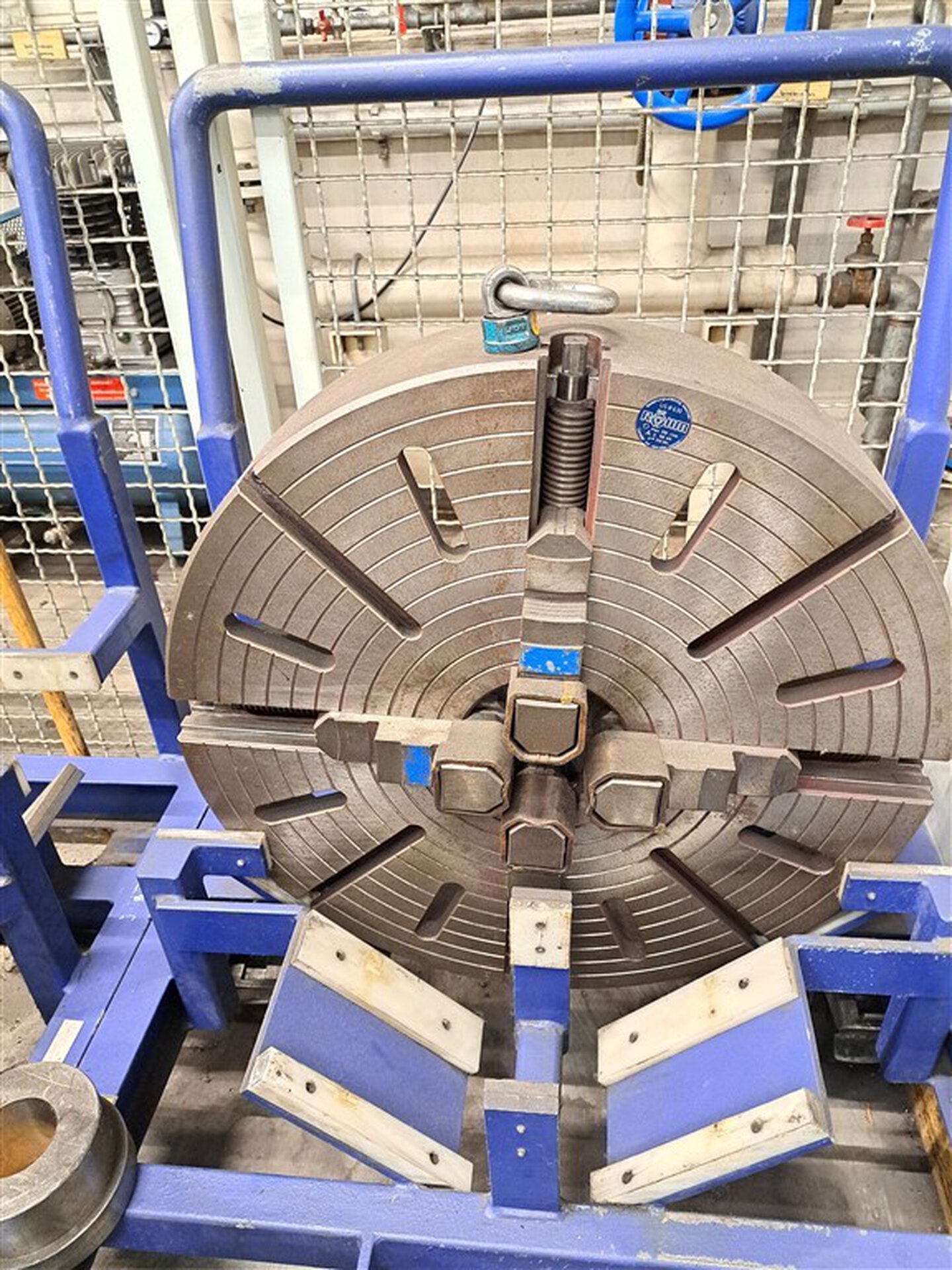

RÖHM face plate, diameter 630 mm

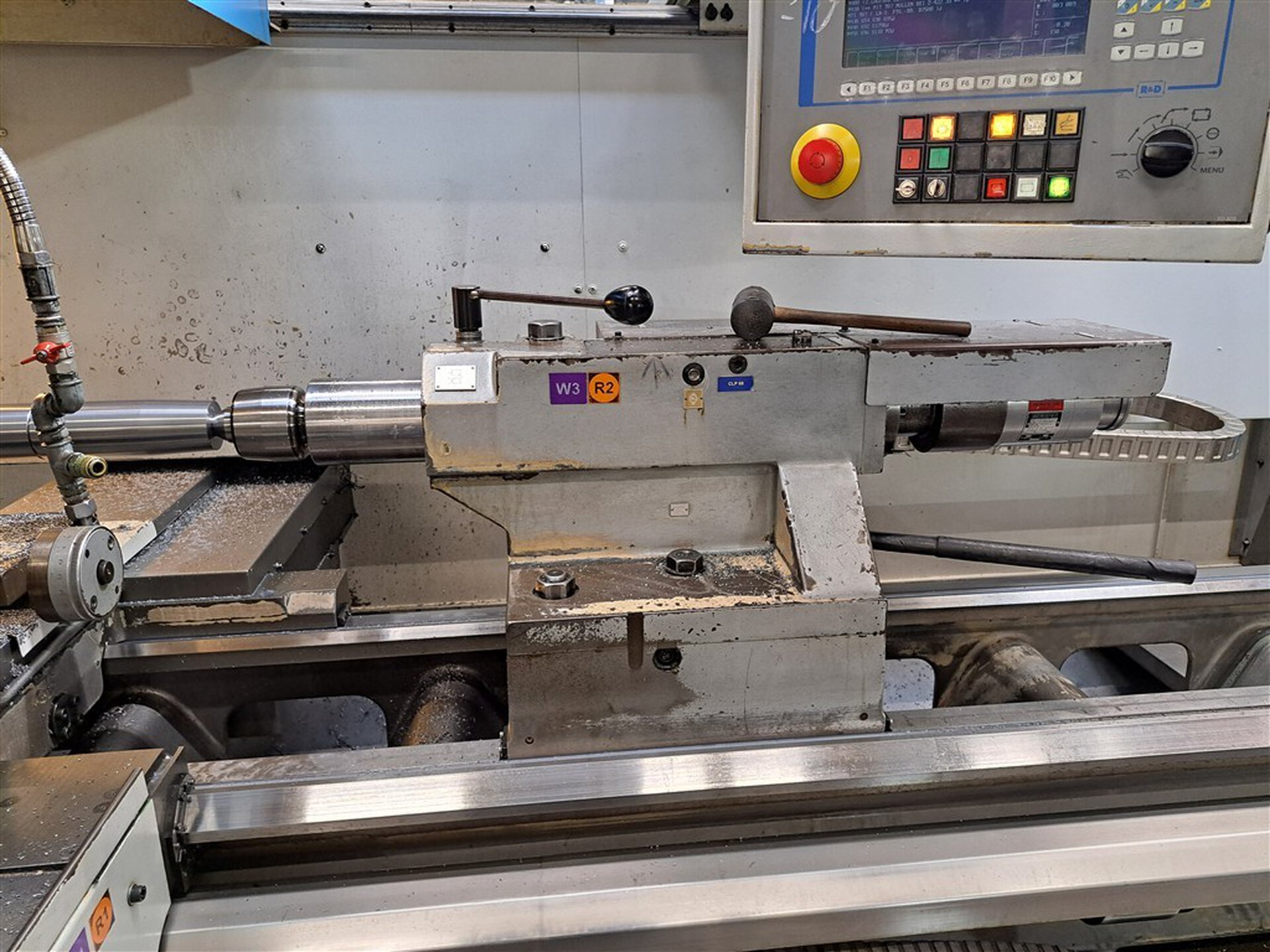

PARAT 4-jaw tool holder

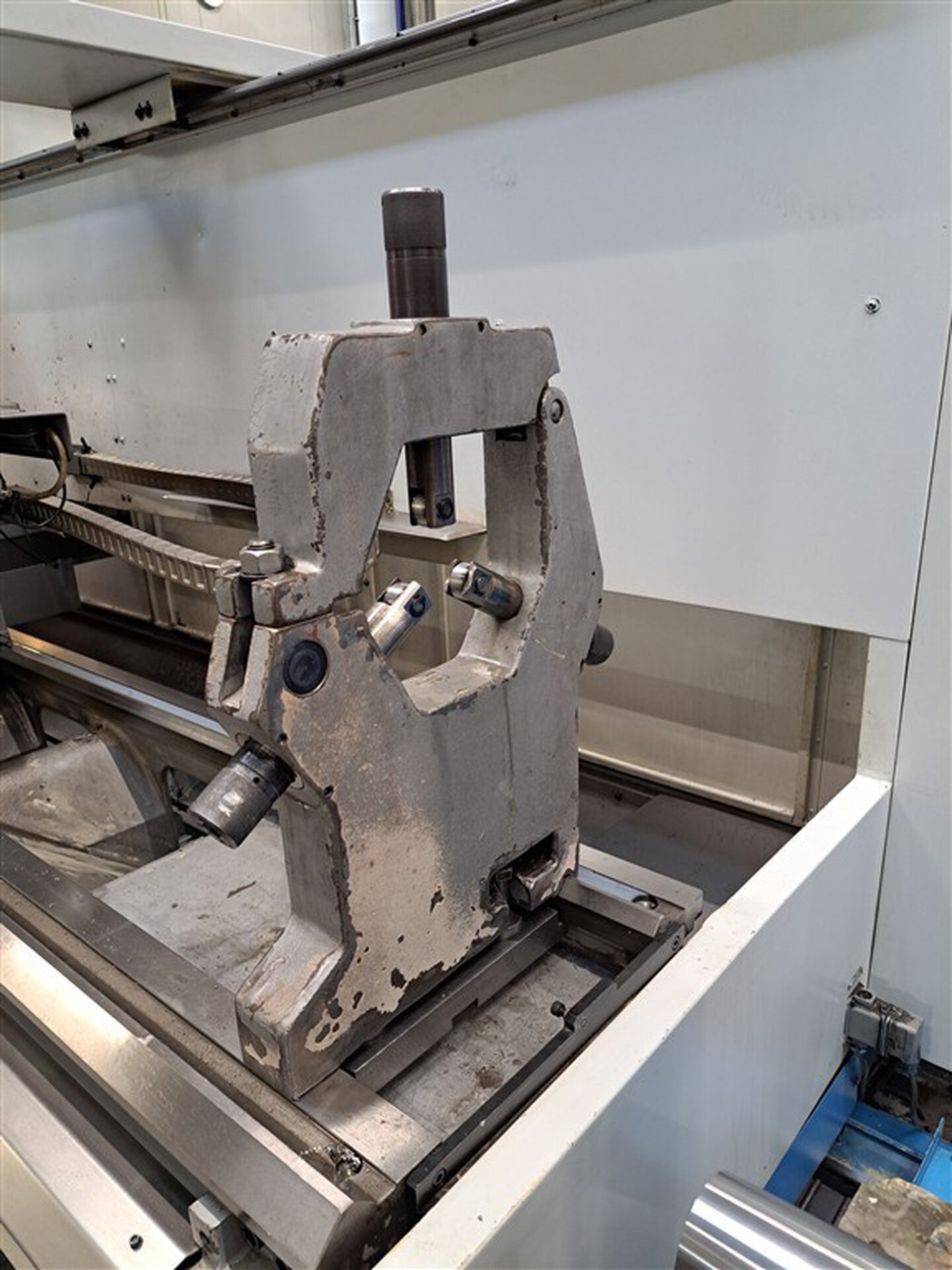

1 fixed Lynette unit
Coolant system and chip conveyor
