TOS SU 150
Center Lathe
Manufacturer: TOS
- Construction year: 1995
- Metal Processing > Lathes > Center Lathe
- Delivery Time: immediately
- Control Type: conventional
- Status: Used
Product No. 3402-231104
Technical Details
| Total power requirement | 27 | kW |
|---|---|---|
| Weight of the machine ca. | 10 | t |
| Dimensions of the machine ca. | 7 × 2.1 × 2.0 | m |
| Turning length | 4000 | mm |
| Turning diameter over bed | 1500 | mm |
| Turning diameter over slide rest | 1200 | mm |
| Spindle bore | 115 | mm |
| Spindle speeds: | 2.2 – 450 | |
| Max. workpiece weight between centres | 3000 | kg |
| Bed width | 800 | mm |
- Machine with feed in top slide
- rapid traverse motor, motorized tailstock
- 2 faceplates 1000 and 1400 mm, 3-jaw chuck 500 mm

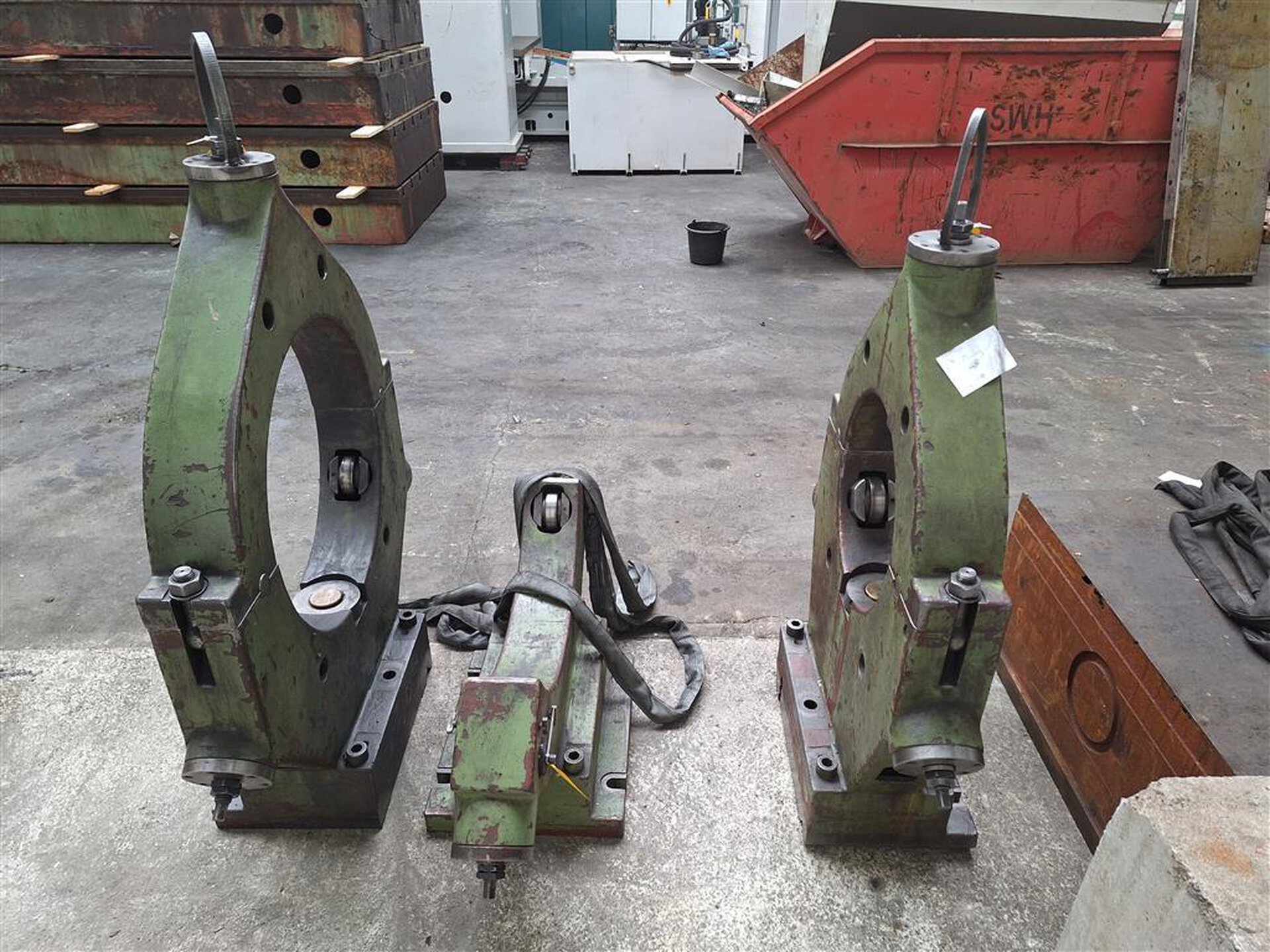

- 2 steady rests 400 and 600 mm ia.
- various accesssories
