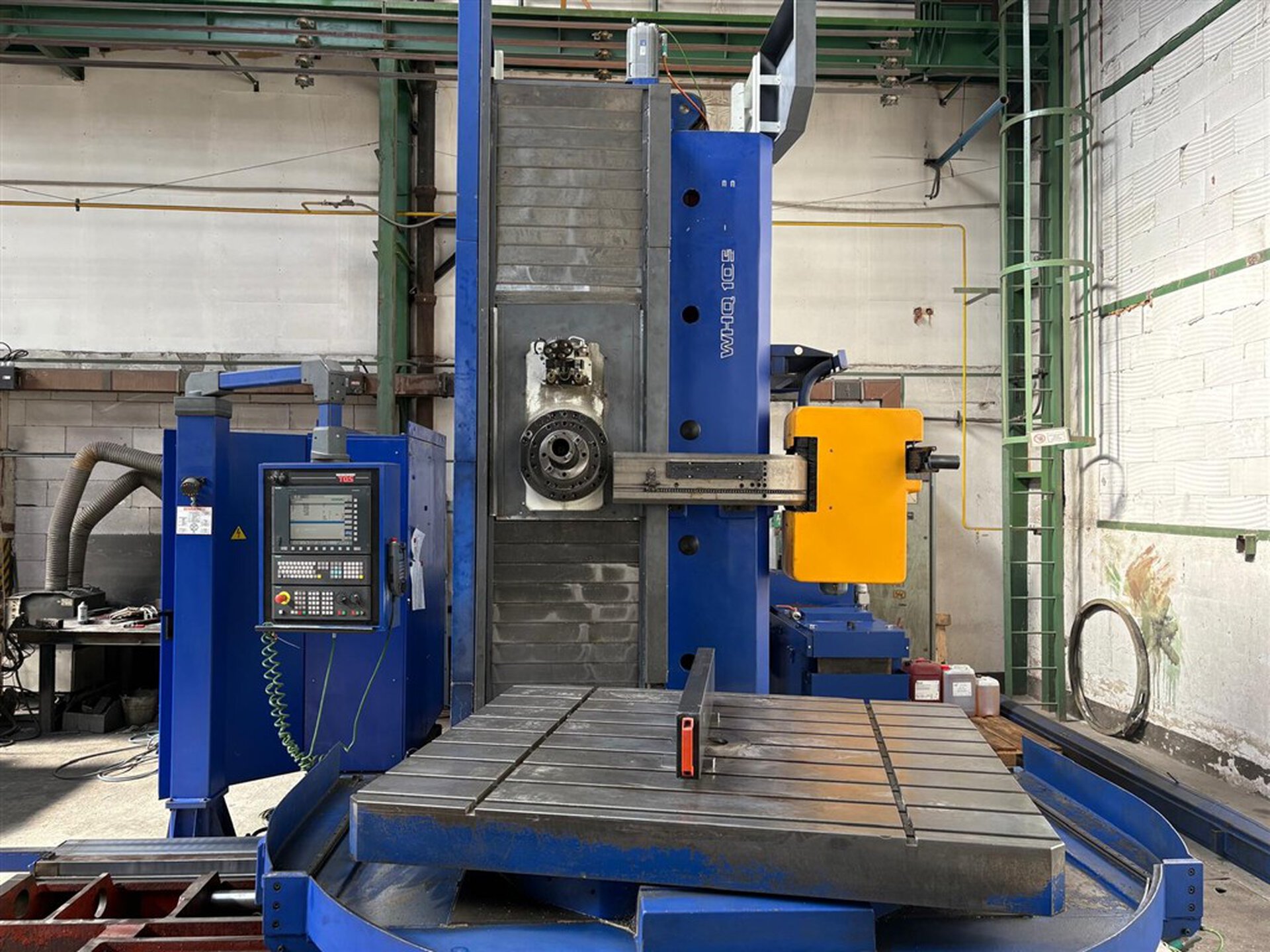

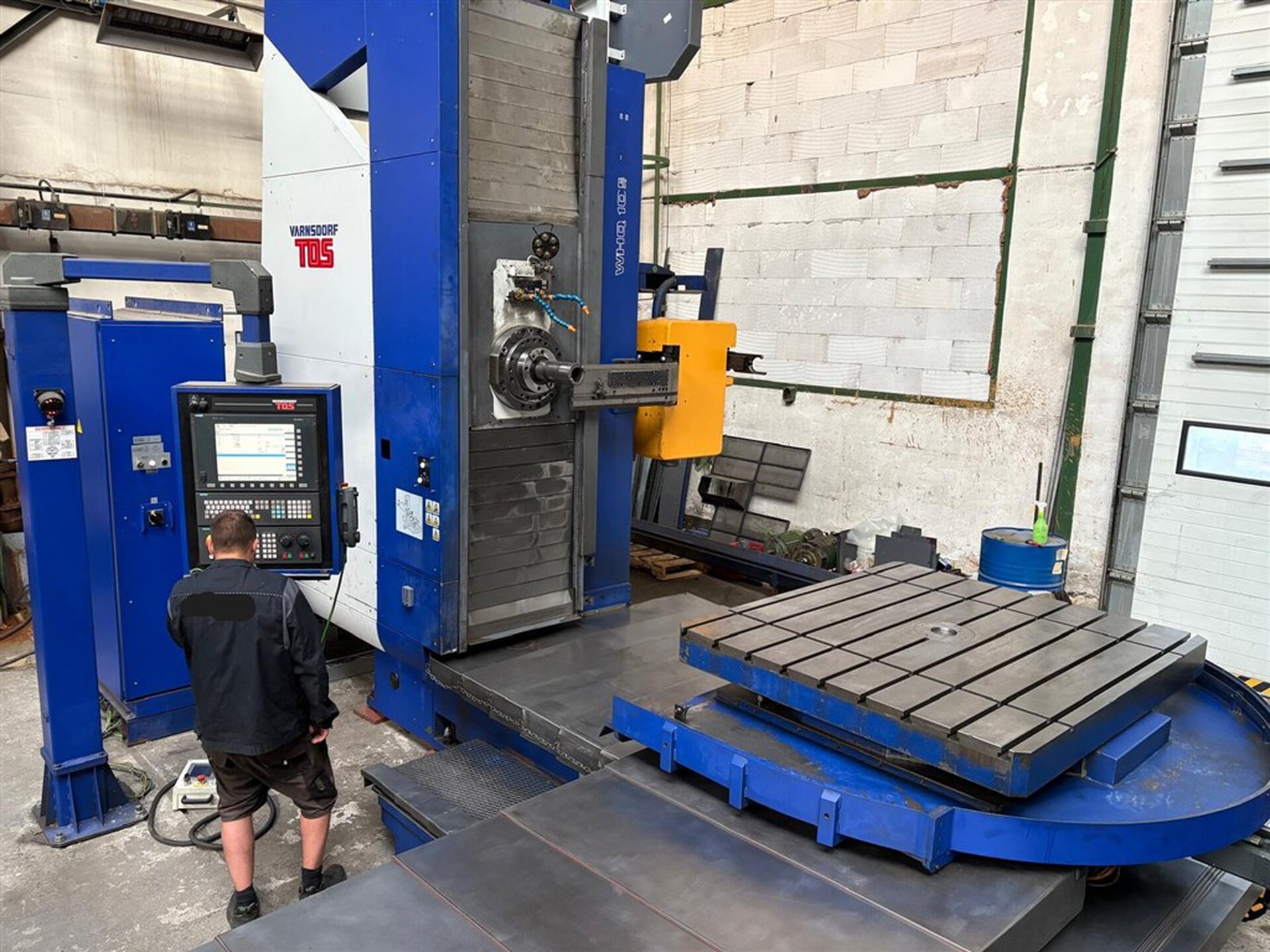

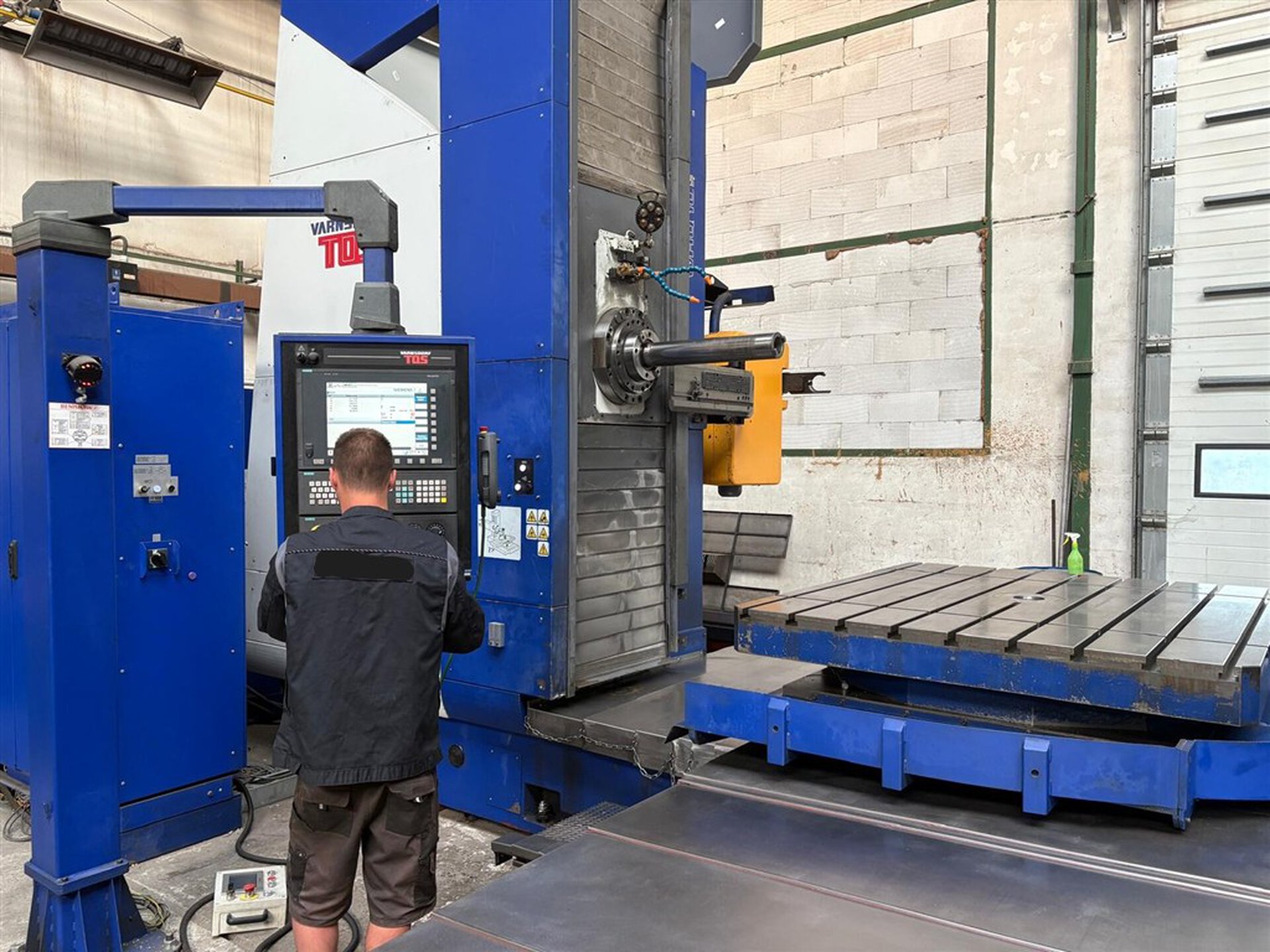

TOS VARNSDORF WHQ 105
Table Type Boring and Milling Machine
Price is negotiable
Manufacturer: TOS VARNSDORF
- Construction year: 2015
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Table Type Boring and Milling Machine
Product No. 3402-250915
Technical Details
| Throat | - | mm |
|---|---|---|
| Bore capacity in steel (diameter) | - | mm |
| Bore stroke | - | mm |

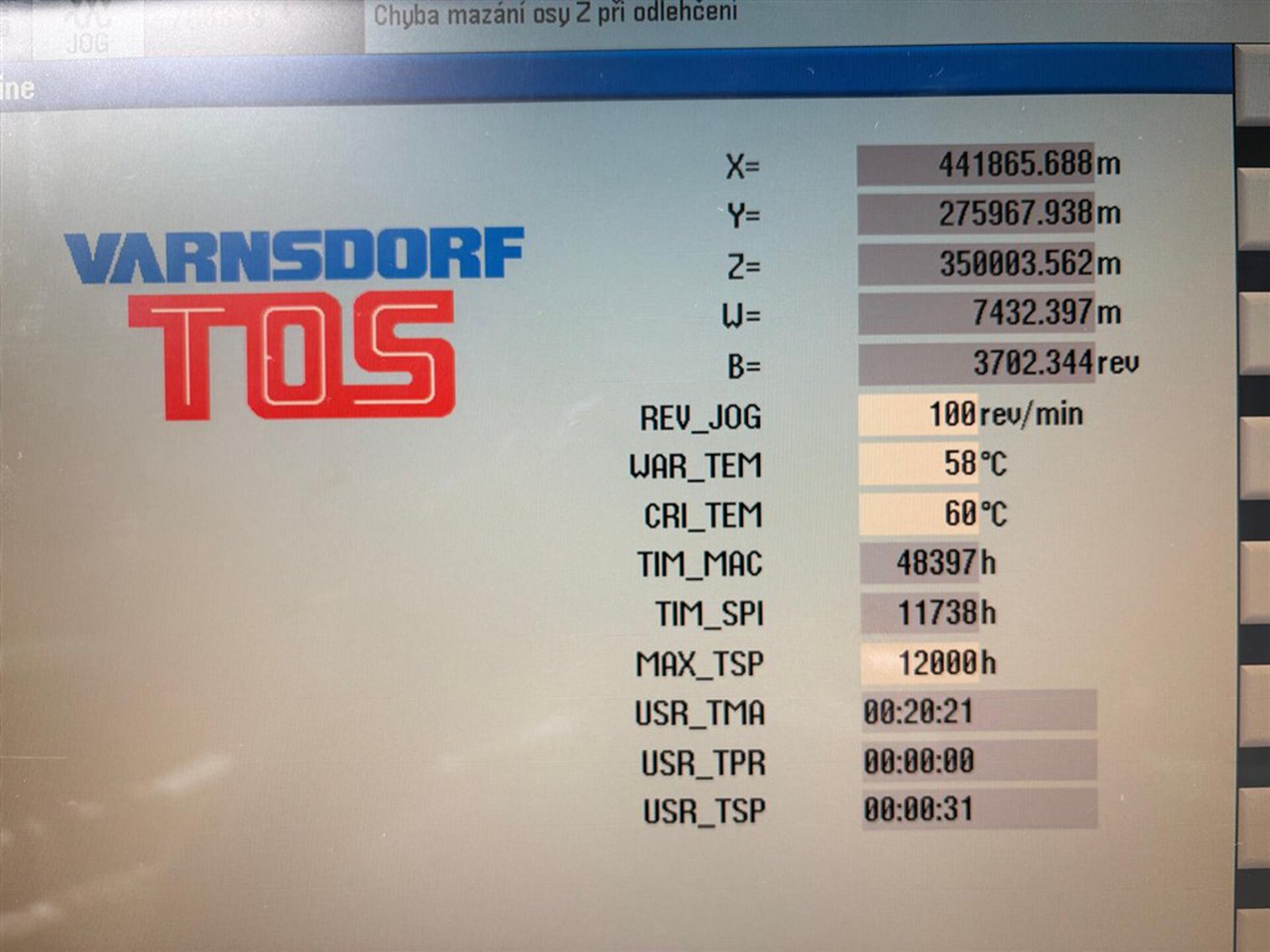

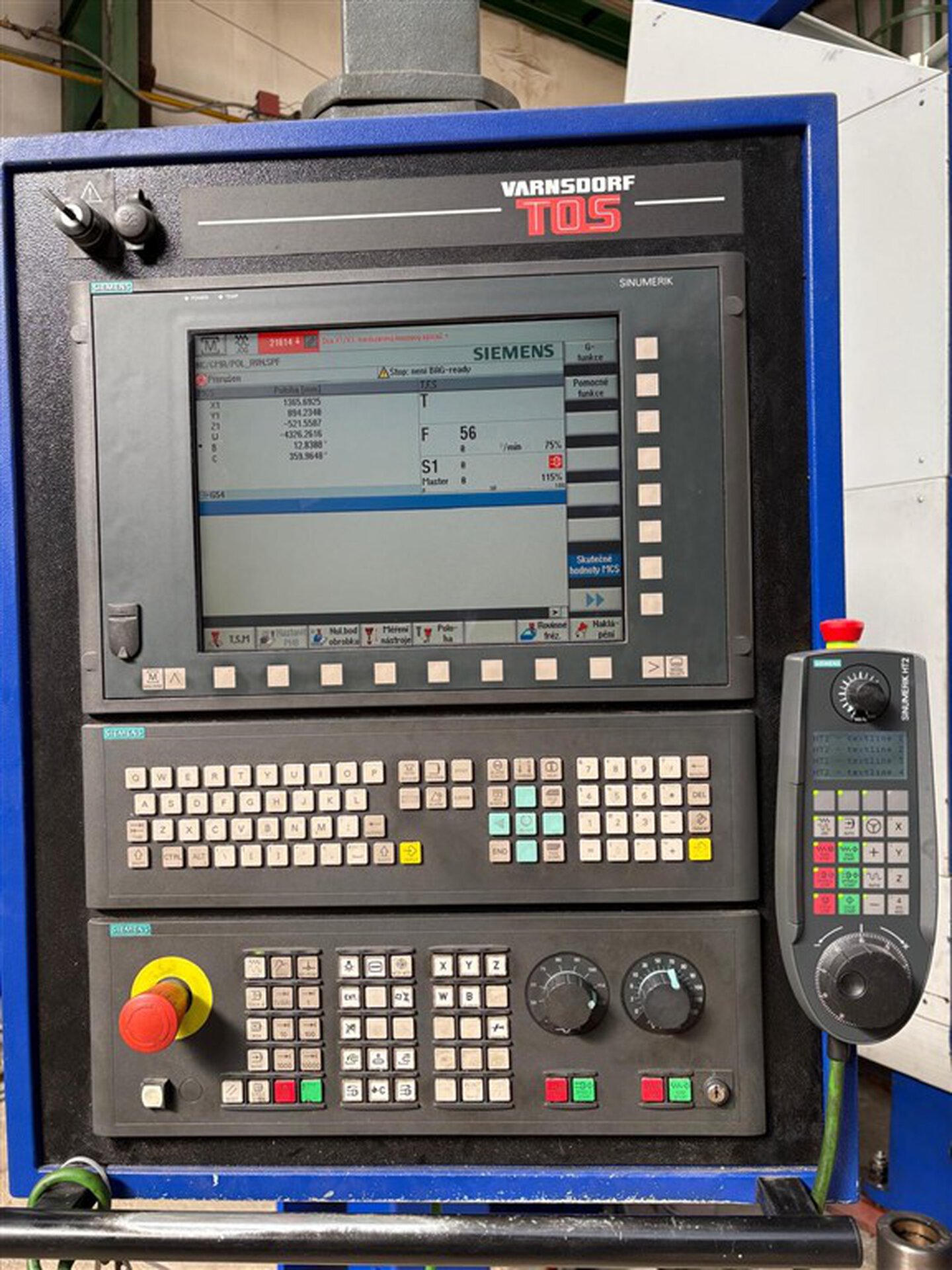

WHQ 105 CNC Sinumerik 840D, 11800 spindle hours.
Travel distance X-axis: 1,800mm
Travel distance Y axis: 1,600mm
Travel distance Z-axis: 1,250mm
Table load: 5,000kg

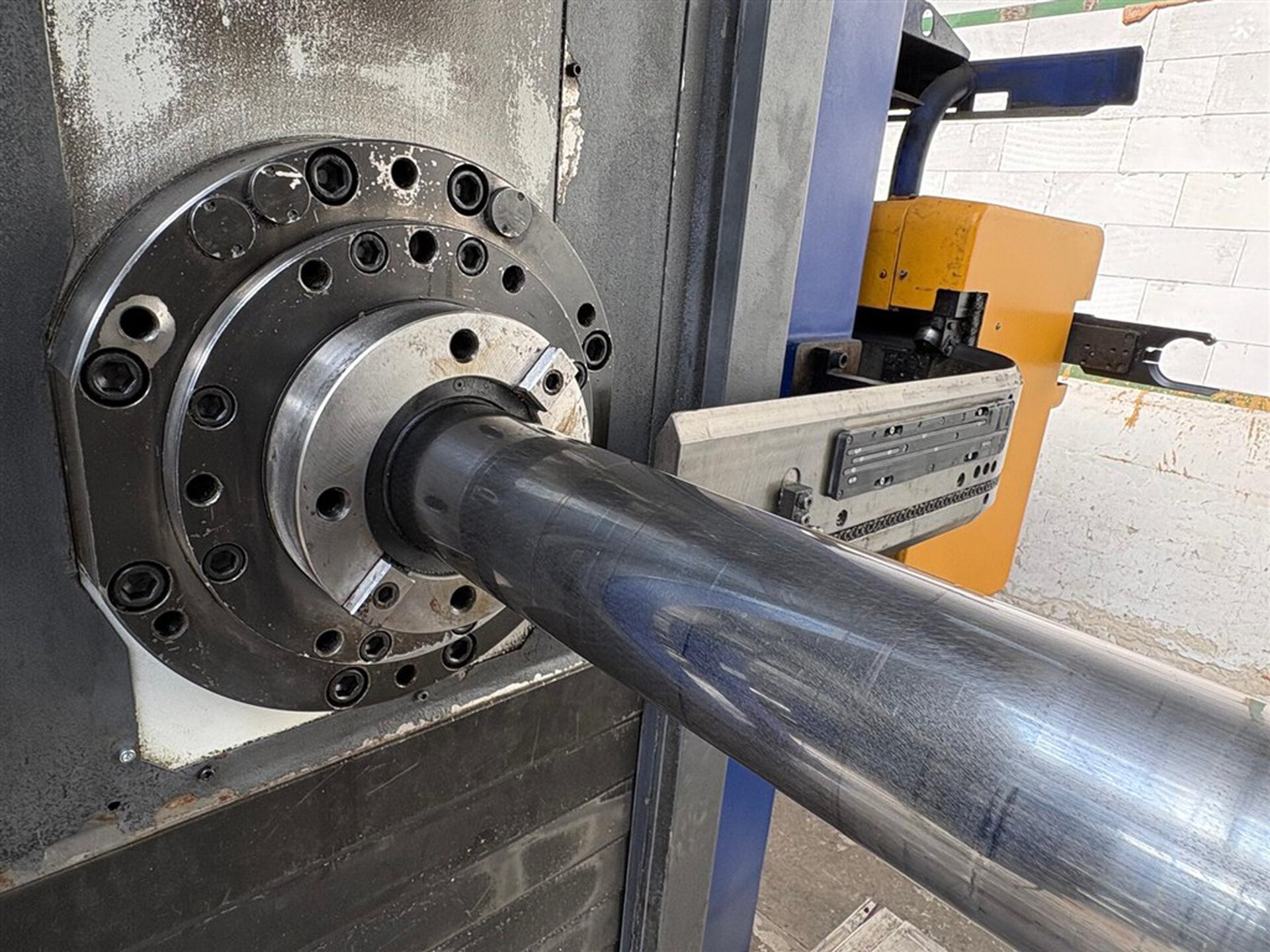

Spindle diameter: 105mm
Spindle speed (max.): 3,300 rpm

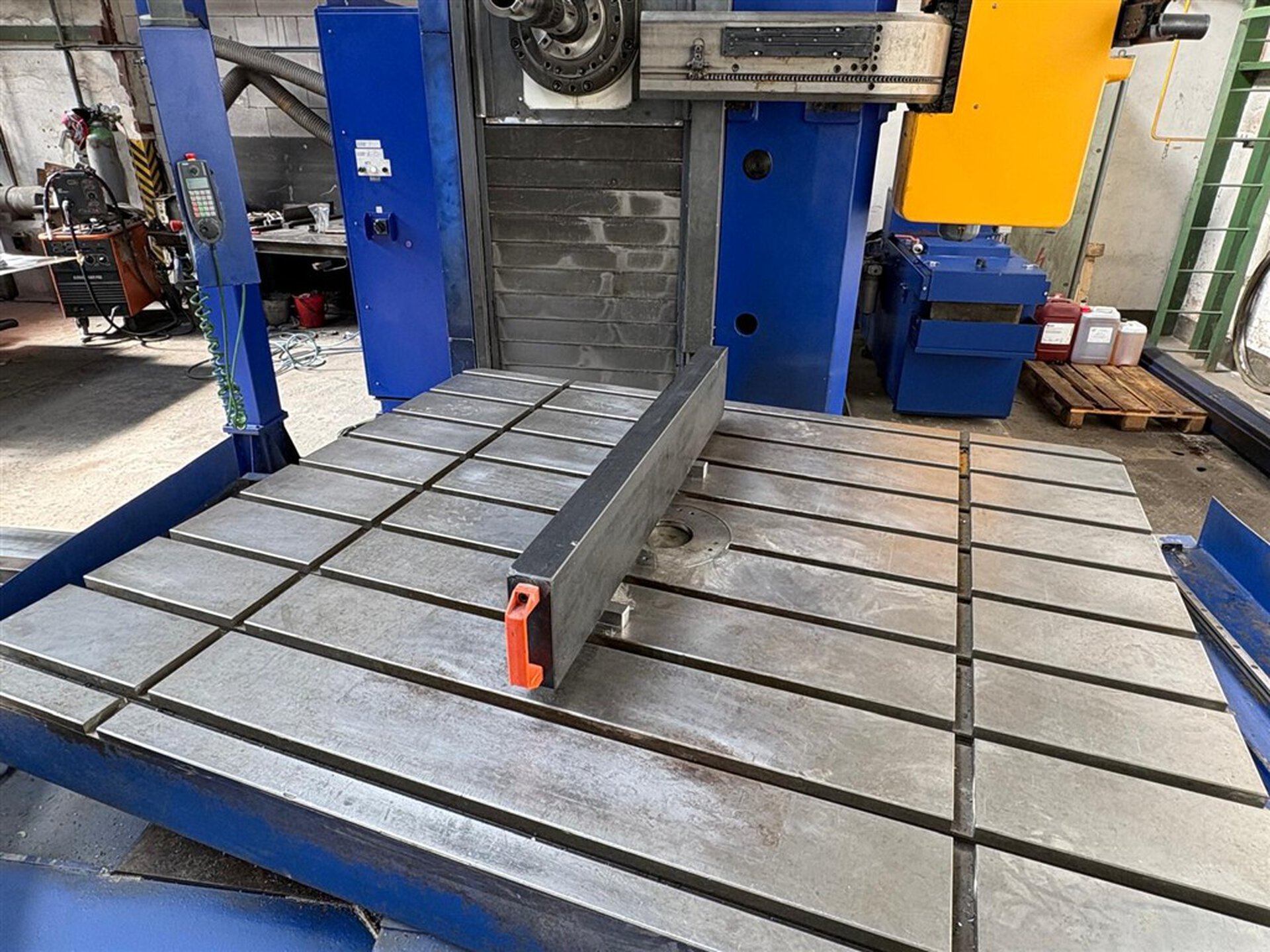

Table length: 1,400mm
Table width: 1,600mm
Travel distance W-axis: 630mm

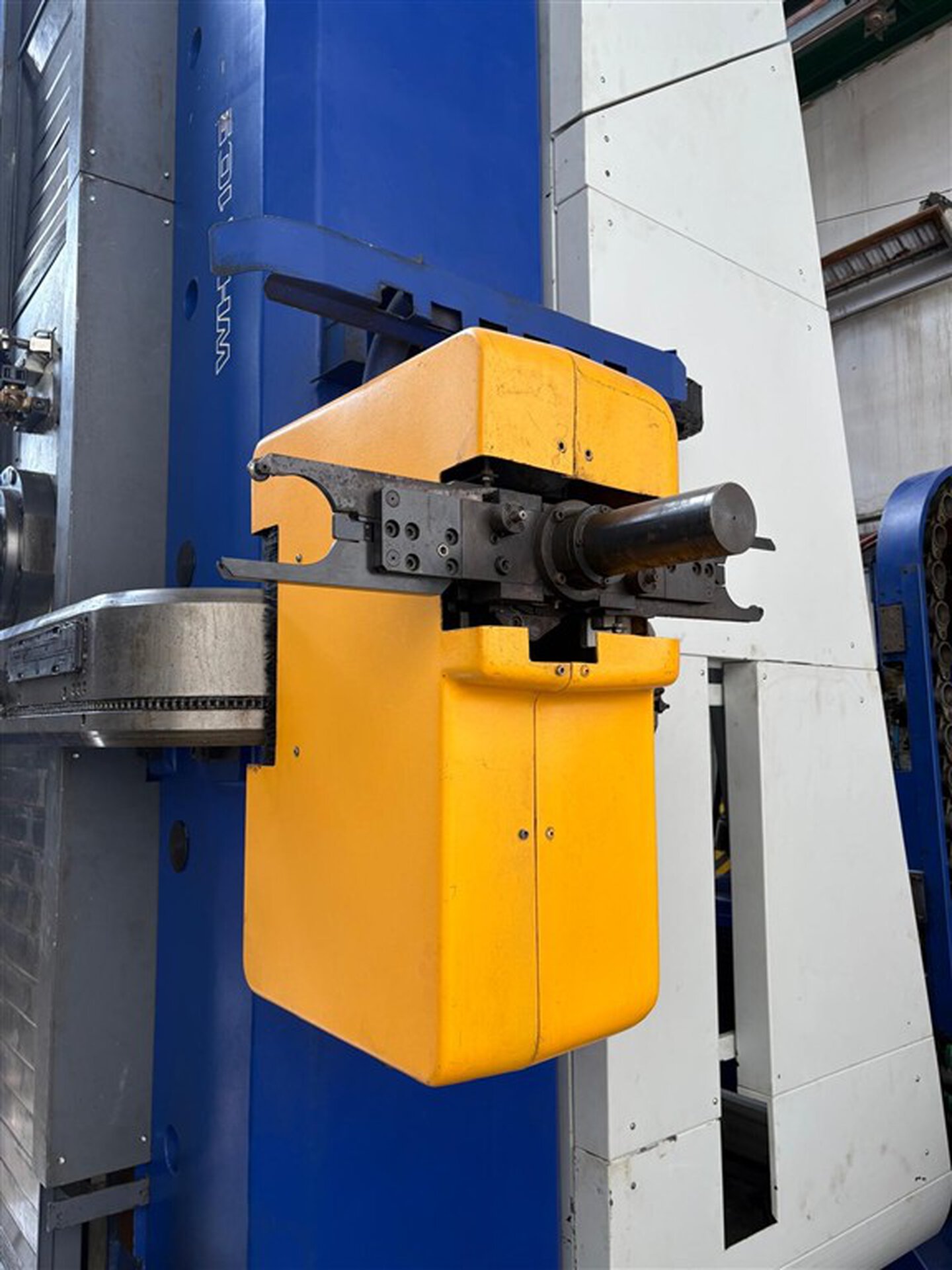

Automatic Tool Changer…..40 pos
Coolant through spindle…..40 bar

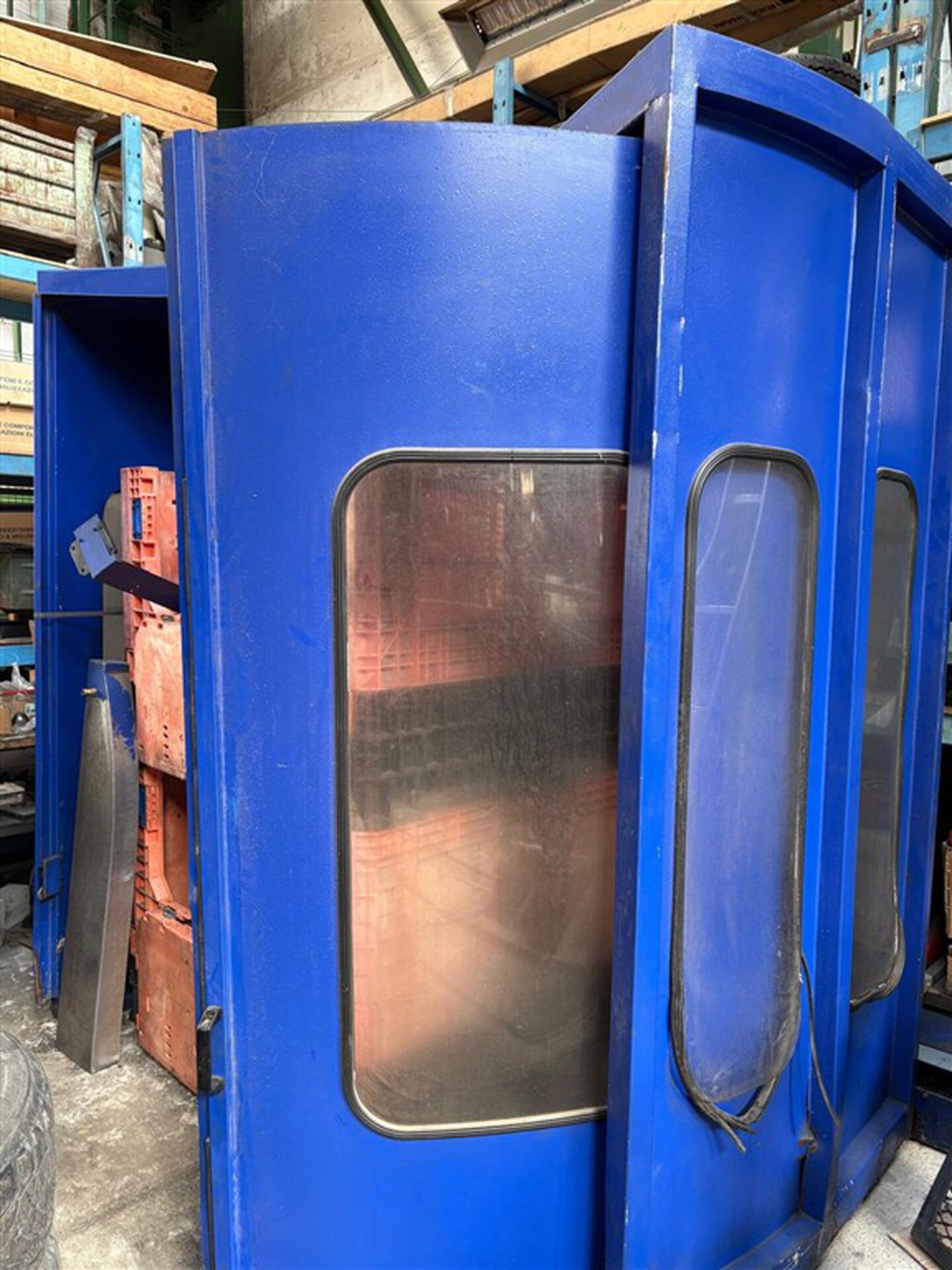

Splash guard around rotary table
Chip Conveyor

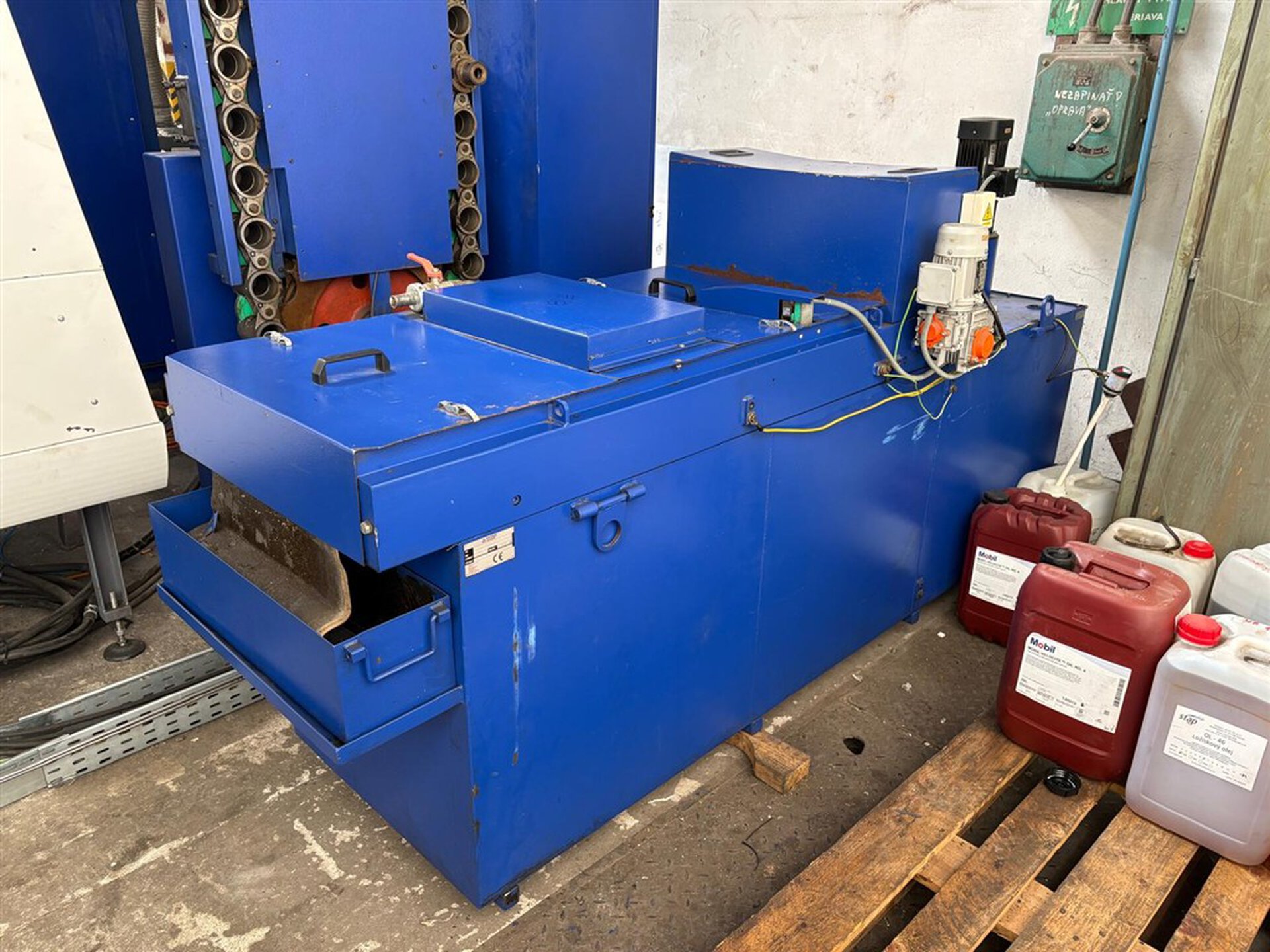

Oil cooling unit (chiller)
Touch probe Renishaw RMP60
Upgrades in 2024 and 2025
Retrofit of X and Z axis ball screws at producer – KSK Kurim CZ
New linear scales Heidenhain in X and Z axis including cabling
retrofit of Z axis – new Biplast V lining on guideways, hand scraped Biplast lining on Z axis
new TOS Varnsdorf parts for tool clamping and automatic tool changer arm

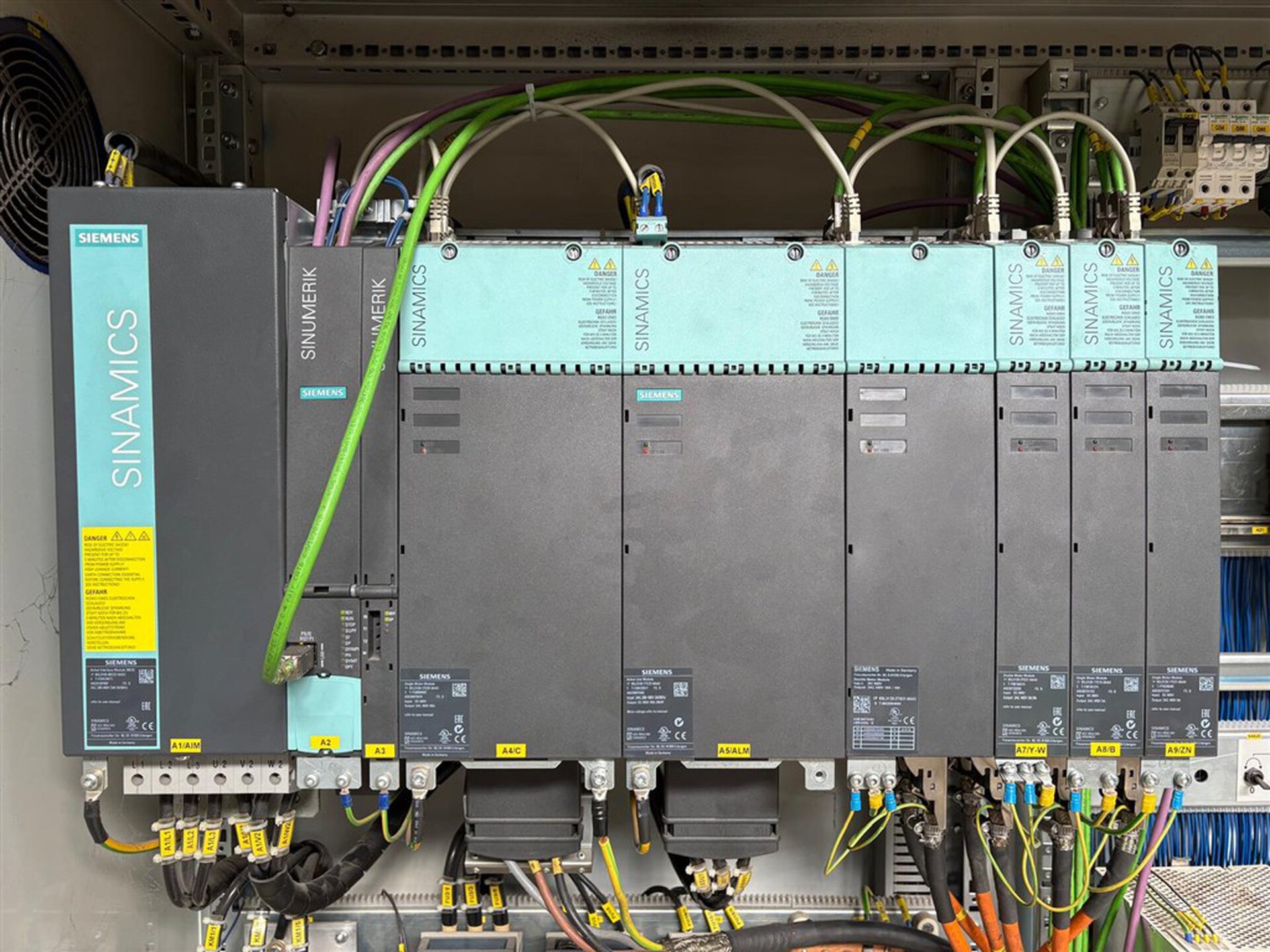

Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor)
New Siemens hand wheel
