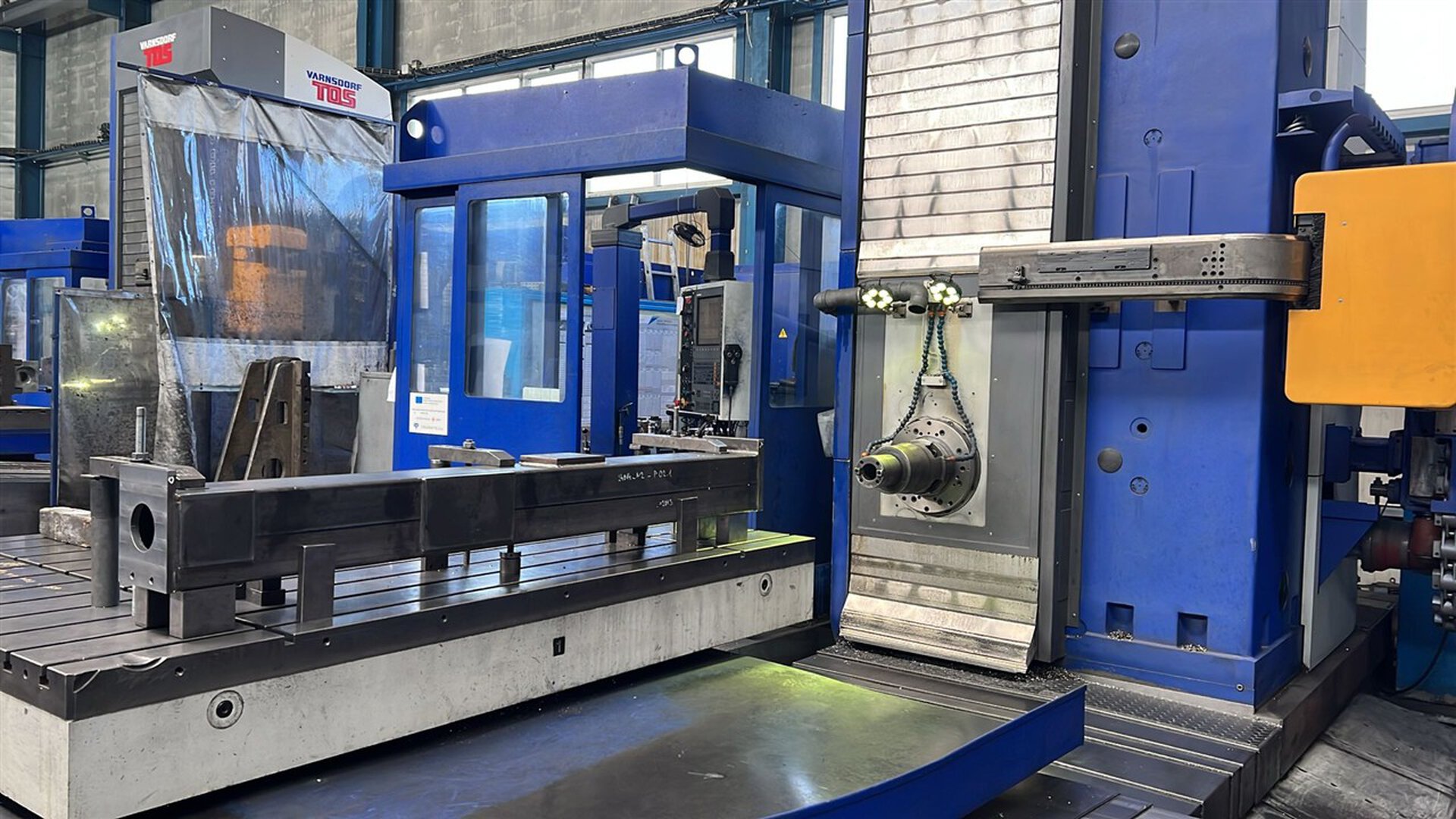

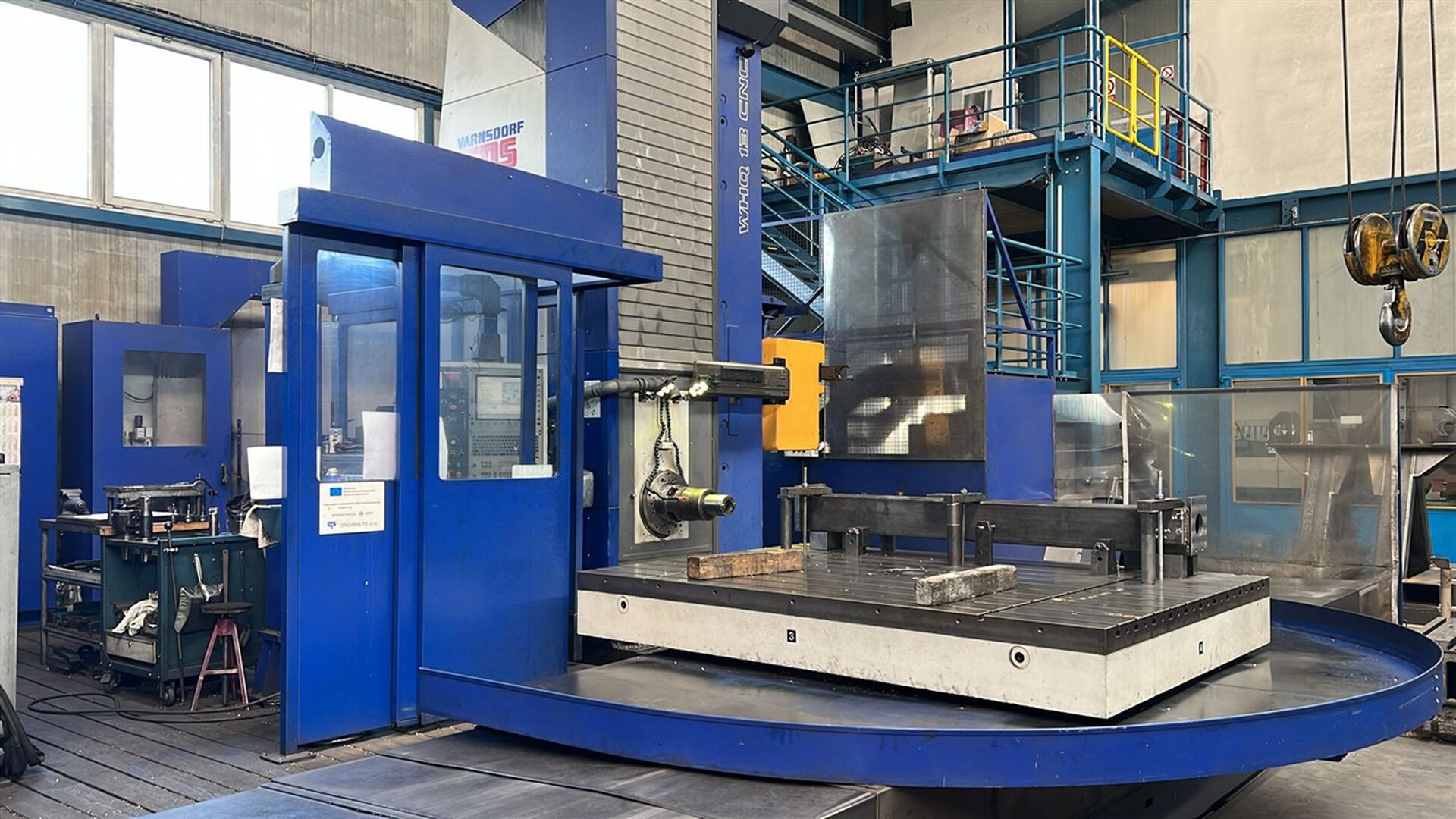

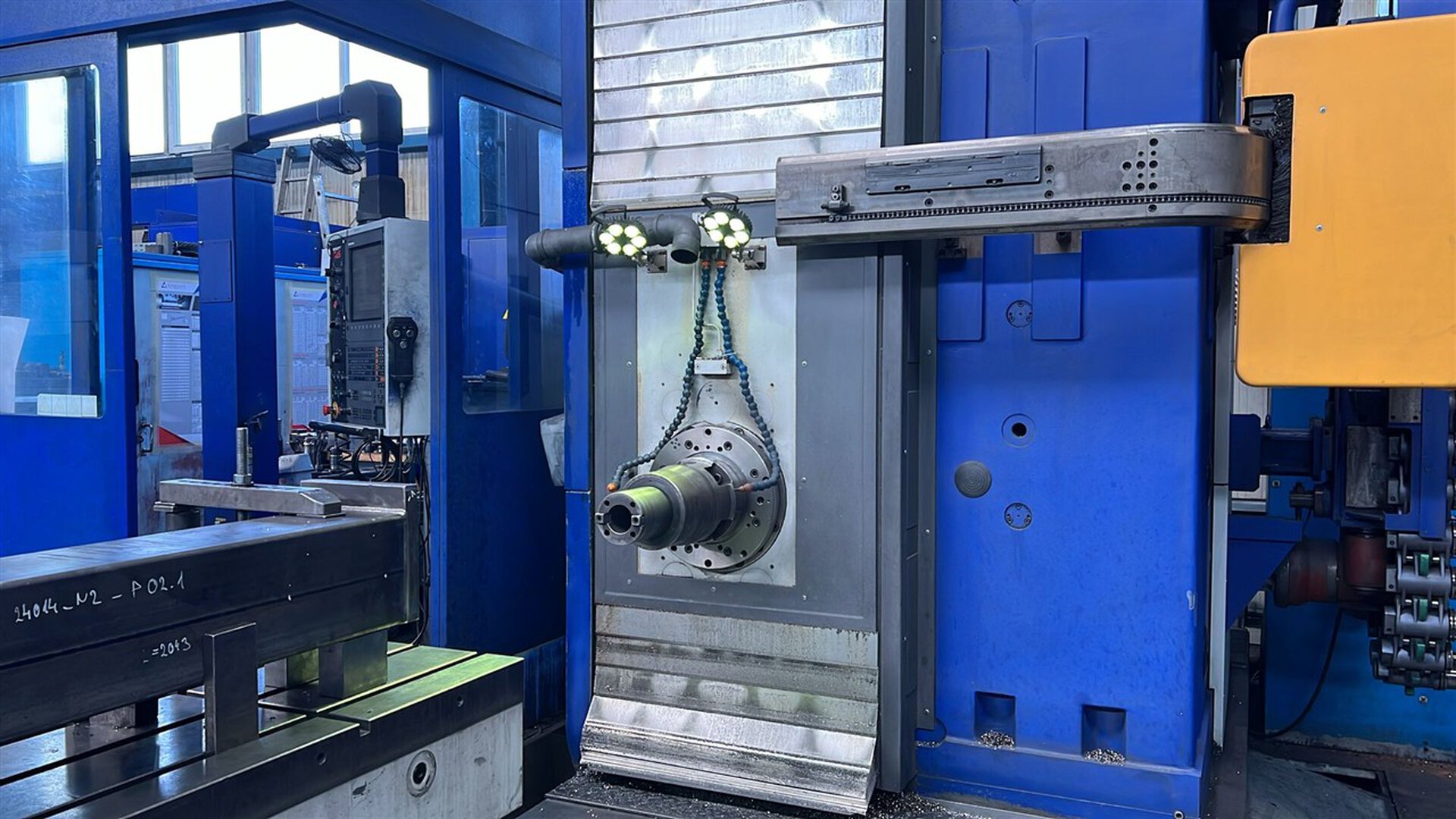

TOS WHQ 13
Table Type Boring and Milling Machine
Price is negotiable
Manufacturer: TOS
- Construction year: 2014
- Control Name: Heidenhain TNC530
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Table Type Boring and Milling Machine
Product No. 3402-250702
Technical Details
Weight of the machine ca. | 38 | t |
---|---|---|
X-travel | 4,000 | mm |
Y-travel | 2,500 | mm |
Table length | 1,800 | mm |
Table width | 2,500 | mm |
Numbers of positions in the tool changer | 40 | |
Travel -z axis | 1,600 | mm |
Travel -w axis | 800 | mm |
Bore spindle speeds | 3,000 | rpm |
Workpiece weight approx. | 12,000 | kg |
Through spindle coolant
Chip conveyor
Operators cabin
Technical details subject to error
