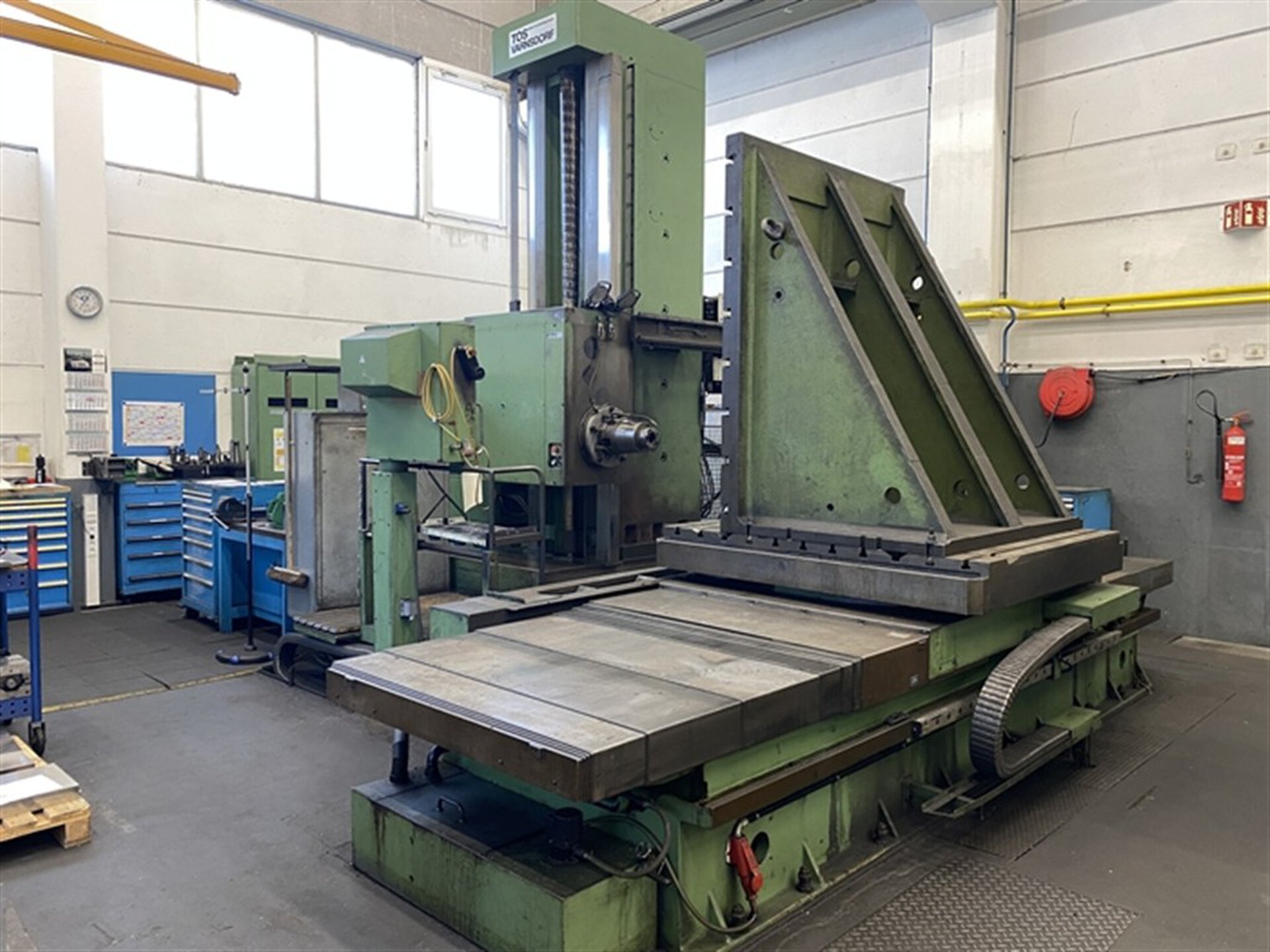

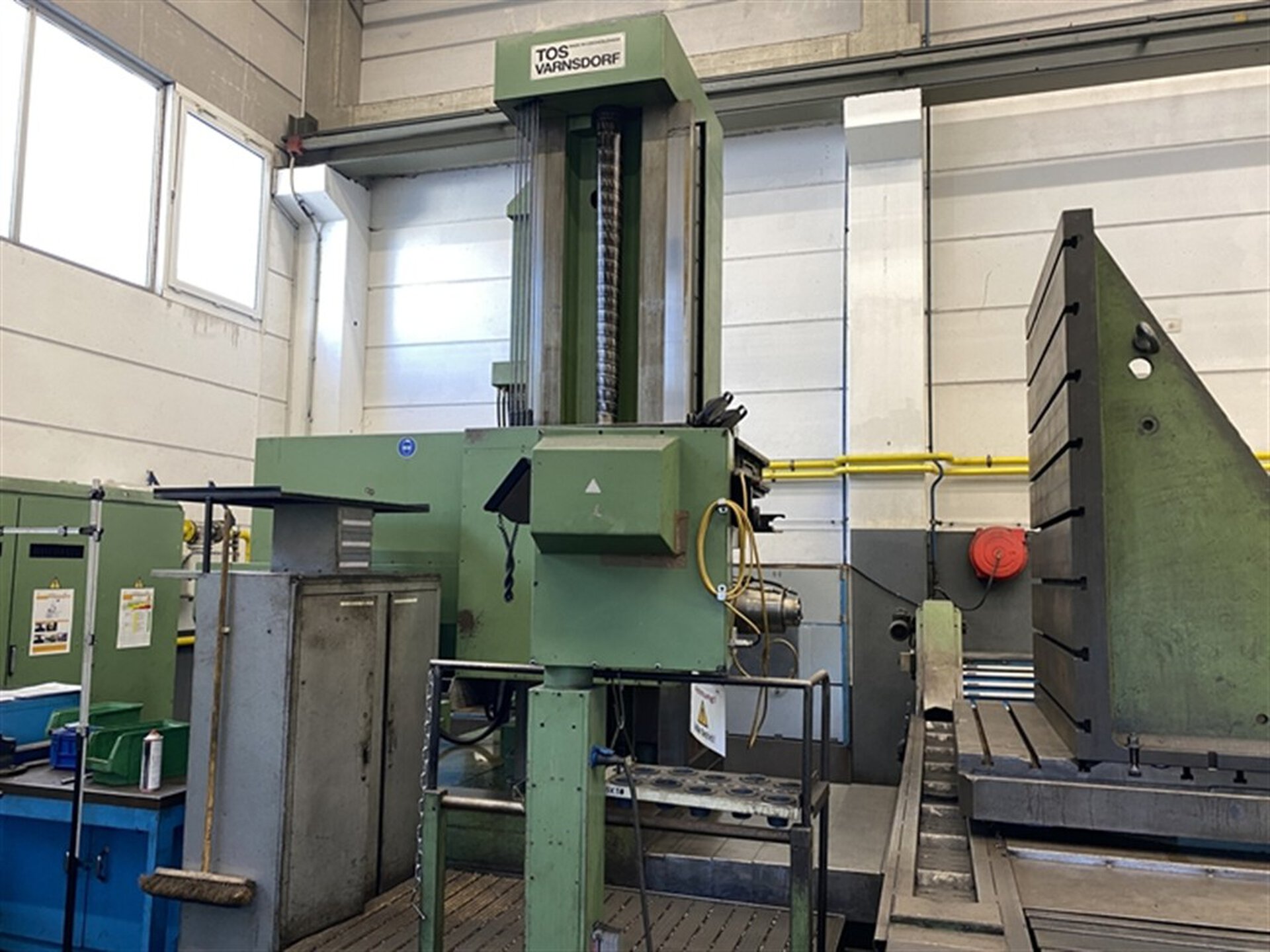

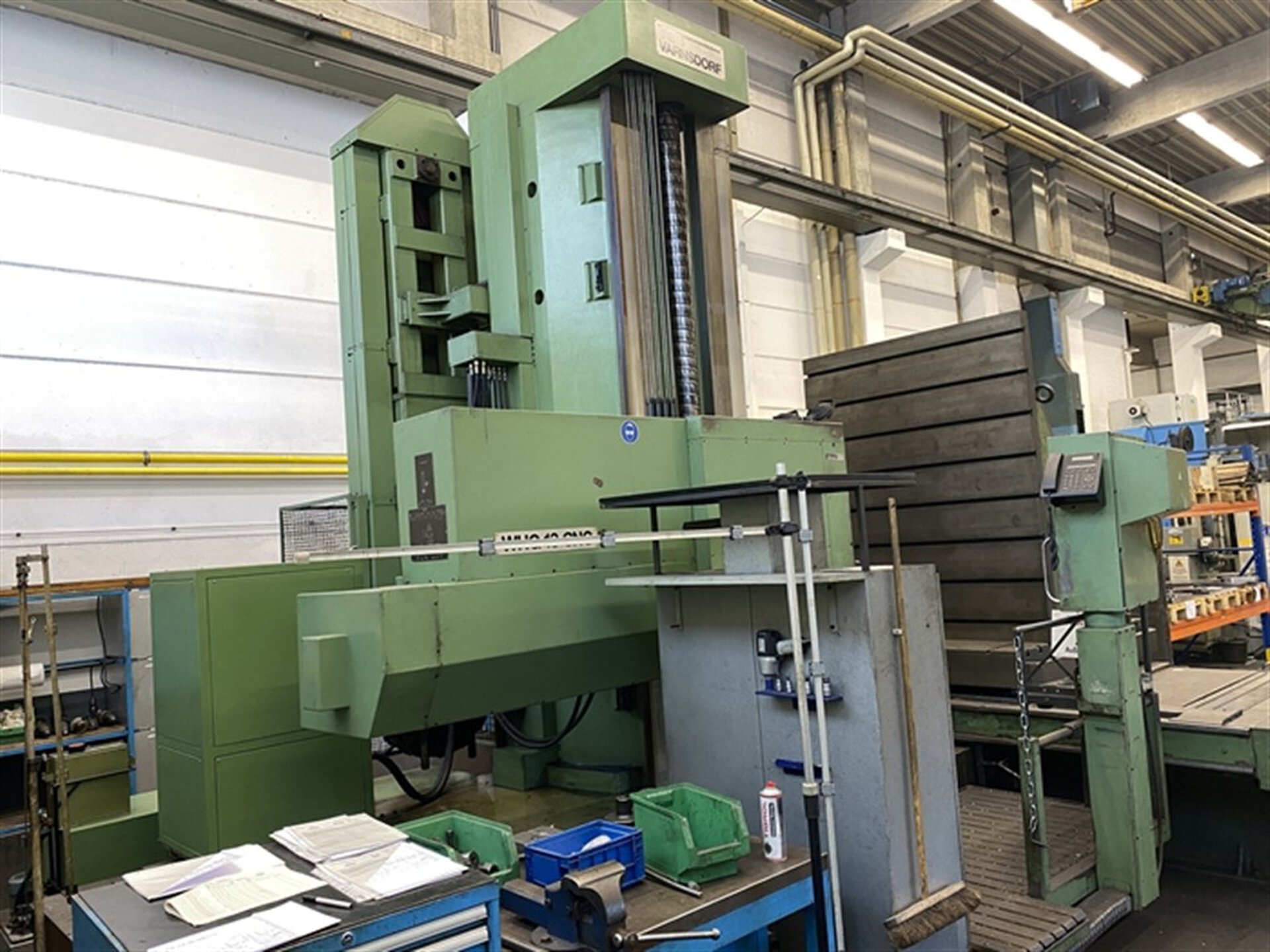

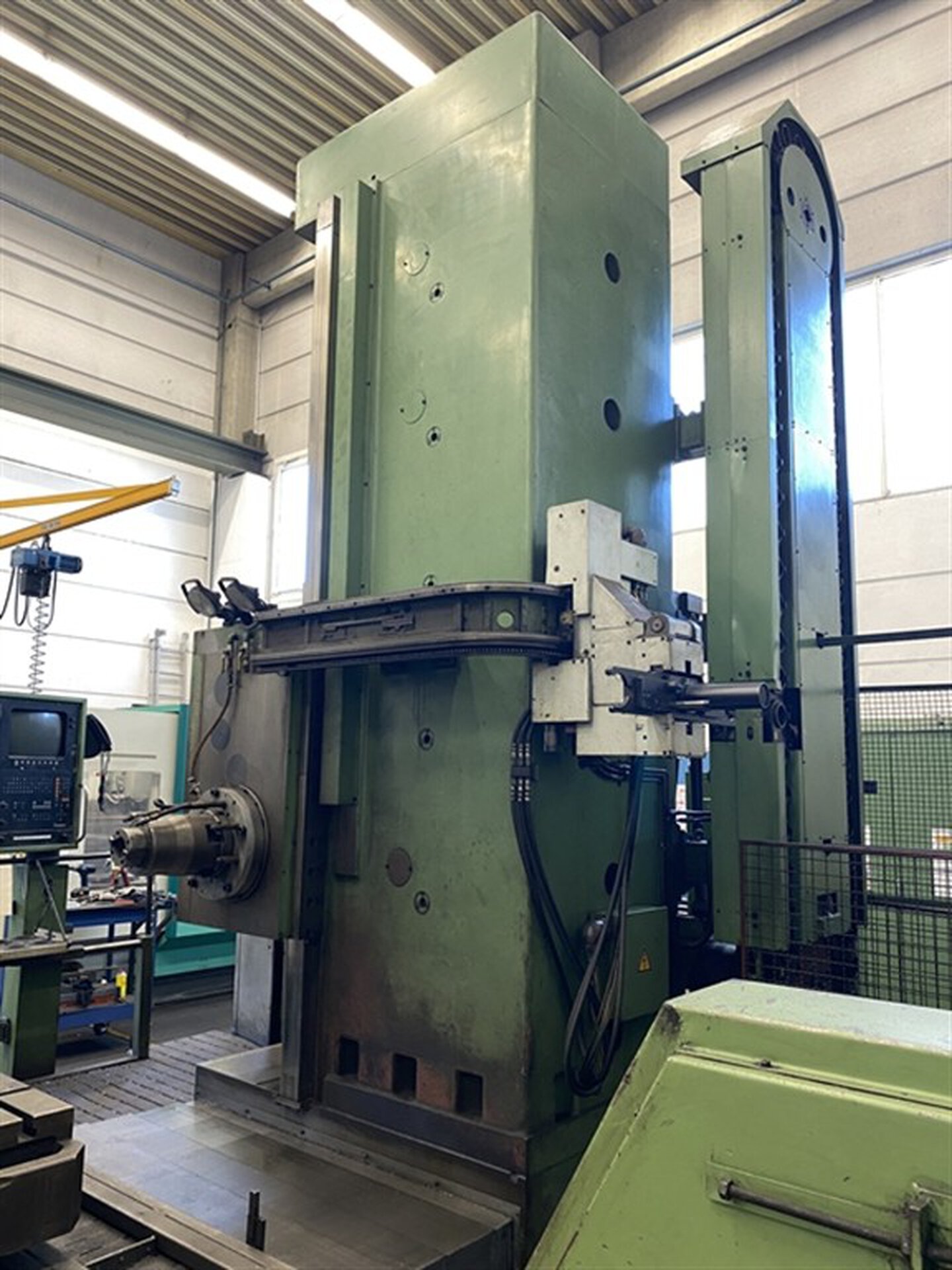

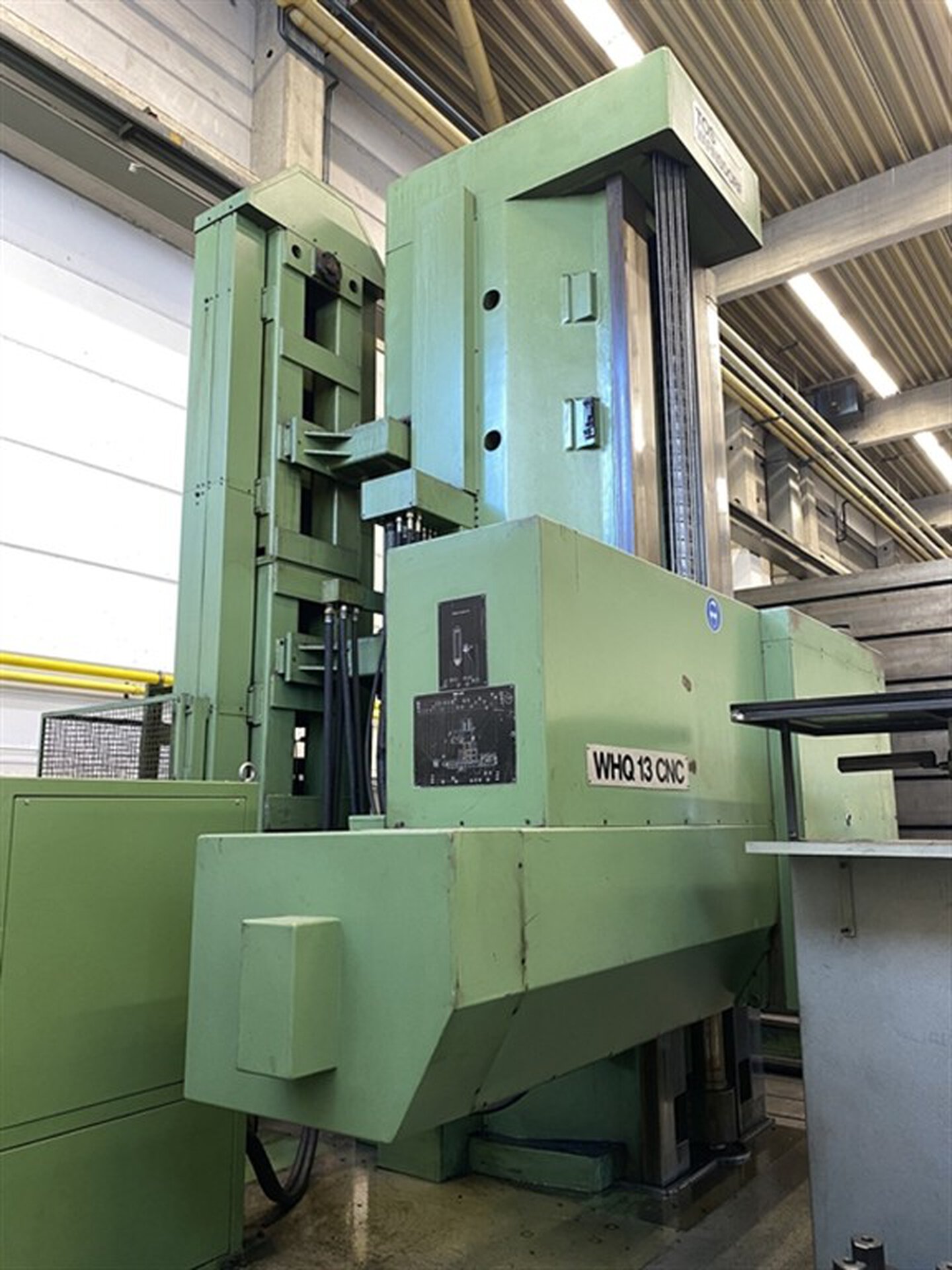

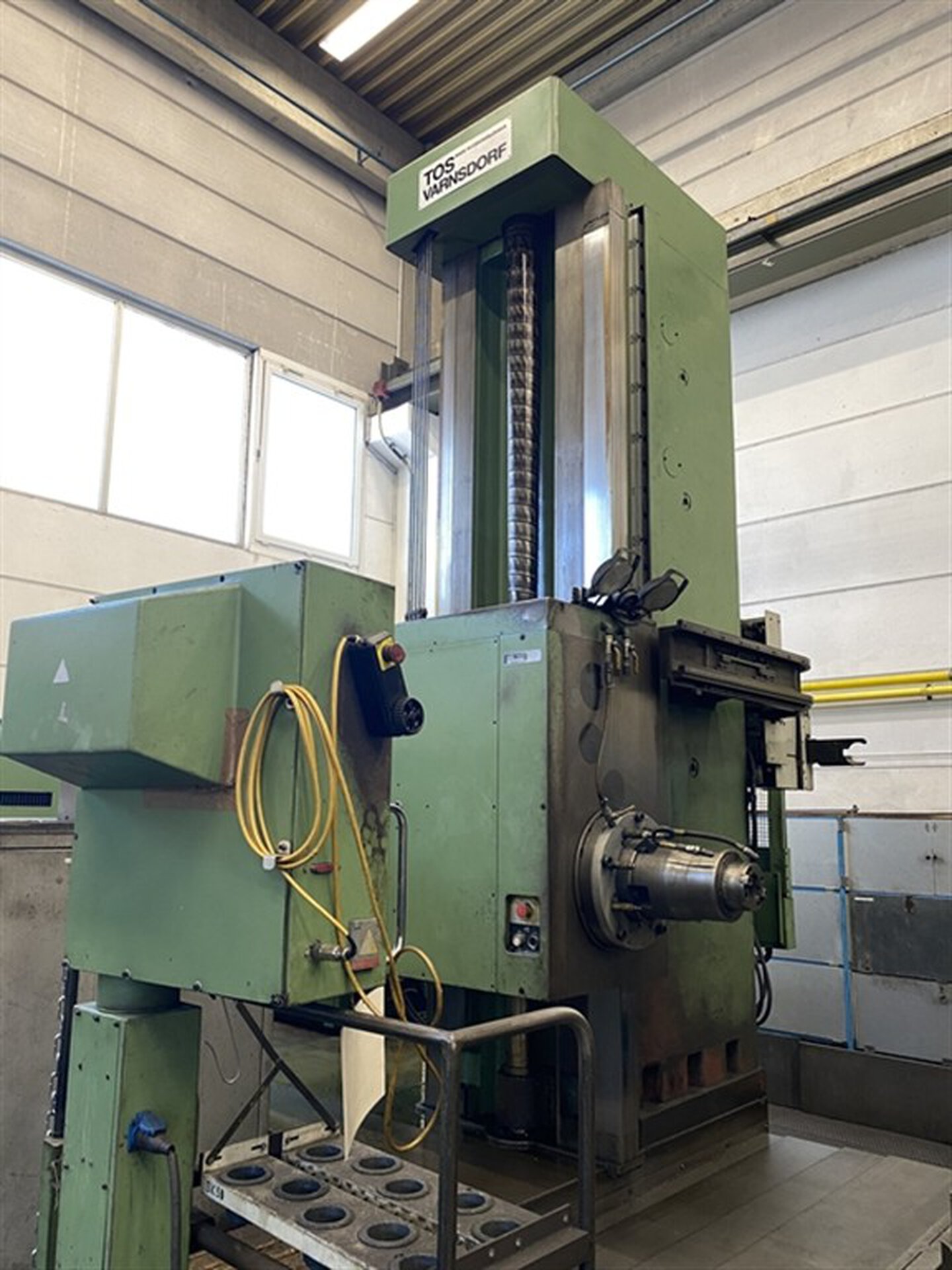

TOS WHQ 13.4 CNC
Table Type Boring and Milling Machine
Price is negotiable
Manufacturer: TOS
- Construction year: 1994

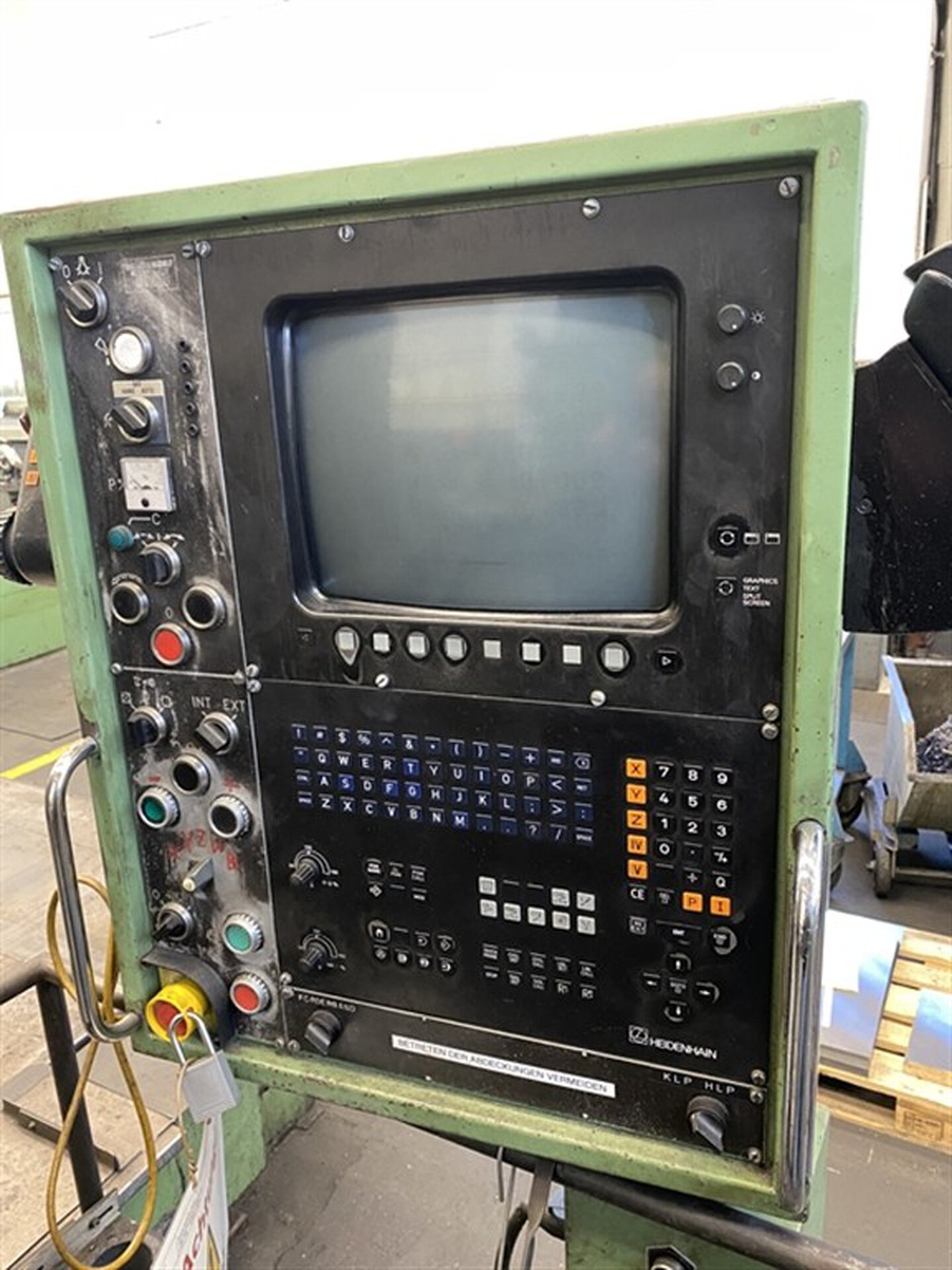

- Control Name: Heidenhain TNC 415
- Delivery Time: immediately
- Control Type: CNC
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Table Type Boring and Milling Machine
- Status: Used
Product No. 3402-251006
Technical Details
| Spindle diameter | 221.44 | mm |
|---|---|---|
| X-travel | 2,000 | mm |
| Y-travel | 2000 | mm |
| Z-travel | 1,250 | mm |
| B-axis | 360 | ° |

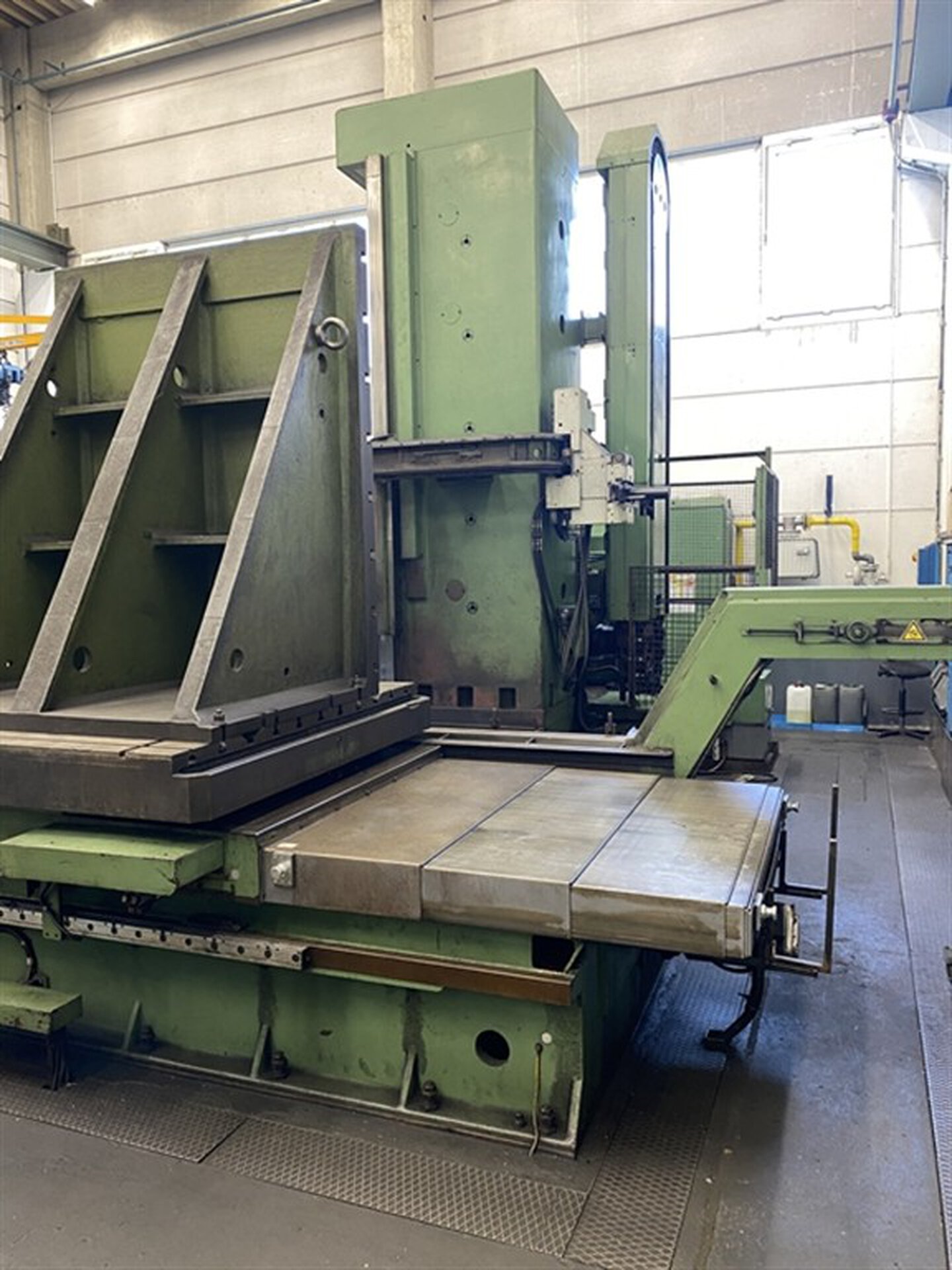

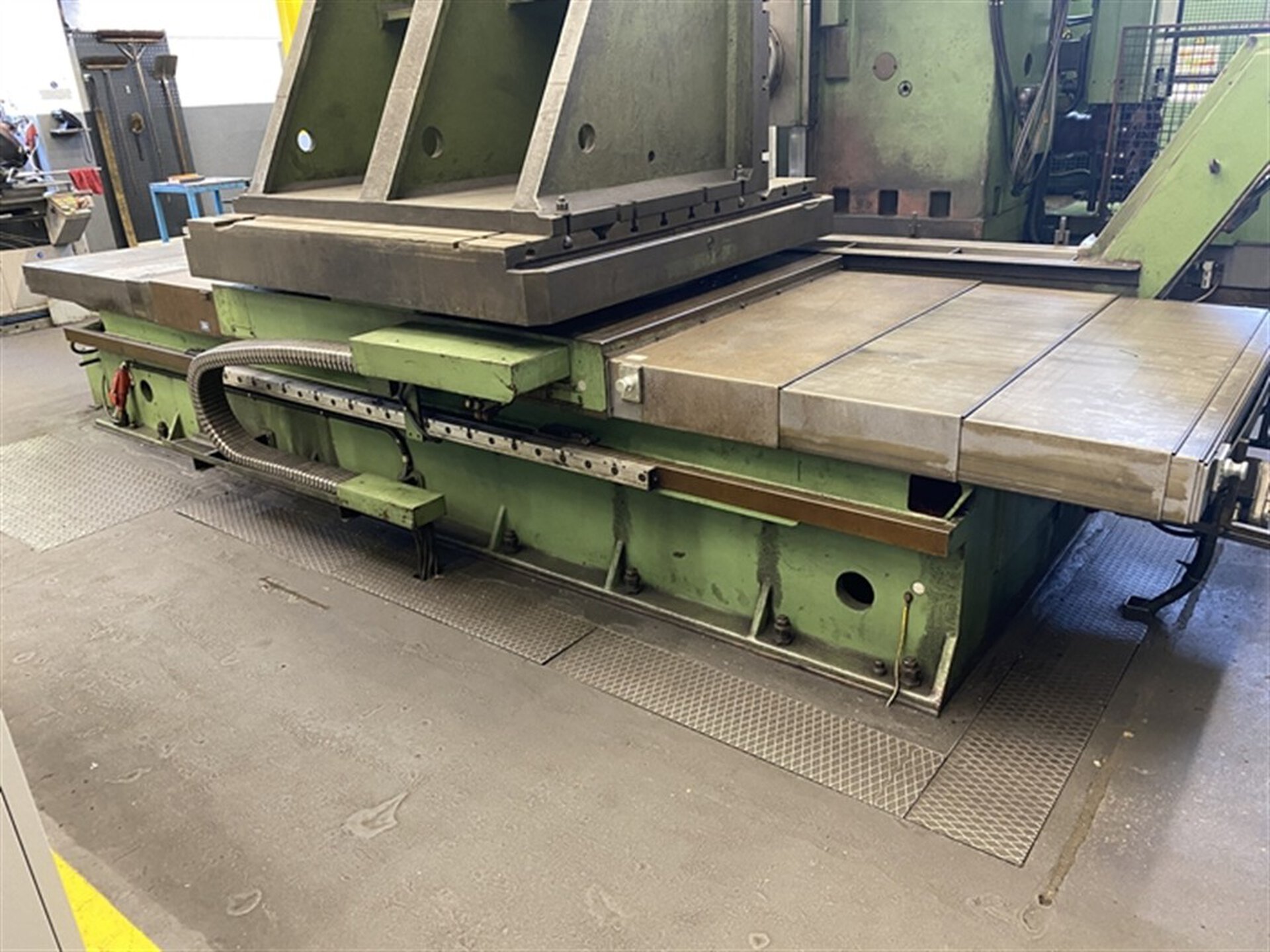

| Table-size | 1600 × 1800 | mm |
| Max. workpiece weight | 12,000 | kg |

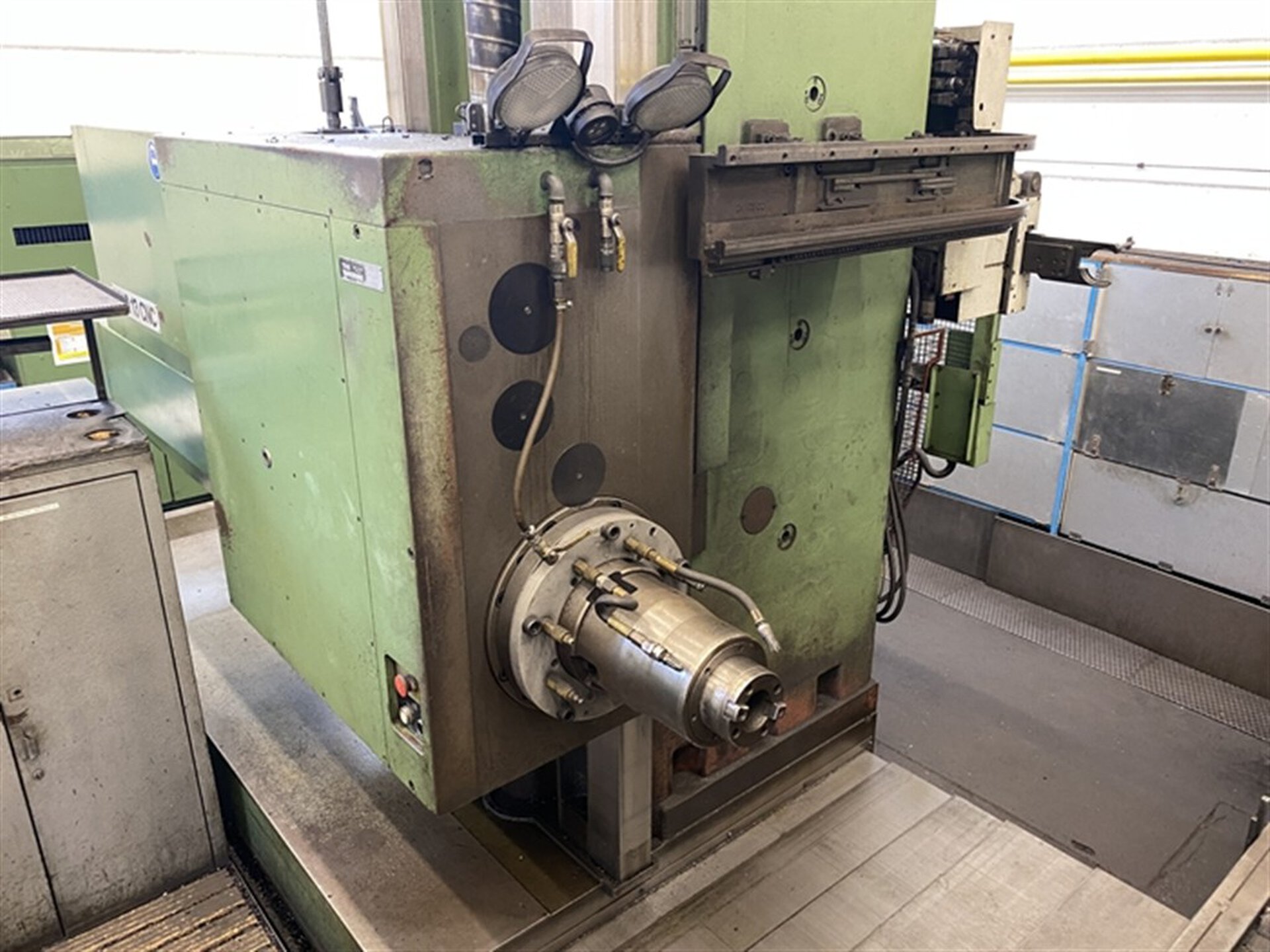

| Work spindle | 130 | mm |
| Tool adaptor | SK 50 | |

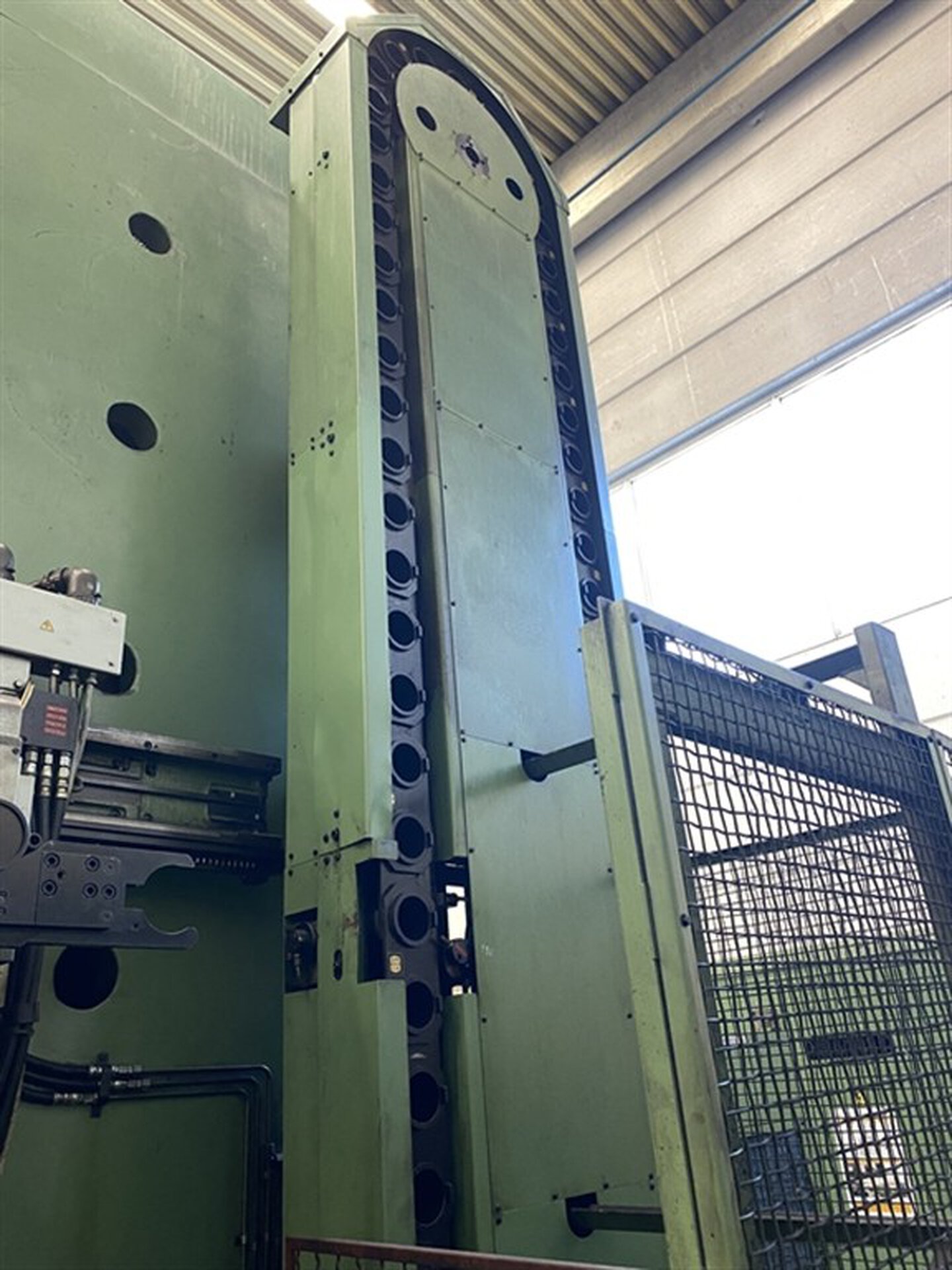

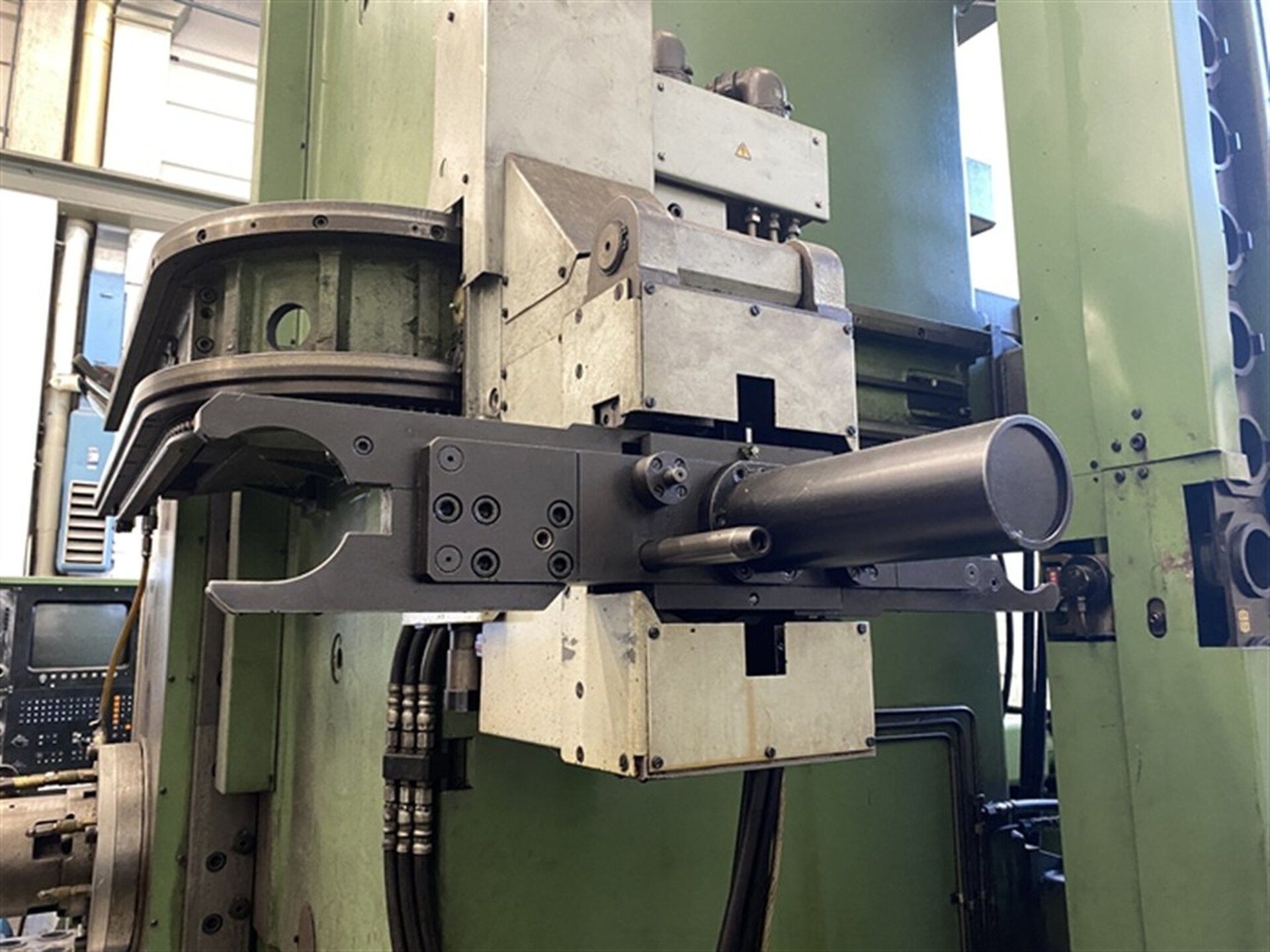

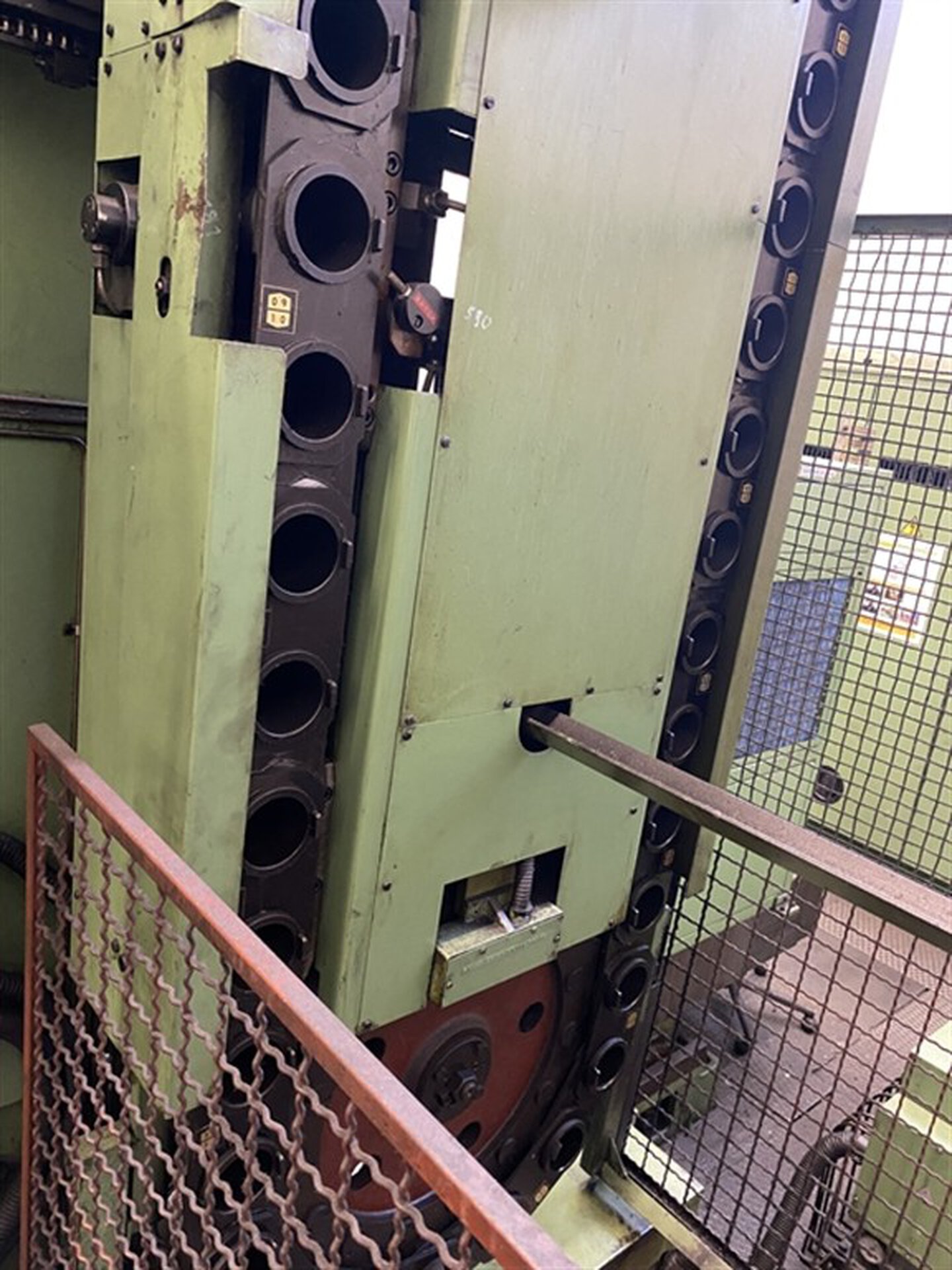

| Tool changer | 60 – Fach | |
| Ø Flange Hollow Spindle | 221.44 | mm |
| Max. Ø centering cone | 180 | mm |
| Spindle stroke | 800 | mm |
| Turning speeds | 400 – 1600 | rpm |
| Feed: | bis 8000 | |
| Table rotation axis B | 1.5 | rpm |
| Weight of the machine ca. | 32 | t |

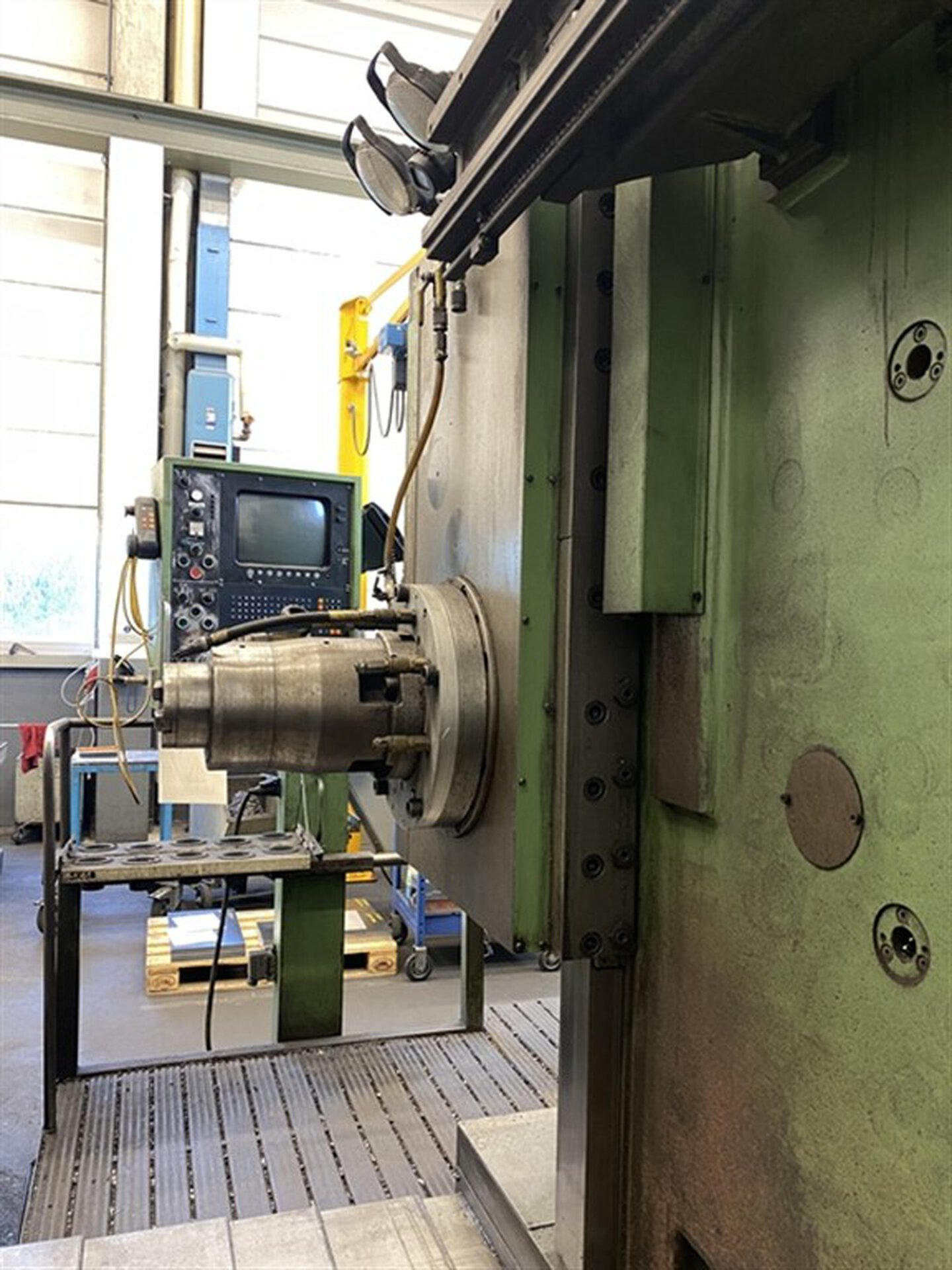

Control pedestal, electrically height-adjustable approx. 1200 mm,

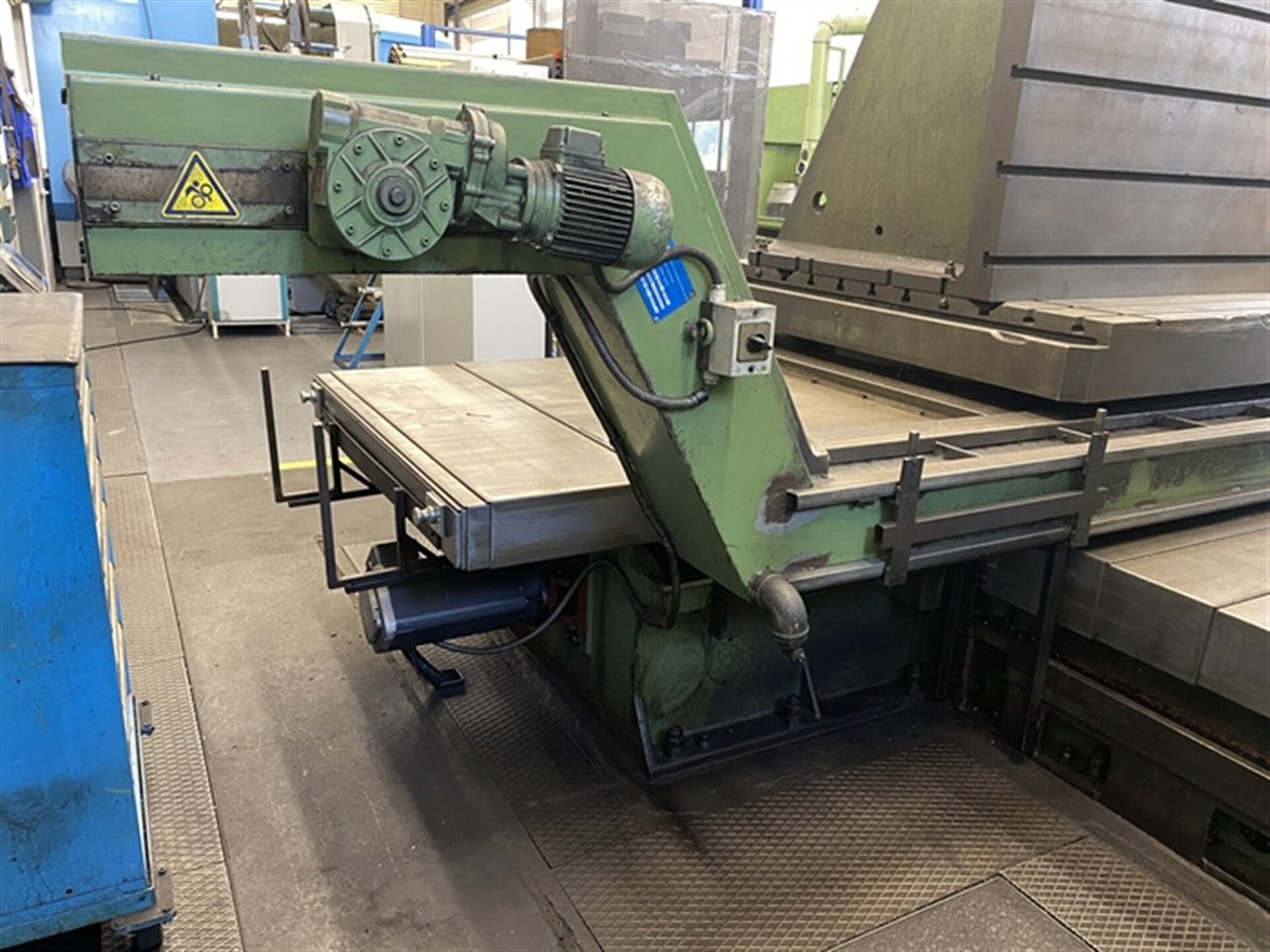

Sawdust Conveyor,
