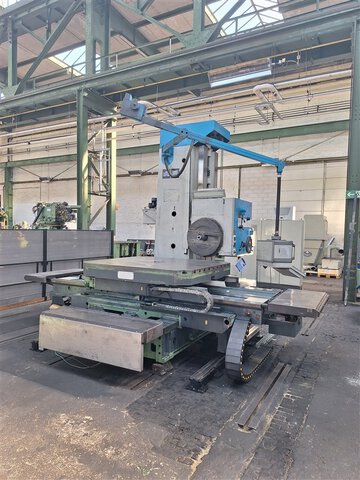

UNION BFT 130/6
Table Type Boring and Milling Machine
Price is negotiable
Manufacturer: UNION
- Construction year: 1983/2023
- Control Name: TNC 360
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Table Type Boring and Milling Machine
Product No. 3402-241006
Technical Details
| Total power requirement | 40 | kW |
|---|---|---|
| Weight of the machine ca. | 35 | t |
| Dimensions of the machine ca. | 5.5 × 6.9 × 5.2 | m |
| X-travel | 2190 | mm |
| Y-travel | 1520 | mm |
| Z-travel | 1000 | mm |
| Spindle turning speed range | 4.5 × 900 | rpm |
| Rapid traverse: | 5000 | mm/min |
| Spindle taper: ISO | 50 | |
| Faceplate diameter | 785 | mm |
| Spindle diameter | 130 | mm |
| Table surface area | 2000 × 1800 | mm |
| W-axis | 1075 | mm |
| Workpiece weight max. | 8000 | kg |
| Faceplate turning speed range | 4.5 × 180 | rpm |
Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds
- table indexing 4 × 90°
- facing head 785 mm
- exhauster
- various arbors and tooling
