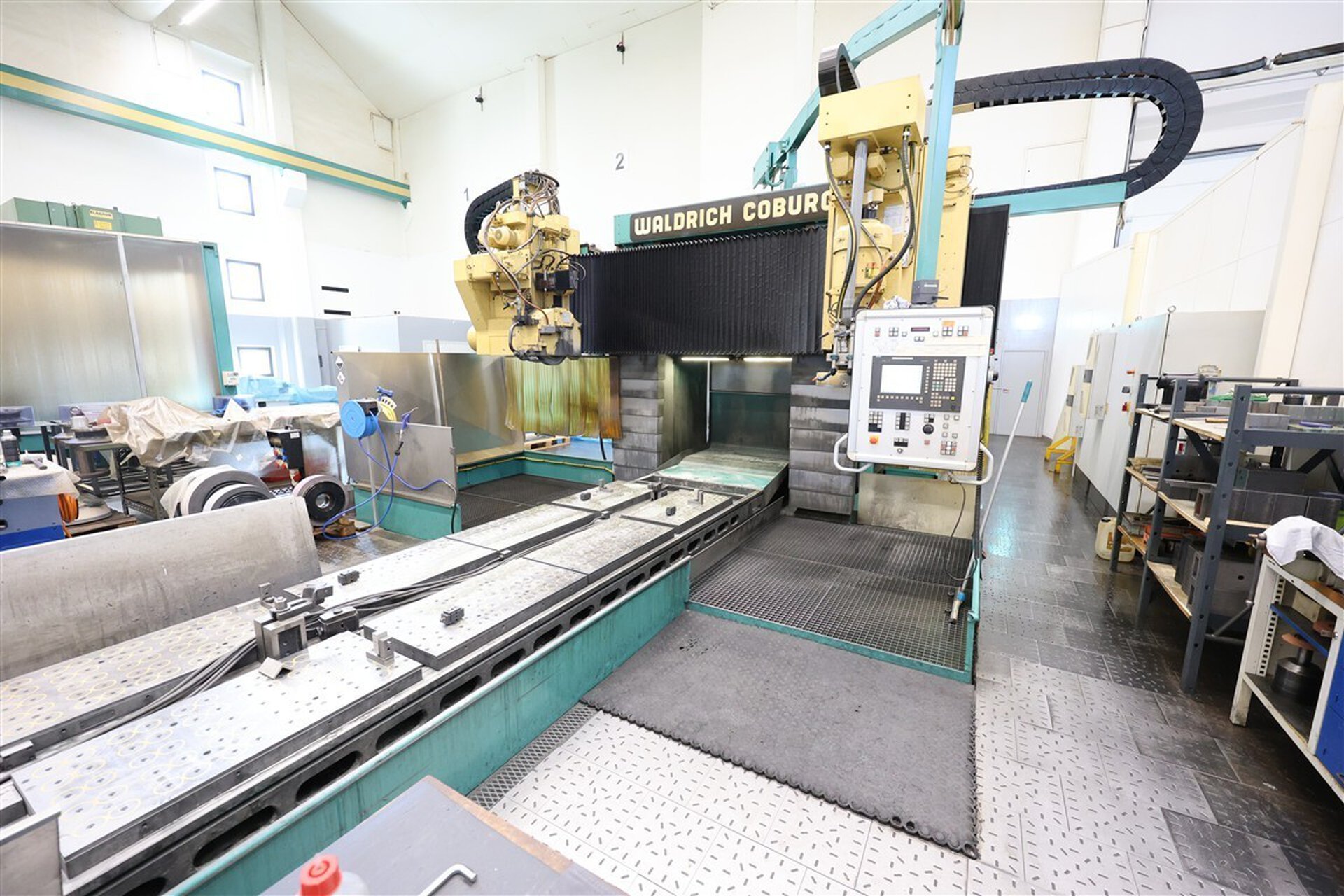

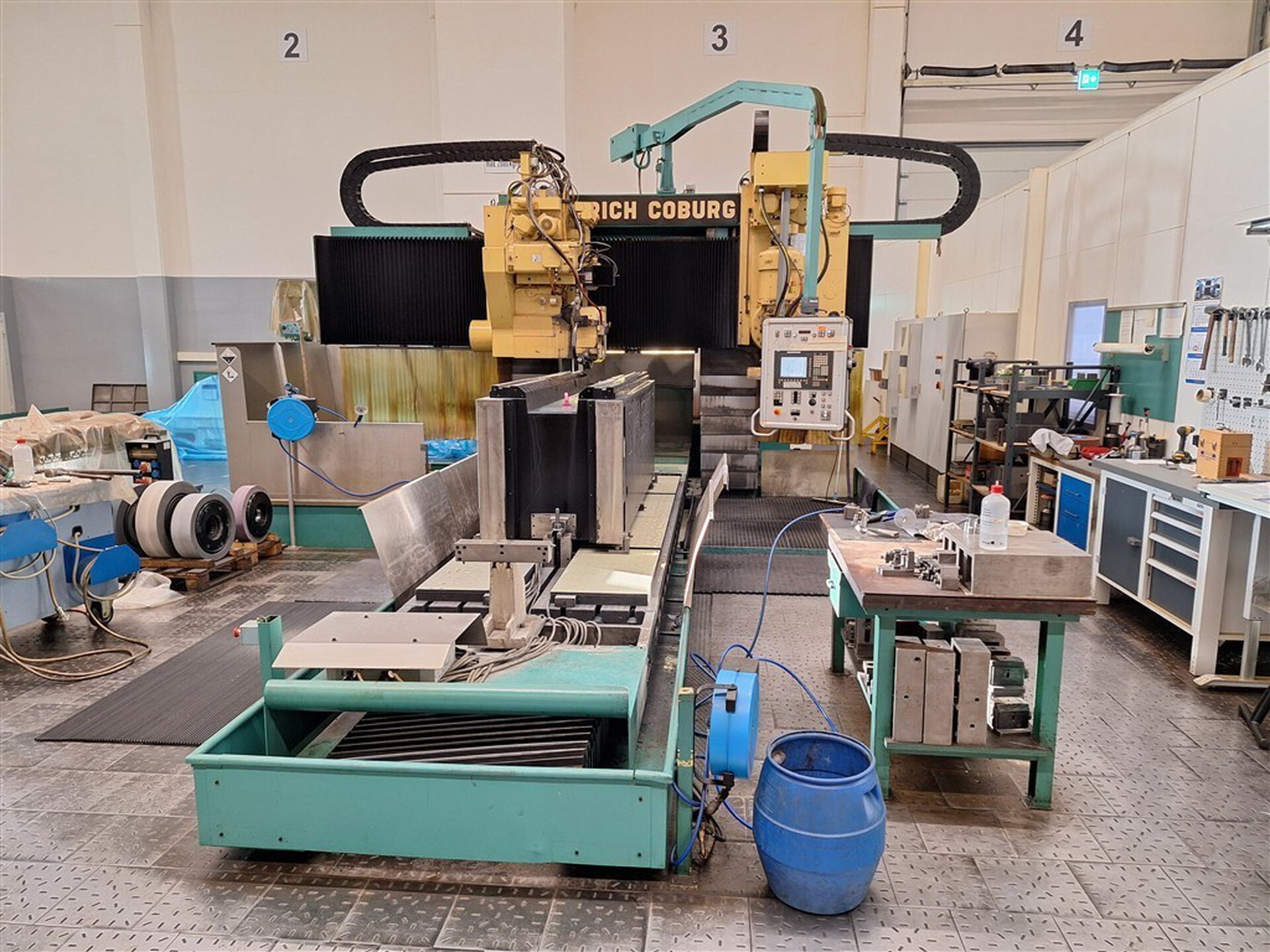

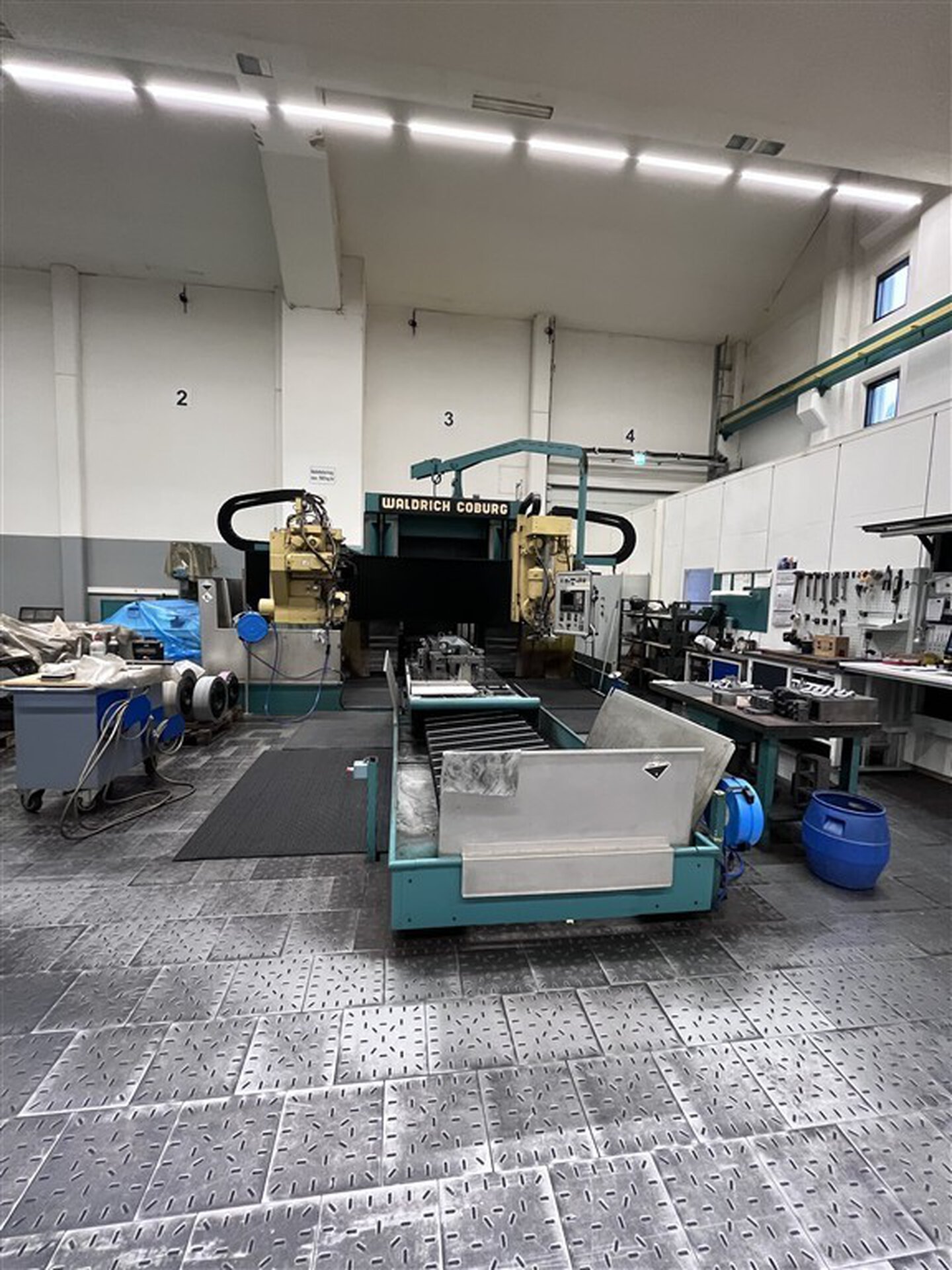

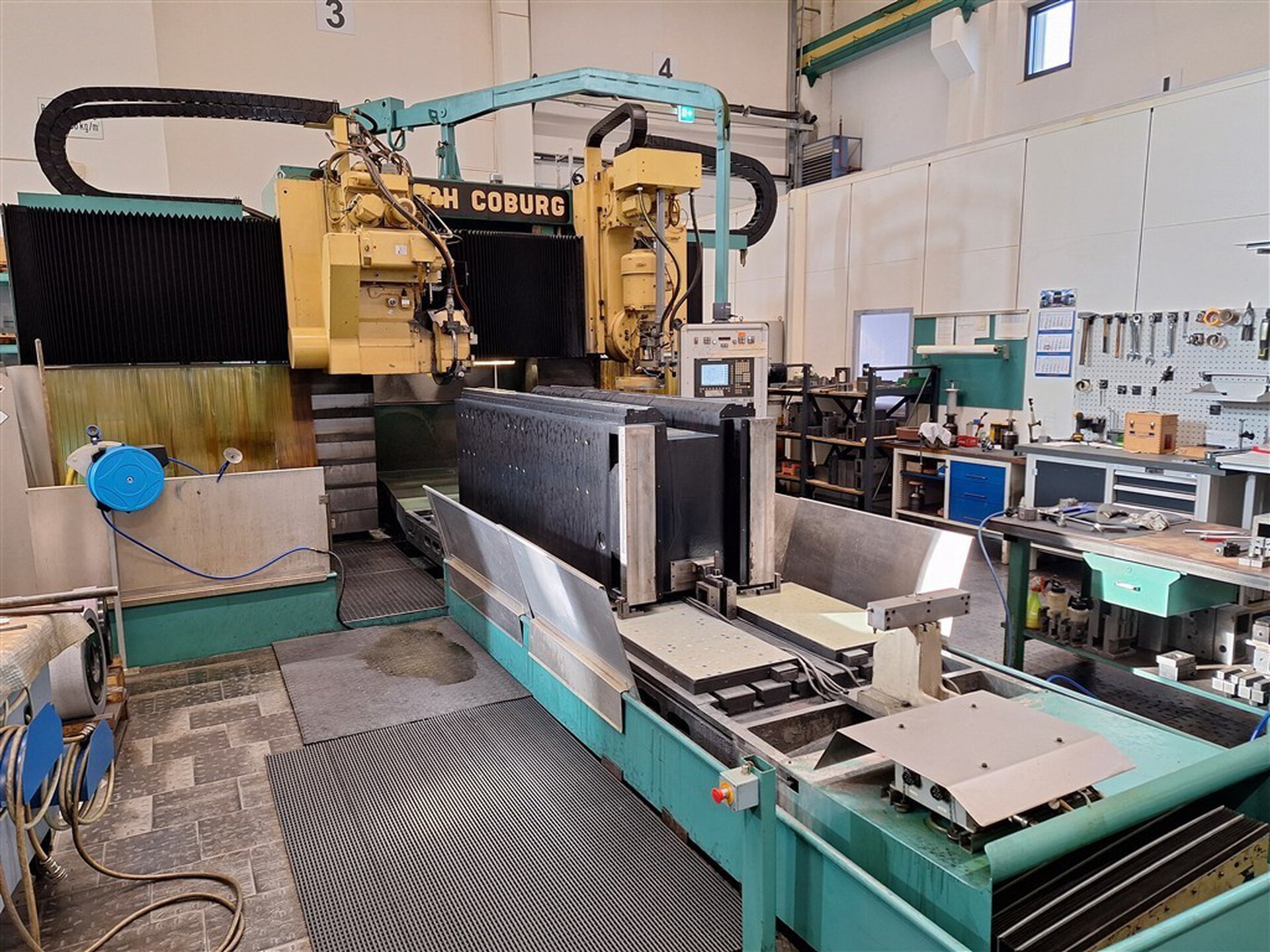

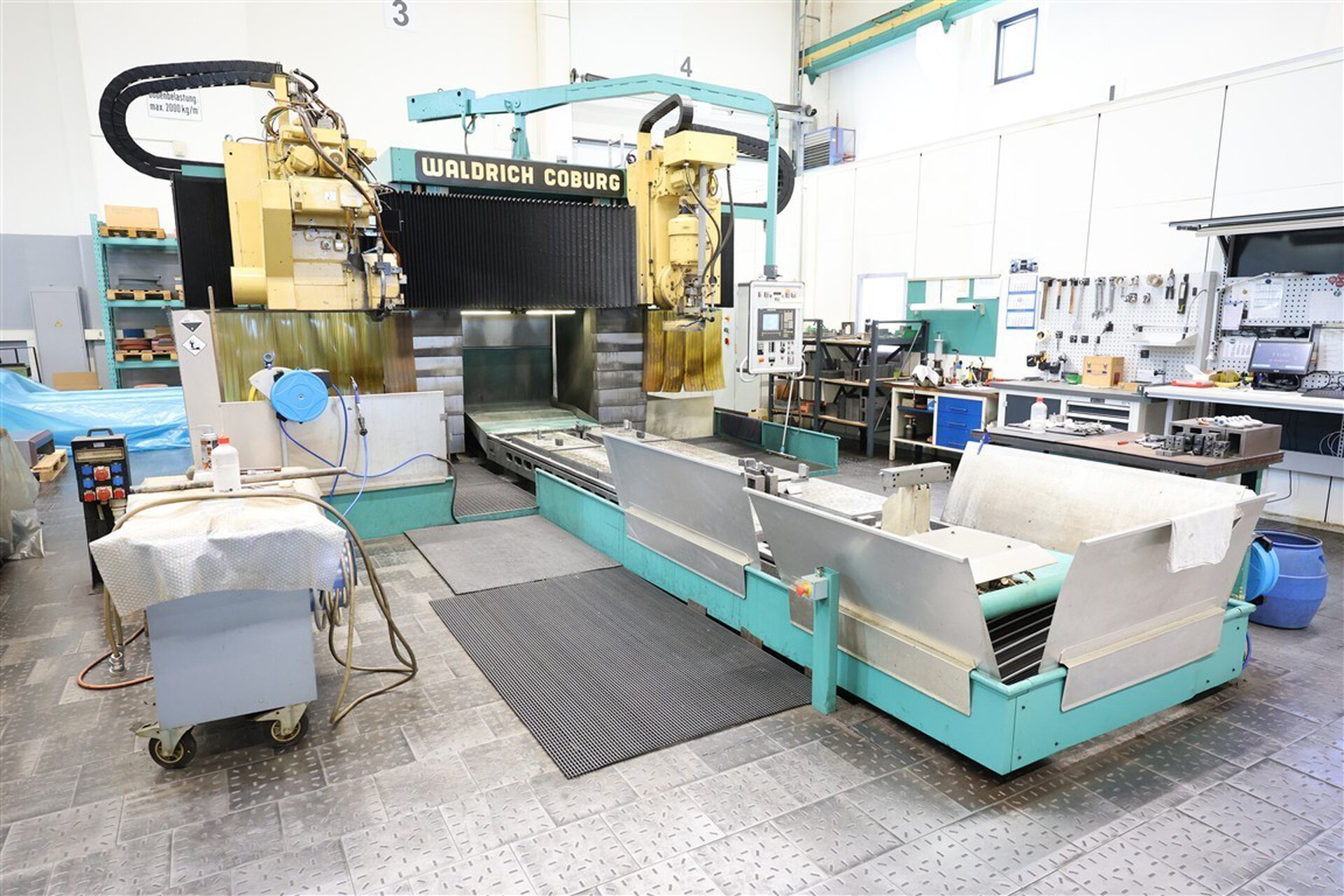

WALDRICH COBURG 30–10 S 2525
Slideway Grinding Machine
Price is negotiable
Manufacturer: WALDRICH COBURG
- Construction year: 1979/2005
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Grinding machines > Slideway Grinding Machine
Product No. 3402-250805
Technical Details
| Total power requirement | 40 | kW |
|---|---|---|
| Dimensions of the machine ca. | 12.3 × 6 × 4.8 | m |
| Grinding length | 4000 | mm |
| Grinding width | 1450 | mm |
| Workpiece height | 1250 | mm |
| Table surface area | 4000 × 1250 | mm |
| Distance between columns | 1460 | mm |
| Max. workpiece weight | 11,000 | kg |
| Cross rail adjustment | 1250 | mm |
Machine is in very good condition for highest precision!

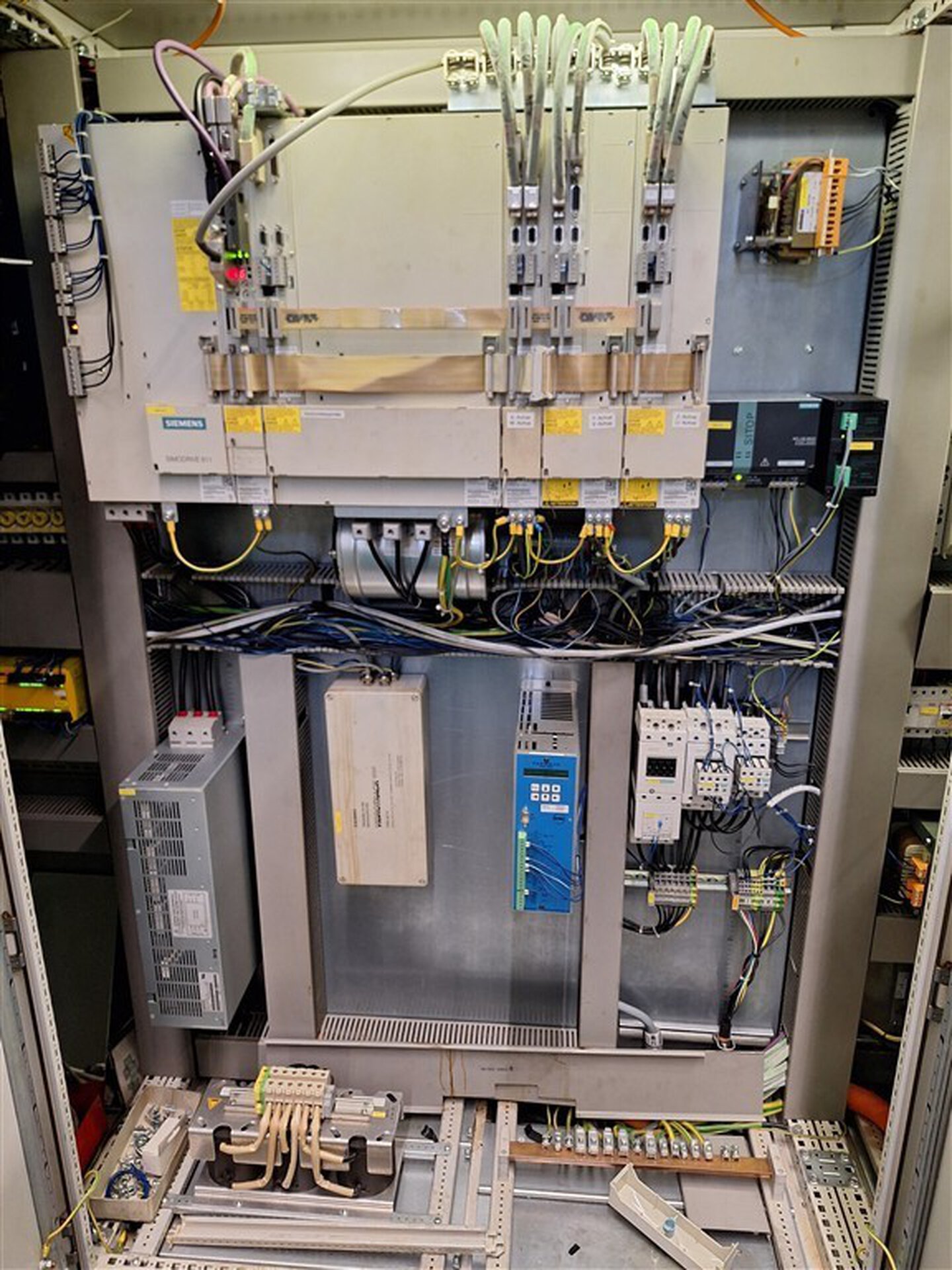

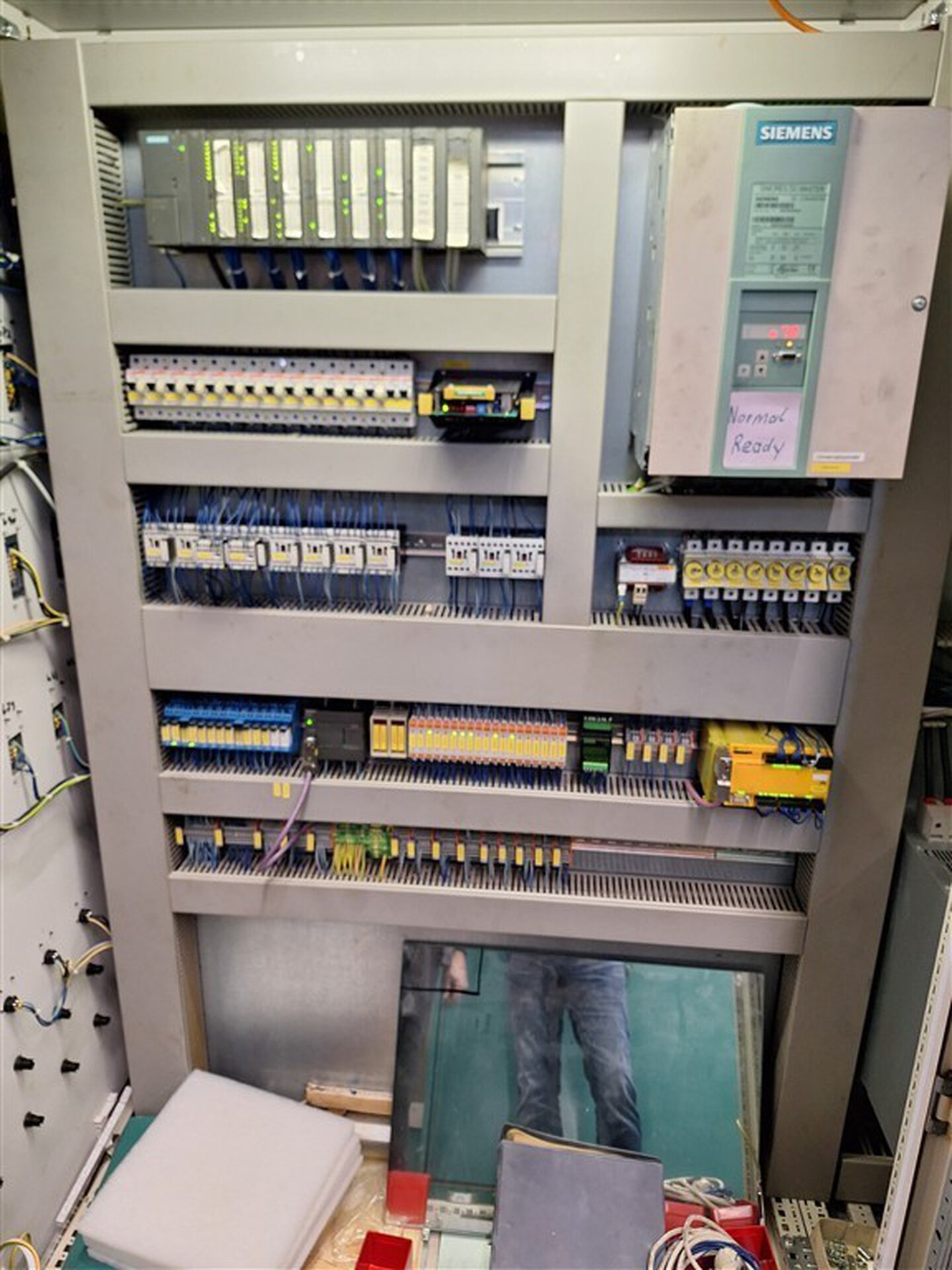

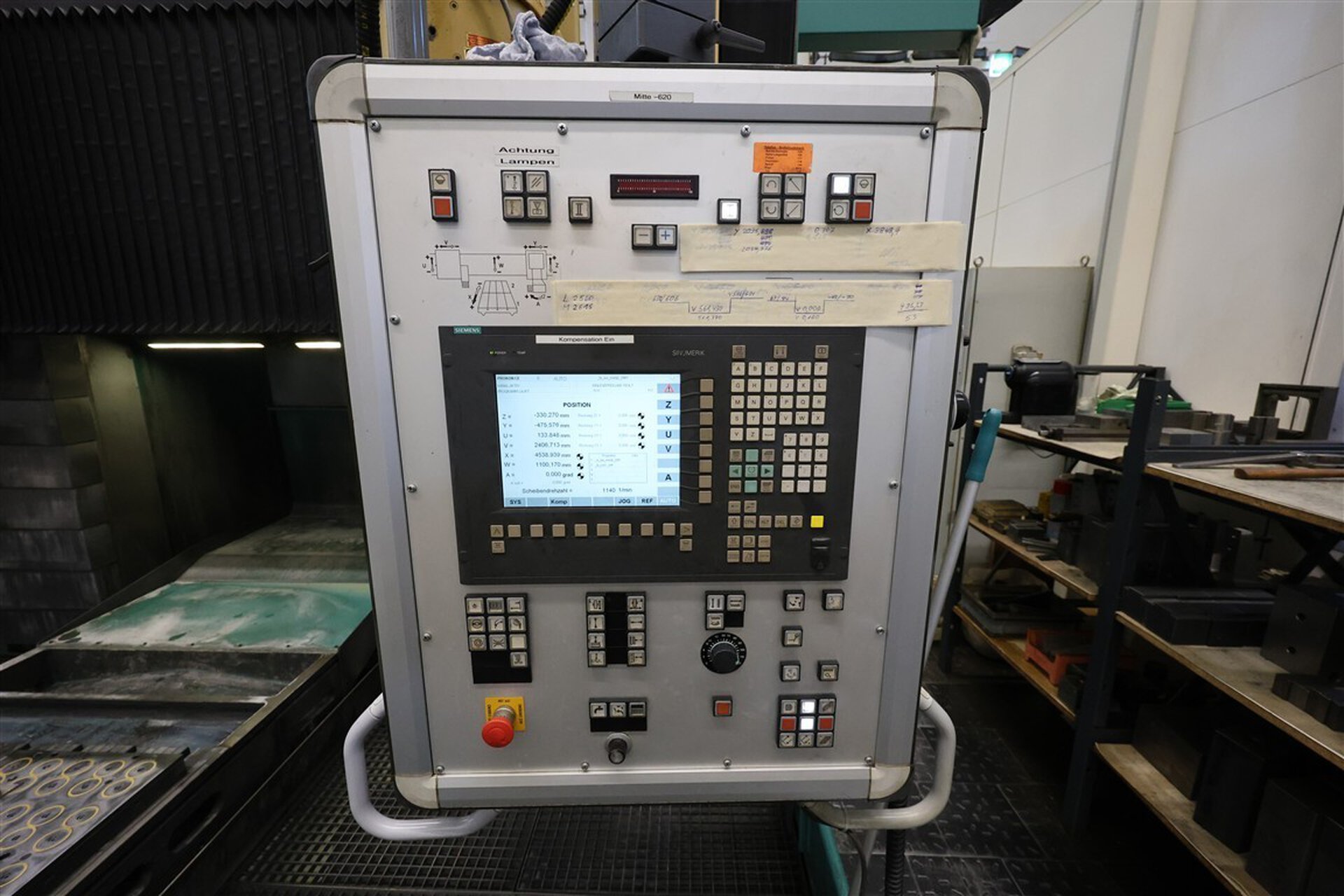

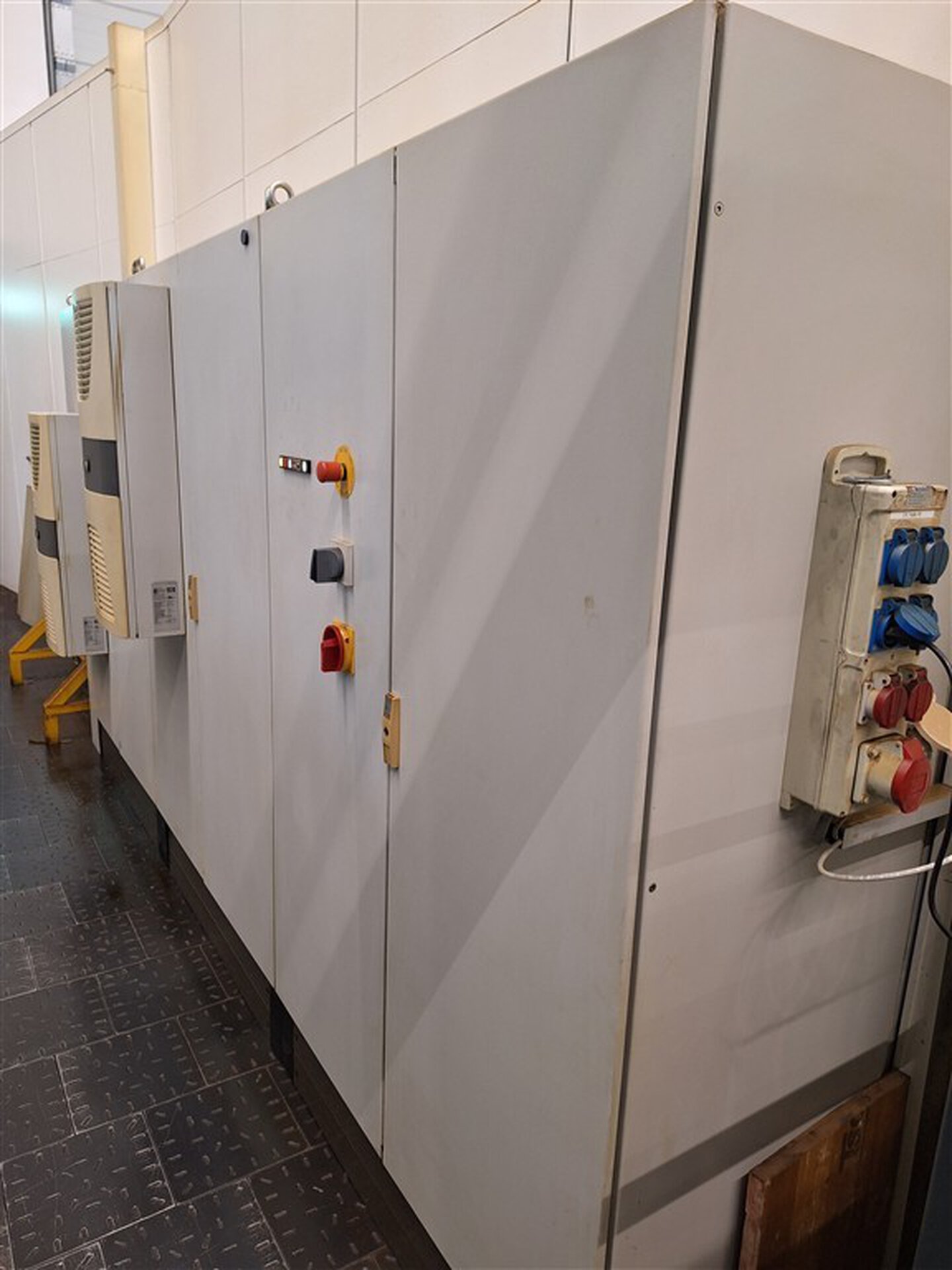

With CNC control SIEMENS 840 D

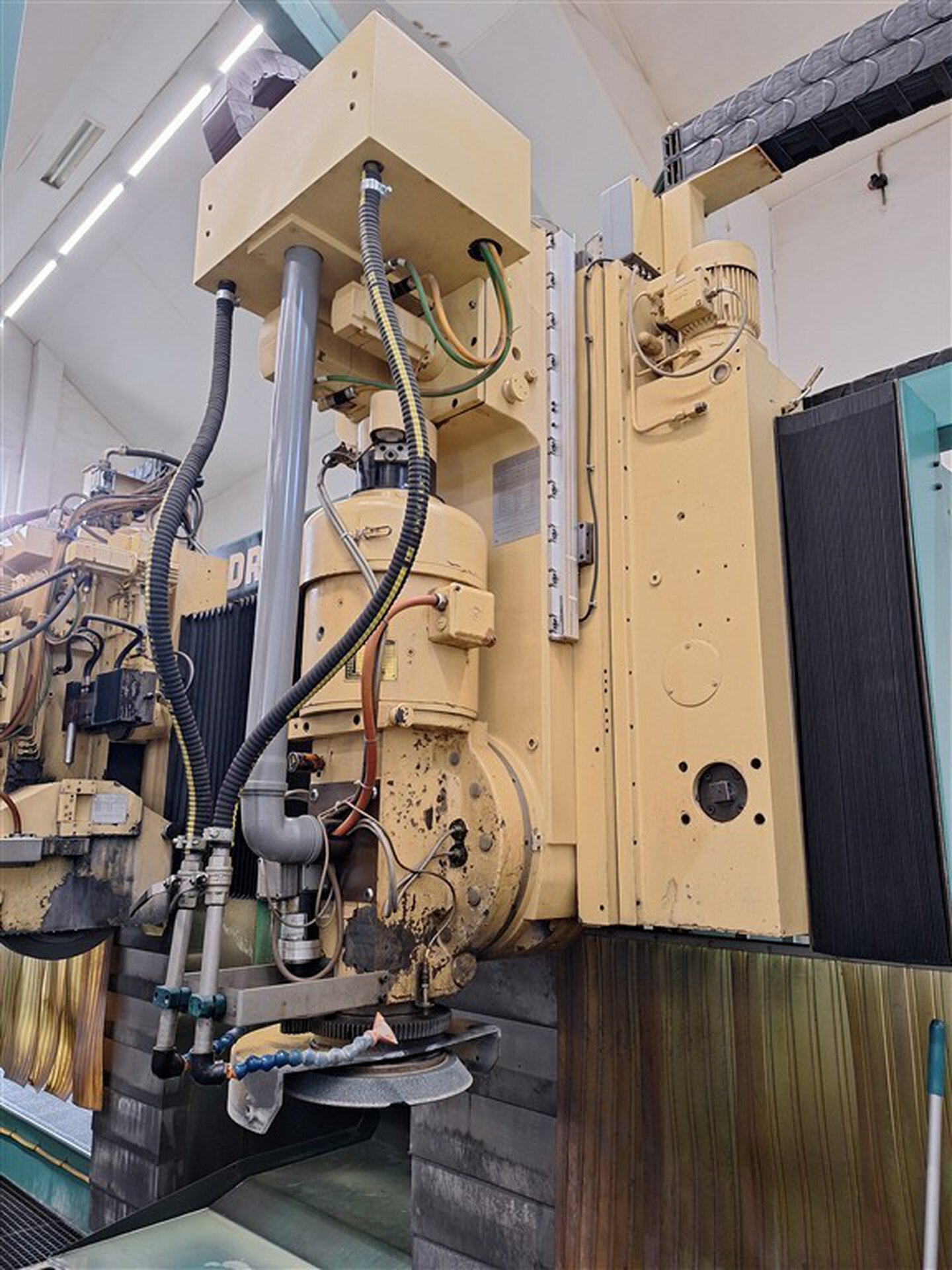

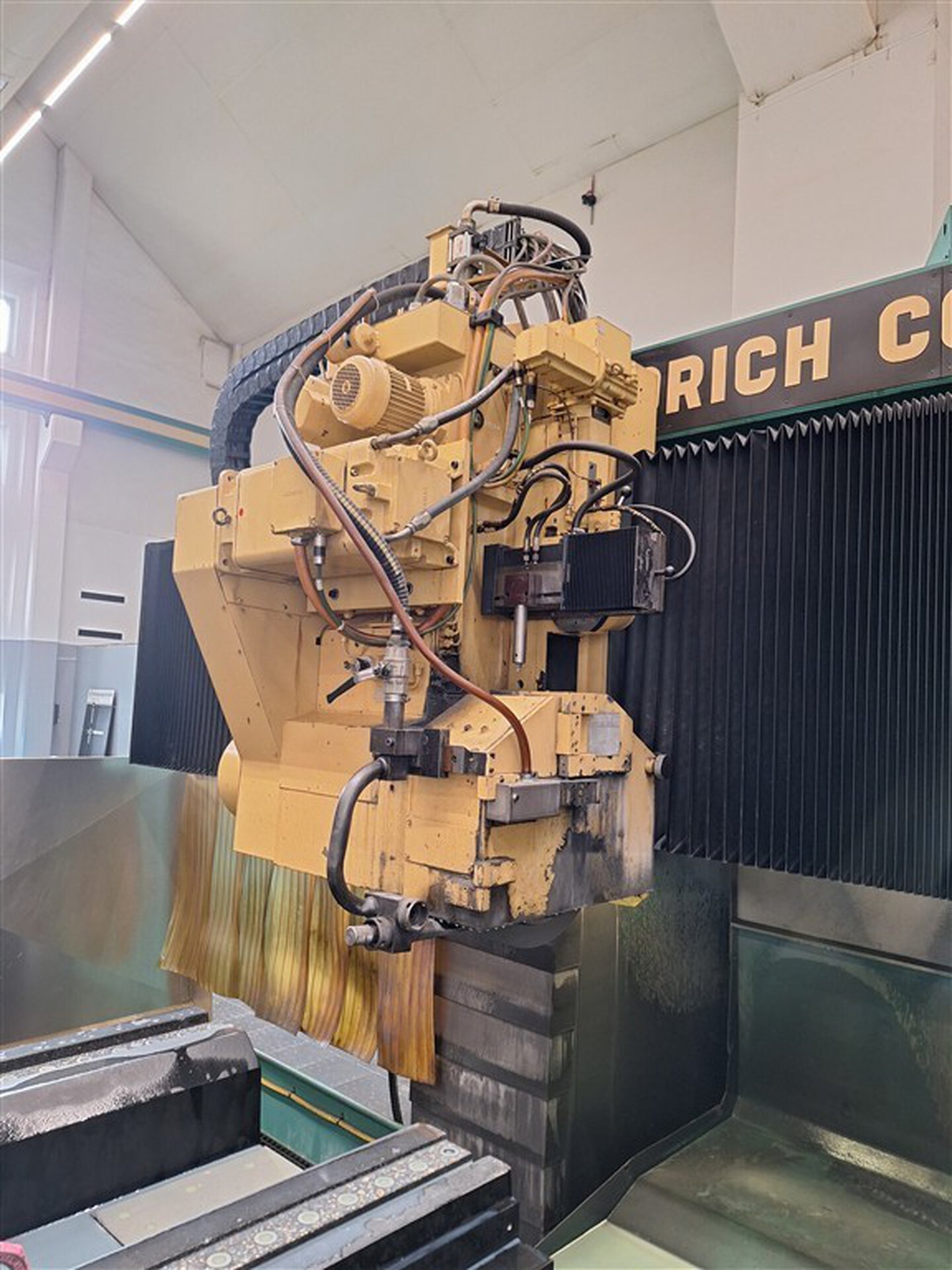

1 universal grinding support, 7.5 kW, swivelling grinding spindle ±110°
Peripheral grinding wheel dimensions Ø 500 × 60 mm
Vertical adjustment 350 mm, with dressing device
1 peripheral grinding support, 22.5 kW
Grinding wheel dimensions Ø 600 × 100 mm
Vertical adjustment 150 mm, with dressing device
With 6 magnetic plates arranged on the table

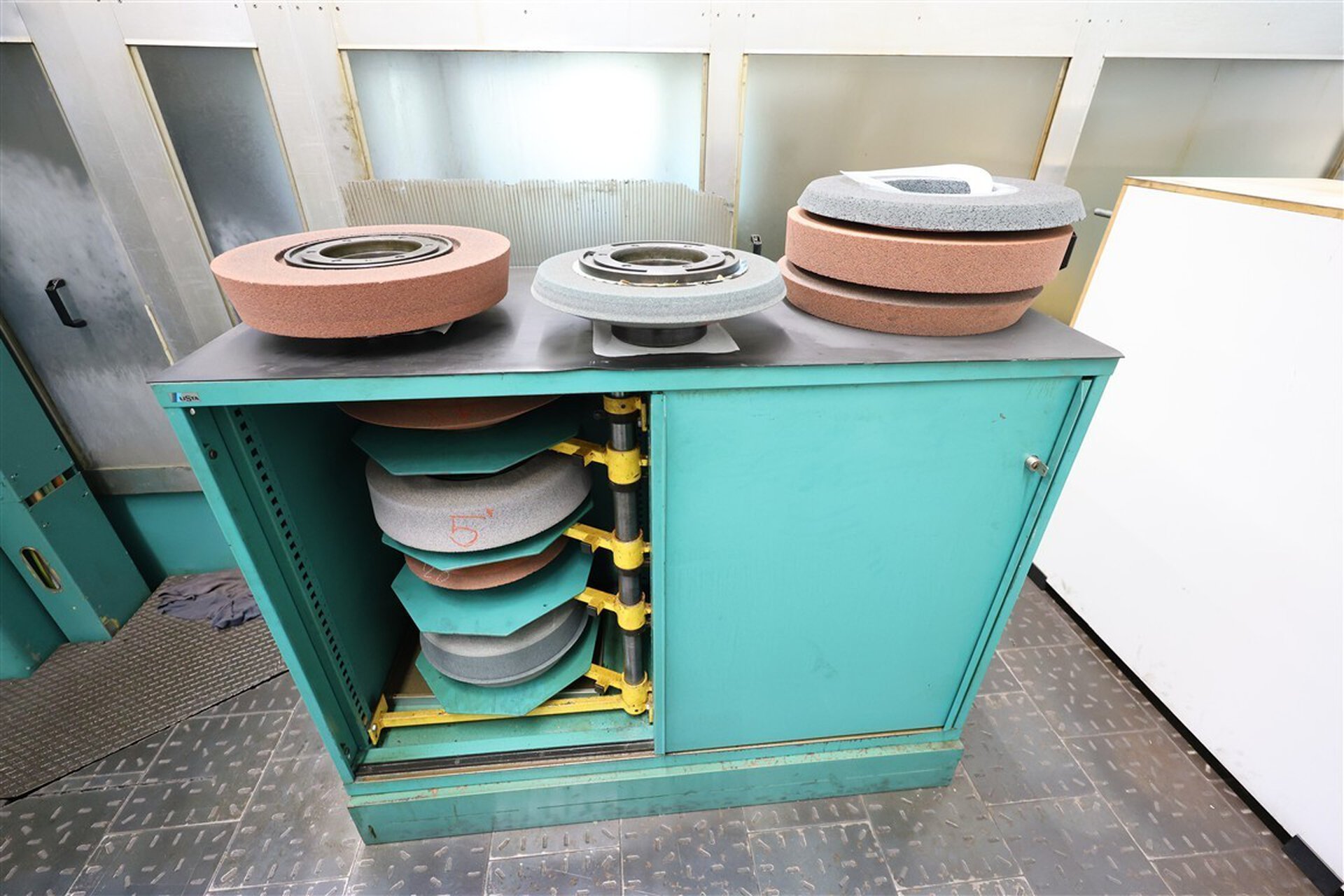

Various grinding wheel holders
