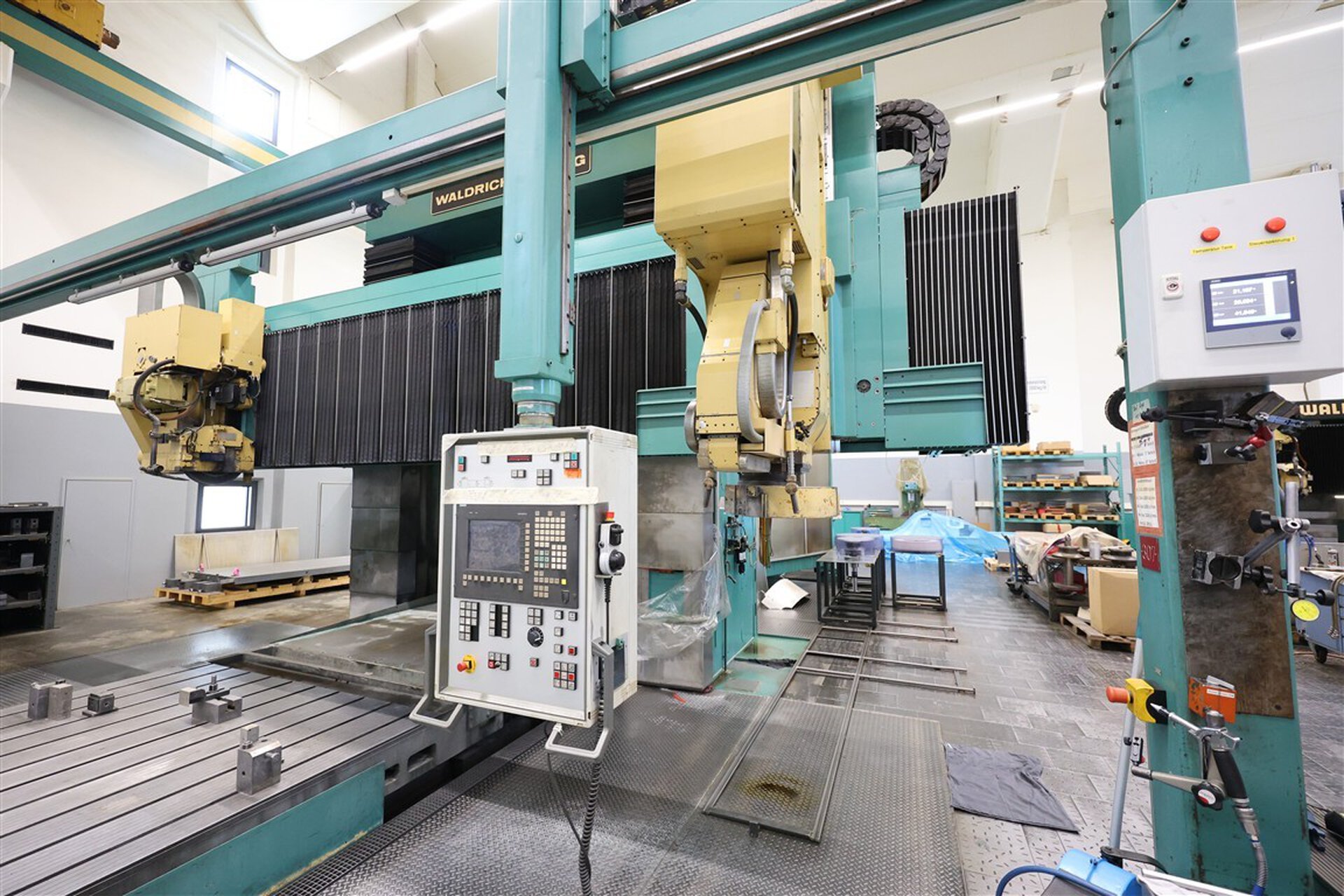

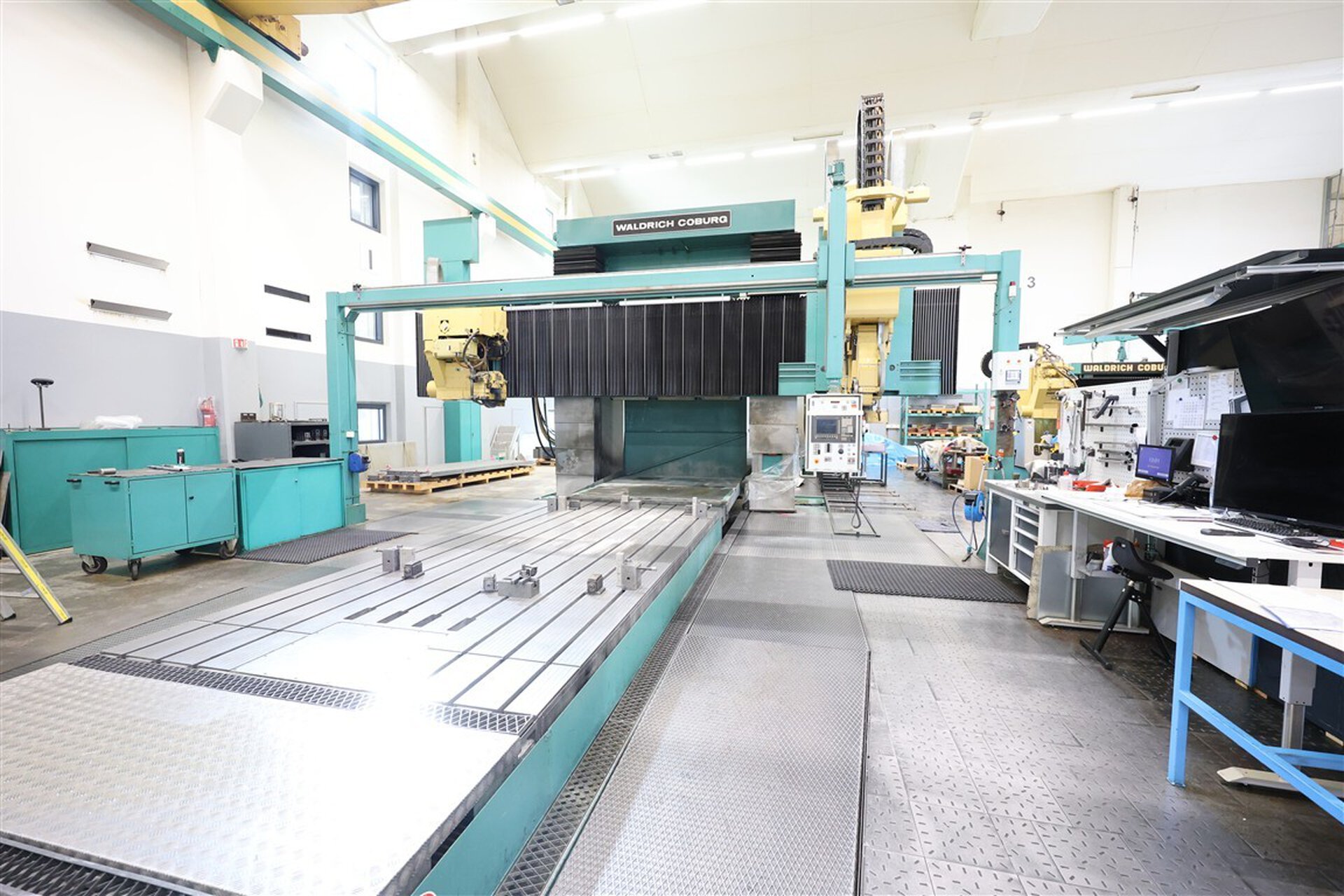

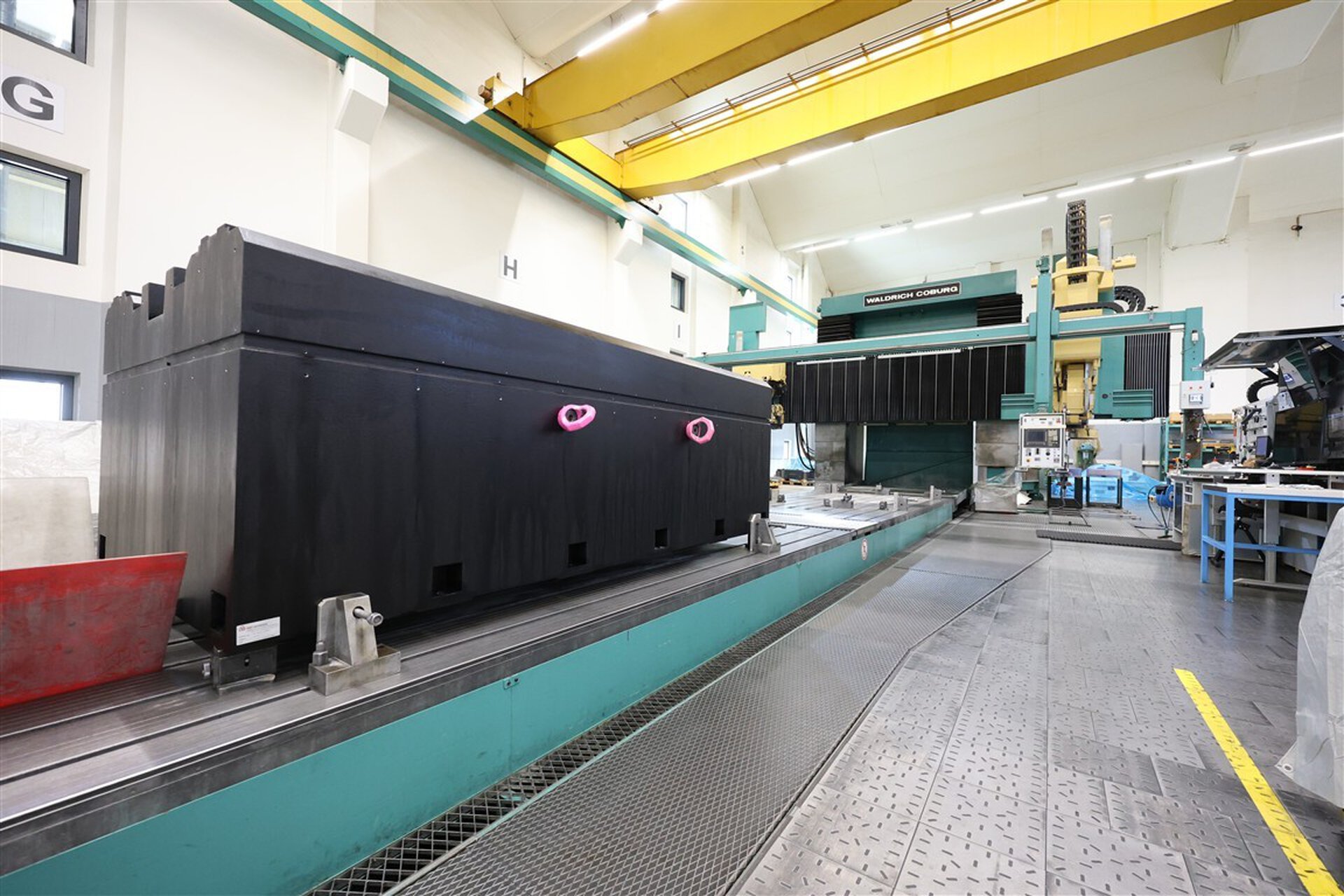

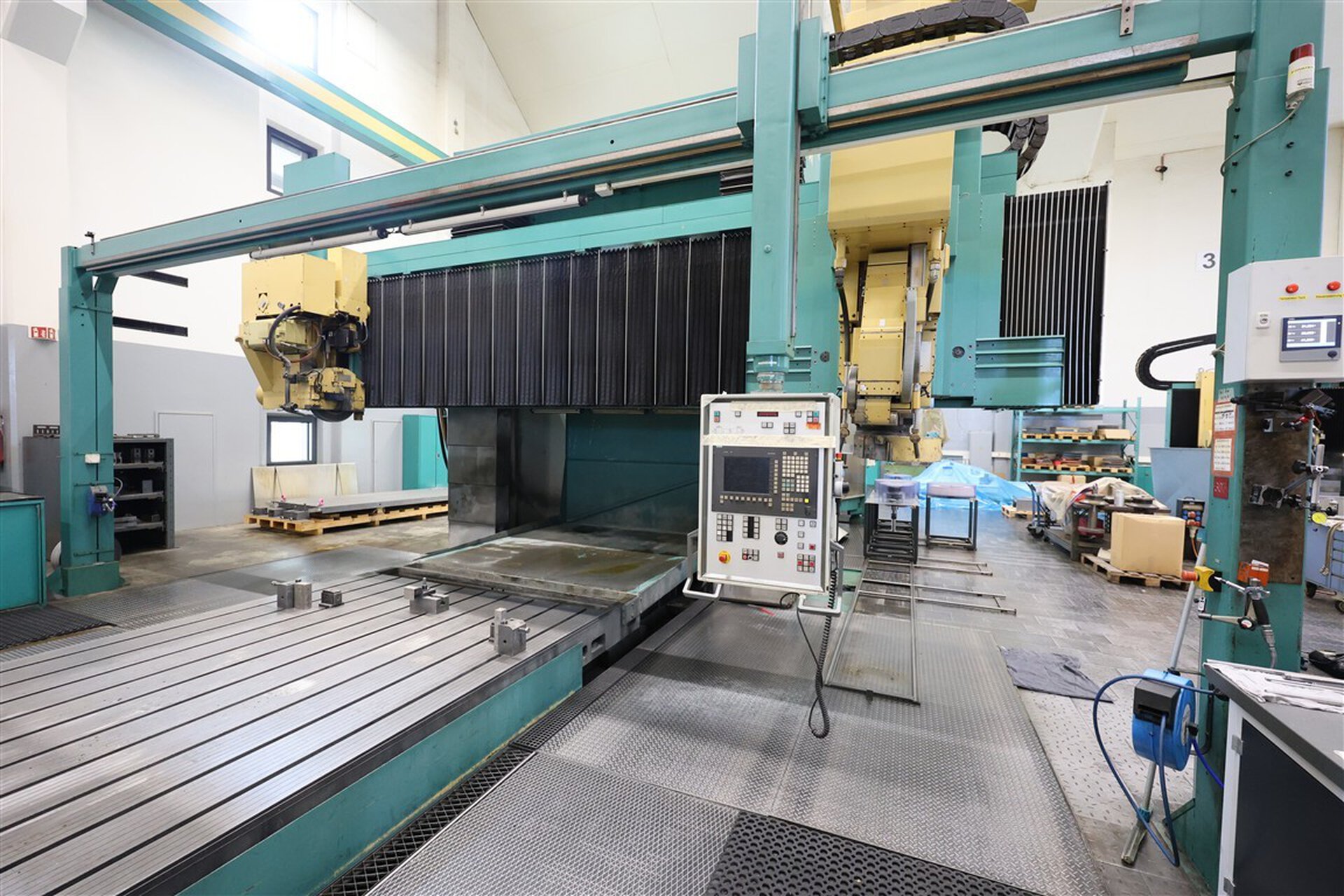

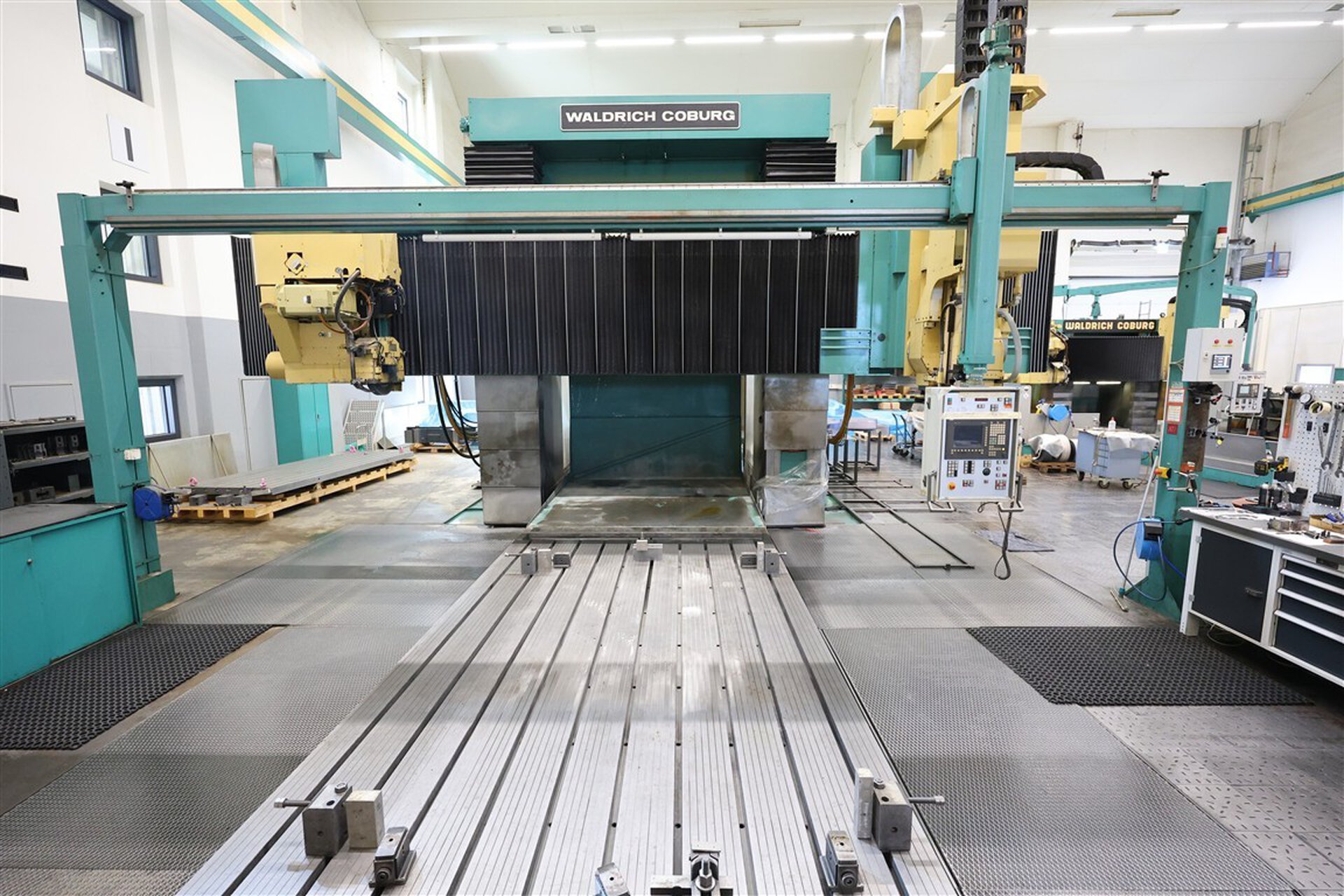

WALDRICH COBURG 30–30 SNC 5050/11m
Slideway Grinding Machine
Price is negotiable
Manufacturer: WALDRICH COBURG
- Construction year: 1988/2005
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Grinding machines > Slideway Grinding Machine
Product No. 3402-250806
Technical Details
| Total power requirement | 110 | kW |
|---|---|---|
| Weight of the machine ca. | 151 | t |
| Dimensions of the machine ca. | 32.5 × 9 × 6.73 | m |
| Grinding length | 12000 | mm |
| Grinding width | 2800 | mm |
| Workpiece height | 2510 | mm |
| Table surface area | 11990 × 2500 | mm |
| Distance between columns | 2820 | mm |
| Table feed | 1 – 40 | mm/min |
| Max. workpiece weight | 24,000 | kg |
| Cross rail adjustment | 2510 | mm |
Machine is in very good condition for grinding to the highest precision!
In 2022, the mechanical components were reworked by WALDRICH COBURG at a cost of approx. EUR 600,000.

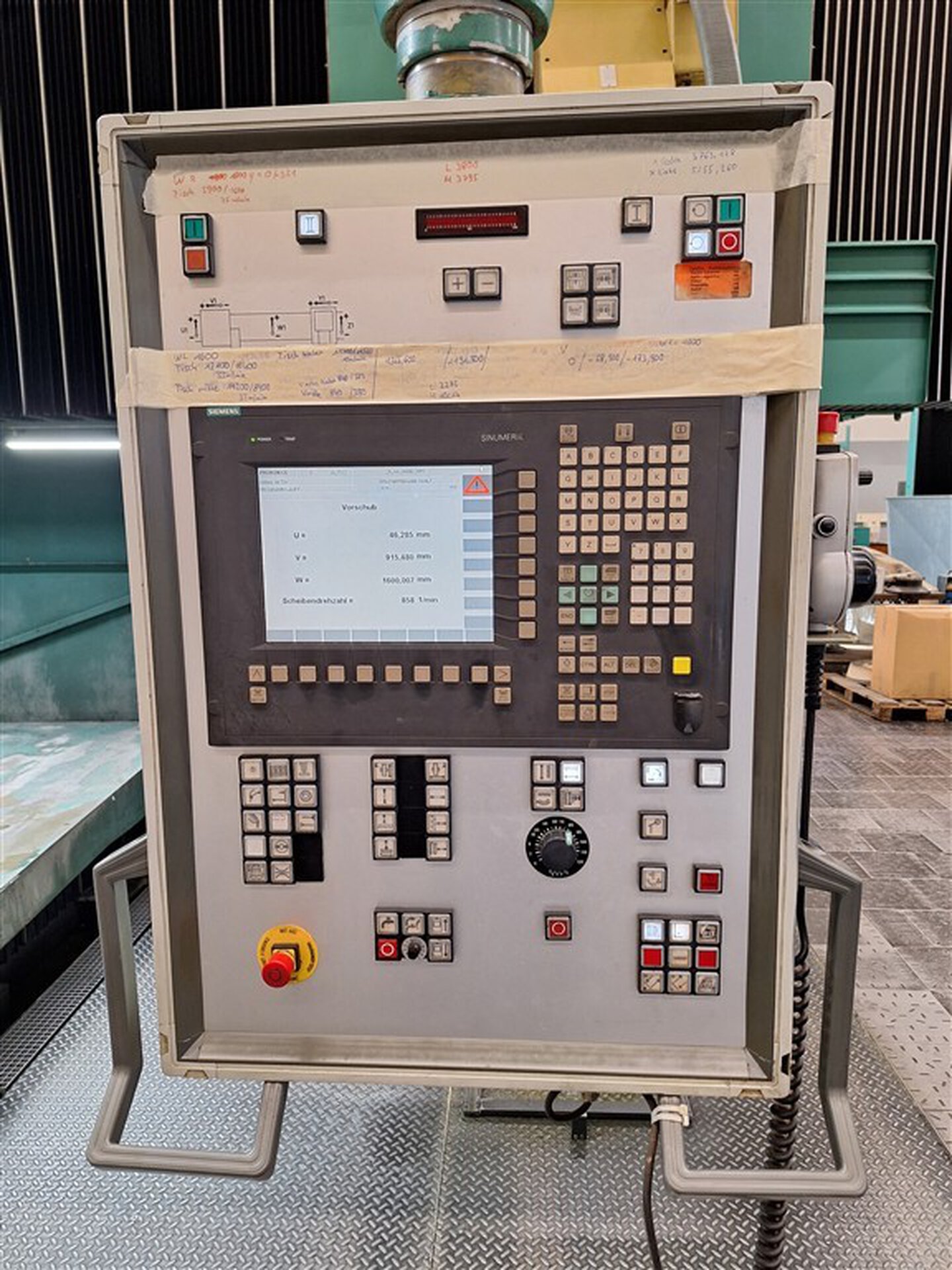

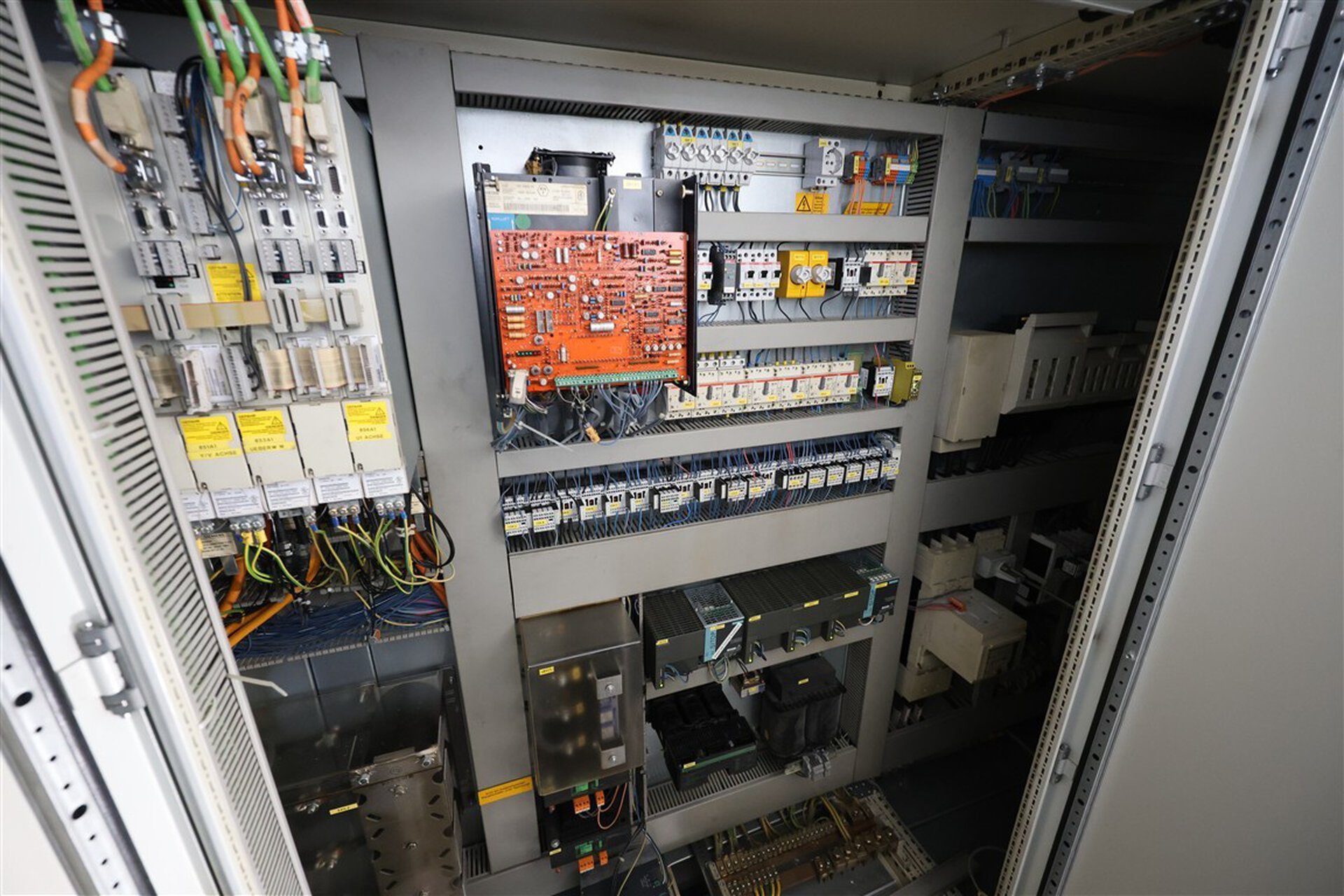

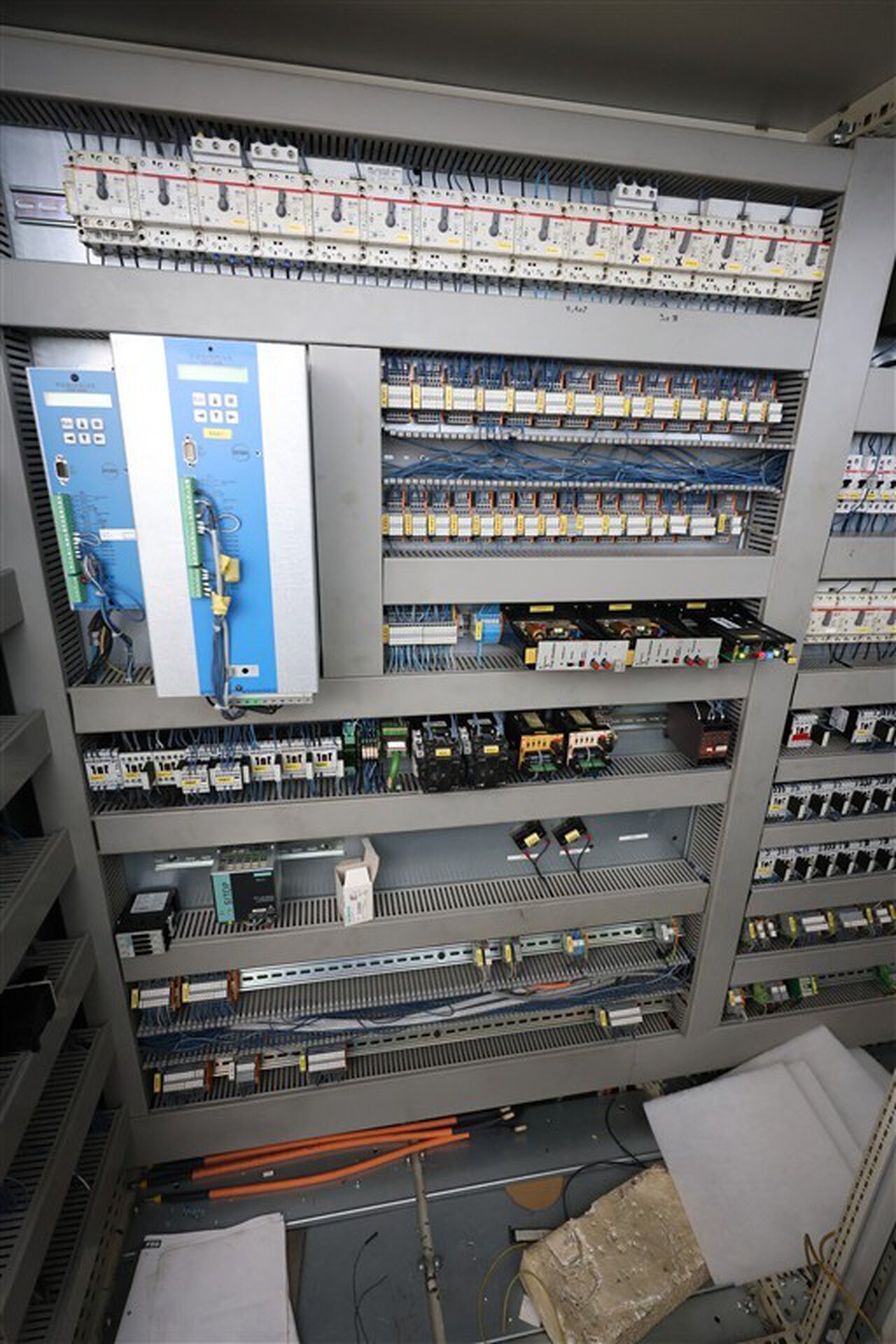

With CNC control SIEMENS 840 D

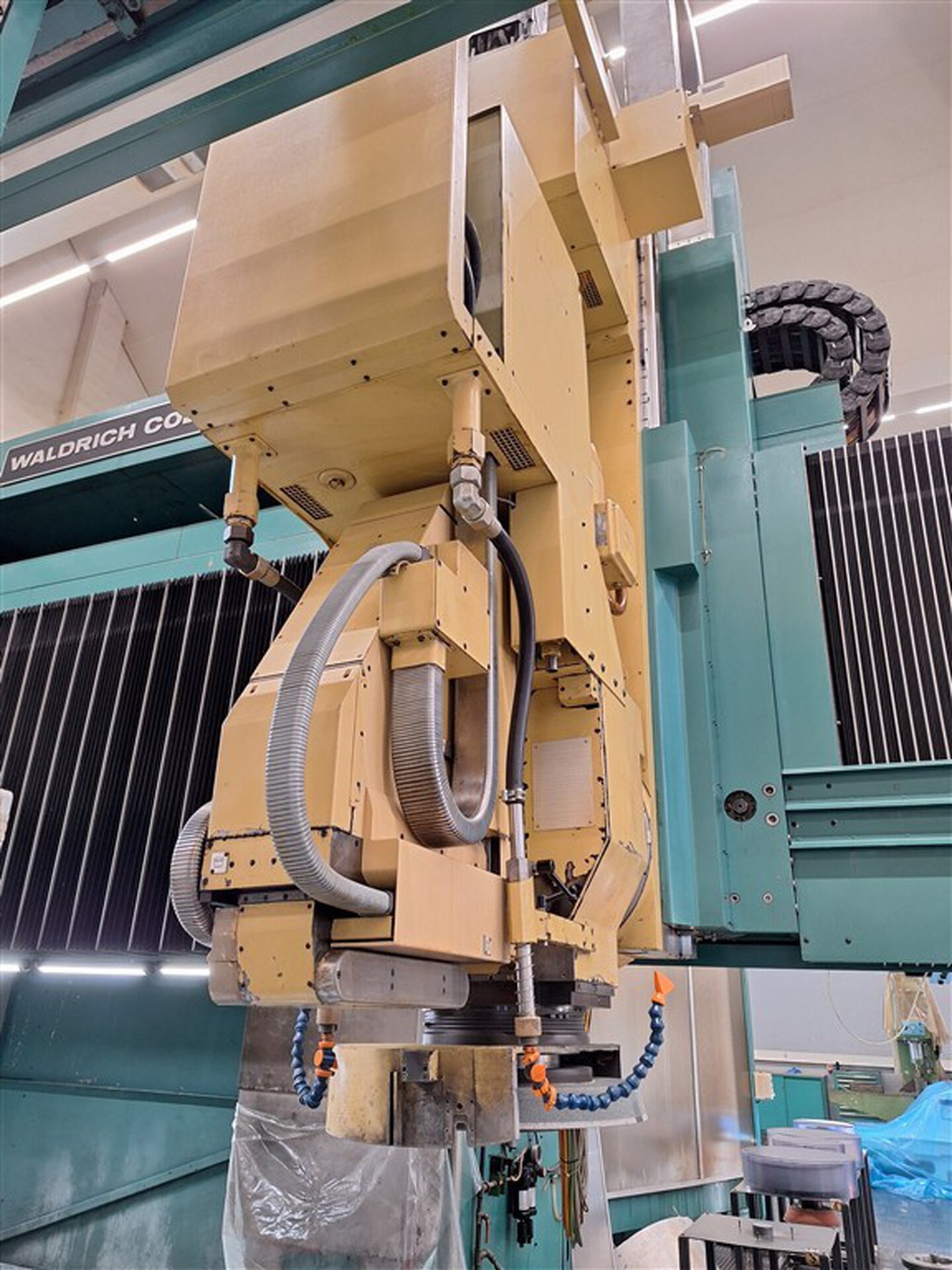

Universal grinding support – 22 kW
Swivelling grinding spindle ±110°
Peripheral grinding wheel dimensions Ø 700 × 130 mm
Vertical adjustment 1000 mm
With dressing device

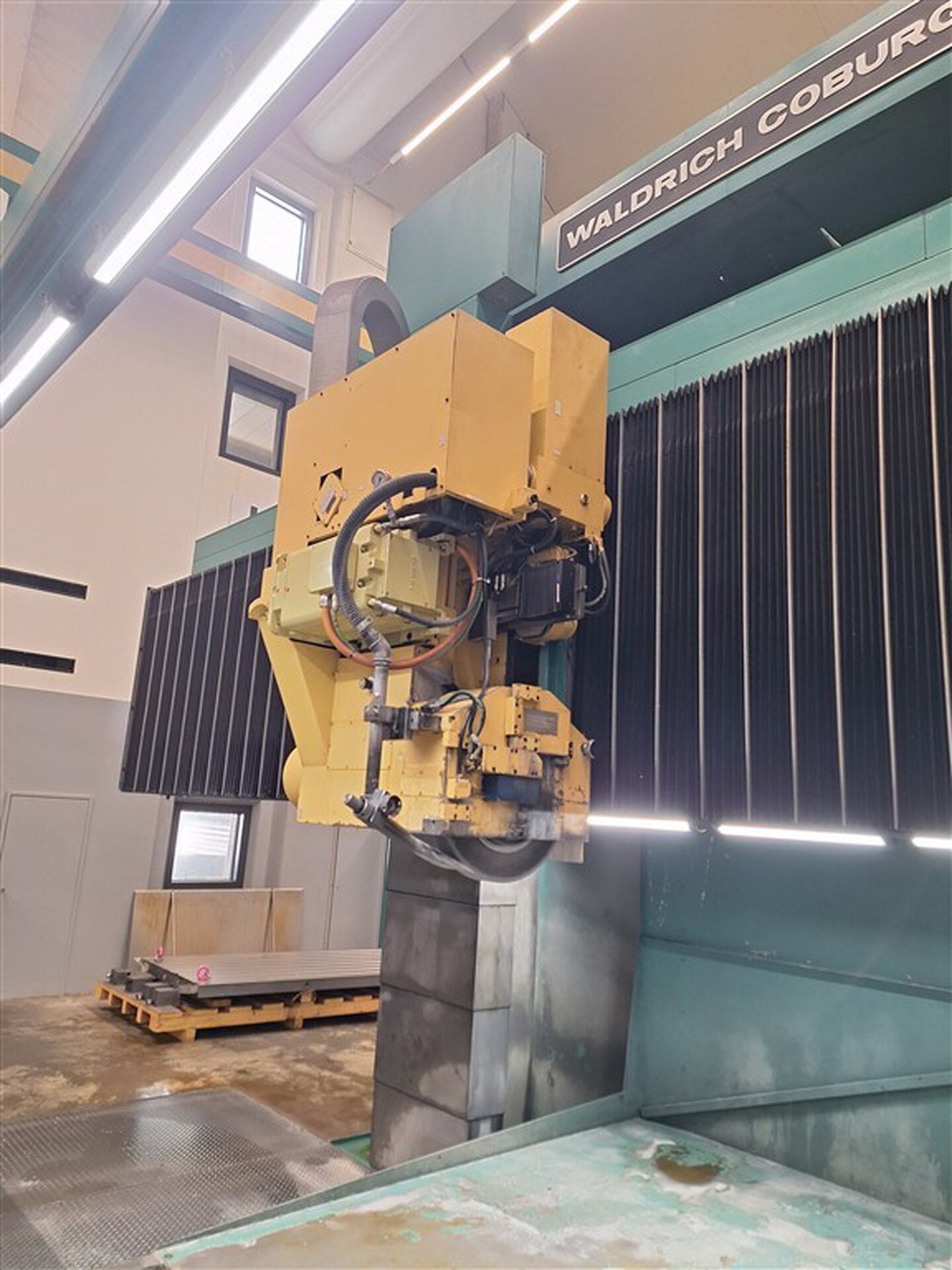

Peripheral grinding support – 30 kW
Grinding wheel dimensions Ø 600 × 150 mm
Vertical adjustment 230 mm
With dressing device
Coolant and filter unit

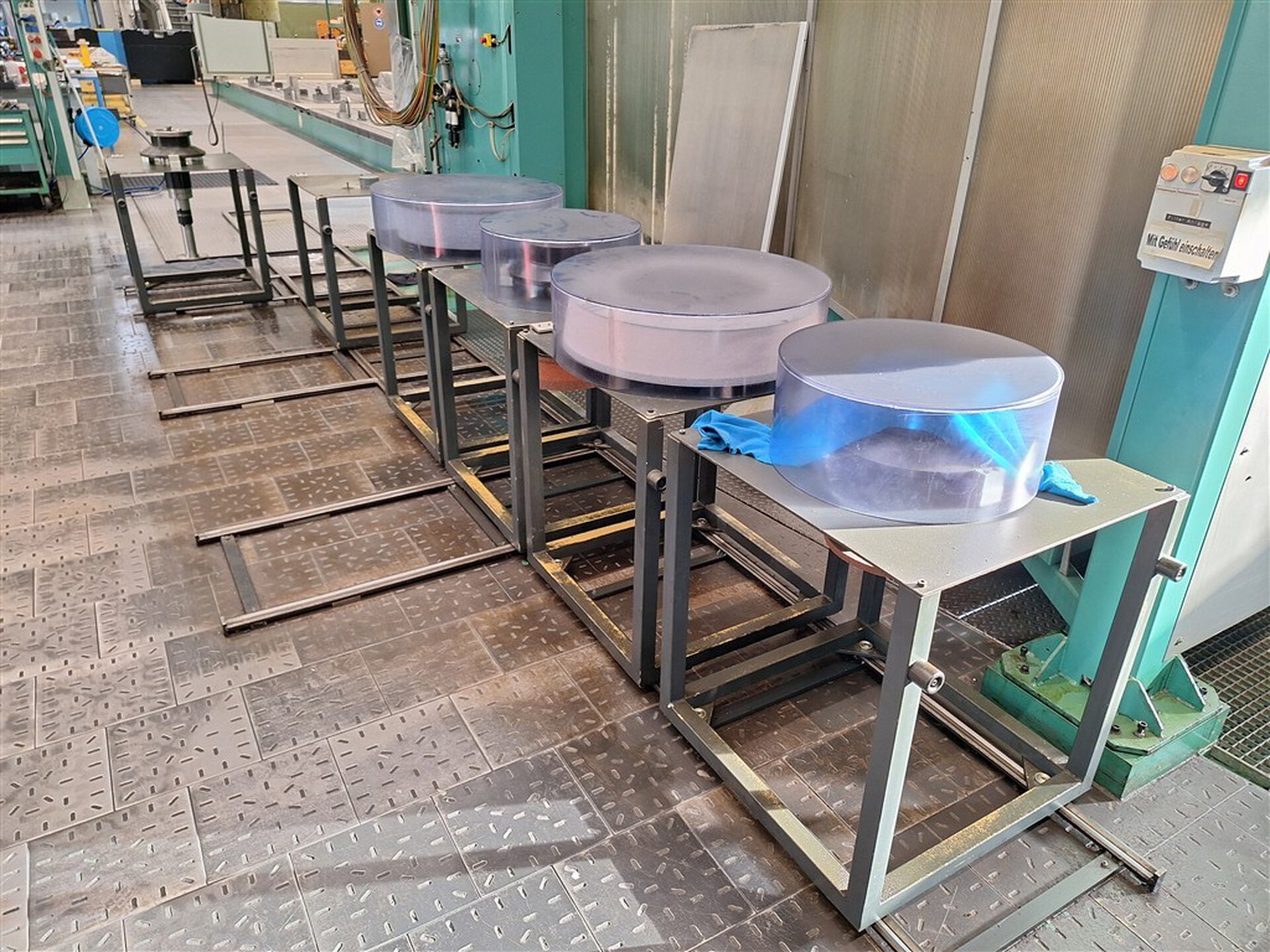

Various grinding wheel holders
