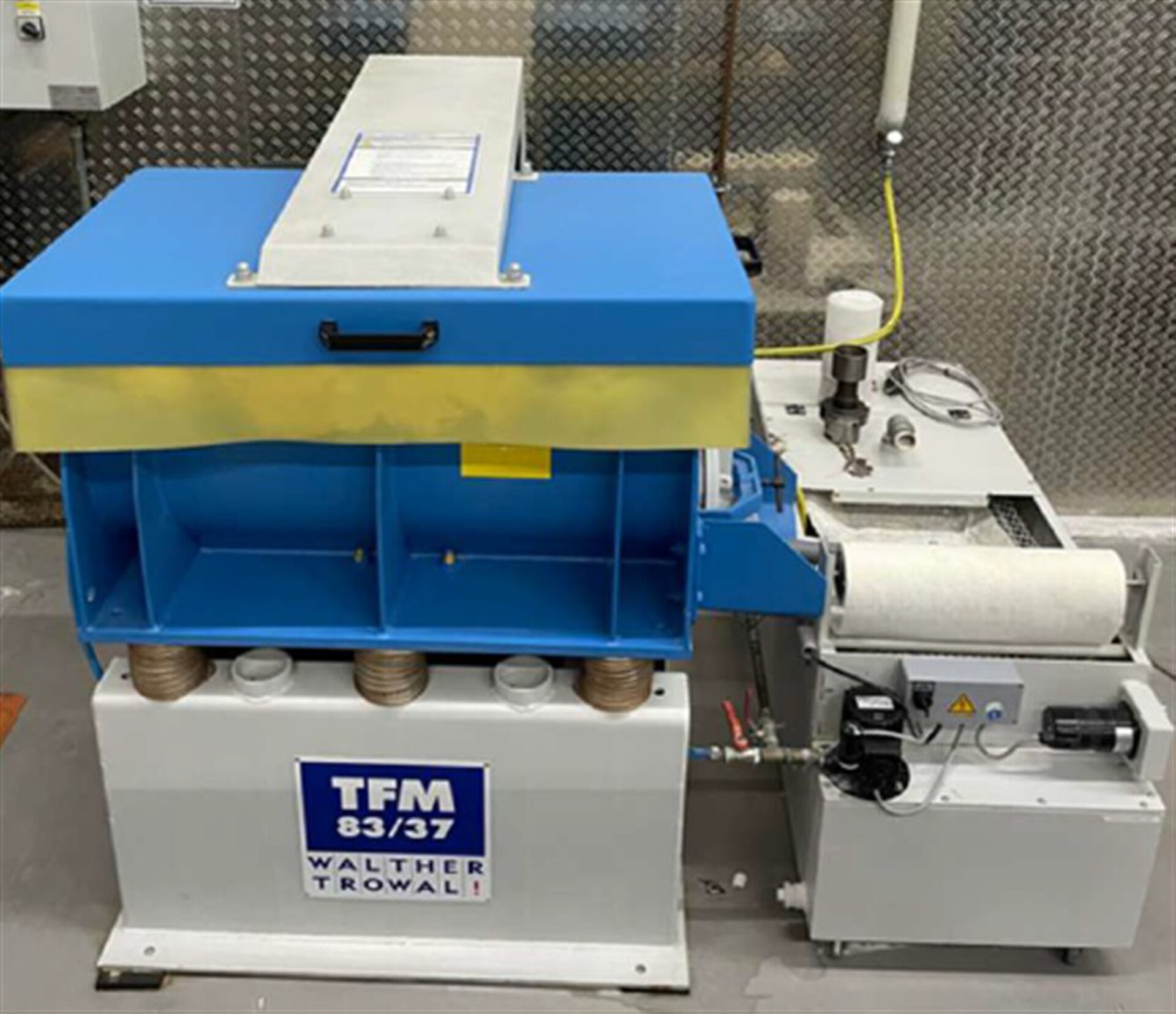

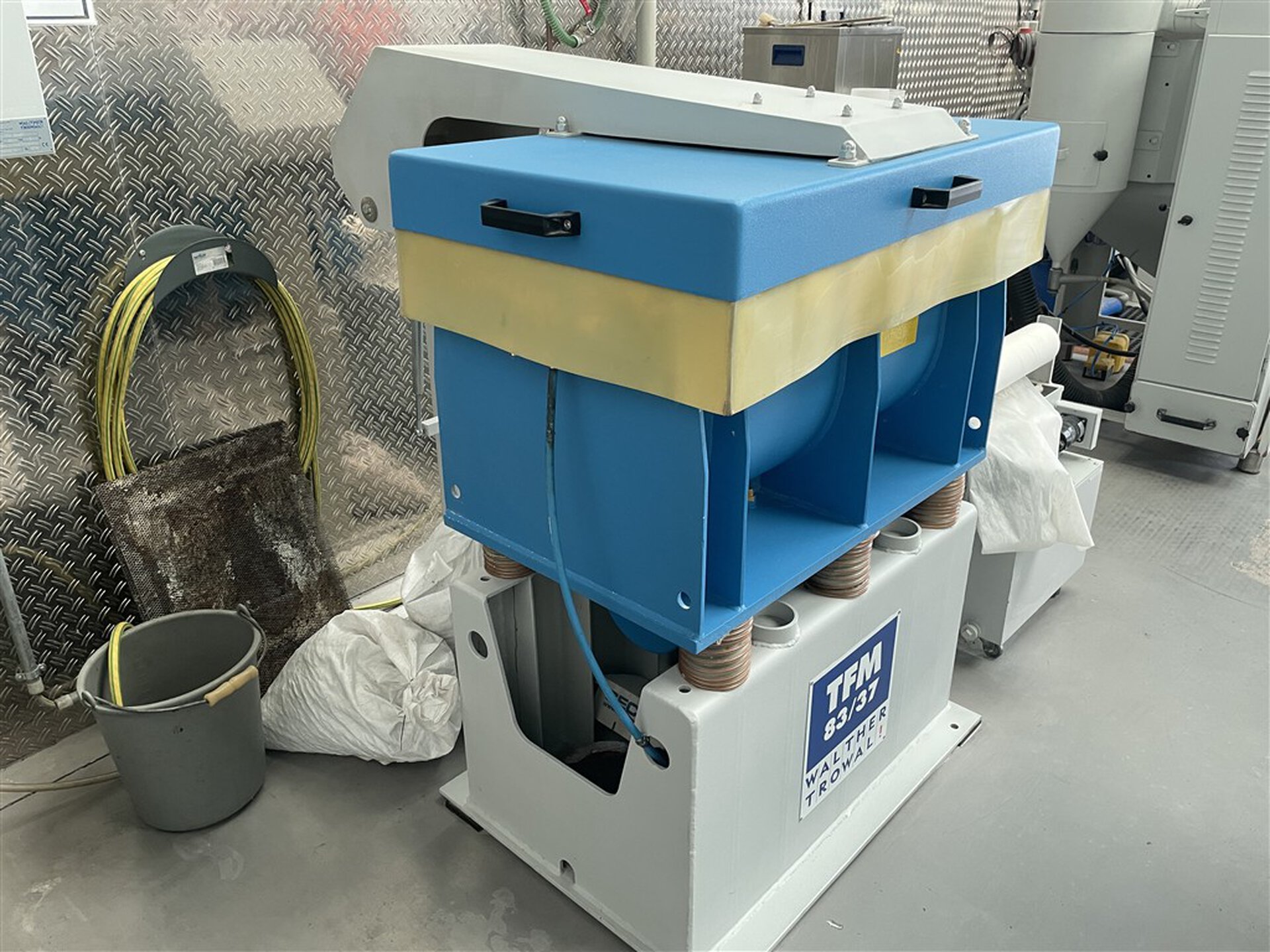

WALTHER TROWAL TFM 83/37
Slip Grinding Machine

Useful volume 80 l
Drive power (standard) 1 × 1.0 kW
Drive power (ball polishing version) 1 × 1.0 kW
PU lining thickness 5 mm
Working tank U-shaped, polyurethane lining
Standard speed 1,500 rpm
Outlet Ø 140 mm
Number of outlets 1

Dimensions
Tank width 370 mm
Tank depth 210 mm
Tank height 395 mm
Internal tank length 830 mm
Machine length 880 mm
Ground clearance 200 mm
Machine height 650 mm
Tank height above ground 530 mm
Overall width 1,100 mm
Overall height 1,130 mm

The Walther Trowal TFM 83/37 is a high-quality trough-vibration vibratory finishing machine for the cost-effective surface finishing of workpieces made of metal, plastic and other materials.
It is suitable for individual parts as well as small and medium-sized production runs and delivers consistently high, reproducible finishing quality.

Applications:

• Deburring
• Edge rounding
• Grinding and smoothing
• Polishing
• Cleaning
• Rust and scale removal
• Surface finishing prior to coating or assembly

Thanks to its robust construction and durable polyurethane lining, the machine is ideal for industrial use in metalworking, tool and mould making,
the automotive supply industry and precision engineering. It enables efficient and gentle processing of even complex workpieces and significantly reduces the need for manual reworking.

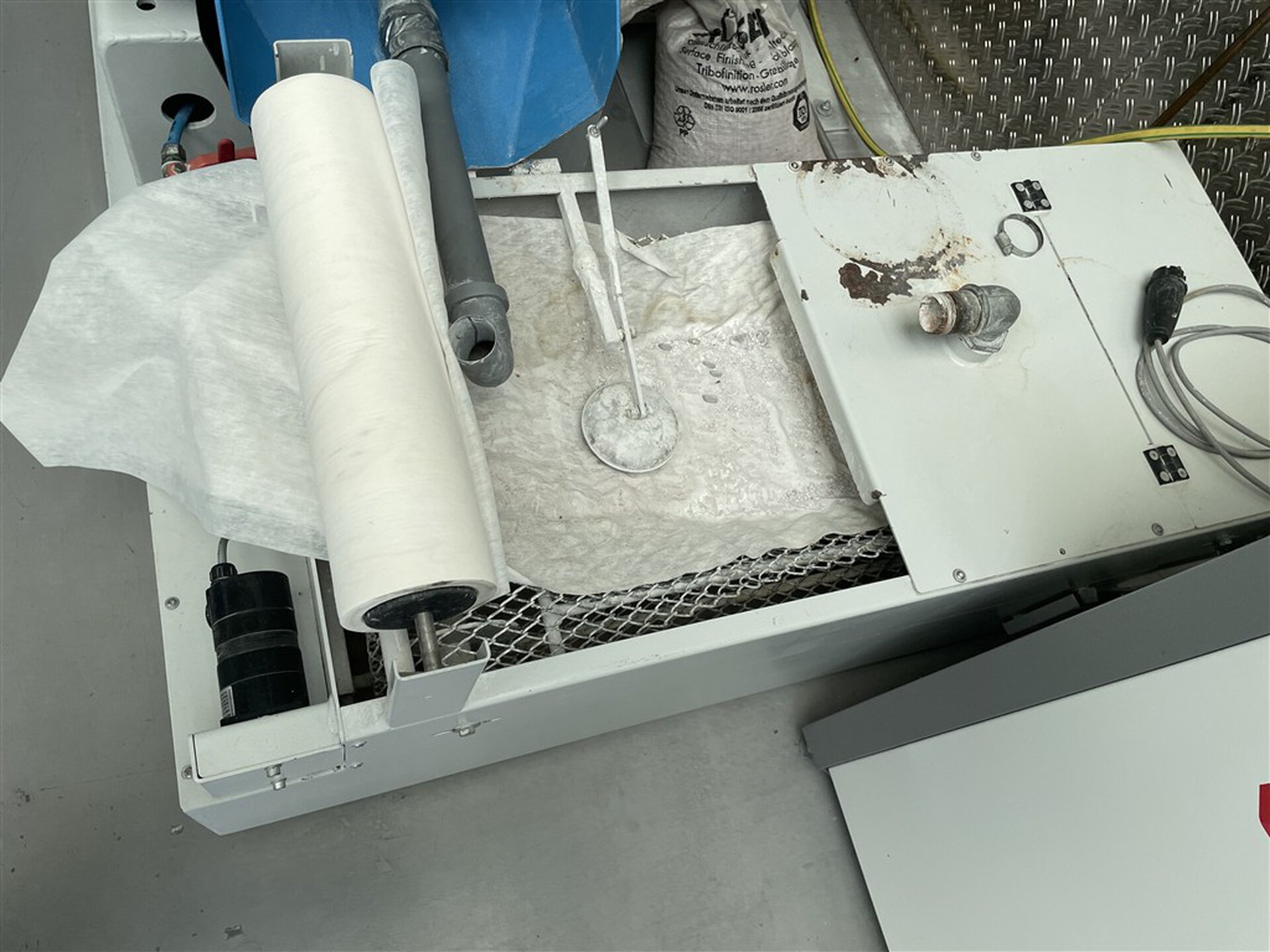

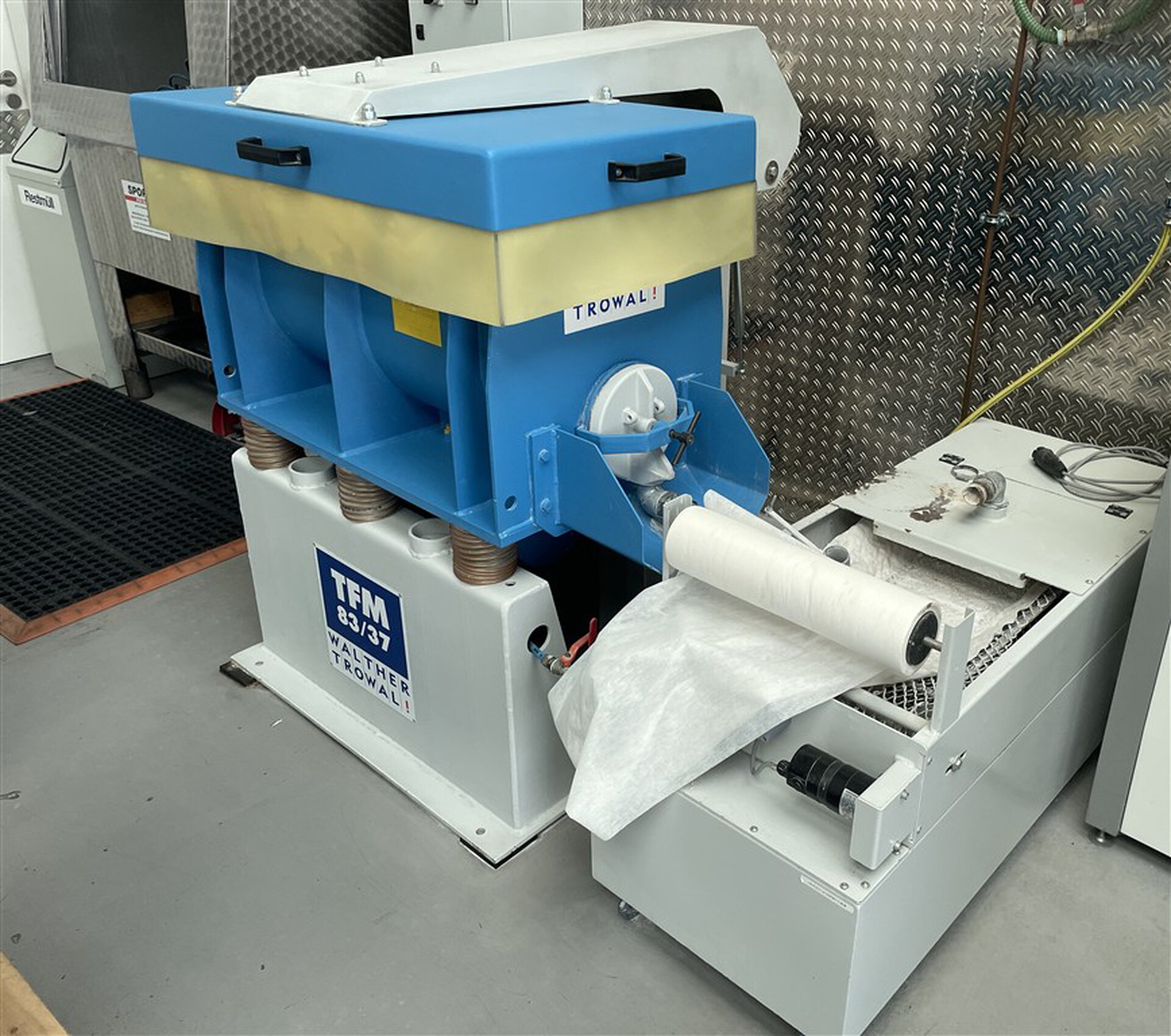

The Trowal is supplied with a paper belt filter (see photos).
