WOHLENBERG PT1 U1070 S11
CNC Lathe
Price is negotiable
Manufacturer: WOHLENBERG
- Construction year: 1996
- Control Type: CNC
- Delivery Time: immediately
- Metal Processing > Lathes > CNC Lathe
- Status: Used
Product No. 3402-260408
Technical Details
| Turning diameter | 1070 | mm |
|---|---|---|
| Turning length | 8500 | mm |
| Total power requirement | 62 | kW |
| Turning diameter over slide rest | 800 | mm |
| Spindle bore | 128 | mm |
| Max. workpiece weight between centers | 8000 | kg |
| Max. workpiece weight | 12000 | kg |
| Bore spindle turning speed range | 1.120–01120 | rpm |
| Tailstock quill diameter | 200 | mm |
| Dimensions of the machine ca. | 12 × 2.8 × 2.4 | m |

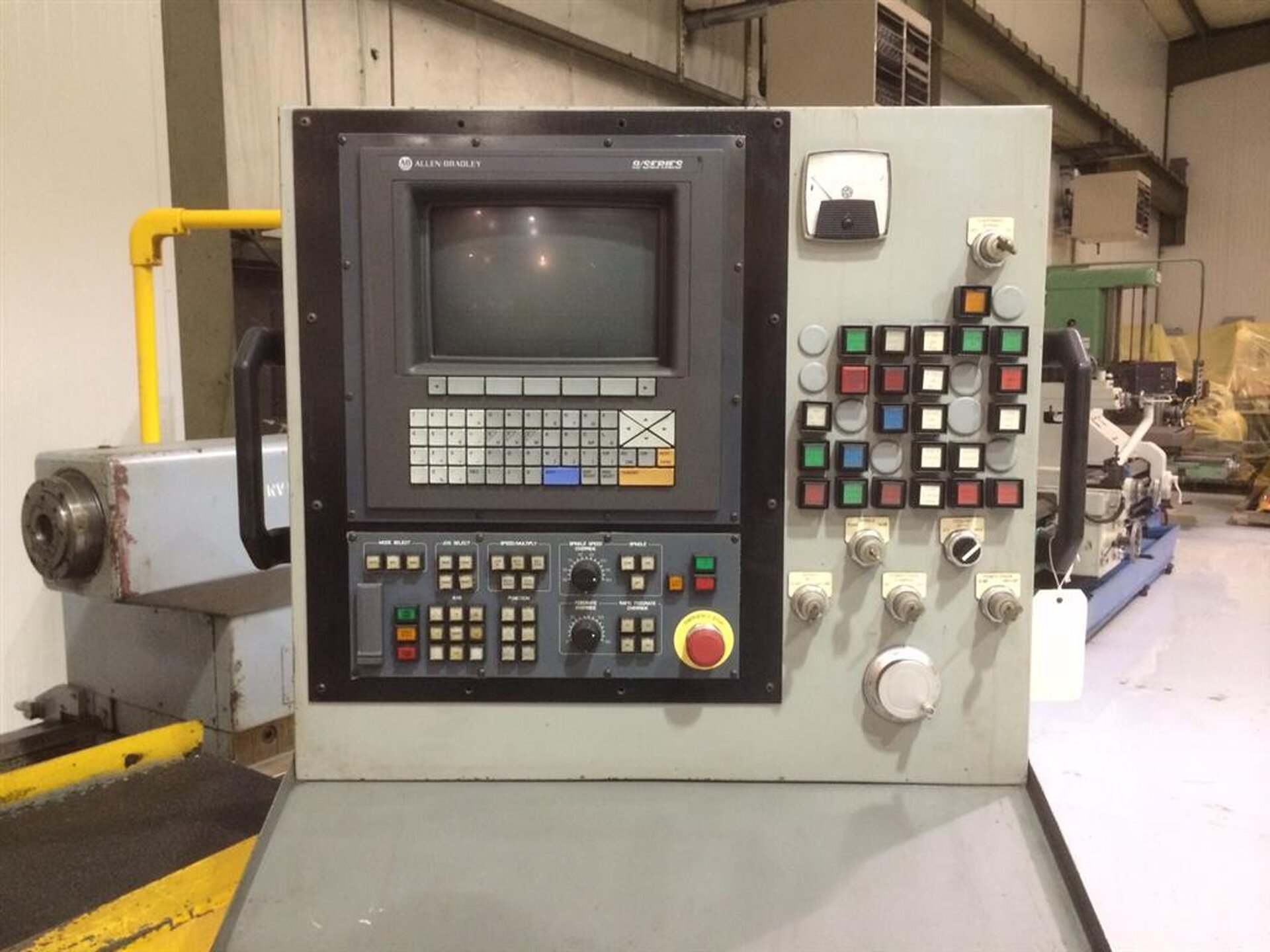

Machine equiped with Alan Bradley 9 series CNC control
- SAUTER 6-postiion revolving head

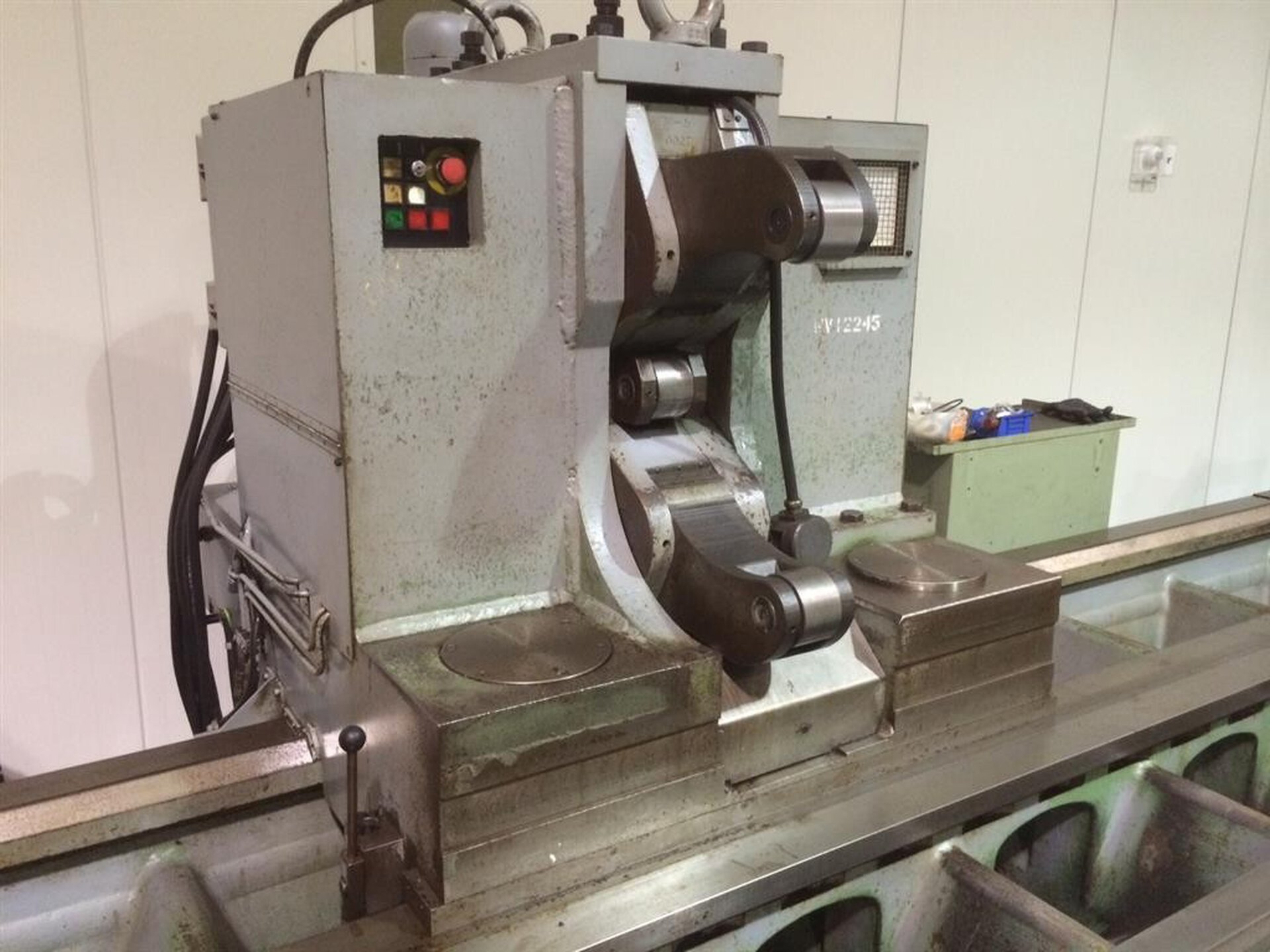

- 360 mm seld centering steady rest
- 385 mm rotary work rest (used for gun barrels)

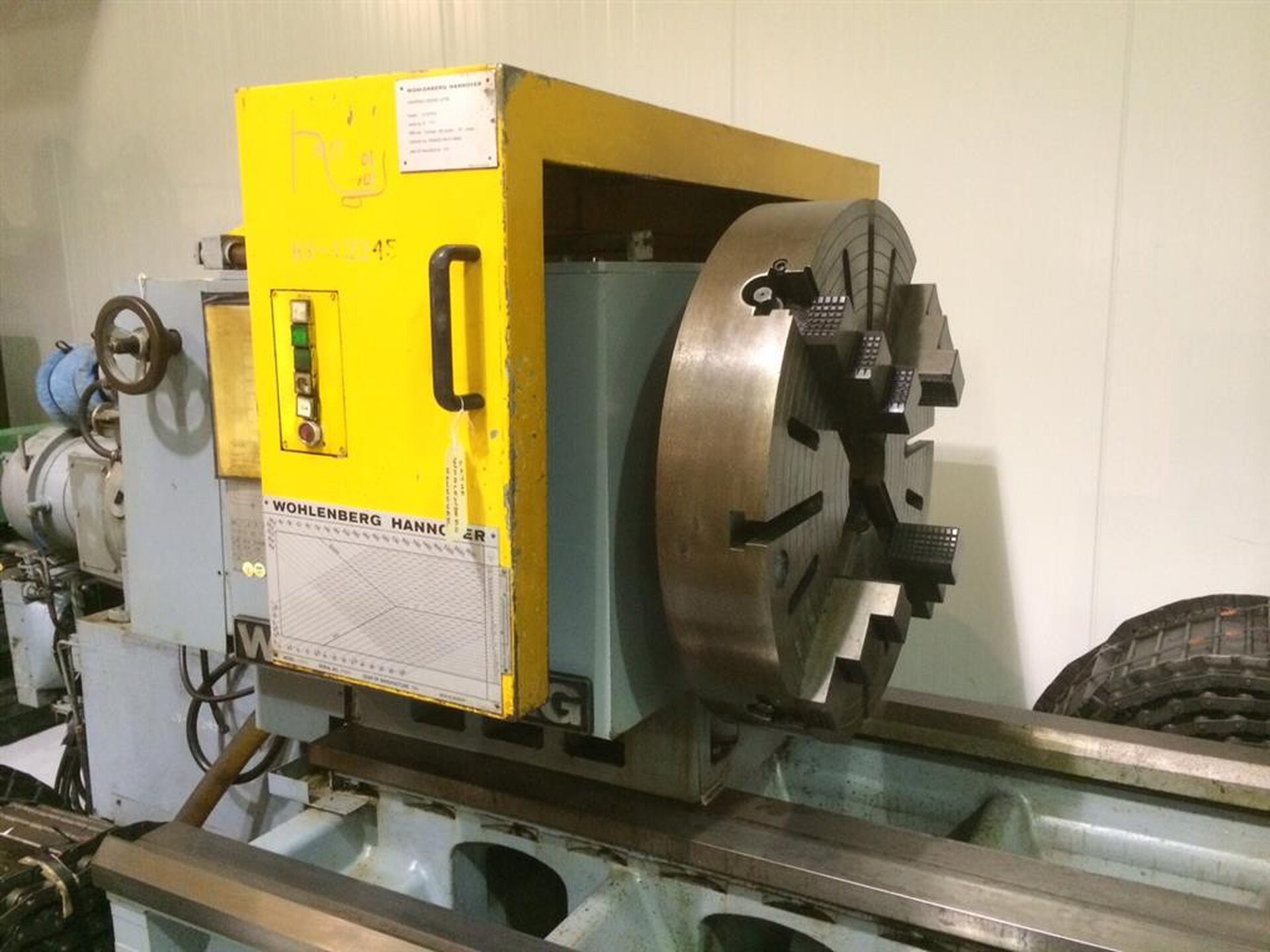

- faceplate 800 mm
- chip conveyor
