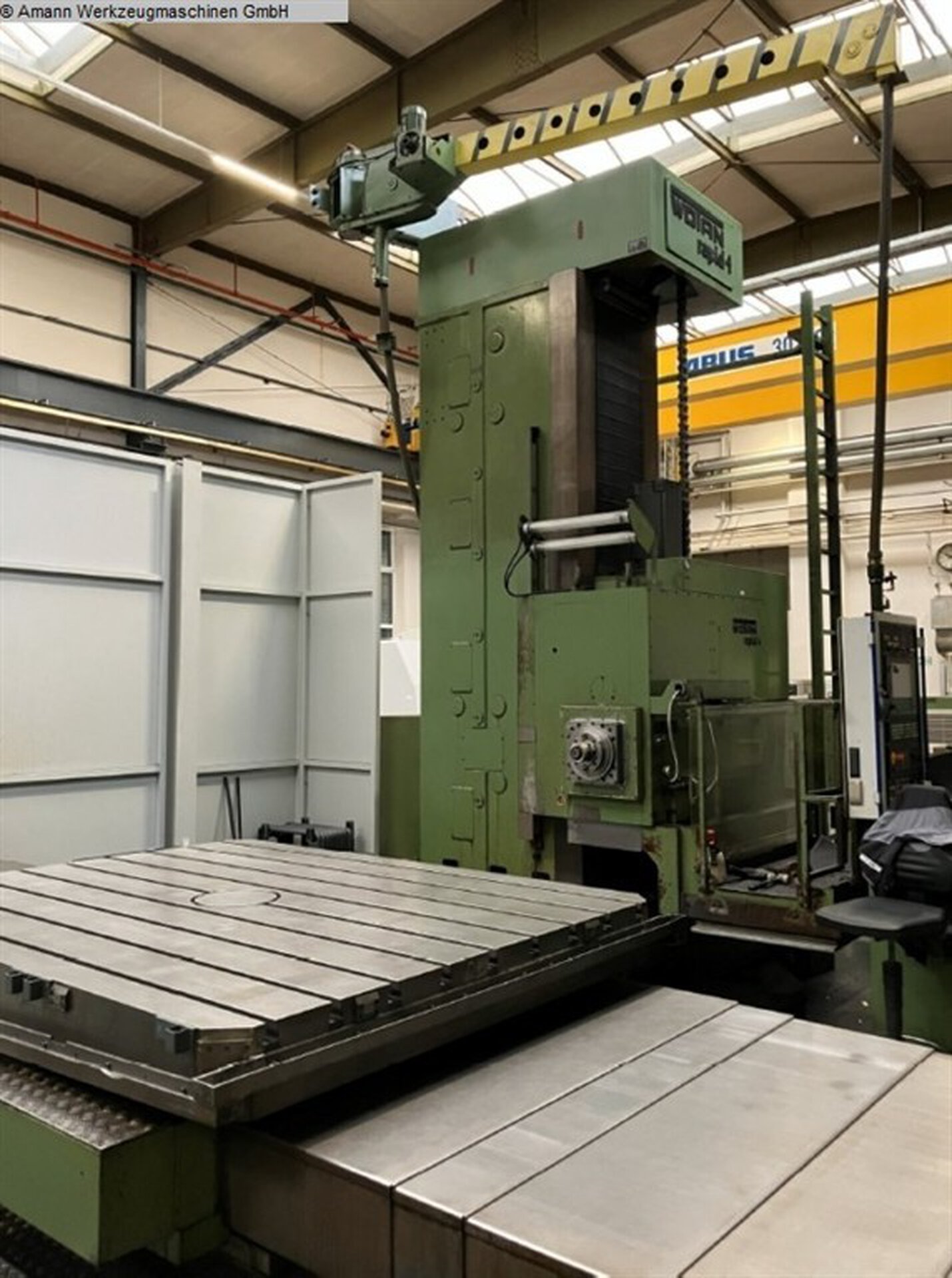

WOTAN Rapid 4A R/20
Table Type Boring and Milling Machine
Price is negotiable
Manufacturer: Wotan
- Construction year: 1982/2004

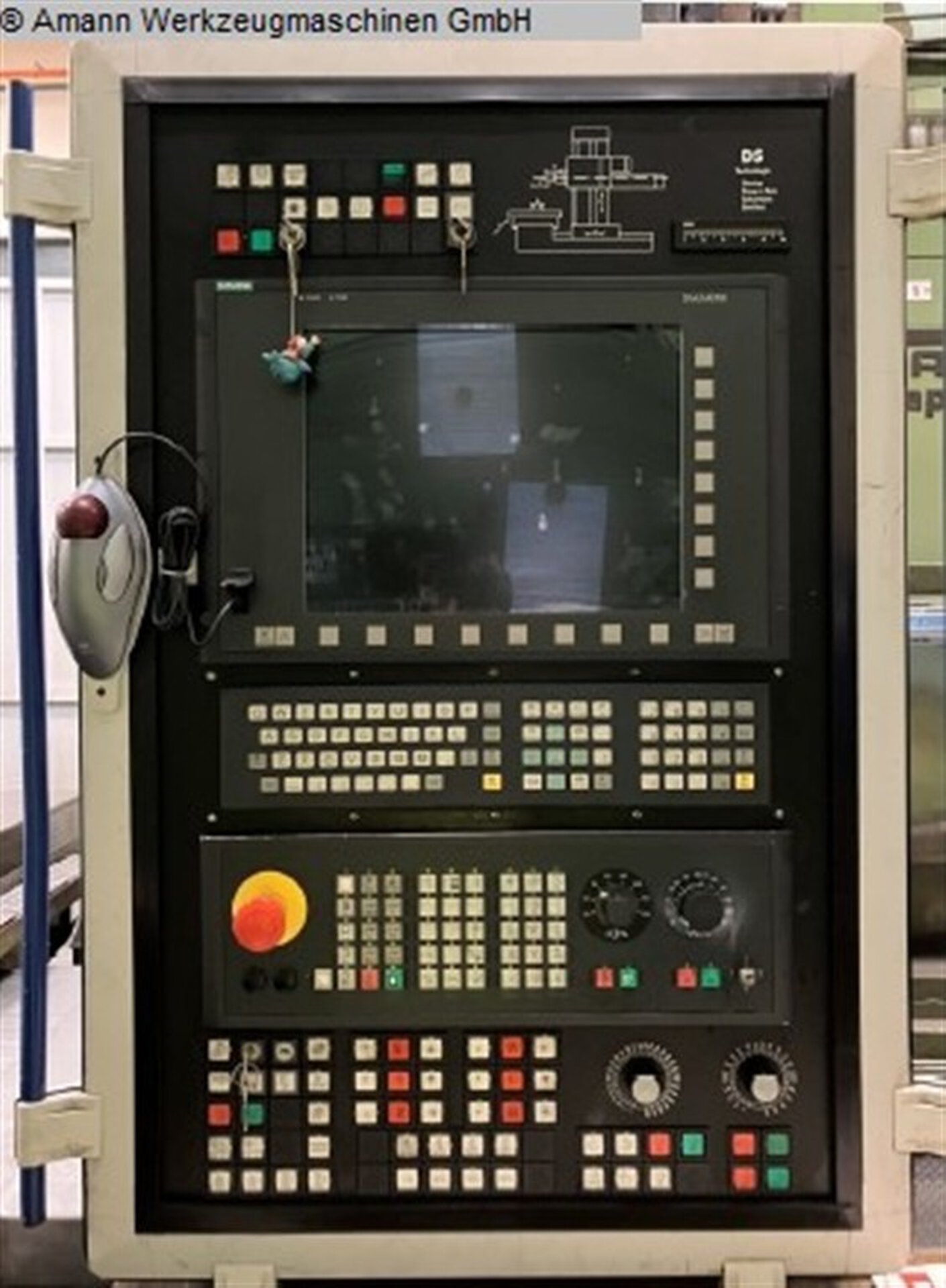

- Control Name: Siemens 840 D
- Control Type: CNC
- Delivery Time: immediately
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Table Type Boring and Milling Machine
- Status: Used
Product No. 3402-260404
Technical Details
| Spindle diameter | 150 | mm |
|---|---|---|
| X-travel | 3,000 | mm |
| Y-travel | 2,000 | mm |
| Spindle stroke | 700 | mm |

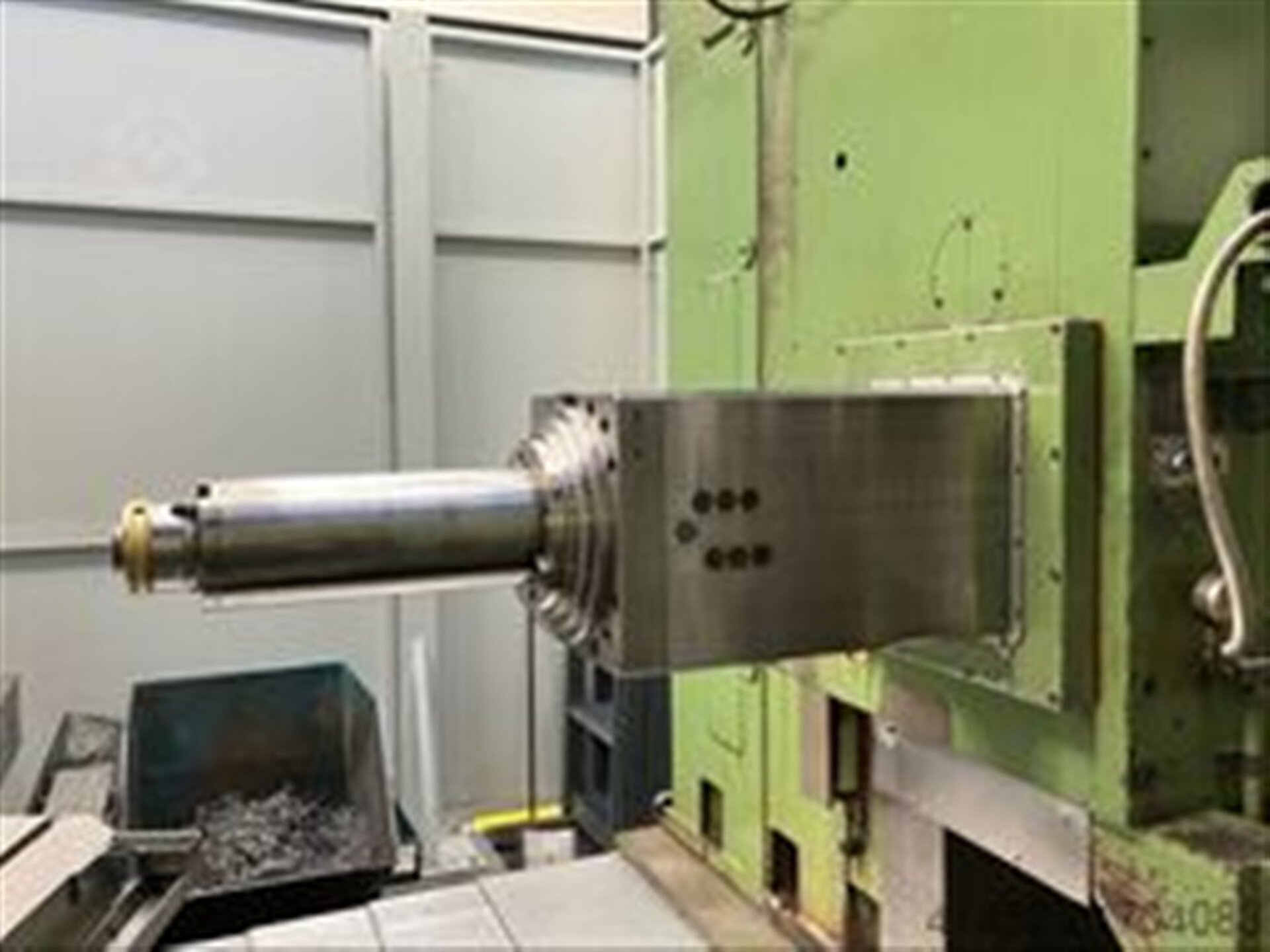

| Dimension of the ram | 340 × 340 | mm |
| Ram stroke | 700 | mm |
| Column travel | 1,500 | mm |
| High speed spindle taper ISO | 50 | |
| Bore spindle turning speed range | 3.2 – 1,600 | rpm |

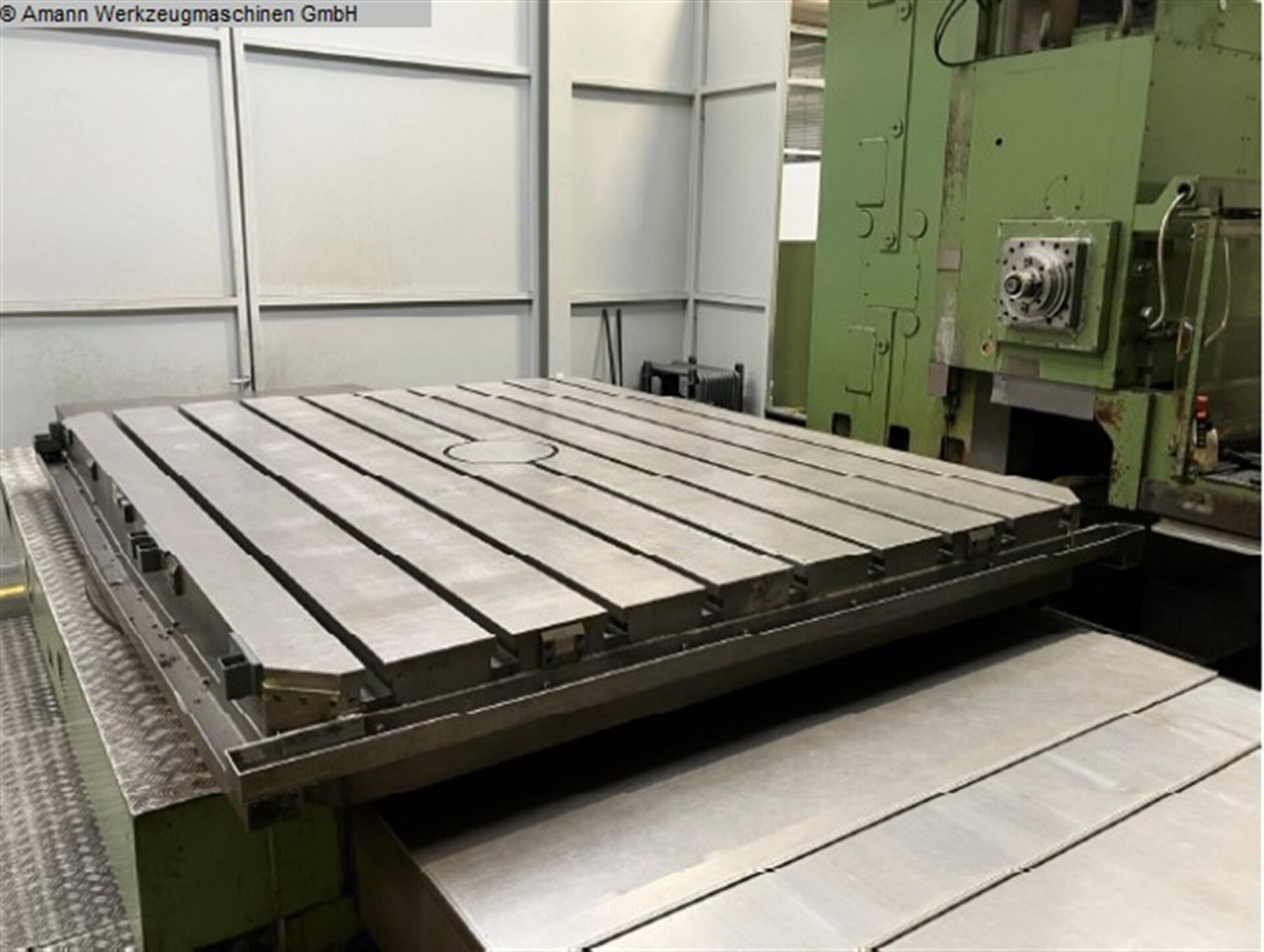

| Table surface area | 2,000 × 2,500 | mm |
| Max. table load | 25,000 | kg |
| Rapid traverse speed | 5/10 | |
| Feed speeds | 1 – 1,500 | mm/min |

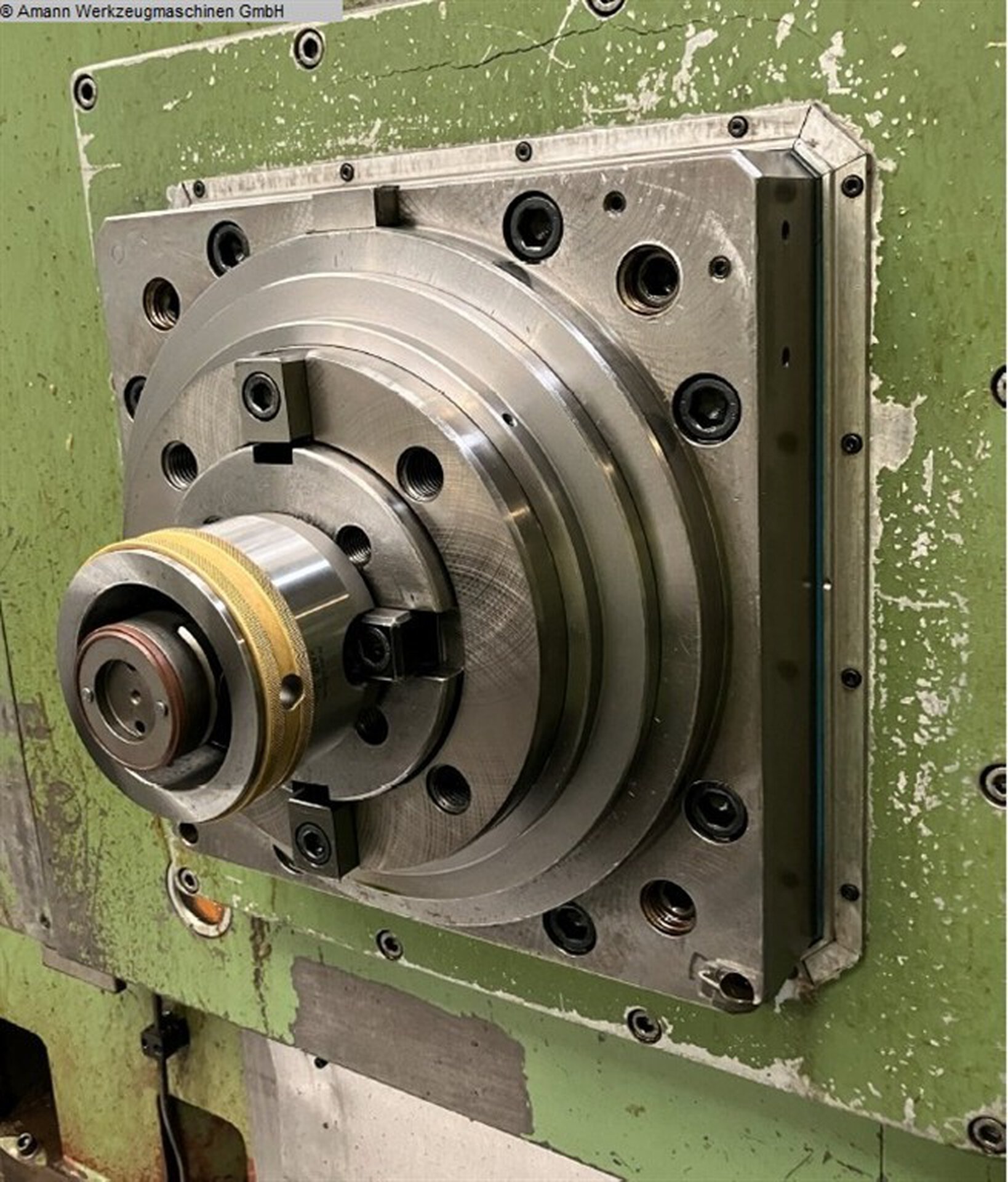

| Faceplate speeds from – to | 3.2 – 140 | rpm |
| Dimensions of the machine ca. | 8.4 × 6.8 × 5.9 | m |
| Weight of the machine ca. | 57 | t |
| Total power requirement | 100 | kW |
Full B-axis
Aerostatic guides
Coolant system with IKZ
