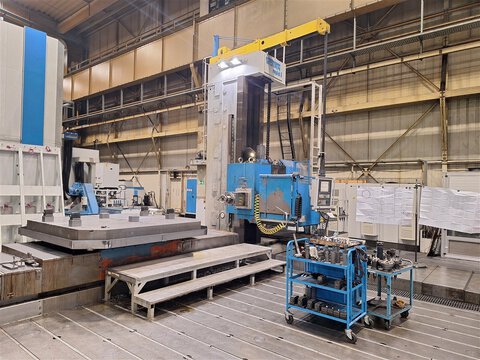

Wotan Rapid 5 C
Ram-Type Floor Boring and Milling M/C
Price is negotiable
Manufacturer: Wotan
- Construction year: 1983/2010
- Control Name: Siemens 840 Dsl completely modernized 2010
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Boring mills / Machining Centers / Drilling machines > Ram-Type Floor Boring and Milling M/C
Product No. 3402-250607
Technical Details
| Total power requirement | 120 | kW |
|---|---|---|
| Weight of the machine ca. | 115 | t |
| Dimensions of the machine ca. | 15.1 × 10 × 6.4 | m |
| X-travel | 10000 | mm |
| Y-travel | 2500 | mm |
| Spindle taper ISO | 50 | |
| Spindle diameter | 150 | mm |
| Rapid traverse | 5 | mm/min |
| Bore spindle stroke | 700 | mm |
| Speed of boring spindles | 1.25 – 1250 | U/min. |
| Ram stroke | 700 | mm |
| Dimension of the ram | 340 × 340 mm | mm |
CNC control Siemens 840 Dsl completely modernized 2010
FIBRO CNC drilling work table 2500 × 2500 mm
50 to. workpiece weight
Longitudinal travel 2500 mm
Angular milling head 4 × 90°
Universal angular milling head
Panel area approx. 10000 × 5000 mm
Chip conveyor and coolant device
Aerostatic guides
