APICOM UIP 5000
Analysers

Performance
·Max. motor power: 30 kW
·Max. engine speed: 10,000 rpm
·Rated torque (test bench): > 100 Nm
·Max. braking torque: up to 122 Nm
·Max. braking power: up to 46 kW (overload)
Dynamometer
·Type: AC asynchronous dynamometer, frequency-controlled
·Voltage: 360 V
·Cooling: Forced ventilation (IC06)
·Protection class: IP23
·Insulation class: F
·Speed range: 0 – 10,000 rpm
·Continuous operation: up to 40 kW (depending on speed)
·Overload capability: 1 min every 10 min
Measurement System
·Torque measurement:
oHBM T12HP torque flange
oMeasurement range: 200 Nm
oAccuracy class: 0.02
·Speed measurement:
oIncremental encoder, 1024 pulses/rev
oAccuracy: ±0.01 rpm
·Vibration monitoring:
oIntegrated vibration sensor

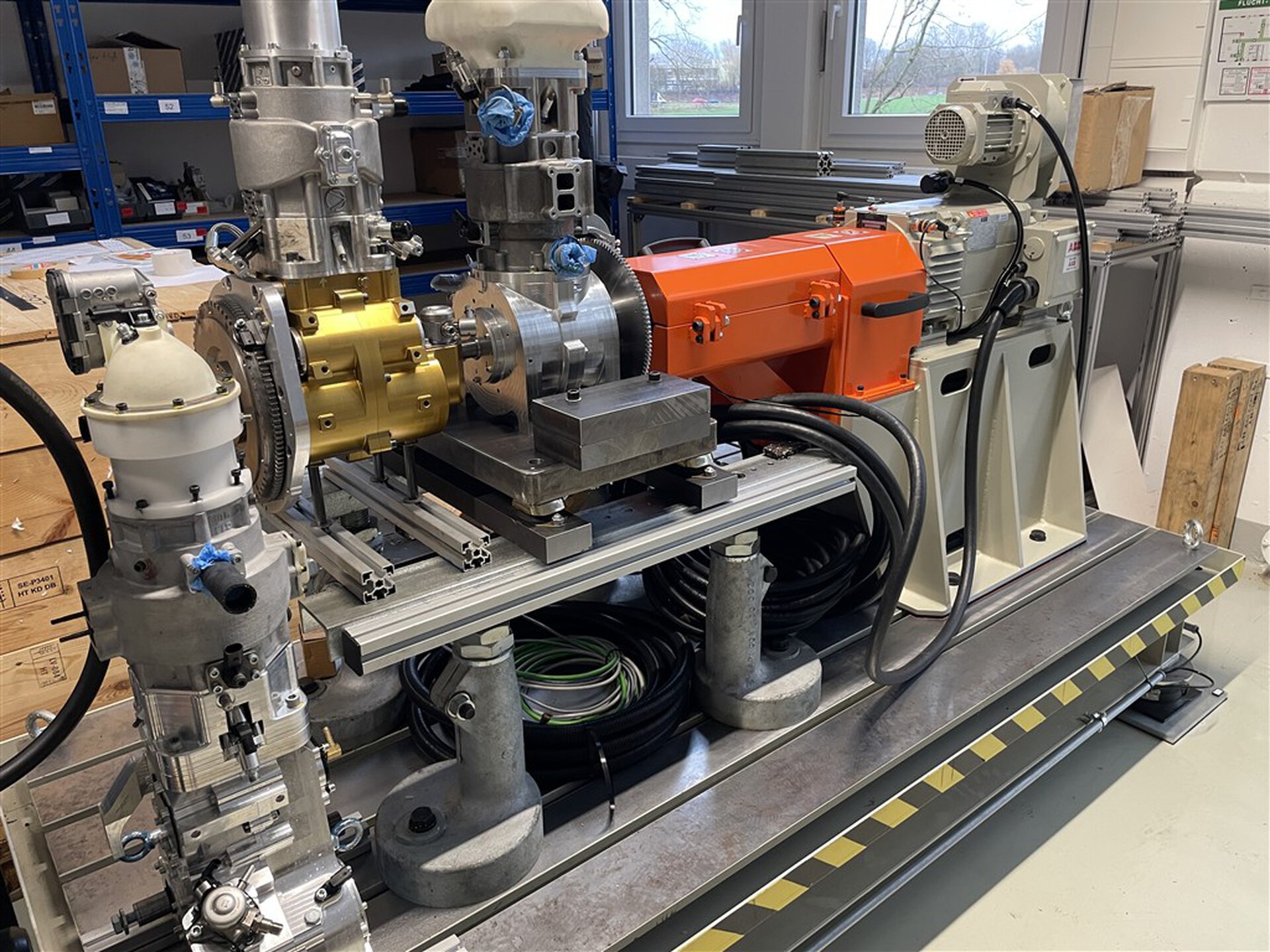

Mechanical Structure
·Slotted base plate with air suspension (Bilz air springs)
·Vibration-damped test bench
·Motor mounting system:
oAdjustable aluminum frame
oMax. motor weight: 500 kg
oCoupling shaft with protective cover and locking
·Torque calibration system with certified calibration weights
Electrical & Control
·Power supply:
o400 V / 50 Hz / 3-phase (approx. 50 kVA)
o230 V / 50 Hz / single-phase (control system)
·Inverter: ABB ACS880 regenerative inverter (4-quadrant operation)
·Control system:
oAPICOM UIP 5000 Combo
oOperating modes: manual, automatic, ramp mode, and remote control
oTouchscreen interface
oAutomation software: APICOM HORUS SE
Safety
·Integrated emergency stop system (SIL 2 / PL d)
·Safety interlocks for coupling and test bench
·Monitoring of overspeed, overtemperature, and vibrations
Operating Conditions
·Ambient temperature: 5 – 40 °C
·Relative humidity: < 90 % (non-condensing)
·Installation altitude: up to 1,000 m
Typical Applications
·Research & development for engines
·Small internal combustion engines
·Generator and drivetrain testing
·Laboratory and test bench operation
