Mori Seiki NL 2500 SY700
CNC Torna Tezgahı
Price is negotiable
Üretici firma: Mori Seiki
- İnşaat yılı: 2007

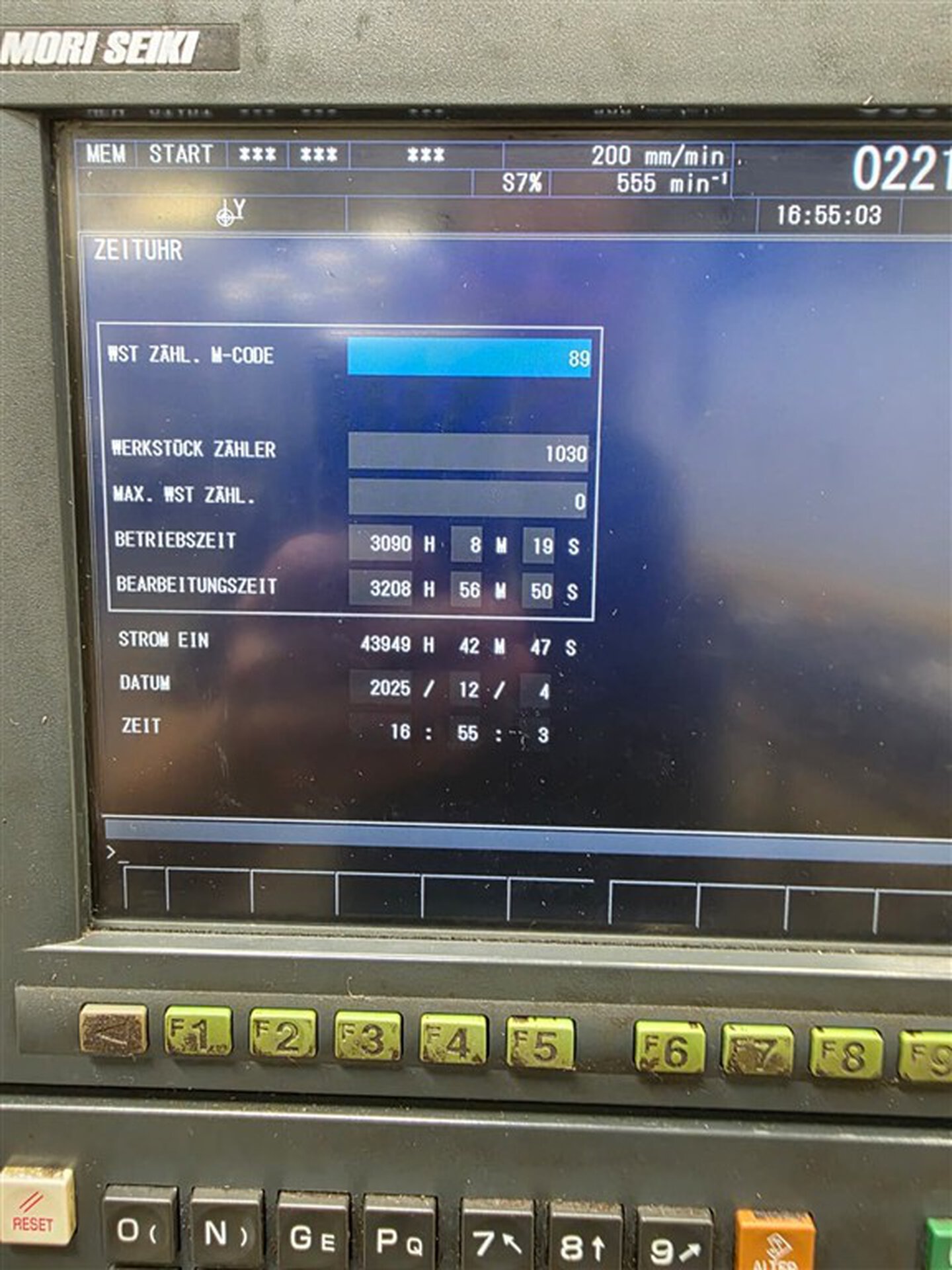

- Denetim Adı: Mapps 3
- Kontrol Türü: CNC
- Metal İşleme > Torna > CNC Torna Tezgahı
- Durum: Kullanılmış
Ürün No. 3402-260219
Teknik Detaylar
| Dönme çapı | 356 | mm |
|---|---|---|
| Dönüş uzunluğu | 700 | mm |
| Y ekseni | ±60 | mm |
| Mil tahriki | 18 | kW |
| Counterspindle motor | 15 | kW |
| Direct drive for driven tools | 5,5 | kW |
| Motor starting torque | 640 | Nm |
| Main spindle mount | A2–8 | |
| Counter spindle mount | A2–6 | |
| Rod passage | 80 | mm |
| Ana mil hızları: | 4 000 | min-1 |
| Drehzahl angetriebene Werkzeuge | 6 000 | dev/dak |
| Rapid traverse speed | 30 m/min auf X- und Z-Achse | |
| Makine ağırlığı yaklaşık | 5 800 | kg |

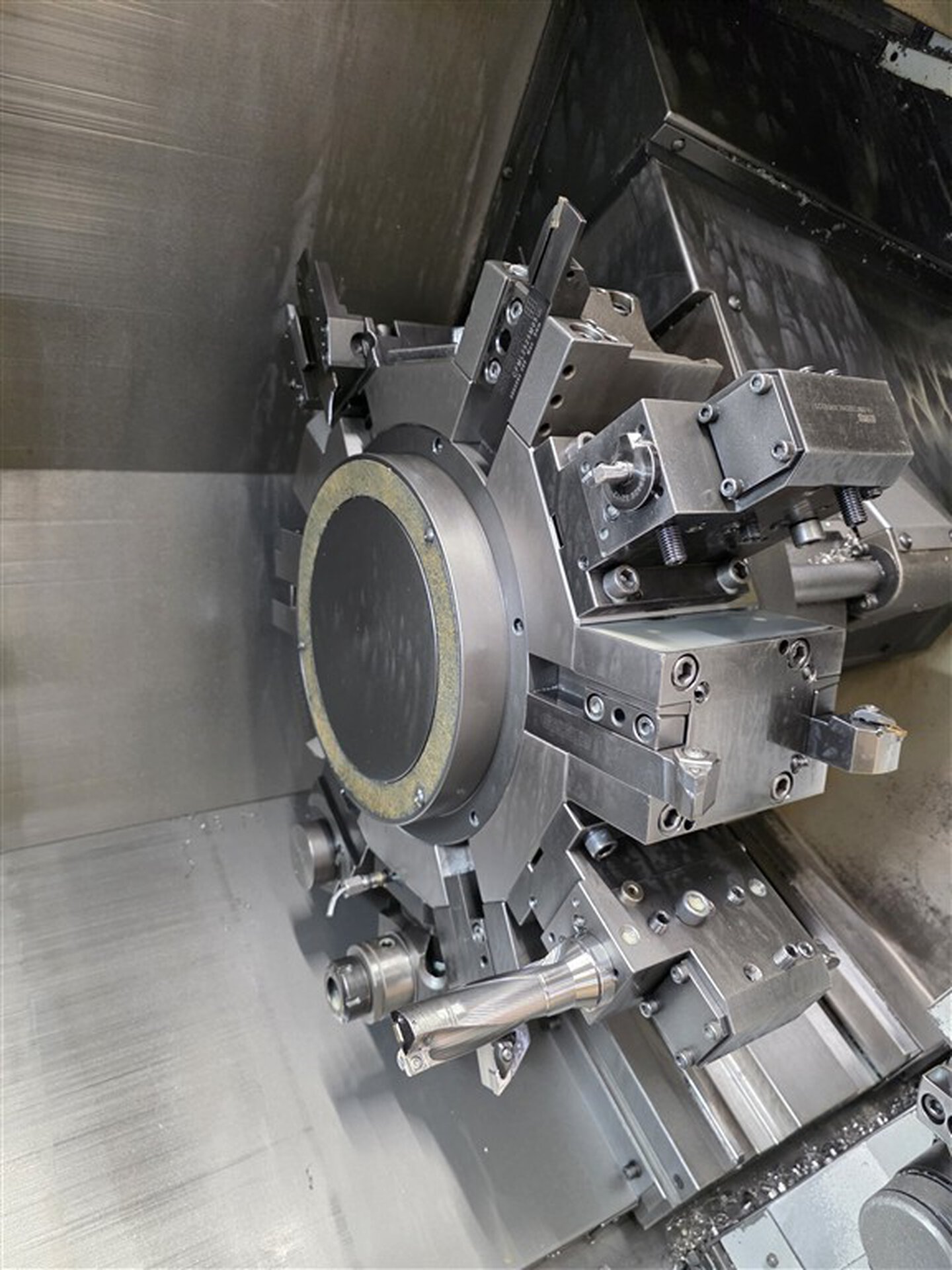

12-station turret, all positions driven
C-axis on both spindles
Belt-driven and infinitely variable drive on all motors
Prismatic guideways on all axes
Oil cooler for both spindles, manufacturer Daikin
Automatic, dialog-guided programming system MAPPS
Automatic monitoring of tool load and tool wear
Two Renishaw measuring arms for automatic tool measurement
Interfaces: USB, PCMCIA card, and RS-232 port
Interface for bar feeder
Automatic parts catcher
Dual foot pedal for independent opening and closing of the chucks on main and sub-spindle
Side-mounted chip conveyor with hinged belt
Electrical transformer
Documentation included: spare parts list, electrical schematics, programming and operating manuals
Bar feeder LNS Servo 3
Tool holder system BMT 65
Condition: wear consistent with age
For sale due to conversion to Siemens control system
