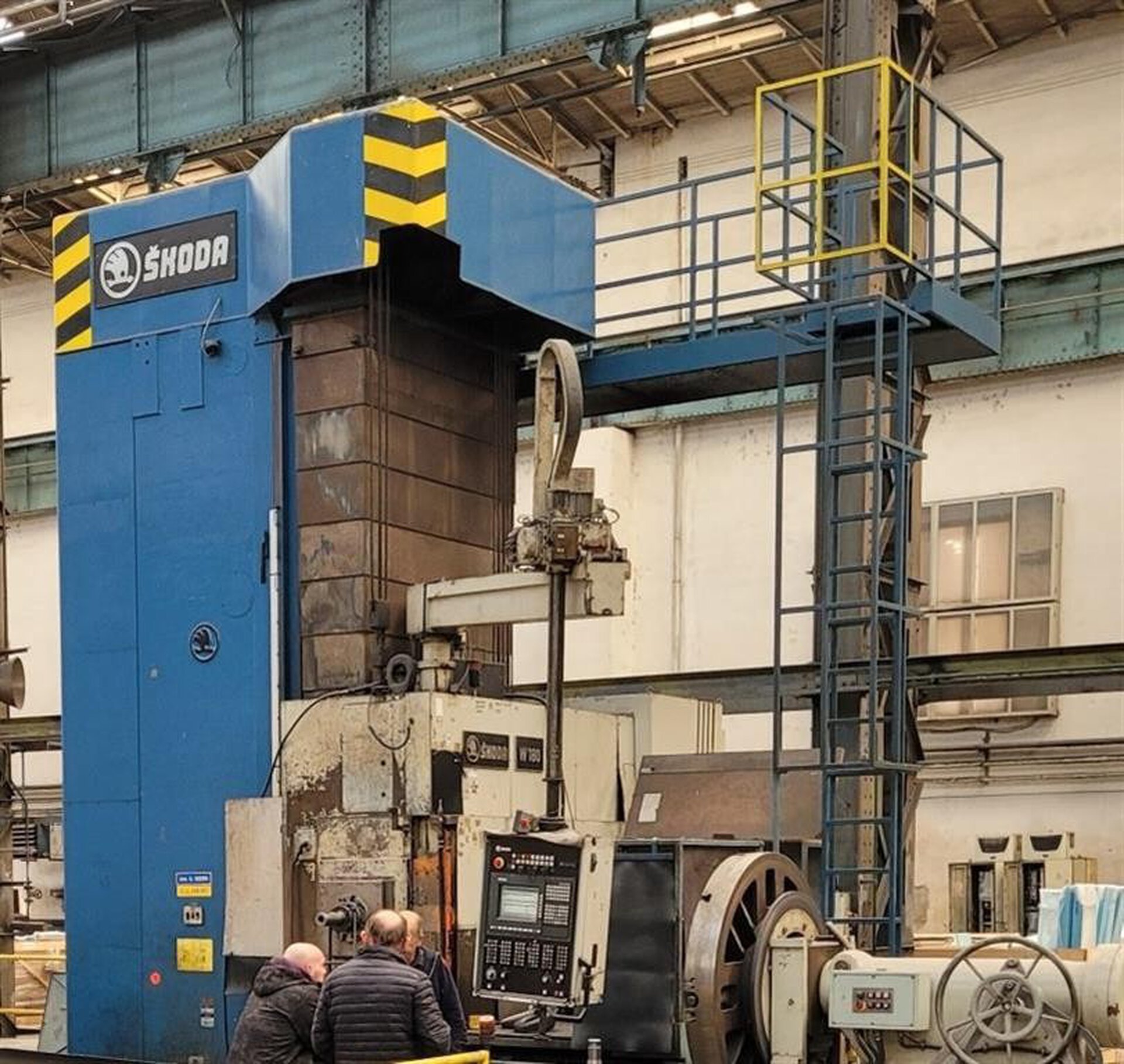

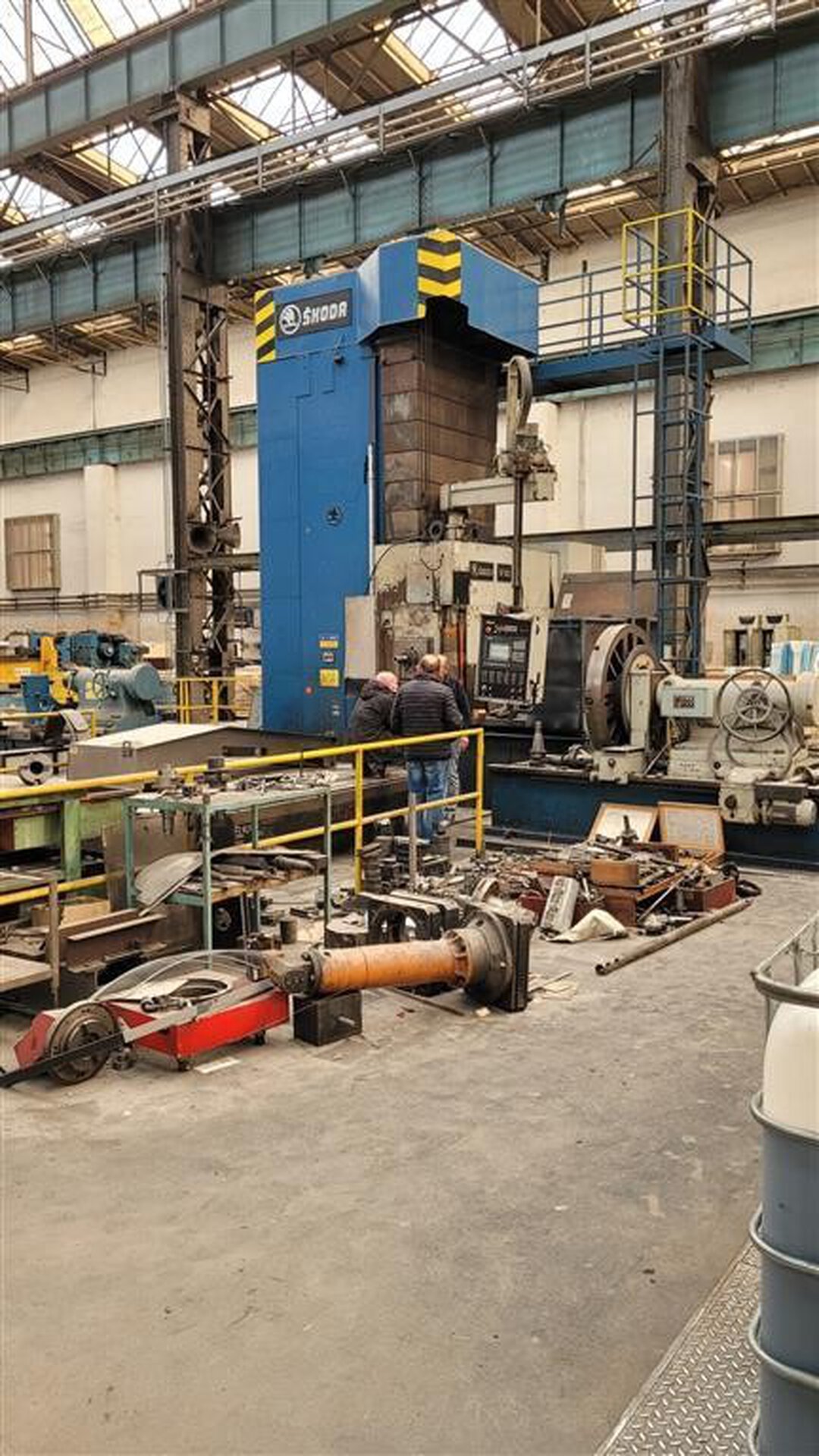

SKODA W 180 NC
Ram Tipi Zemin Delme ve Frezeleme Makinesi

Machine Technical Data
·Machine weight: approx. 130 t including accessories
·Z travel (ram): 1250 mm
·W axis (spindle): 1000 mm
·Sleeve extension: 1250 mm
·Sleeve dimensions: 450 × 450 mm
·Boring spindle stroke: 1000 mm
·Boring spindle speed: 920 rpm

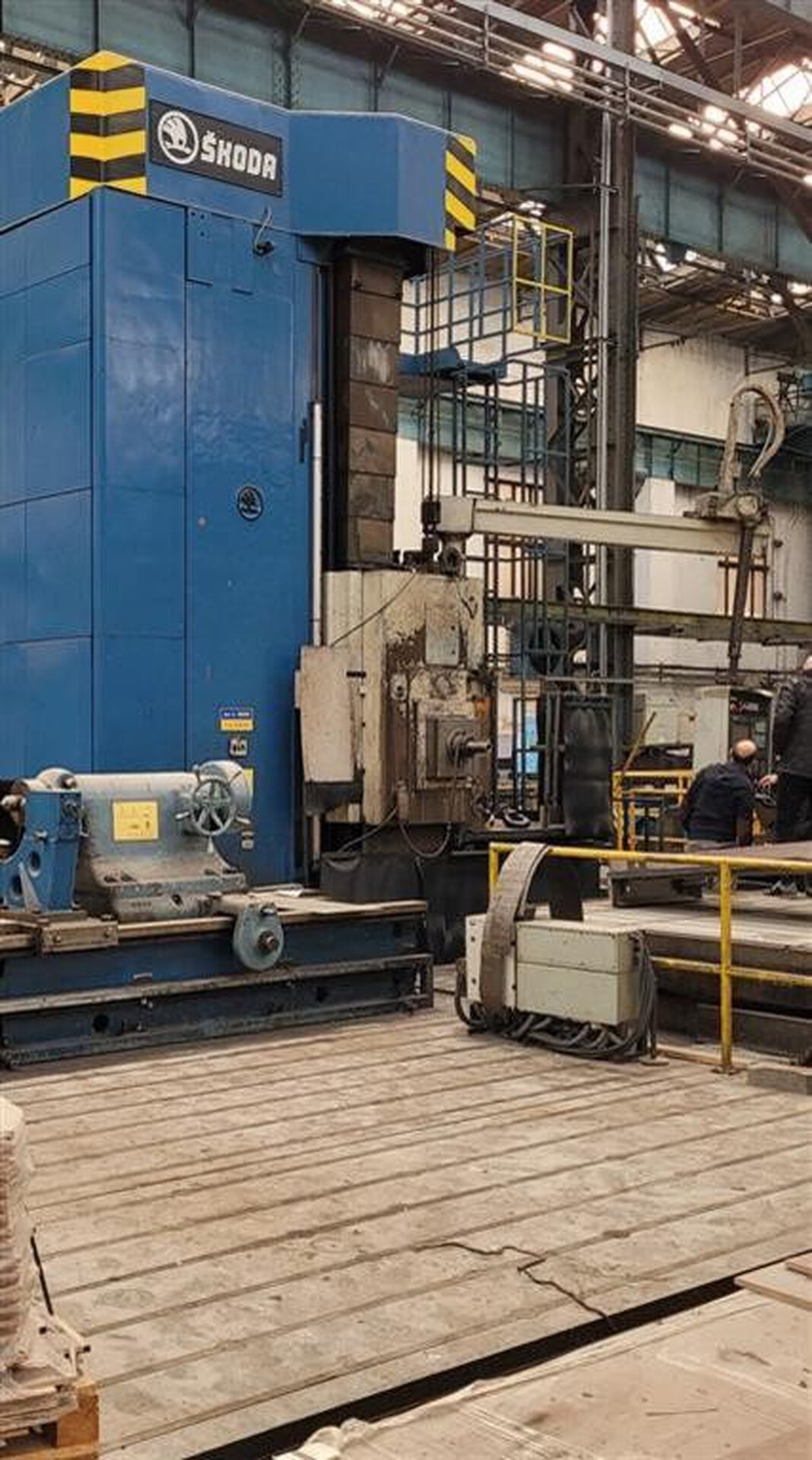

Rotary Table:
·Motor driven rotary table
·IOS 40

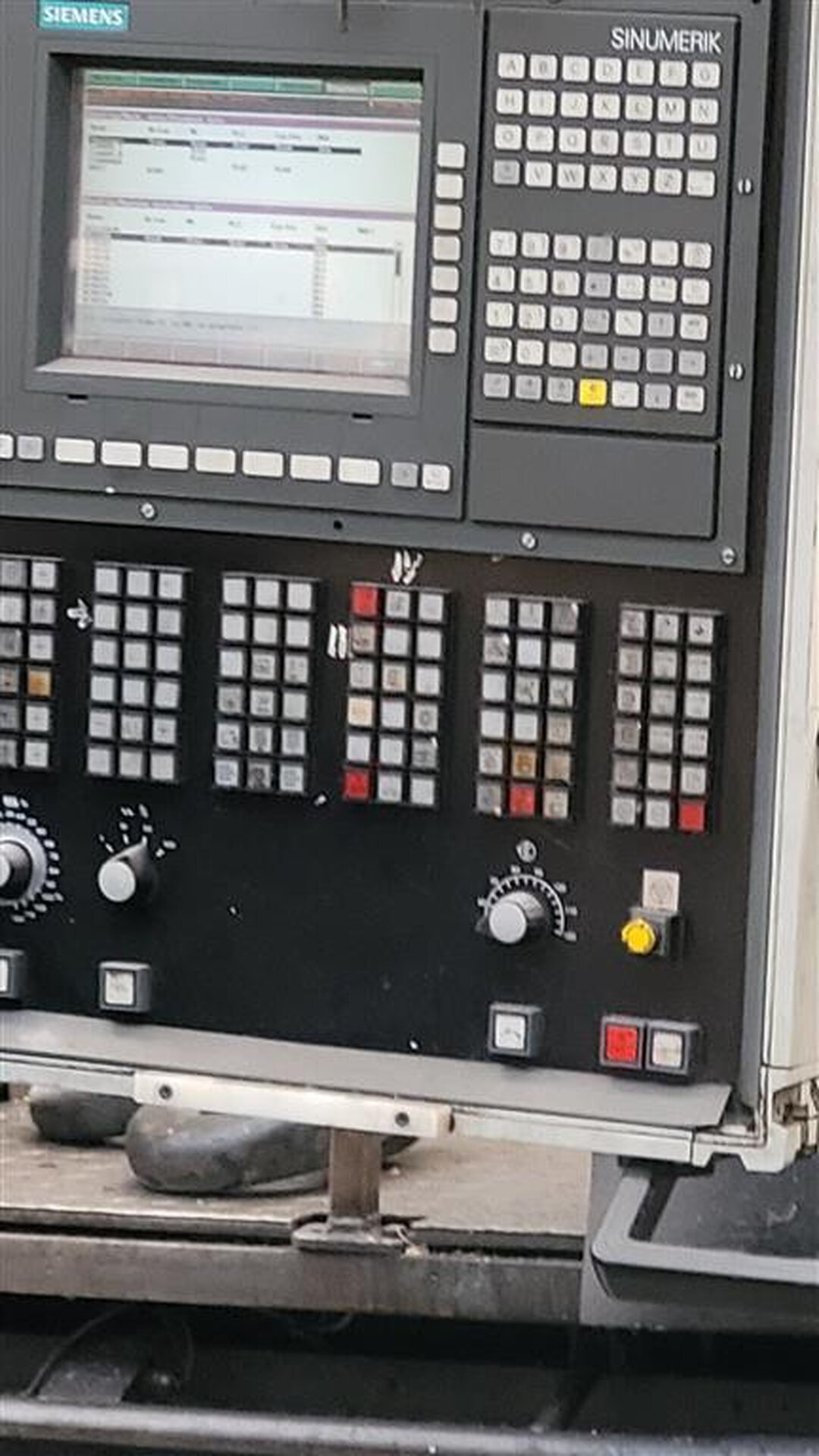

·CNC control
·2 axes B and V
·Rotary table size: 3000 × 3500 mm
·Rotary table CNC IOS 40 NC
Indexing and Accuracy:
·Infinitely adjustable
·Diameter related
·Indexing: 4 × 90 degrees up to 360000
·Angular resolution: 0.001 degrees
Travel Ranges:
·Longitudinal cross travel: 1230 mm
Load Capacity:
·Maximum rotary table load: 40 t
Clamping Plate:
·Clamping plate: 3 × 8000 × 2000 mm
