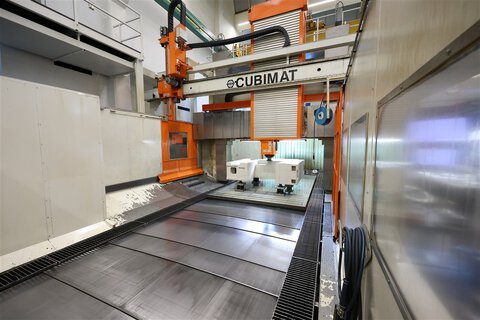

KOLB CUBIMAT Vd 3000
Planer-Type Milling M/C – Double Column
Price is negotiable
Manufacturer: KOLB
- Construction year: 1999/2020
- Delivery Time: immediately
- Control Type: CNC
- Status: Used
- Metal Processing > Milling machines > Planer-Type Milling M/C – Double Column
Product No. 3402-250804
Technical Details
| Total power requirement | 120 | kW |
|---|---|---|
| Weight of the machine ca. | 245 | t |
| Dimensions of the machine ca. | 29.0 × 7.7 × 8.1 | m |
| X-travel | 6500/13150 | mm |
| Y-travel | 4000 | mm |
| Z-travel | 1250 | mm |
| Table surface area | 5500/12150 × 3000 | mm |
| Distance between columns | 3500 | mm |
| Tool taper | DIN 39871 AD ISO 50 | |
| W-axis | 2250 | mm |
| Feed speeds | 1 – 24000 | mm/min |
| Milling head speed | 6.3 – 4000 | rpm |
| Ram head dimension | 480 × 510 | mm |
| Max. workpiece weight | 70.000/105.000 | kg |
| Milling spindle motor | 63 | kW |
| Max. torque on the spindle | 3300 | Nm |
| Passage | 3000 | mm |
Machine is in nearly new condition and was completely modernized in 2020!
With CNC SIEMENS 840 D
Automatic tool magazine for 153 tool positions
Automatic milling head magazine for 6 milling heads
Machining module – straight – straight long –
Machining module – angle standard – 4000 rpm, 144 × 2.5°, ISO 50
Machining module – narrow angle extended – 40 kW, 4000 rpm, 1800 Nm, 144 × 2.5°, ISO 50
Machining module – universal index – 40 kW, 4000 rpm, 2100 Nm,
C-axis 144 × 2.5°, B-axis ±44 × 2.5°, ISO 50
Cooling system, chip conveyor
